2-3

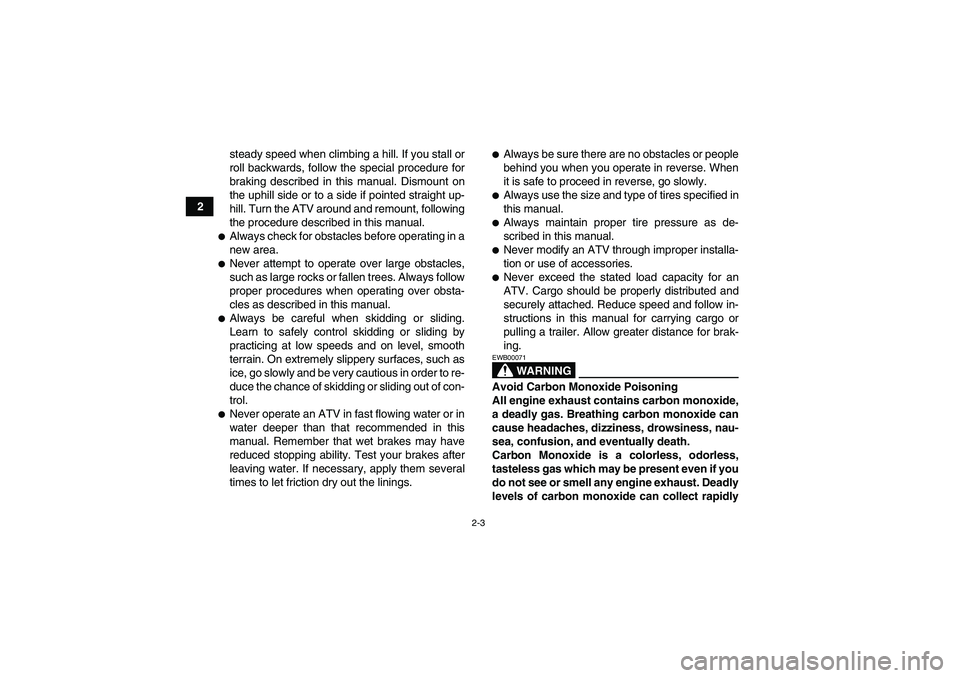

2steady speed when climbing a hill. If you stall or
roll backwards, follow the special procedure for
braking described in this manual. Dismount on
the uphill side or to a side if pointed straight up-
hill. Turn the ATV around and remount, following
the procedure described in this manual.

Always check for obstacles before operating in a
new area.
Never attempt to operate over large obstacles,
such as large rocks or fallen trees. Always follow
proper procedures when operating over obsta-
cles as described in this manual.
Always be careful when skidding or sliding.
Learn to safely control skidding or sliding by
practicing at low speeds and on level, smooth
terrain. On extremely slippery surfaces, such as
ice, go slowly and be very cautious in order to re-
duce the chance of skidding or sliding out of con-
trol.
Never operate an ATV in fast flowing water or in
water deeper than that recommended in this
manual. Remember that wet brakes may have
reduced stopping ability. Test your brakes after
leaving water. If necessary, apply them several
times to let friction dry out the linings.

Always be sure there are no obstacles or people
behind you when you operate in reverse. When
it is safe to proceed in reverse, go slowly.
Always use the size and type of tires specified in
this manual.
Always maintain proper tire pressure as de-
scribed in this manual.
Never modify an ATV through improper installa-
tion or use of accessories.
Never exceed the stated load capacity for an
ATV. Cargo should be properly distributed and
securely attached. Reduce speed and follow in-
structions in this manual for carrying cargo or
pulling a trailer. Allow greater distance for brak-
ing.
WARNING
EWB00071Avoid Carbon Monoxide Poisoning
All engine exhaust contains carbon monoxide,
a deadly gas. Breathing carbon monoxide can
cause headaches, dizziness, drowsiness, nau-
sea, confusion, and eventually death.
Carbon Monoxide is a colorless, odorless,
tasteless gas which may be present even if you
do not see or smell any engine exhaust. Deadly
levels of carbon monoxide can collect rapidly
U1CT60E0.book Page 3 Monday, May 31, 2010 10:05 AM

5-6
5

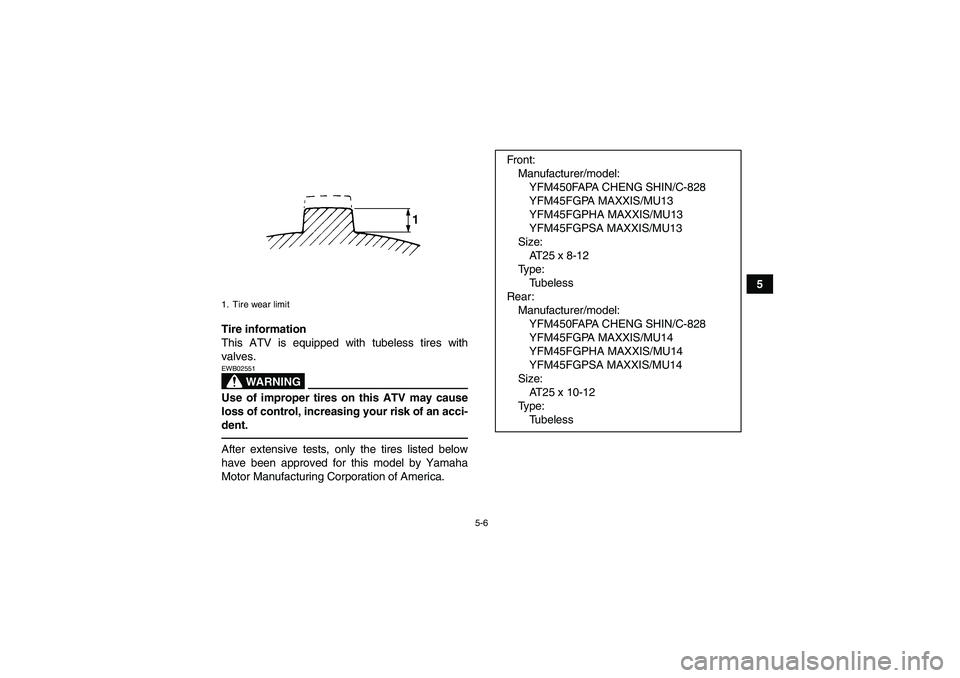

Tire information
This ATV is equipped with tubeless tires with
valves.
WARNING
EWB02551Use of improper tires on this ATV may cause
loss of control, increasing your risk of an acci-
dent.After extensive tests, only the tires listed below
have been approved for this model by Yamaha
Motor Manufacturing Corporation of America.1. Tire wear limit
Fro nt:
Manufacturer/model:
YFM450FAPA CHENG SHIN/C-828
YFM45FGPA MAXXIS/MU13
YFM45FGPHA MAXXIS/MU13
YFM45FGPSA MAXXIS/MU13
Size:
AT25 x 8-12
Type:
Tu b e l e s s
Rear:
Manufacturer/model:
YFM450FAPA CHENG SHIN/C-828
YFM45FGPA MAXXIS/MU14
YFM45FGPHA MAXXIS/MU14
YFM45FGPSA MAXXIS/MU14
Size:
AT25 x 10-12
Type:
Tu b e l e s s
U1CT60E0.book Page 6 Monday, May 31, 2010 10:05 AM

10-3
10
Air filter:Air filter element:
Wet elementFuel:Recommended fuel:
YFM450FAPA Unleaded gasoline only
YFM45FGPA Regular unleaded gasoline only
YFM45FGPHA Regular unleaded gasoline only
YFM45FGPSA Regular unleaded gasoline only
Fuel tank capacity:
15.0 L (3.96 US gal, 3.30 Imp.gal)
Fuel reserve amount:
4.5 L (1.19 US gal, 0.99 Imp.gal)Carburetor:Type × quantity:
BSR33 x 1Spark plug (s):Manufacturer/model:
NGK/DR8EA
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:
Wet, centrifugal automaticTransmission:Primary reduction system:
V-belt
Secondary reduction system:
Shaft drive
Secondary reduction ratio:
39/24 × 24/18 × 33/9 (7.944)Transmission type:
V-belt automatic
Operation:
Left hand operation
Reverse gear:
29/17 (1.706)
Low range:
45/16 (2.813)
High range:
38/23 (1.652)
Chassis:Frame type:
Steel tube frame
Caster angle:
2.5 °
Trail:
8.5 mm (0.33 in)Front tire:Type:
Tubeless
Size:
AT25 x 8-12
Manufacturer/model:
YFM450FAPA CHENG SHIN/C-828
YFM45FGPA MAXXIS/MU13
YFM45FGPHA MAXXIS/MU13
YFM45FGPSA MAXXIS/MU13Rear tire:Type:
Tubeless
Size:
AT25 x 10-12
U1CT60E0.book Page 3 Monday, May 31, 2010 10:05 AM

10-4
10
Manufacturer/model:
YFM450FAPA CHENG SHIN/C-828
YFM45FGPA MAXXIS/MU14
YFM45FGPHA MAXXIS/MU14
YFM45FGPSA MAXXIS/MU14Loading:Maximum loading limit:
210.0 kg (463 lb)
(Total weight of rider, cargo, accessories, and tongue)Tire air pressure (measured on cold tires):Recommended:
Front:
25.0 kPa (0.250 kgf/cm², 3.6 psi)
Rear:
25.0 kPa (0.250 kgf/cm², 3.6 psi)
Minimum:
Front:
22.0 kPa (0.220 kgf/cm², 3.2 psi)
Rear:
22.0 kPa (0.220 kgf/cm², 3.2 psi)Front wheel:Wheel type:
YFM450FAPA Panel wheel
YFM45FGPA Panel wheel
YFM45FGPHA Panel wheel
YFM45FGPSA Cast wheel
Rim size:
12 x 6.0AT
Rear wheel:Wheel type:
YFM450FAPA Panel wheel
YFM45FGPA Panel wheel
YFM45FGPHA Panel wheel
YFM45FGPSA Cast wheel
Rim size:
12 x 7.5ATFront brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Wet multiple disc brake
Operation:
Left hand and right foot operationFront suspension:Type:
Double wishbone
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
160 mm (6.3 in)Rear suspension:Type:
Double wishbone
