Page 11 of 174

Adjusting the rear brake lever and brake pedal free play, and the brake pedal
height ..................................................... 8-41
Axle boots ................................................ 8-47
Brake light switches ................................. 8-48
Checking and lubricating the cables ........ 8-48
Checking and lubricating the front and rear brake levers .................................... 8-49
Checking and lubricating the brake pedal ...................................................... 8-50
Checking the wheel hub bearings ............ 8-50
Lubricating the drive shaft universal joint ......................................................... 8-50
Checking the stabilizer bushes ................ 8-51
Lubricating the rear knuckle pivots ........... 8-52
Lubricating the steering shaft ................... 8-52
Battery ...................................................... 8-53
Replacing a fuse ...................................... 8-55
Replacing a headlight bulb ....................... 8-58
Adjusting a headlight beam ...................... 8-60
Replacing the tail/brake light bulb ............ 8-60
Removing a wheel .................................... 8-62
Installing a wheel ...................................... 8-62
Troubleshooting ....................................... 8-64
Troubleshooting charts ............................. 8-65 CLEANING AND STORAGE ..........................9-1
Cleaning ......................................................9-1
Storage .......................................................9-2
SPECIFICATIONS .......................................10-1
CONSUMER INFORMATION.......................11-1 Identification numbers ...............................11-1
U2LC60E0.book Page 3 Friday, March 8, 2013 1:18 PM
Page 29 of 174

3-1
3
EBU17680
DESCRIPTION
EBU17690Left view
EBU17700Right view
1. Radiator cap
2. Fuel cock
3. Throttle stop screw
4. Air filter case
5. Battery
6. Fuses
7. Tail/brake light
8. Engine oil filler cap
9. Oil filter cartridge
10.Coolant reservoir
11.V-belt cooling duct check hose
1 2 3 4 5,6 78
91011
1. Rear shock absorber assembly spring preload adjusting
ring
2. Spark arrester
3. Rear storage compartment and tool kit
4. Spark plug
5. Front shock absorber assembly spring preload adjusting ring
6. Rear brake light switch
7. Brake pedal
8. V-belt case drain plug1
2
3
4
5
6
7
8
U2LC60E0.book Page 1 Friday, March 8, 2013 1:18 PM
Page 54 of 174

4-24
45. Turn the accessory on.
6. When the auxiliary DC jack is not being used,
cover it with the cap.
NOTICEECB00120●Do not use accessories requiring more than
the above maximum capacity. This may
overload the circuit and cause the fuse to
blow.●If accessories are used without the engine
running or with the headlights turned on, the
battery will lose its charge and engine start-
ing may become difficult.●Do not use an automotive cigarette lighter or
other accessories with a plug that gets hot
because the jack can be damaged.Maximum rated capacity for the auxiliary DC
jack:DC 12 V, 10 A (120 W)
U2LC60E0.book Page 24 Friday, March 8, 2013 1:18 PM
Page 147 of 174

8-55
8
2. Connect the positive battery lead first, then
connect the negative battery lead by installing
their bolt. NOTICE: When installing the bat-
tery, the main switch must be off, and the
positive lead must be connected before
the negative lead.
[ECB01110]
3. Install the battery holding plate by installing the bolts.
4. Install the seat. (See page 4-18.)
EBU30800Replacing a fuse The main fuse, the EPS fuse, and the fuse box are
located under the seat. (See page 4-18.)
For non-EPS models
1. Positive battery lead (red)
2. Negative battery lead (black)
1
2
1. Main fuse
2. Fuse box
3. Spare main fuse
1
2
3
U2LC60E0.book Page 55 Friday, March 8, 2013 1:18 PM
Page 148 of 174

8-56

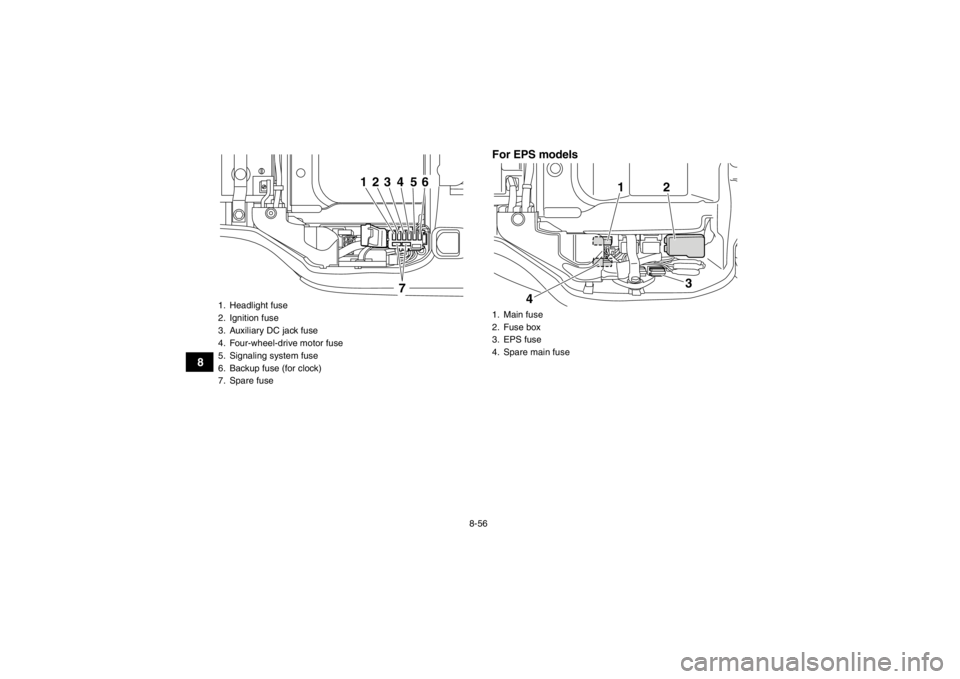

8For EPS models
1. Headlight fuse
2. Ignition fuse
3. Auxiliary DC jack fuse
4. Four-wheel-drive motor fuse
5. Signaling system fuse
6. Backup fuse (for clock)
7. Spare fuse
1
2
3
4
5
6
7
1. Main fuse
2. Fuse box
3. EPS fuse
4. Spare main fuse
12
3
4
U2LC60E0.book Page 56 Friday, March 8, 2013 1:18 PM
Page 149 of 174

8-57
8
If a fuse is blown, replace it as follows. 1. Turn the key to “OFF” and turn off all electrical circuits.
NOTICEECB00640To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse.
2. Remove the blown fuse, and then install anew fuse of the specified amperage.
WARNING! Always use a fuse of the spec- ified rating, and never use a substitute ob-
ject in place of the proper fuse. An
improper fuse or a substitute object can
cause damage to the electrical system,
which could lead to a fire.
[EWB02172]

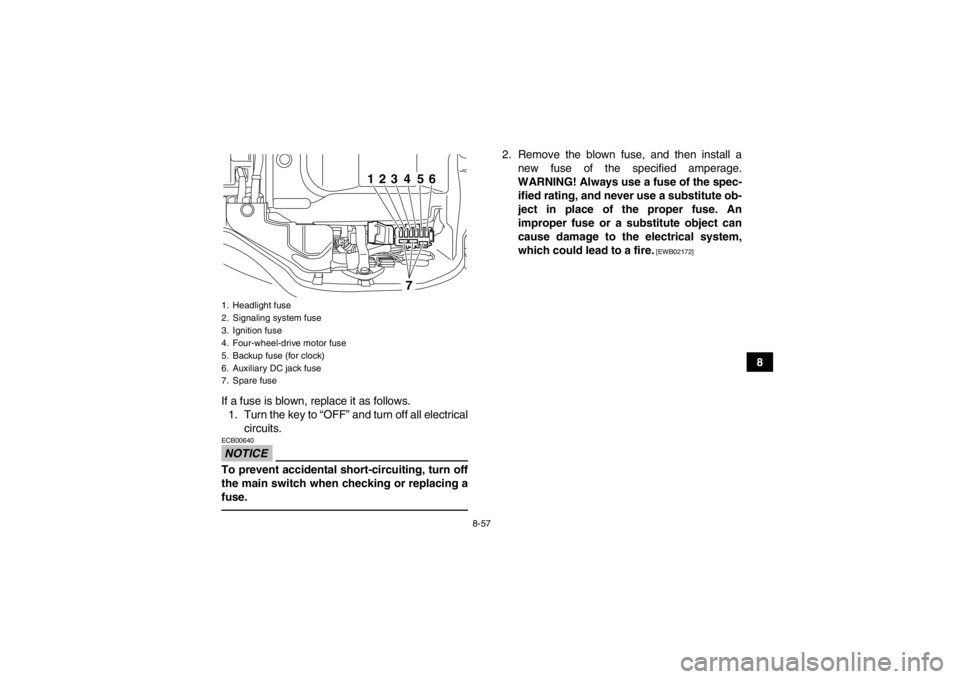

1. Headlight fuse
2. Signaling system fuse
3. Ignition fuse
4. Four-wheel-drive motor fuse
5. Backup fuse (for clock)
6. Auxiliary DC jack fuse
7. Spare fuse
1
2
3
4
5
6
7
U2LC60E0.book Page 57 Friday, March 8, 2013 1:18 PM
Page 150 of 174

8-58
83. Turn the key to “ON” and turn on the electricalcircuits to check if the devices operate.
4. If the fuse immediately blows again, have a Yamaha dealer check the electrical system.
EBU25481Replacing a headlight bulb If a headlight bulb burns out, replace it as follows.1. Remove the cover at the rear of the headlight by pulling it off.
2. Remove the headlight bulb holder cover by pulling it off.
Specified fuses:
Main fuse:30.0 A
Headlight fuse: 15.0 A
Ignition fuse: 10.0 A
Four-wheel-drive motor fuse: 10.0 A
Signaling system fuse: 10.0 A
Auxiliary DC jack fuse: 10.0 A
Backup fuse: YFM450DE 10.0 A
YFM450PE 5.0 A
YFM450PHE 5.0 A
EPS fuse: YFM450PE 40.0 A
YFM450PHE 40.0 A1. Cover at the rear of the headlight
U2LC60E0.book Page 58 Friday, March 8, 2013 1:18 PM
Page 166 of 174

10-5
10
Bulb voltage, wattage × quantity:Headlight:
12 V, 30.0/30.0 W × 2
Tail/brake light:
12 V, 5.0/21.0 W × 1
Meter lighting: EL (Electroluminescent)
Neutral indicator light: LED
Reverse indicator light:
LED
Coolant temperature warning light: LED
Park indicator light: LED
On-Command four-wheel-drive/differential gear lock
indicator: LCD
High-range indicator light:
LED
Low-range indicator light: LED
Differential gear lock indicator light: LED
EPS warning light:
YFM450PE 12 V, 1.7 W
YFM450PHE 12 V, 1.7 WFuses:Main fuse:30.0 A EPS fuse:
YFM450PE 40.0 A
YFM450PHE 40.0 A
Headlight fuse: 15.0 A
Signaling system fuse: 10.0 A
Ignition fuse:
10.0 A
Auxiliary DC jack fuse: 10.0 A
Backup fuse: YFM450DE 10.0 A
YFM450PE 5.0 A
YFM450PHE 5.0 A
Four-wheel-drive motor fuse: 10.0 A
U2LC60E0.book Page 5 Friday, March 8, 2013 1:18 PM
Page 170 of 174

INDEX
AAccessories and loading ................................................ 6-6
Accessories, auxiliary jack ........................................... 4-23
Air filter element, cleaning ............................................ 8-30
Axle boots .................................................................... 8-47BBattery .......................................................................... 8-53
Brake fluid, changing .................................................... 8-41
Brake fluid level, checking ............................................ 8-40
Brake lever free play, checking the front ...................... 8-41
Brake lever, front .......................................................... 4-13
Brake levers, checking and lubricating ......................... 8-49
Brake light switches ..................................................... 8-48
Brake pads and friction plates, chec king ...................... 8-39
Brake pedal and rear brake lever ................................. 4-13
Brake pedal, checking and lubricating ......................... 8-50
Brakes .......................................................................... 8-38
Brakes, front and rear .................................................... 5-3CCables, checking and lubricating ................................. 8-48
Carburetor, adjusting .................................................... 8-36
Carrier, front ................................................................. 4-22
Carrier, rear .................................................................. 4-22
Chassis fasteners ........................................................... 5-7
Cleaning ......................................................................... 9-1
Coolant .................................................................. 5-3, 8-26
Coolant temperature warning light ................................. 4-3
DDifferential gear oil ................................................ 5-3, 8-24
Drive select lever .......................................................... 4-14
Drive select lever and driving in reverse ........................ 6-3
Drive select lever safety system cable, adjusting ......... 8-38
Drive shaft universal joint, lubricating ........................... 8-50EEngine break-in .............................................................. 6-5
Engine, cold start ........................................................... 6-1
Engine idling speed ...................................................... 8-36
Engine oil ....................................................................... 5-3
Engine oil and oil filter cartridge ................................... 8-17
Engine, starting a warm ................................................. 6-3
Engine stop switch ......................................................... 4-7
EPS warning light (for EPS model) ................................ 4-3FFinal gear oil .......................................................... 5-3, 8-21
Four-wheel-drive/differential gear lock indicator ............ 4-4
Fuel ....................................................................... 4-15, 5-3
Fuel cock ...................................................................... 4-16
Fuel gauge ..................................................................... 4-6
Fuel tank cap ................................................................ 4-14
Fuses, replacing ........................................................... 8-55HHandlebar switches ........................................................ 4-6
Headlight beam, adjusting ............................................ 8-60
Headlight bulb, replacing .............................................. 8-58
High-range indicator light ............................................... 4-2
