Page 21 of 170

YAMAHA GRIZZLY 550 2011 Owners Manual 1-10
1

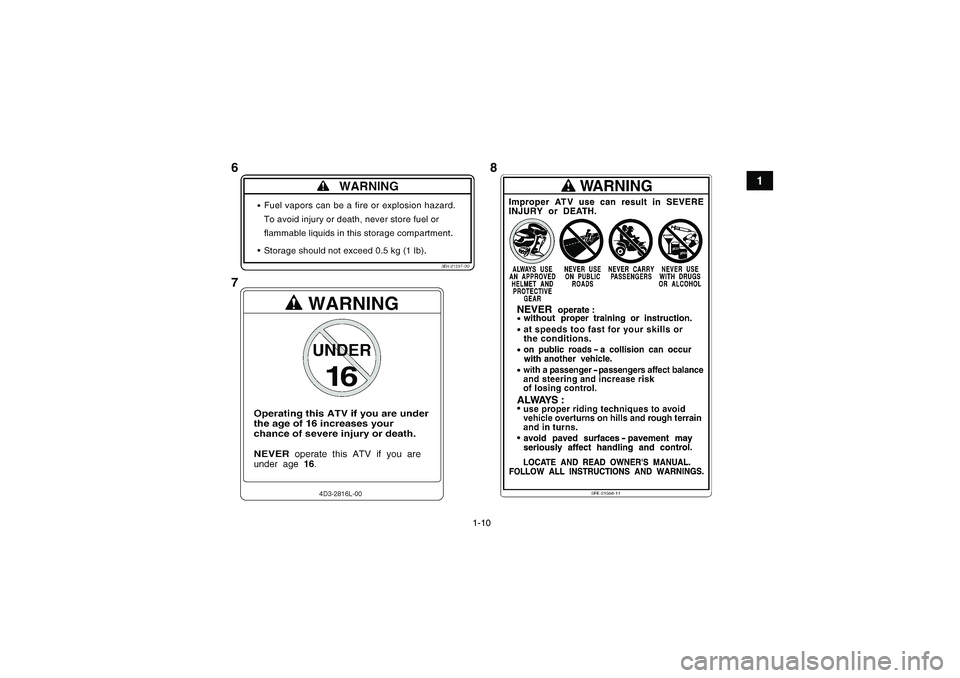

8 6
7
U28P62E0.book  Page 10  Thursday, March 11, 2010  3:25 PM

Page 22 of 170

YAMAHA GRIZZLY 550 2011 Owners Manual 1-11
1
9
U28P62E0.book  Page 11  Thursday, March 11, 2010  3:25 PM

Page 23 of 170

YAMAHA GRIZZLY 550 2011 Owners Manual 2-1
2
EBU17431

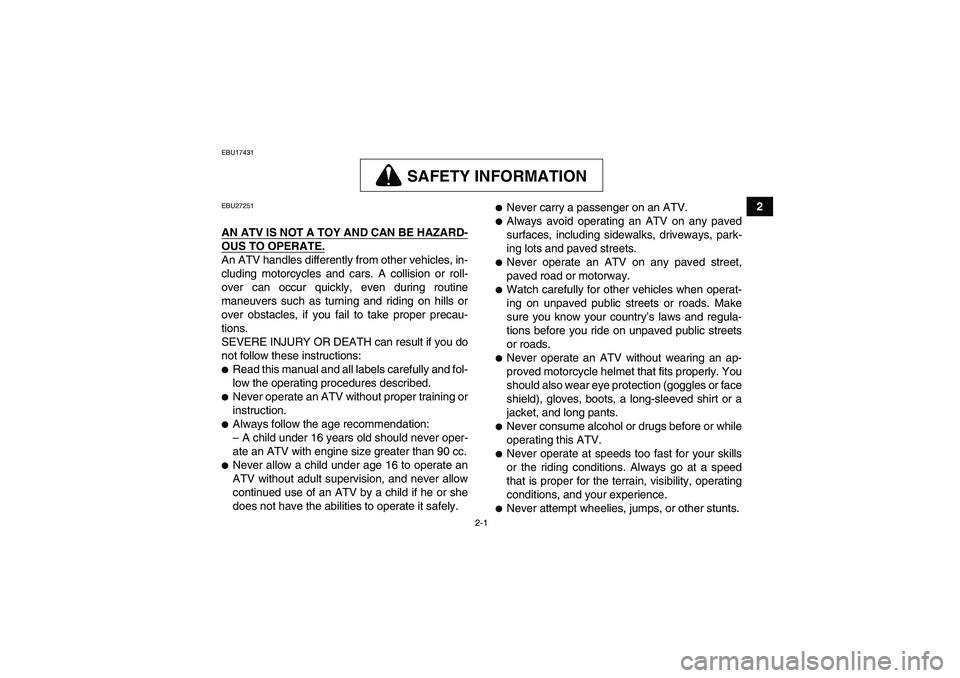

SAFETY INFORMATION
EBU27251AN ATV IS NOT A TOY AND CAN BE HAZARD-OUS TO OPERATE.An ATV handles differently from other vehicles, in-
cluding motorcycles and cars. A collision or roll-
ov

Page 24 of 170

YAMAHA GRIZZLY 550 2011 Owners Manual 2-2
2

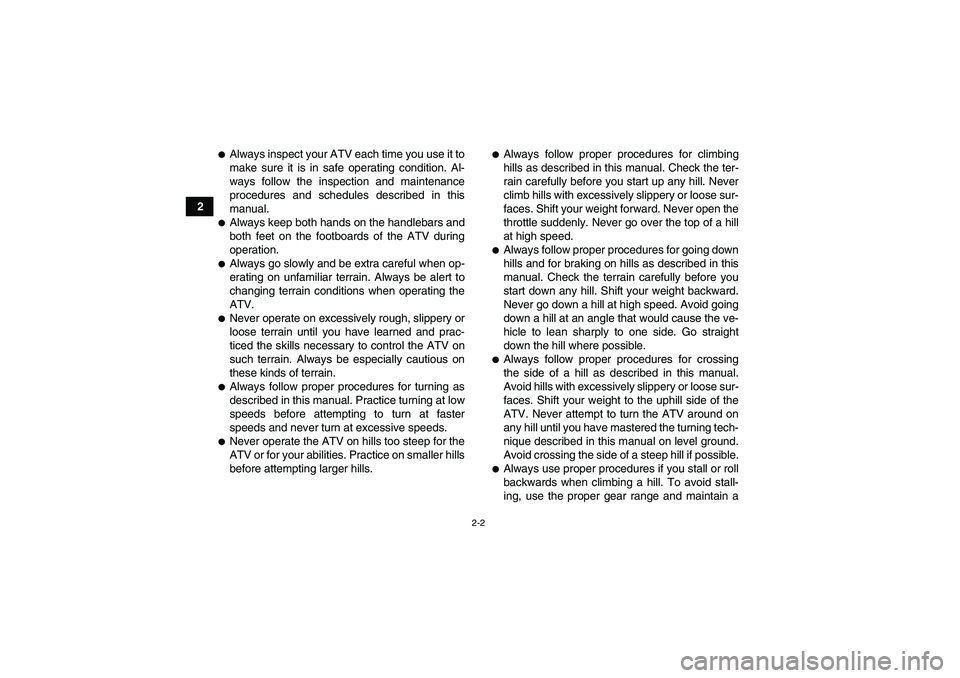

Always inspect your ATV each time you use it to
make sure it is in safe operating condition. Al-
ways follow the inspection and maintenance
procedures and schedules described in this
manual.Al

Page 25 of 170

YAMAHA GRIZZLY 550 2011 Owners Manual 2-3

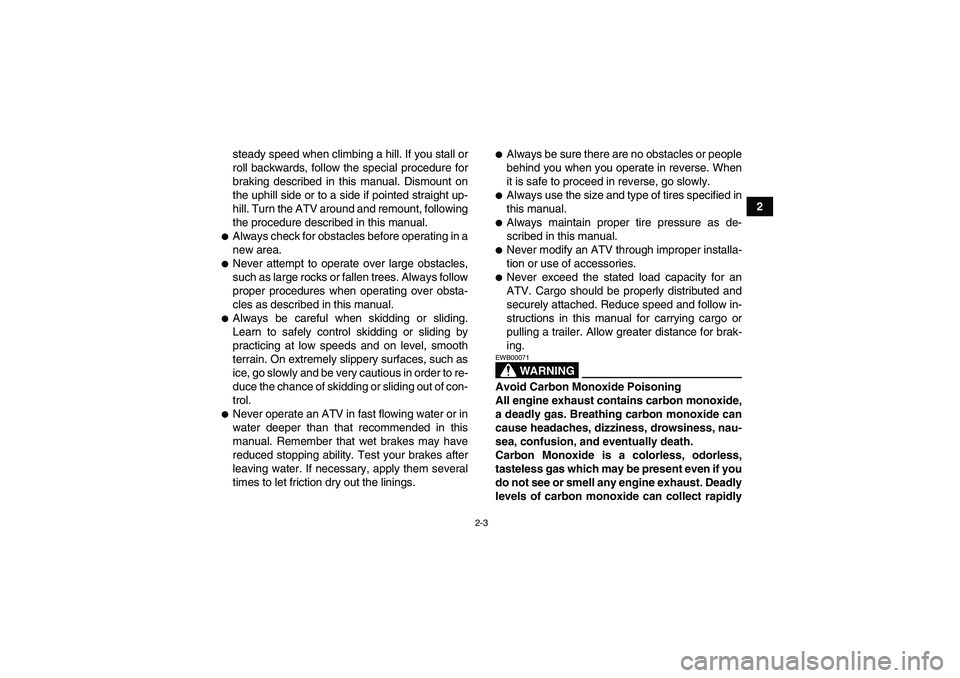

2 steady speed when climbing a hill. If you stall or
roll backwards, follow the special procedure for
braking described in this manual. Dismount on
the uphill side or to a side if pointed straight

Page 26 of 170

YAMAHA GRIZZLY 550 2011 Owners Manual 2-4

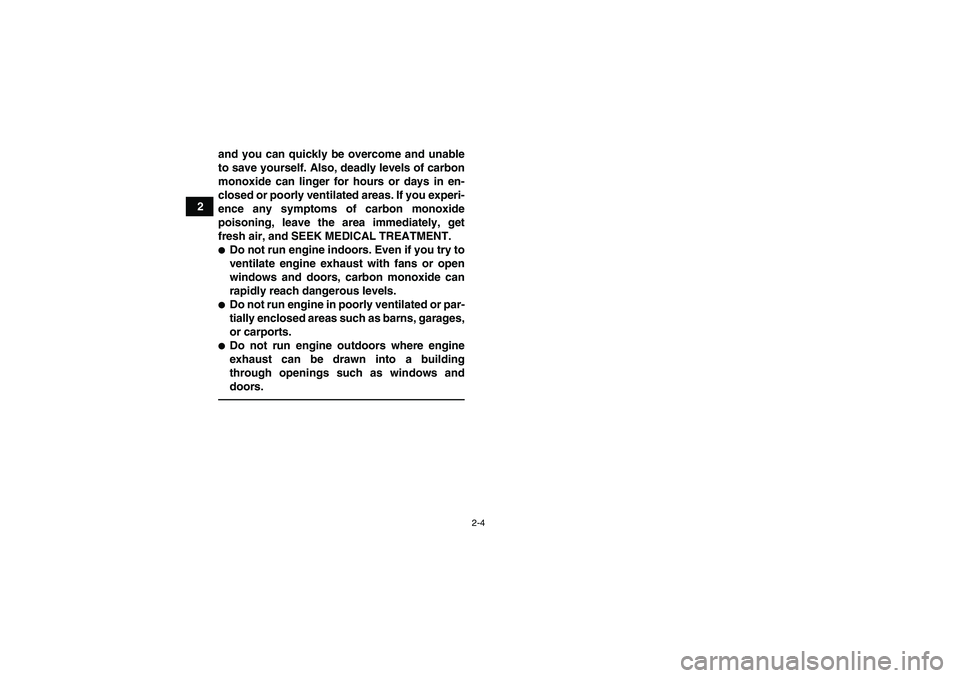

2and you can quickly be overcome and unable
to save yourself. Also, deadly levels of carbon
monoxide can linger for hours or days in en-
closed or poorly ventilated areas. If you experi-
ence any

Page 27 of 170

YAMAHA GRIZZLY 550 2011 Owners Manual 3-1
3
EBU17680
DESCRIPTION

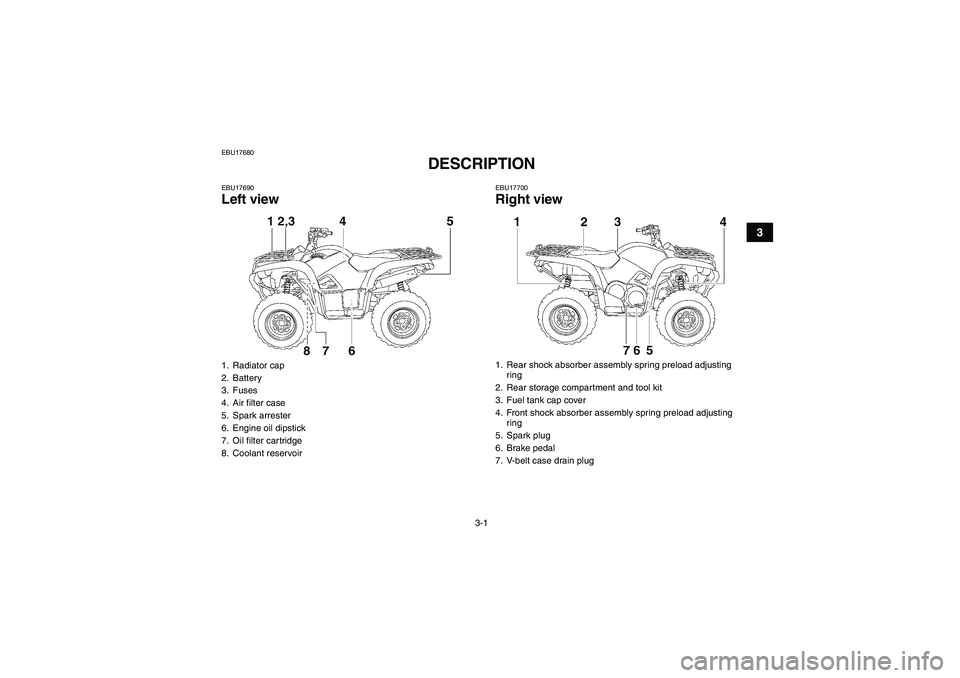

EBU17690Left view
EBU17700Right view
1. Radiator cap
2. Battery
3. Fuses
4. Air filter case
5. Spark arrester
6. Engine oil dipstick
7. Oil filter cartridge
8. Coolant rese

Page 28 of 170

YAMAHA GRIZZLY 550 2011 Owners Manual 3-2
3
EBU17712Controls and instruments
TIPThe ATV you have purchased may differ slightly
from the figures shown in this manual.
1. Drive select lever
2. Rear brake lever
3. Handlebar switches
4. Horn

Page 29 of 170

YAMAHA GRIZZLY 550 2011 Owners Manual 4-1
4
EBU17733
INSTRUMENT AND CONTROL FUNCTIONS
EBU17760Main switch The positions of the main switch are as follows:
ON
All electrical systems are supplied with power. The
headlights and taillight com

Page 30 of 170

YAMAHA GRIZZLY 550 2011 Owners Manual 4-2
4

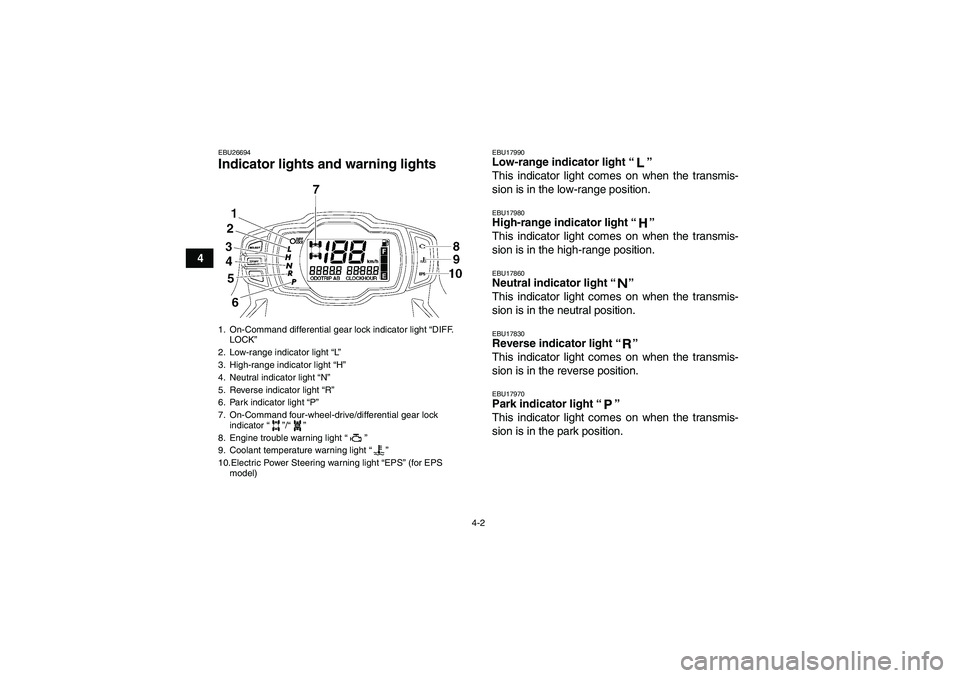

EBU26694Indicator lights and warning lights
EBU17990Low-range indicator light“”
This indicator light comes on when the transmis-
sion is in the low-range position.EBU17980High-range indica
