compression YAMAHA GRIZZLY 550 2014 Owners Manual

7-16
7
uphill. Turn the ATV around and remount, following
the procedure described in the Owner’s Manual.
WARNING! Stalling, rolling backwards or im- properly dismounting while climbing a hill
could result in ATV overturning. If you cannot
control the ATV, dismount immediately on the
uphill side.
[EWB01802]

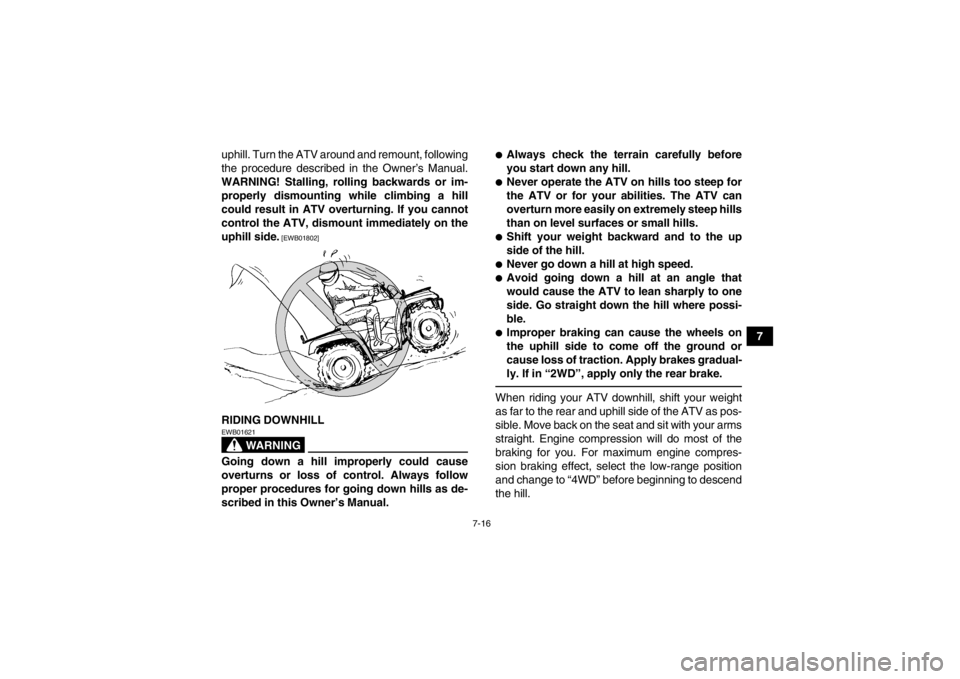

RIDING DOWNHILL
WARNING
EWB01621Going down a hill improperly could cause
overturns or loss of control. Always follow
proper procedures for going down hills as de-
scribed in this Owner’s Manual.
●Always check the terrain carefully before
you start down any hill.●Never operate the ATV on hills too steep for
the ATV or for your abilities. The ATV can
overturn more easily on extremely steep hills
than on level surfaces or small hills.●Shift your weight backward and to the up
side of the hill.●Never go down a hill at high speed.●Avoid going down a hill at an angle that
would cause the ATV to lean sharply to one
side. Go straight down the hill where possi-
ble.●Improper braking can cause the wheels on
the uphill side to come off the ground or
cause loss of traction. Apply brakes gradual-
ly. If in “2WD”, apply only the rear brake.When riding your ATV downhill, shift your weight
as far to the rear and uphill side of the ATV as pos-
sible. Move back on the seat and sit with your arms
straight. Engine compression will do most of the
braking for you. For maximum engine compres-
sion braking effect, select the low-range position
and change to “4WD” before beginning to descend
the hill.
U2LB60E0.book Page 16 Thursday, March 21, 2013 10:20 AM

8-66
8
EBU25740Troubleshooting Although Yamaha ATVs receive a thorough in-
spection before shipment from the factory, trouble
may occur during operation. Any problem in the fu-
el, compression, or ignition systems, for example,
can cause poor starting and loss of power.
The following troubleshooting charts represent
quick and easy procedures for checking these vital
systems yourself. However, should your ATV re-
quire any repair, take it to a Yamaha dealer, whose
skilled technicians have the necessary tools, expe-
rience, and know-how to service the ATV properly.
Use only genuine Yamaha replacement parts. Im-
itation parts may look like Yamaha parts, but they
are often inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWB02280Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe inju-
ry or property damage. Make sure there are no
open flames or sparks in the area, including pi-
lot lights from water heaters or furnaces.U2LB60E0.book Page 66 Thursday, March 21, 2013 10:20 AM

8-67
8
EBU27694Troubleshooting charts Starting problems or poor engine performance
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the battery.
Supply fuel.
The engine does not start.
Check the battery.
Operate the electric starter.4. Compression
There is compression.
There is no compression.
The engine does not start.
Have a Yamaha dealer check the ATV.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug. Have a Yamaha dealer check the ATV.
The engine does not start.
Check the compression.
DryWet
Operate the electric starter.
Have a Yamaha dealer check the ATV.
The engine does not start.
Check the ignition.
Operate the electric starter.2. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and have a Yamaha dealer charge
the battery if necessary.
U2LB60E0.book Page 67 Thursday, March 21, 2013 10:20 AM

10-1
10
EBU25961
SPECIFICATIONS
Dimensions:Overall length:2065 mm (81.3 in)
Overall width: 1180 mm (46.5 in)
Overall height:
1240 mm (48.8 in)
Seat height: 905 mm (35.6 in)
Wheelbase: 1250 mm (49.2 in)
Ground clearance:
275 mm (10.8 in)
Minimum turning radius: 3200 mm (126 in)Weight:With oil and fuel:
294.0 kg (648 lb)Noise and vibration level:Noise level (77/311/EEC):YFM550DE 79.0 dB(A)@2950 r/min
YFM550PE 79.0 dB(A)@2950 r/min (EUR)(FRA)(GBR)
YFM550PHE 79.0 dB(A)@2950 r/min
YFM550PLE 79.0 dB(A)@2950 r/min Vibration on seat (EN1032, ISO5008):
YFM550DE Will not exceed 0.5 m/s²
YFM550PE Will not exceed 0.5 m/s² (EUR)(FRA)(GBR)
YFM550PHE Will not exceed 0.5 m/s²
YFM550PLE Will not exceed 0.5 m/s²
Vibration on handlebar (EN1032, ISO5008): YFM550DE Will not exceed 2.5 m/s²
YFM550PE Will not exceed 2.5 m/s² (EUR)(FRA)(GBR)
YFM550PHE Will not exceed 2.5 m/s²
YFM550PLE Will not exceed 2.5 m/s²
Engine:Engine type:
Liquid cooled 4-stroke, SOHC
Cylinder arrangement: Single cylinder
Displacement: 558 cm³
Bore × stroke:
92.0 × 84.0 mm (3.62 × 3.31 in)
Compression ratio: 9.30 : 1
Starting system: Electric starter
Lubrication system:
Wet sumpEngine oil:Recommended brand:YAMALUBE
