check engine YAMAHA GRIZZLY 660 2004 Owners Manual

EBU00015
1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ....................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION .................................... 3-1
Identification number records ............... 3-3
Key identification number ..................... 3-5
Vehicle identification number ............... 3-7
Model label ........................................... 3-9
CONTROL FUNCTIONS ......................... 4-1
Main switch........................................... 4-1
Indicator and warning lights.................. 4-3
Speedometer unit ................................. 4-9
Fuel gauge ......................................... 4-15
Handlebar switches ............................ 4-17
Throttle lever ...................................... 4-35
Speed limiter ...................................... 4-37
Front brake lever ................................ 4-39
Rear brake pedal and lever ................ 4-41
Drive select lever ................................ 4-43
Recoil starter ...................................... 4-43
1234
Fuel tank cap ..................................... 4-45
Fuel cock............................................ 4-47
Starter (choke) ................................... 4-49
Seat.................................................... 4-51
Storage compartment ........................ 4-53
Front carrier ....................................... 4-53
Rear carrier ........................................ 4-53
Front and rear shock absorber
adjustment ....................................... 4-55
Auxiliary DC jack ................................ 4-59
PRE-OPERATION CHECKS ................... 5-1
Front and rear brakes .......................... 5-7
Fuel .................................................... 5-11
Engine oil ........................................... 5-15
Final gear oil ...................................... 5-17
Differential gear oil ............................. 5-19
Coolant............................................... 5-19
Throttle lever ...................................... 5-21
Fittings and fasteners......................... 5-21
Lights ................................................. 5-23
Switches............................................. 5-23
Tires ................................................... 5-25
How to measure tire pressure ............ 5-29
5
EE.book Page 1 Tuesday, April 1, 2003 12:23 PM

Tire wear limit......................................5-31
OPERATION ............................................6-1
Starting a cold engine ...........................6-3
Starting a warm engine .........................6-9
Warming up...........................................6-9
Drive select lever operation and
reverse driving ..................................6-11
Engine break-in ...................................6-17
Parking ................................................6-19
Parking on a slope ..............................6-21
Accessories and loading .....................6-23
RIDING YOUR ATV..................................7-1
Getting to know your ATV .....................7-3
Ride with care and good judgement .....7-5
Be careful where you ride ...................7-27
Turning your ATV ................................7-39
Climbing uphill.....................................7-45
Riding downhill ....................................7-55
Crossing a slope .................................7-59
Crossing through shallow water ..........7-63
Riding over rough terrain ....................7-69
Sliding and skidding ............................7-71
What to do if ........................................7-75
What to do...........................................7-75
67
PERIODIC MAINTENANCE AND
ADJUSTMENT ......................................... 8-1
Owner’s manual and tool kit ................. 8-3
Periodic maintenance/lubrication.......... 8-7
Panel removal and installation............ 8-15
Engine oil and oil filter cartridge ......... 8-33
Final gear oil ....................................... 8-47
Differential gear oil.............................. 8-51
Cooling system ................................... 8-57
Changing the coolant.......................... 8-61
Axle boots ........................................... 8-69
Spark plug inspection ......................... 8-71
Air filter element cleaning ................... 8-77
Carburetor adjustment ........................ 8-85
Idle speed adjustment ........................ 8-87
Valve clearance adjustment ............... 8-89
Throttle lever adjustment .................... 8-89
Front brake pad check ........................ 8-91
Rear brake pad inspection.................. 8-91
Inspecting the brake fluid level ........... 8-93
Brake fluid replacement ...................... 8-97
Front brake lever free play.................. 8-99
Rear brake lever and pedal
adjustment ...................................... 8-101
Adjusting the rear brake light
switch ............................................. 8-105
Cable inspection and lubrication....... 8-107
8
EE.book Page 2 Tuesday, April 1, 2003 12:23 PM

3-1
EBU00032
DESCRIPTION AND MACHINE
IDENTIFICATION1. Rear shock absorber spring
preload adjusting ring
2. Storage compartment and tool
kit
3. Air filter case
4. Front brake fluid reservoir
5. Front shock absorber spring
preload adjusting ring
6. Rear brake fluid reservoir
7. Rear brake pedal
8. V-belt case drain plug
9. Radiator cap
10. Drive select lever
11. Fuel tank cap
12. Fuel cock
13. Fuses14. Battery
15. Engine oil dipstick
16. Recoil starter
17. Coolant reservoir
18. Drive select lever box check
hose
19. V-belt cooling duct check hose
20. Rear brake lever
21. Left handlebar switches
22. Horn
23. Speedometer unit
24. Main switch
25. Right handlebar switches
26. Throttle lever
27. Front brake lever
28. Auxiliary DC jack
29. Starter (choke)NOTE:The machine you have purchased may differ
slightly from those shown in the figures of this
manual.
EE.book Page 1 Tuesday, April 1, 2003 12:23 PM

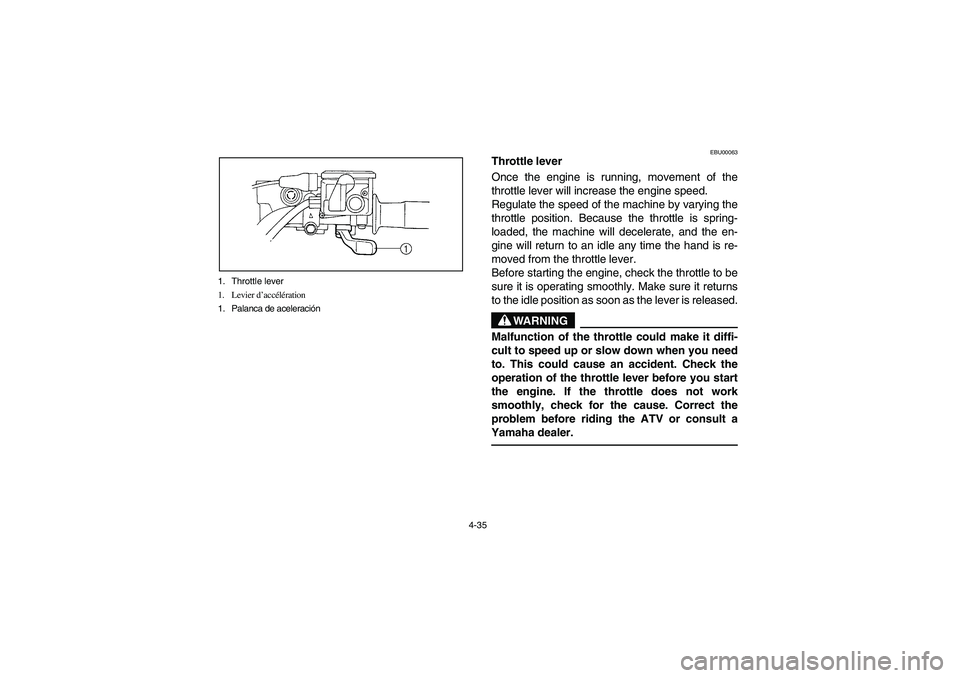

4-35 1. Throttle lever
1. Levier d’accélération
1. Palanca de aceleración
EBU00063
Throttle lever
Once the engine is running, movement of the
throttle lever will increase the engine speed.
Regulate the speed of the machine by varying the
throttle position. Because the throttle is spring-
loaded, the machine will decelerate, and the en-
gine will return to an idle any time the hand is re-
moved from the throttle lever.
Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
WARNING
Malfunction of the throttle could make it diffi-
cult to speed up or slow down when you need
to. This could cause an accident. Check the
operation of the throttle lever before you start
the engine. If the throttle does not work
smoothly, check for the cause. Correct the
problem before riding the ATV or consult a
Yamaha dealer.
EE.book Page 35 Tuesday, April 1, 2003 12:23 PM

5-1
EBU00113
PRE-OPERATION CHECKS
Before using this machine, check the following points:
ITEM ROUTINE PAGE
BrakesCheck operation, free play, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-7–5-9,
8-91–8-105
FuelCheck fuel level.
Fill with fuel if necessary.5-11–5-13
Engine oilCheck oil level.
Fill with oil if necessary.5-15,
8-33–8-45
Coolant reservoirCheck coolant level.
Fill with coolant if necessary.8-57–8-67
Final gear oil/
Differential gear oilCheck for leakage.5-17–5-19,
8-47–8-55
ThrottleCheck for proper throttle cable operation. 5-21, 8-89
Wheels and tiresCheck tire pressure, wear and damage.5-25–5-31,
8-113–8-115
Fittings and fastenersCheck all fittings and fasteners. 5-21
Lights and switchesCheck for proper operation. 5-23, 8-127–8-131
Axle bootsCheck for damage. 8-69
EE.book Page 1 Tuesday, April 1, 2003 12:23 PM

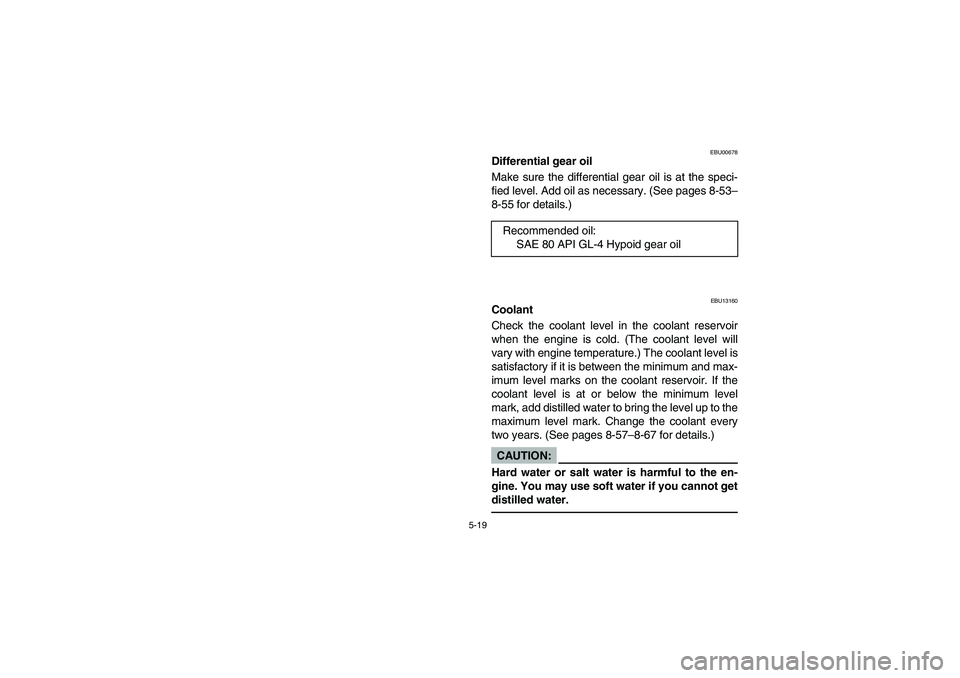

5-19
EBU00678
Differential gear oil
Make sure the differential gear oil is at the speci-
fied level. Add oil as necessary. (See pages 8-53–
8-55 for details.)
EBU13160
Coolant
Check the coolant level in the coolant reservoir
when the engine is cold. (The coolant level will
vary with engine temperature.) The coolant level is
satisfactory if it is between the minimum and max-
imum level marks on the coolant reservoir. If the
coolant level is at or below the minimum level
mark, add distilled water to bring the level up to the
maximum level mark. Change the coolant every
two years. (See pages 8-57–8-67 for details.)CAUTION:_ Hard water or salt water is harmful to the en-
gine. You may use soft water if you cannot get
distilled water. _
Recommended oil:
SAE 80 API GL-4 Hypoid gear oil
EE.book Page 19 Tuesday, April 1, 2003 12:23 PM

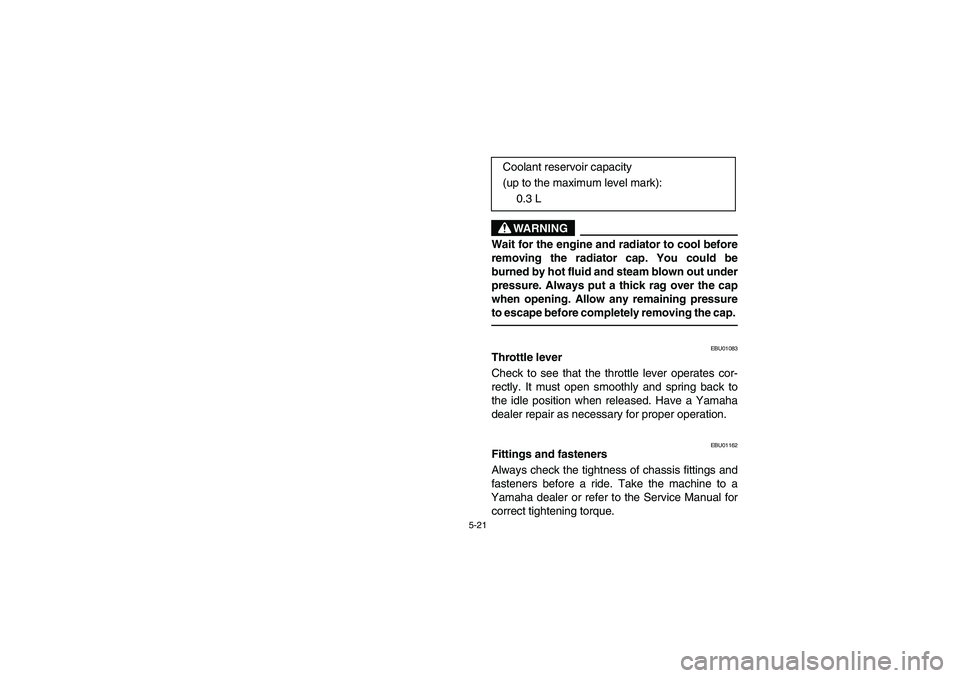

5-21
WARNING
_ Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always put a thick rag over the cap
when opening. Allow any remaining pressure
to escape before completely removing the cap. _
EBU01083
Throttle lever
Check to see that the throttle lever operates cor-
rectly. It must open smoothly and spring back to
the idle position when released. Have a Yamaha
dealer repair as necessary for proper operation.
EBU01162
Fittings and fasteners
Always check the tightness of chassis fittings and
fasteners before a ride. Take the machine to a
Yamaha dealer or refer to the Service Manual for
correct tightening torque.Coolant reservoir capacity
(up to the maximum level mark):
0.3 L
EE.book Page 21 Tuesday, April 1, 2003 12:23 PM

6-9
EBU00180
Starting a warm engine
To start a warm engine, refer to the “Starting a cold
engine” section. The starter (choke) should not be
used. The throttle should be opened slightly.
EBU00182
Warming up
To get maximum engine life, always warm up the
engine before starting off. Never accelerate hard
with a cold engine! To see whether or not the en-
gine is warm, check if it responds to the throttle
normally with the starter (choke) turned off.
EE.book Page 9 Tuesday, April 1, 2003 12:23 PM

8-7
EBU00262
PERIODIC MAINTENANCE/LUBRICATION
ITEM ROUTINEWhichever
comes firstINITIAL EVERY
km 320 1,200 2,400 2,400 4,800
hours 20 75 150 150 300
Valves*Check valve clearance.
Adjust if necessary.
Cooling systemCheck coolant leakage.
Repair if necessary.
Replace coolant every 24 months.Spark plugCheck condition.
Adjust gap and clean.
Replace if necessary.Air filter elementClean.
Replace if necessary.Every 20–40 hours
(More often in wet or dusty areas.)
Carburetor*Check starter (choke) operation.
Adjust engine idling speed.Crankcase breather
system*Check breather hose for cracks or damage.
Replace if necessary.Exhaust system*Check for leakage.
Tighten if necessary.
Replace gasket(s) if necessary.Fuel line*Check fuel hose for cracks or damage.
Replace if necessary.Engine oil
Replace (Warm engine before draining).Engine oil filter cartridge
Replace.Final gear oil
Check oil level/oil leakage.
Replace.Differential gear oil
Front brake*Check operation/fluid leakage/see NOTE page 8-8.
Correct if necessary.Rear brake*Check operation/fluid leakage/see NOTE page 8-8.
Correct if necessary.V-belt*Check operation.
Check for cracks or damage.Wheels*Check balance/damage/runout.
Repair if necessary.EE.book Page 7 Tuesday, April 1, 2003 12:23 PM

8-8
* It is recommended that these items be serviced by a Yamaha dealer.
** Lithium-soap-based greaseNOTE:Recommended brake fluid: DOT 4
Brake fluid replacement:
1. When disassembling the master cylinder or caliper cylinder, replace the brake fluid. Normally check
the brake fluid level and add fluid as required.
2. On the inner parts of the master cylinder and caliper cylinder, replace the oil seals every two years.
3. Replace the brake hoses every four years, or if cracked or damaged.Wheel bearing*Check bearing assemblies for looseness/damage.
Replace if damaged.Front and rear
suspension*Check operation.
Correct if necessary.Steering system*Check operation/Replace if damaged.
Check toe-in/Adjust if necessary.Rear upper and lower
knuckle pivots*Lubricate.**Drive shaft universal
joint*Lubricate.**Engine mount*
Check for cracks or damage.Front and rear axle boots*Check operation.
Replace if damaged.Stabilizer bushes*
Check for cracks or damage.Fittings and fasteners*Check all chassis fittings and fasteners.
Correct if necessary.Lights and switches*Check operation.
Adjust headlight beam.
ITEM ROUTINEWhichever
comes firstINITIAL EVERY
km 320 1,200 2,400 2,400 4,800
hours 20 75 150 150 300
EE.book Page 8 Tuesday, April 1, 2003 12:23 PM
