1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ....................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION .................................... 3-1
Identification number records ............... 3-3
Key identification number ..................... 3-5
Vehicle identification number ............... 3-7
Model label ........................................... 3-9
CONTROL FUNCTIONS ......................... 4-1
Main switch........................................... 4-1
Indicator and warning lights.................. 4-3
Speedometer unit ............................... 4-11
Handlebar switches ............................ 4-19
Throttle lever ...................................... 4-37
Speed limiter ...................................... 4-39
Front brake lever ................................ 4-41
Brake pedal and rear brake lever ....... 4-43
Drive select lever ................................ 4-45
Recoil starter ...................................... 4-45
Fuel tank cap ...................................... 4-47
1234
Fuel cock............................................ 4-49
Starter (choke) ................................... 4-51
Seat.................................................... 4-53
Storage compartment ........................ 4-55
Front carrier ....................................... 4-55
Rear carrier ........................................ 4-55
Front and rear shock absorber
adjustment ....................................... 4-57
Auxiliary DC jack ................................ 4-61
PRE-OPERATION CHECKS ................... 5-1
Front and rear brakes .......................... 5-7
Fuel .................................................... 5-11
Engine oil ........................................... 5-15
Final gear oil ...................................... 5-17
Differential gear oil ............................. 5-19
Coolant............................................... 5-19
Throttle lever ...................................... 5-21
Fittings and fasteners......................... 5-21
Lights ................................................. 5-23
Switches............................................. 5-23
Tires ................................................... 5-25
How to measure tire pressure ............ 5-29
Tire wear limit..................................... 5-31
5
U2C660.book Page 1 Monday, April 11, 2005 10:29 AM

3-1
EBU00032
DESCRIPTION AND MACHINE
IDENTIFICATION1. Rear shock absorber spring
preload adjusting ring
2. Storage compartment and tool
kit
3. Air filter case
4. Front brake fluid reservoir
5. Front shock absorber spring
preload adjusting ring
6. Rear brake fluid reservoir
7. Brake pedal
8. V-belt case drain plug
9. Radiator cap
10. Drive select lever
11. Fuel tank cap
12. Fuel cock
13. Battery
14. Fuses15. Engine oil dipstick
16. Recoil starter
17. Coolant reservoir
18. Drive select lever box check
hose
19. V-belt cooling duct check hose
20. Rear brake lever
21. Left handlebar switches
22. Horn switch
23. Speedometer unit
24. Main switch
25. Right handlebar switches
26. Throttle lever
27. Front brake lever
28. Auxiliary DC jack
29. Starter (choke)NOTE:The machine you have purchased may differ
slightly from those shown in the figures of this
manual.
U2C660.book Page 1 Monday, April 11, 2005 10:29 AM

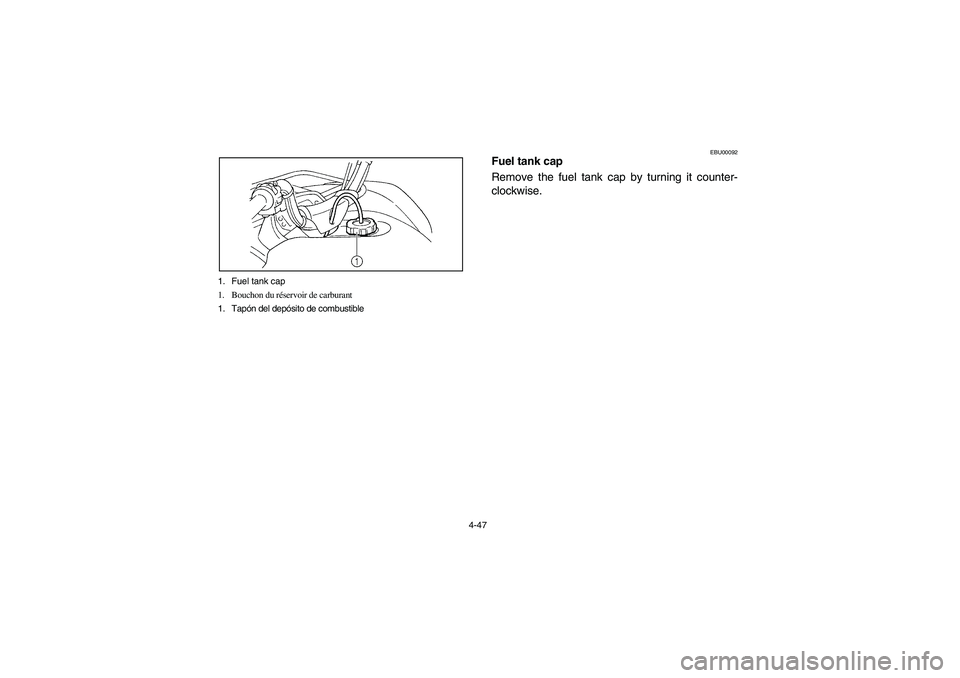

4-47 1. Fuel tank cap
1. Bouchon du réservoir de carburant
1. Tapón del depósito de combustible
EBU00092
Fuel tank cap
Remove the fuel tank cap by turning it counter-
clockwise.
U2C660.book Page 47 Monday, April 11, 2005 10:29 AM

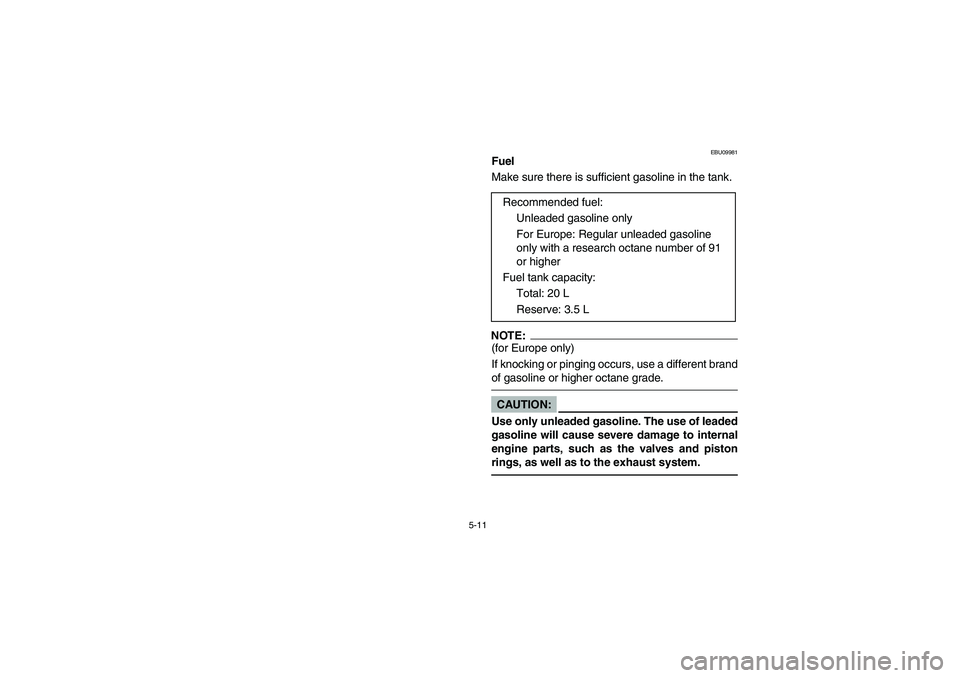

5-11
EBU09981
Fuel
Make sure there is sufficient gasoline in the tank.NOTE:_ (for Europe only)
If knocking or pinging occurs, use a different brand
of gasoline or higher octane grade. _CAUTION:_ Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts, such as the valves and piston
rings, as well as to the exhaust system. _
Recommended fuel:
Unleaded gasoline only
For Europe: Regular unleaded gasoline
only with a research octane number of 91
or higher
Fuel tank capacity:
Total: 20 L
Reserve: 3.5 L
U2C660.book Page 11 Monday, April 11, 2005 10:29 AM

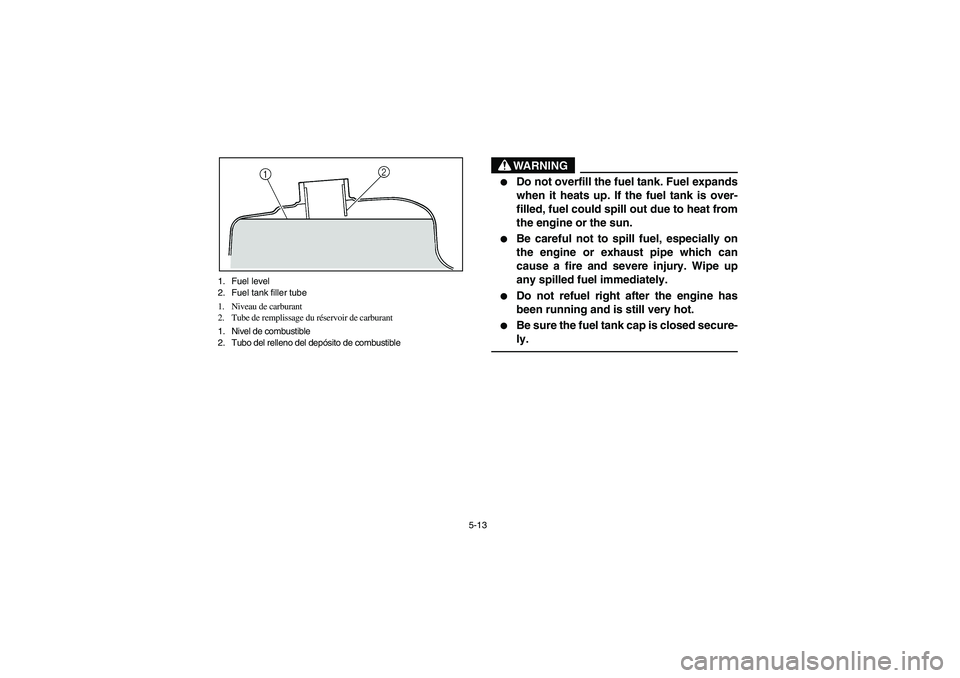

5-13 1. Fuel level
2. Fuel tank filler tube
1. Niveau de carburant
2. Tube de remplissage du réservoir de carburant
1. Nivel de combustible
2. Tubo del relleno del depósito de combustible
WARNING
_

Do not overfill the fuel tank. Fuel expands
when it heats up. If the fuel tank is over-
filled, fuel could spill out due to heat from
the engine or the sun.


Be careful not to spill fuel, especially on
the engine or exhaust pipe which can
cause a fire and severe injury. Wipe up
any spilled fuel immediately.


Do not refuel right after the engine has
been running and is still very hot.


Be sure the fuel tank cap is closed secure-
ly.
_
U2C660.book Page 13 Monday, April 11, 2005 10:29 AM

8-147
EBU00724Troubleshooting chart
Starting problems or poor engine performance1. Fuel
Check if there is fuel
in the fuel tank.There is fuel.Turn the fuel cock
lever to “OFF”.No fuel.Fuel cock is
clogged.
Clean the
fuel cock. Some fuel.Turn the fuel cock
lever to “RES”.Restart the engine.
No fuel.Supply fuel.
2. Compression
Use the electric
starter to see if
there is compression.There is compression.
Compression normal.
No compression.Ask a Yamaha dealer to
inspect.
3. Ignition
Remove the
spark plug and
check the electrodes.WetWipe clean with dry cloth.
DryAttach spark plug cap and
ground to chassis.Use the
electric starter.Spark is good.Ignition system is
normal.
Spark is weak.
Adjust the spark plug gap
or replace the spark plug. No spark.
Ask a Yamaha dealer to
inspect. 4. Battery
Use the electric starter.Engine turns over
quickly.Battery is good.
Engine turns over
slowly.Check the battery lead connections,
and charge the battery if necessary.Check the
fuel flow.
Turn the fuel cock
lever to “ON”.
Remove the fuel hose
from the fuel cock.
U2C660.book Page 147 Monday, April 11, 2005 10:29 AM

10-3
Engine oil:
Quantity:
Without oil filter cartridge replacement 1.9 L
With oil filter cartridge replacement 2.0 L
Final gear case oil:
Type SAE80 API GL-4 Hypoid gear oil
Quantity 0.25 L
Differential gear case oil:
Type SAE80 API GL-4 Hypoid gear oil
Quantity 0.28 L
Radiator capacity (including all routes): 1.80 L
Air filter: Wet element
Fuel:
Type Unleaded gasoline only
For Europe: Regular unleaded gasoline only with a
research octane number of 91 or higher
Fuel tank capacity 20 L
Fuel reserve amount 3.5 L
Carburetor:
Type / quantity BSR42 / 1
Manufacturer MIKUNIModel YFM66FA
