EBU00015
1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ....................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION .................................... 3-1
Identification number records ............... 3-3
Key identification number ..................... 3-5
Vehicle identification number ............... 3-7
Model label ........................................... 3-9
CONTROL FUNCTIONS ......................... 4-1
Main switch........................................... 4-1
Indicator and warning lights.................. 4-3
Speedometer unit ............................... 4-11
Handlebar switches ............................ 4-19
Throttle lever ...................................... 4-37
Speed limiter ...................................... 4-39
Front brake lever ................................ 4-41
Brake pedal and rear brake lever ....... 4-43
Drive select lever ................................ 4-45
Recoil starter ...................................... 4-45
Fuel tank cap ...................................... 4-47
1234
Fuel cock............................................ 4-49
Starter (choke) ................................... 4-51
Seat.................................................... 4-53
Storage compartment ........................ 4-55
Front carrier ....................................... 4-55
Rear carrier ........................................ 4-55
Front and rear shock absorber
adjustment ....................................... 4-57
Auxiliary DC jack ................................ 4-61
PRE-OPERATION CHECKS ................... 5-1
Front and rear brakes .......................... 5-7
Fuel .................................................... 5-11
Engine oil ........................................... 5-15
Final gear oil ...................................... 5-17
Differential gear oil ............................. 5-19
Coolant............................................... 5-19
Throttle lever ...................................... 5-21
Fittings and fasteners......................... 5-21
Lights ................................................. 5-23
Switches............................................. 5-23
Tires ................................................... 5-25
How to measure tire pressure ............ 5-29
Tire wear limit..................................... 5-31
5
U2C660.book Page 1 Monday, April 11, 2005 10:29 AM

2-15
WARNING
_

Always turn off the engine when refueling.


Do not refuel right after the engine has
been running and is still very hot.


Do not spill gasoline on the engine or ex-
haust pipe/muffler when refueling. Never
refuel while smoking, or while in the vicin-
ity of sparks, open flames, or other sourc-
es of ignition such as the pilot lights of
water heaters and clothes dryers. Gaso-
line can catch fire and you could be
burned.


When transporting the machine in anoth-
er vehicle, be sure it is kept upright and
that the fuel cock is in the “OFF” position.
Otherwise, fuel may leak out of the carbu-
retor or fuel tank.


Gasoline is poisonous. If you should
swallow some gasoline or inhale a lot of
gasoline vapor, or get some gasoline in
your eyes, see your doctor immediately. If
gasoline spills on your skin, wash with
soap and water. If gasoline spills on your
clothing, change your clothes.
_
U2C660.book Page 15 Monday, April 11, 2005 10:29 AM

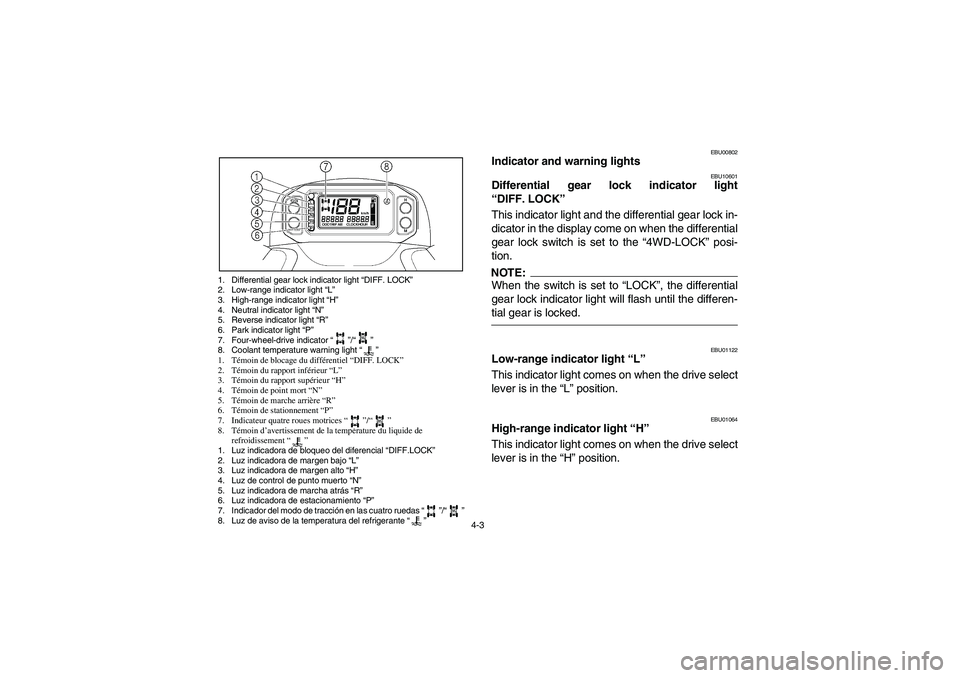

4-3
1. Differential gear lock indicator light “DIFF. LOCK”
2. Low-range indicator light “L”
3. High-range indicator light “H”
4. Neutral indicator light “N”
5. Reverse indicator light “R”
6. Park indicator light “P”
7. Four-wheel-drive indicator “ ”/“ ”
8. Coolant temperature warning light “ ”
1. Témoin de blocage du différentiel “DIFF. LOCK”
2. Témoin du rapport inférieur “L”
3. Témoin du rapport supérieur “H”
4. Témoin de point mort “N”
5. Témoin de marche arrière “R”
6. Témoin de stationnement “P”
7. Indicateur quatre roues motrices “ ”/“ ”
8. Témoin d’avertissement de la température du liquide de
refroidissement “ ”
1. Luz indicadora de bloqueo del diferencial “DIFF.LOCK”
2. Luz indicadora de margen bajo “L”
3. Luz indicadora de margen alto “H”
4. Luz de control de punto muerto “N”
5. Luz indicadora de marcha atrás “R”
6. Luz indicadora de estacionamiento “P”
7. Indicador del modo de tracción en las cuatro ruedas “ ”/“ ”
8. Luz de aviso de la temperatura del refrigerante “ ”
DIFF.
LOCK
DIFF.
LOCK
DIFF.
LOCK
EBU00802
Indicator and warning lights
EBU10601
Differential gear lock indicator light
“DIFF. LOCK”
This indicator light and the differential gear lock in-
dicator in the display come on when the differential
gear lock switch is set to the “4WD-LOCK” posi-
tion.NOTE:_ When the switch is set to “LOCK”, the differential
gear lock indicator light will flash until the differen-
tial gear is locked. _
EBU01122
Low-range indicator light “L”
This indicator light comes on when the drive select
lever is in the “L” position.
EBU01064
High-range indicator light “H”
This indicator light comes on when the drive select
lever is in the “H” position.
E-4.fm Page 3 Wednesday, April 13, 2005 11:52 AM

8-145
EBU00413
Troubleshooting
Although Yamaha machines receive a rigid in-
spection before shipment from the factory, trouble
may occur during operation.
Any problem in the fuel, compression, or ignition
systems can cause poor starting and loss of pow-
er. The troubleshooting chart describes a quick,
easy procedure for making checks. If your ma-
chine requires any repair, take it to a Yamaha
dealer.
The skilled technicians at a Yamaha dealership
have the tools, experience, and know-how to prop-
erly service your machine. Use only genuine
Yamaha parts on your machine. Imitation parts
may look like Yamaha parts, but they are often in-
ferior.
Consequently, they have a shorter service life and
can lead to expensive repair bills.
WARNING
Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe in-
jury or property damage. Make sure there are
no open flames or sparks in the area, including
pilot lights from water heaters or furnaces.
U2C660.book Page 145 Monday, April 11, 2005 10:29 AM
