YAMAHA GRIZZLY 700 2008 Owners Manual

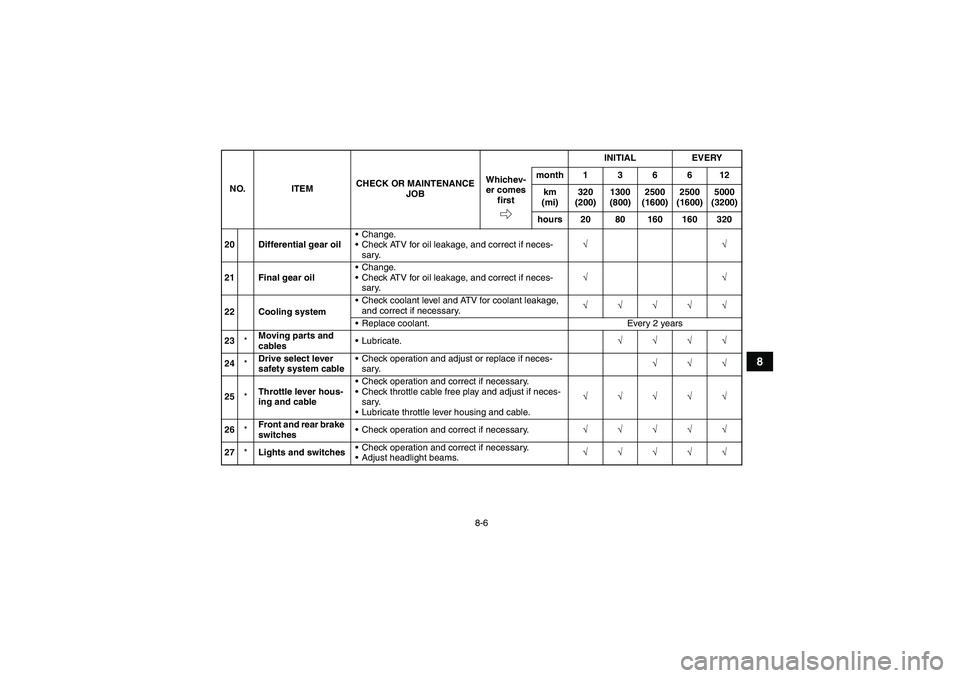

8-6
8
20 Differential gear oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√√
21 Final gear oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√√
22 Cooling systemCheck coolant level and ATV for coolant leakage,
and correct if necessary.√√√√√
Replace coolant. Every 2 years
23*Moving parts and
cablesLubricate.√√√√
24*Drive select lever
safety system cableCheck operation and adjust or replace if neces-
sary.√√√
25*Throttle lever hous-
ing and cableCheck operation and correct if necessary.
Check throttle cable free play and adjust if neces-
sary.
Lubricate throttle lever housing and cable.√√√√√
26*Front and rear brake
switchesCheck operation and correct if necessary.√√√√√
27*Lights and switchesCheck operation and correct if necessary.
Adjust headlight beams.√√√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320U3B462E0.book Page 6 Tuesday, March 20, 2007 11:46 AM

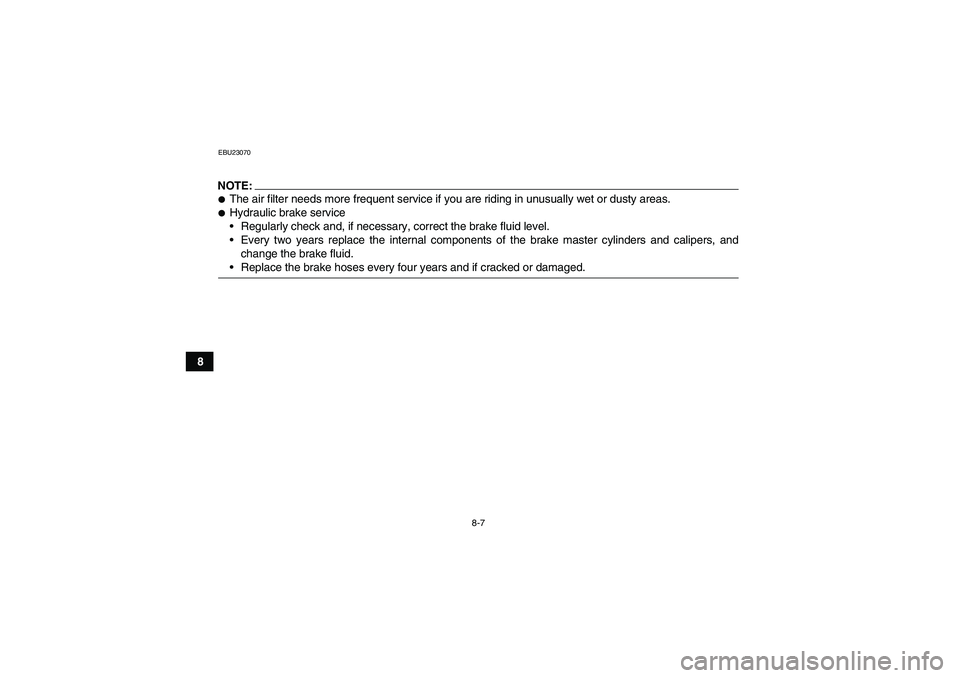

8-7
8
EBU23070NOTE:
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of the brake master cylinders and calipers, and
change the brake fluid.Replace the brake hoses every four years and if cracked or damaged.
U3B462E0.book Page 7 Tuesday, March 20, 2007 11:46 AM

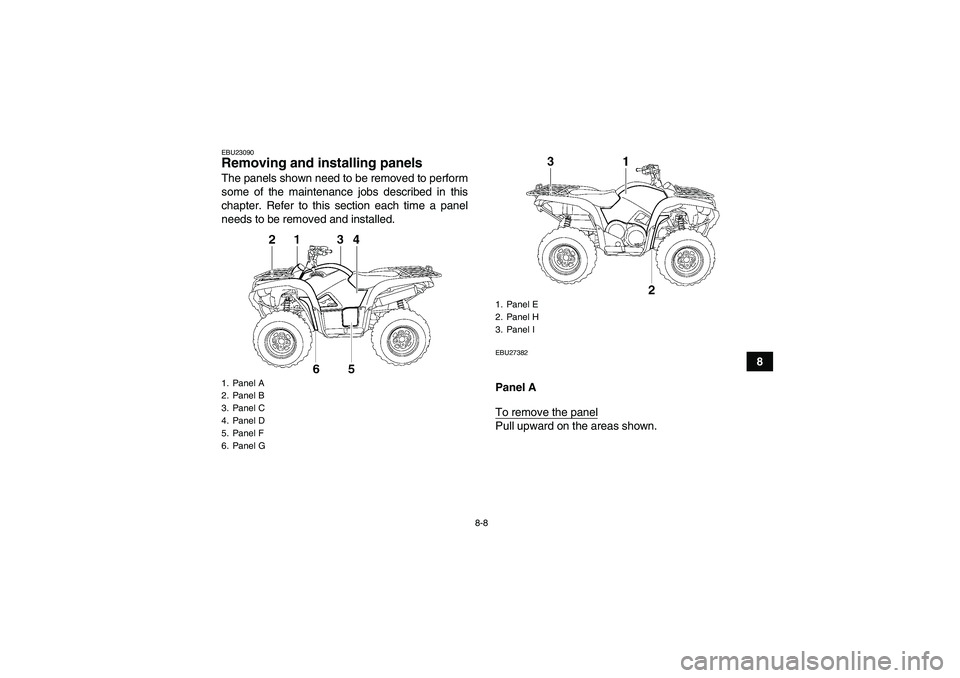

8-8
8
EBU23090Removing and installing panels The panels shown need to be removed to perform
some of the maintenance jobs described in this
chapter. Refer to this section each time a panel
needs to be removed and installed.
EBU27382Panel A
To remove the panelPull upward on the areas shown.
1. Panel A
2. Panel B
3. Panel C
4. Panel D
5. Panel F
6. Panel G
1. Panel E
2. Panel H
3. Panel I
U3B462E0.book Page 8 Tuesday, March 20, 2007 11:46 AM

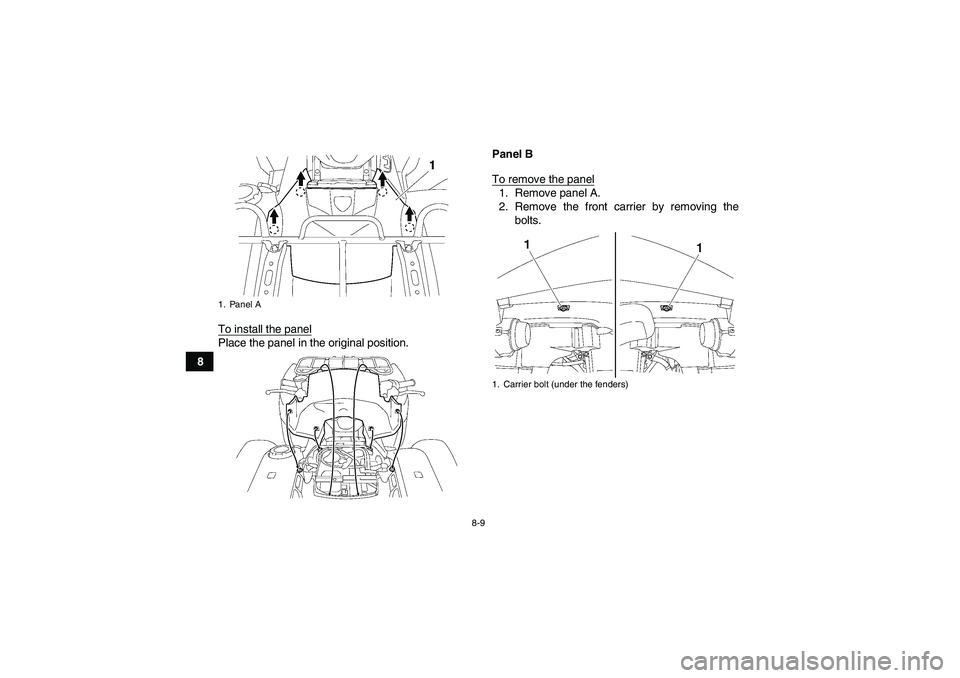

8-9
8To install the panel
Place the panel in the original position.Panel B
To remove the panel
1. Remove panel A.
2. Remove the front carrier by removing the
bolts.
1. Panel A
1. Carrier bolt (under the fenders)
U3B462E0.book Page 9 Tuesday, March 20, 2007 11:46 AM

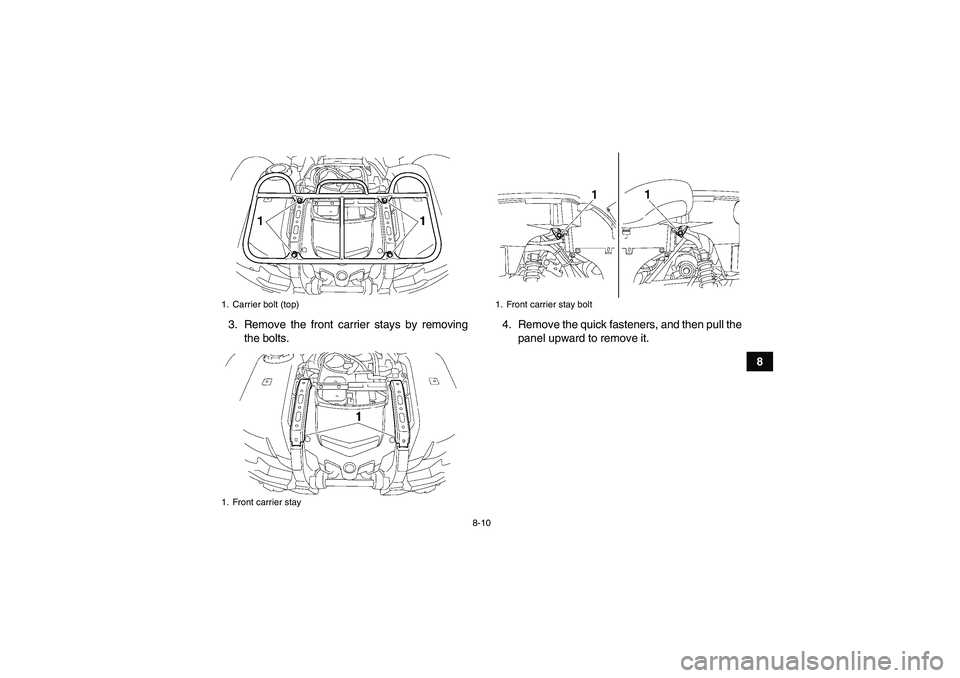

8-10
8 3. Remove the front carrier stays by removing
the bolts.4. Remove the quick fasteners, and then pull the
panel upward to remove it.
1. Carrier bolt (top)
1. Front carrier stay
1. Front carrier stay bolt
U3B462E0.book Page 10 Tuesday, March 20, 2007 11:46 AM

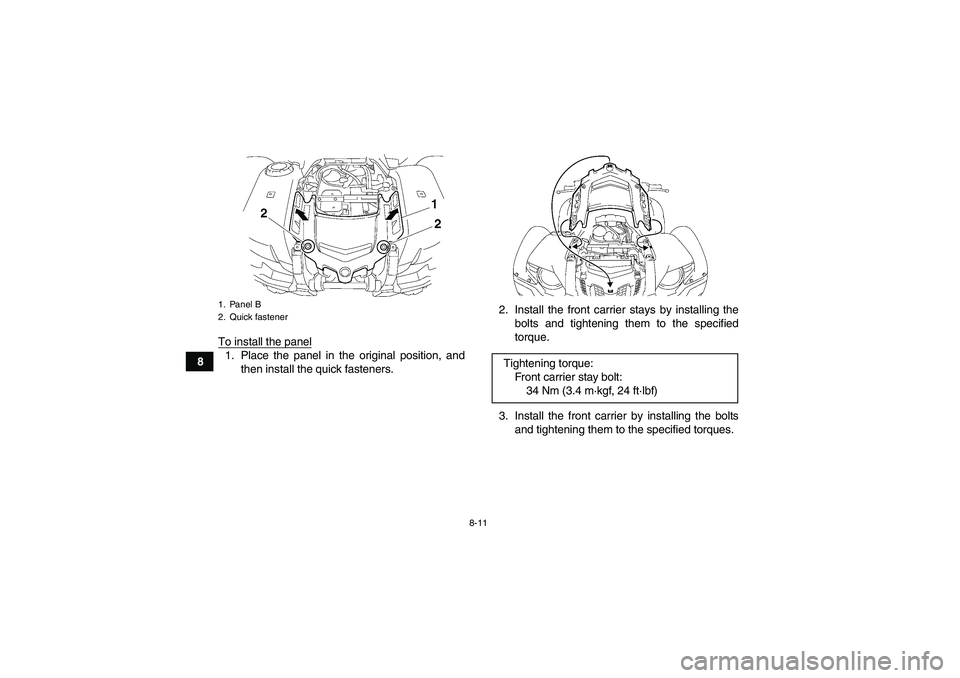

8-11
8To install the panel
1. Place the panel in the original position, and
then install the quick fasteners.2. Install the front carrier stays by installing the
bolts and tightening them to the specified
torque.
3. Install the front carrier by installing the bolts
and tightening them to the specified torques.1. Panel B
2. Quick fastener
Tightening torque:
Front carrier stay bolt:
34 Nm (3.4 m·kgf, 24 ft·lbf)
U3B462E0.book Page 11 Tuesday, March 20, 2007 11:46 AM

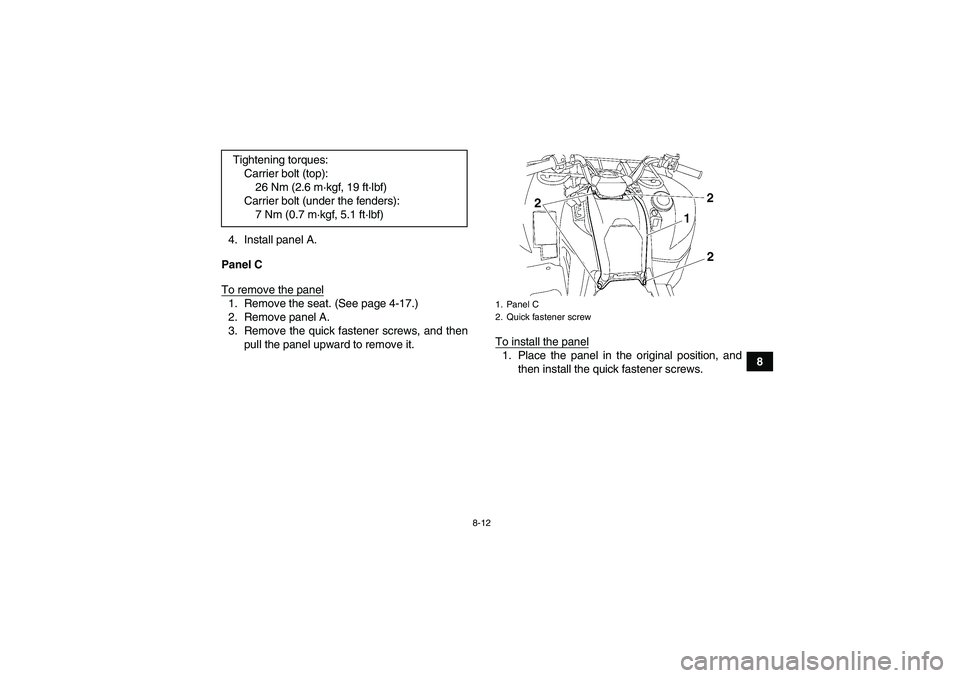

8-12
8 4. Install panel A.
Panel C
To remove the panel
1. Remove the seat. (See page 4-17.)
2. Remove panel A.
3. Remove the quick fastener screws, and then
pull the panel upward to remove it.To install the panel
1. Place the panel in the original position, and
then install the quick fastener screws. Tightening torques:
Carrier bolt (top):
26 Nm (2.6 m·kgf, 19 ft·lbf)
Carrier bolt (under the fenders):
7 Nm (0.7 m·kgf, 5.1 ft·lbf)1. Panel C
2. Quick fastener screw
U3B462E0.book Page 12 Tuesday, March 20, 2007 11:46 AM

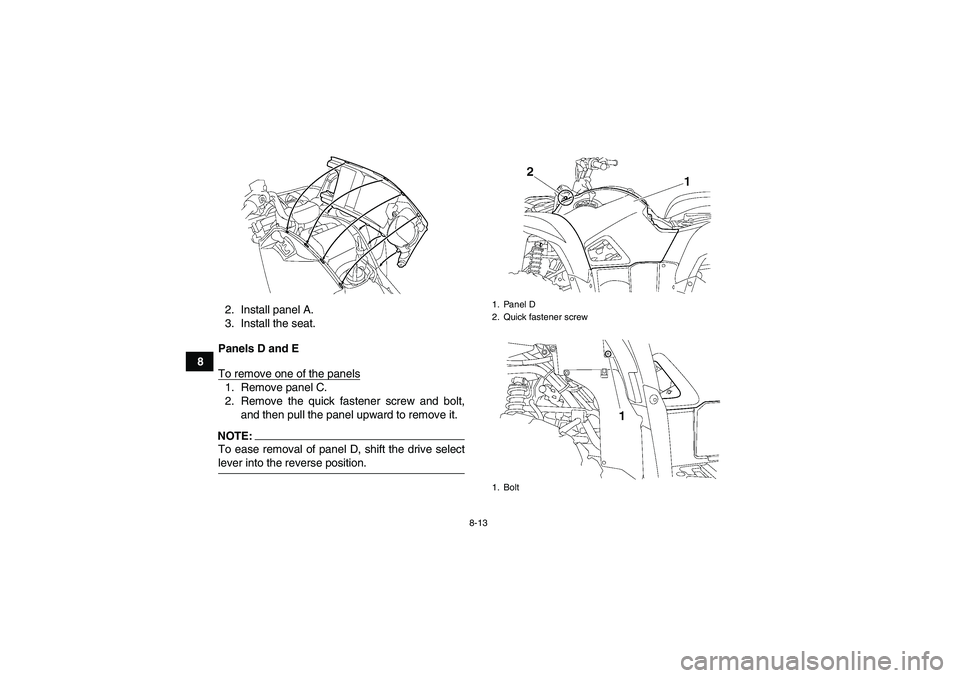

8-13
82. Install panel A.
3. Install the seat.
Panels D and E
To remove one of the panels
1. Remove panel C.
2. Remove the quick fastener screw and bolt,
and then pull the panel upward to remove it.NOTE:To ease removal of panel D, shift the drive selectlever into the reverse position.
1. Panel D
2. Quick fastener screw
1. Bolt
U3B462E0.book Page 13 Tuesday, March 20, 2007 11:46 AM

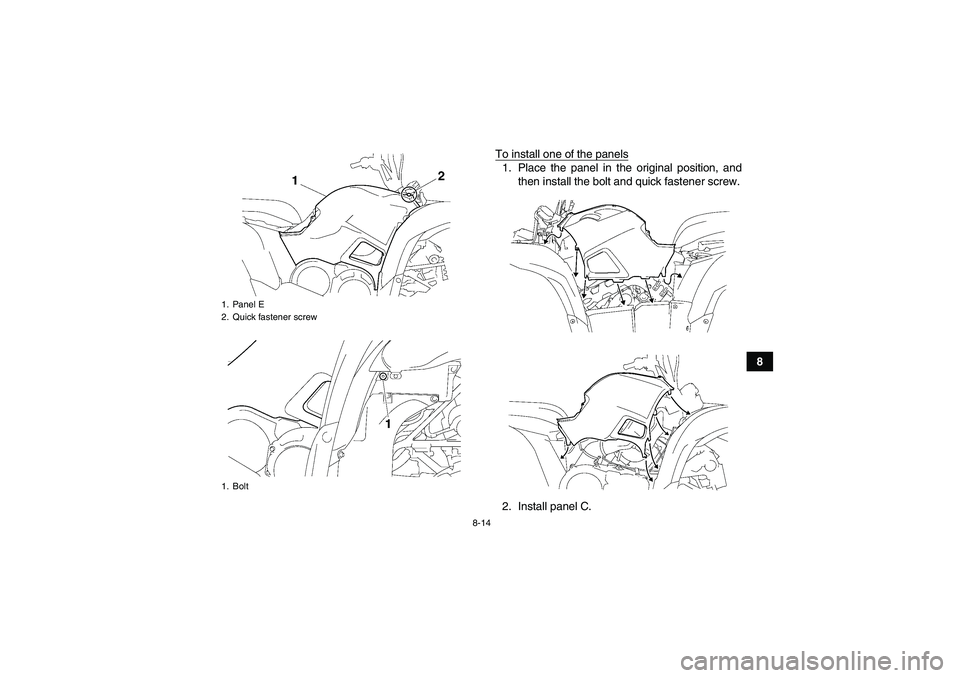

8-14
8 To install one of the panels
1. Place the panel in the original position, and
then install the bolt and quick fastener screw.
2. Install panel C.
1. Panel E
2. Quick fastener screw
1. BoltU3B462E0.book Page 14 Tuesday, March 20, 2007 11:46 AM

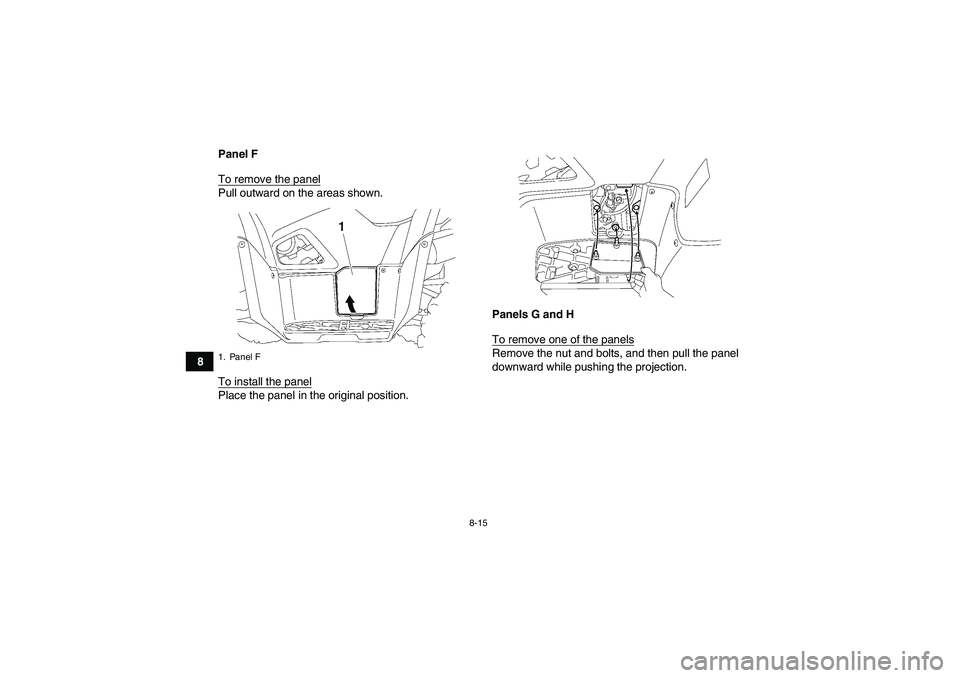

8-15
8Panel F
To remove the panel
Pull outward on the areas shown.
To install the panelPlace the panel in the original position.Panels G and H
To remove one of the panels
Remove the nut and bolts, and then pull the panel
downward while pushing the projection.
1. Panel FU3B462E0.book Page 15 Tuesday, March 20, 2007 11:46 AM
