EBU17680
DESCRIPTION
EBU17690Left view
EBU17700Right view
1. Radiator cap
2. Battery
3. Fuses
4. Air filter case
5. Spark arrester
6. Engine oil dipstick
7. Oil filter cartridge
8. Coolant reservoir
1. Rear shock absorber assembly spring preload adjusting
ring
2. Rear storage compartment and tool kit
3. Fuel tank cap cover
4. Idle adjusting screw
5. Front shock absorber assembly spring preload adjusting
ring
6. Spark plug
7. Brake pedal
8. V-belt case drain plug
U3B462E0.book Page 1 Tuesday, March 20, 2007 11:46 AM

3-2
3

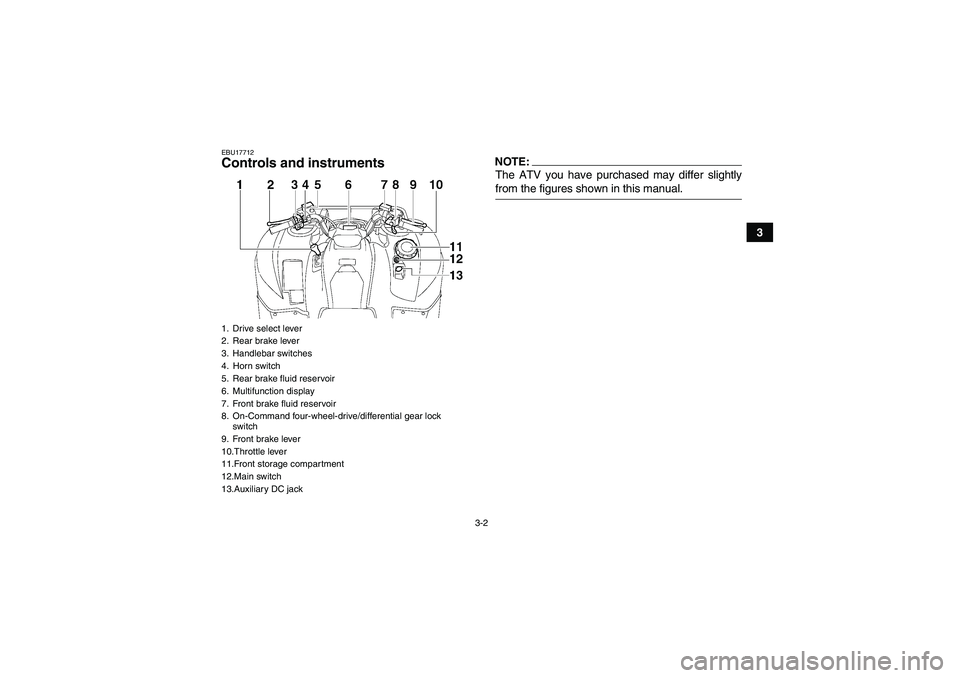

EBU17712Controls and instruments
NOTE:The ATV you have purchased may differ slightlyfrom the figures shown in this manual.
1. Drive select lever
2. Rear brake lever
3. Handlebar switches
4. Horn switch
5. Rear brake fluid reservoir
6. Multifunction display
7. Front brake fluid reservoir
8. On-Command four-wheel-drive/differential gear lock
switch
9. Front brake lever
10.Throttle lever
11.Front storage compartment
12.Main switch
13.Auxiliary DC jackU3B462E0.book Page 2 Tuesday, March 20, 2007 11:46 AM

4-1
4
EBU17731
INSTRUMENT AND CONTROL FUNCTIONS
EBU17760Main switch The positions of the main switch are as follows:
ON
All electrical systems are supplied with power. The
headlights and taillight come on when the light
switch is on, and the engine can be started. The
key cannot be removed.
OFF
All electrical systems are off. The key can be re-
moved.
1. Main switch
U3B462E0.book Page 1 Tuesday, March 20, 2007 11:46 AM

4-2
4
EBU26692Indicator lights and warning lights
EBU17830Reverse indicator light “”
This indicator light comes on when the transmis-
sion is in the reverse position.EBU17860Neutral indicator light “”
This indicator light comes on when the transmis-
sion is in the neutral position.EBU28662Coolant temperature warning light “”
This warning light comes on when the engine over-
heats. When this occurs during operation, stop the
engine as soon as it is safe to do so and allow it to
cool down for about 10 minutes.
The electrical circuit of the warning light can be
checked by turning the key to “ON”. If the warning
light does not come on, have a Yamaha dealer
check the electrical circuit.CAUTION:ECB00891
The engine may overheat if the ATV is over-
loaded. In this case, reduce the load to spec-
ification.
1. On-Command differential gear lock indicator light “DIFF.
LOCK”
2. Low-range indicator light “L”
3. High-range indicator light “H”
4. Neutral indicator light “N”
5. Reverse indicator light “R”
6. Park indicator light “P”
7. On-Command four-wheel-drive/differential gear lock
indicator “”/“”
8. Engine trouble warning light “”
9. Coolant temperature warning light “”
10.Electric Power Steering warning light “EPS”U3B462E0.book Page 2 Tuesday, March 20, 2007 11:46 AM

4-3
4

The engine may also overheat if mud or dirt
has accumulated on the radiator (i.e., after
riding in wet terrain). In this case, see page
8-19 for an explanation on how to access the
radiator.
Start the engine after making sure that the
warning light is out. Continuous use while
the warning light is on may cause damage tothe engine.EBU27280Engine trouble warning light “”
This warning light comes on or flashes when an
electrical circuit monitoring the engine is defective.
When this occurs, have a Yamaha dealer check
the self-diagnosis system. (See page 4-5 for an ex-
planation of the self-diagnosis device.)
The electrical circuit of the warning light can be
checked by turning the key to “ON”. If the warning
light does not come on, then go off, have a
Yamaha dealer check the electrical circuit.EBU27542Electric Power Steering warning light “EPS”
This warning light comes on when the key is turned
to “ON”, and then goes off once the engine is start-
ed. If the warning light remains on or comes on af-ter the engine is started, the EPS system may be
defective. When this occurs, have a Yamaha deal-
er check the EPS system.
The electrical circuit of the warning light can be
checked by turning the key to “ON”. If the warning
light does not come on, have a Yamaha dealer
check the electrical circuit.
NOTE:
If the engine is stopped using the engine stop
switch and the key is in the “ON” position, the
EPS warning light comes on to indicate that the
power assistance for the steering is not function-
ing.
If the steering load is too heavy (i.e., excessive
steering use when the ATV is traveling at a slow
speed), the power assist is reduced to protectthe EPS motor from overheating.EBU17961On-Command four-wheel-drive/differential
gear lock indicator “”/“”
The On-Command four-wheel-drive indicator “”
comes on when the On-Command four-wheel-
drive switch is set to the “4WD” position.
U3B462E0.book Page 3 Tuesday, March 20, 2007 11:46 AM

4-4
4 The On-Command differential gear lock indicator
“” in the On-Command four-wheel-drive indica-
tor also comes on when the On-Command differ-
ential gear lock switch is set to the “LOCK”
position.
NOTE:
Due to the synchronizing mechanism in the dif-
ferential gear case, the four-wheel-drive indica-
tor may not come on until the ATV starts moving.
When the On-Command differential gear lock

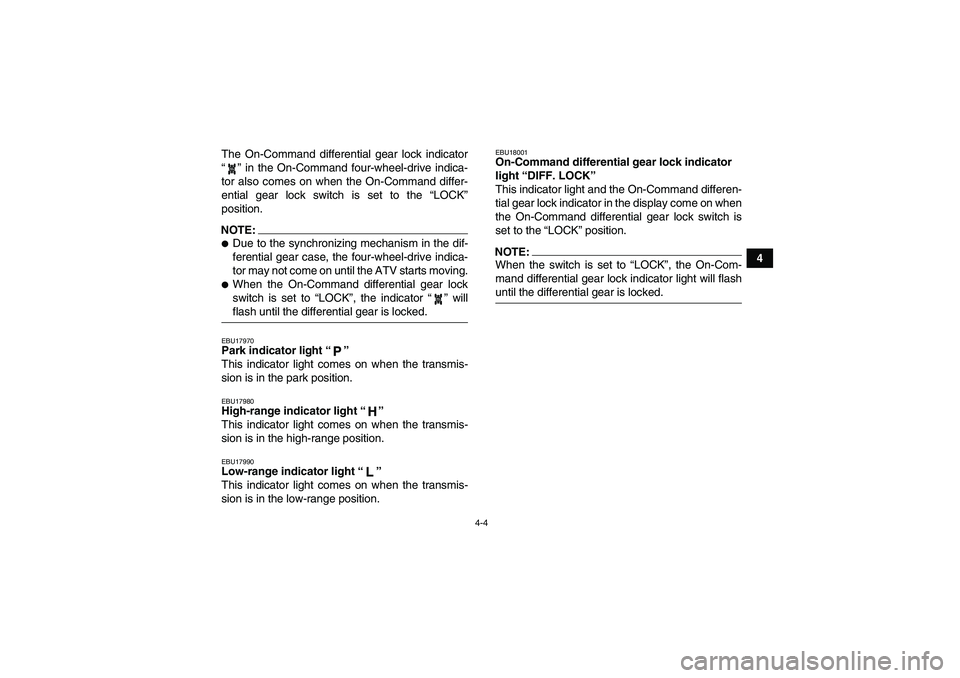

switch is set to “LOCK”, the indicator “” willflash until the differential gear is locked.EBU17970Park indicator light “”
This indicator light comes on when the transmis-
sion is in the park position.EBU17980High-range indicator light “”
This indicator light comes on when the transmis-
sion is in the high-range position.EBU17990Low-range indicator light “”
This indicator light comes on when the transmis-
sion is in the low-range position.
EBU18001On-Command differential gear lock indicator
light “DIFF. LOCK”
This indicator light and the On-Command differen-
tial gear lock indicator in the display come on when
the On-Command differential gear lock switch is
set to the “LOCK” position.NOTE:When the switch is set to “LOCK”, the On-Com-
mand differential gear lock indicator light will flashuntil the differential gear is locked.
U3B462E0.book Page 4 Tuesday, March 20, 2007 11:46 AM

4-5
4

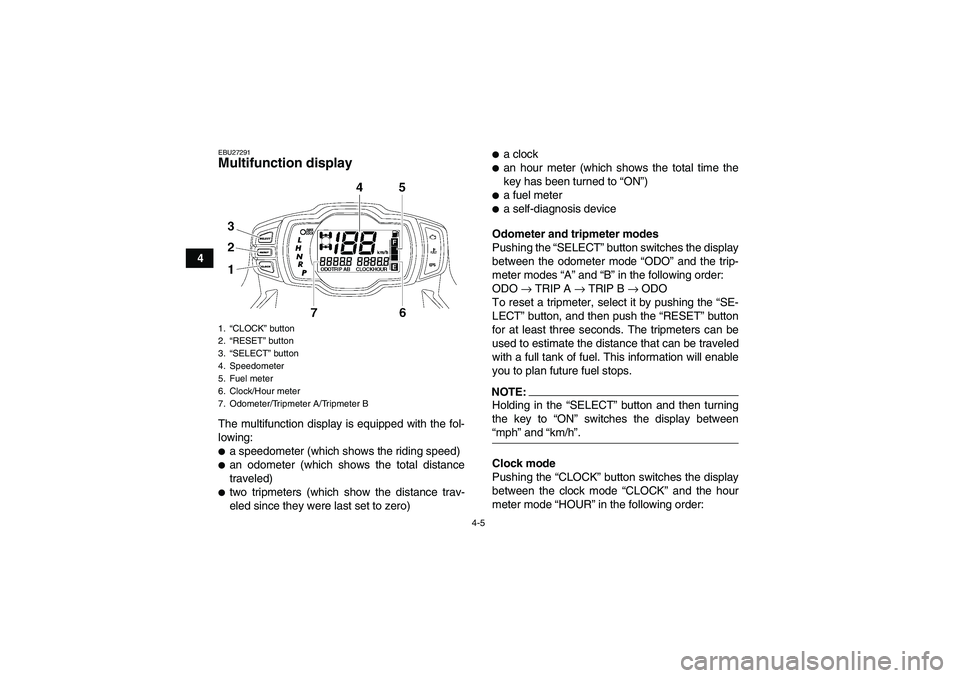

EBU27291Multifunction display The multifunction display is equipped with the fol-
lowing:
a speedometer (which shows the riding speed)
an odometer (which shows the total distance
traveled)
two tripmeters (which show the distance trav-
eled since they were last set to zero)

a clock
an hour meter (which shows the total time the
key has been turned to “ON”)
a fuel meter
a self-diagnosis device
Odometer and tripmeter modes
Pushing the “SELECT” button switches the display
between the odometer mode “ODO” and the trip-
meter modes “A” and “B” in the following order:
ODO → TRIP A → TRIP B → ODO
To reset a tripmeter, select it by pushing the “SE-
LECT” button, and then push the “RESET” button
for at least three seconds. The tripmeters can be
used to estimate the distance that can be traveled
with a full tank of fuel. This information will enable
you to plan future fuel stops.
NOTE:Holding in the “SELECT” button and then turning
the key to “ON” switches the display between“mph” and “km/h”.
Clock mode
Pushing the “CLOCK” button switches the display
between the clock mode “CLOCK” and the hour
meter mode “HOUR” in the following order:
1.“CLOCK” button
2.“RESET” button
3.“SELECT” button
4. Speedometer
5. Fuel meter
6. Clock/Hour meter
7. Odometer/Tripmeter A/Tripmeter BU3B462E0.book Page 5 Tuesday, March 20, 2007 11:46 AM

4-6
4 CLOCK → HOUR → CLOCK
To set the clock
1. Set the display to the clock mode.
2. Push the “SELECT” button and “RESET” but-
ton together for at least three seconds.
3. When the hour digits start flashing, push the
“RESET” button to set the hours.
4. Push the “SELECT” button, and the minute
digits will start flashing.
5. Push the “RESET” button to set the minutes.
6. Push the “SELECT” button and then release it
to start the clock.

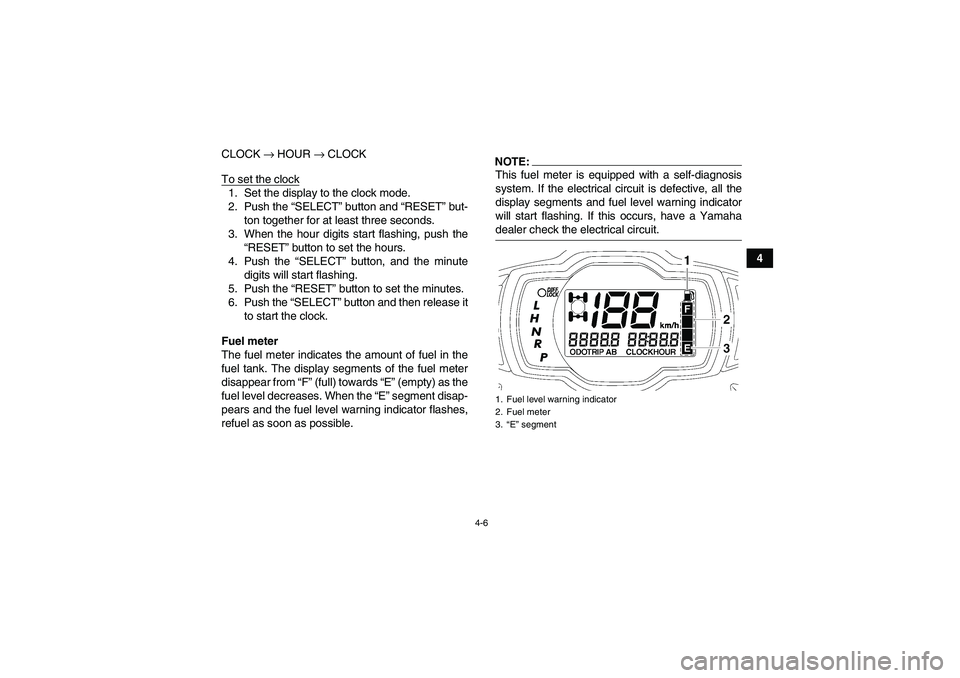

Fuel meter
The fuel meter indicates the amount of fuel in the
fuel tank. The display segments of the fuel meter
disappear from “F” (full) towards “E” (empty) as the
fuel level decreases. When the “E” segment disap-
pears and the fuel level warning indicator flashes,
refuel as soon as possible.
NOTE:This fuel meter is equipped with a self-diagnosis
system. If the electrical circuit is defective, all the
display segments and fuel level warning indicator
will start flashing. If this occurs, have a Yamahadealer check the electrical circuit.1. Fuel level warning indicator
2. Fuel meter
3.“E” segment
U3B462E0.book Page 6 Tuesday, March 20, 2007 11:46 AM

4-7
4Self-diagnosis device
This model is equipped with a self-diagnosis de-
vice for various electrical circuits.
If any of those circuits are defective, the multifunc-
tion display will indicate a two-digit error code.
If the multifunction display indicates such an error
code, note the code number, and then have a
Yamaha dealer check the vehicle.
CAUTION:ECB00810If the multifunction display indicates an error
code, the vehicle should be checked as soonas possible in order to avoid engine damage.
EBU18061Handlebar switches EBU18080Engine stop switch “/”
Set this switch to “” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch
to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to “”.
1. Error code display
1. Light switch “/ /OFF”
2. Start switch “”
3. Engine stop switch “/”
4. Override switch “OVERRIDE”
5. Horn switch “”
