belt YAMAHA GRIZZLY 700 2008 Owners Manual

Operating the drive select lever and
driving in reverse ...................................... 6-2
Engine break-in .......................................... 6-4
Parking ....................................................... 6-5
Parking on a slope ..................................... 6-5
Accessories and loading ............................ 6-6
RIDING YOUR ATV ...................................... 7-1
GETTING TO KNOW YOUR ATV............... 7-2
RIDE WITH CARE AND GOOD
JUDGEMENT ............................................ 7-2
BE CAREFUL WHERE YOU RIDE ............. 7-9
TURNING YOUR ATV .............................. 7-13
CLIMBING UPHILL ................................... 7-14
RIDING DOWNHILL.................................. 7-17
CROSSING A SLOPE............................... 7-18
CROSSING THROUGH SHALLOW
WATER ................................................... 7-19
RIDING OVER ROUGH TERRAIN ........... 7-22
SLIDING AND SKIDDING ......................... 7-22
WHAT TO DO IF... .................................... 7-23
WHAT TO DO... ........................................ 7-23
PERIODIC MAINTENANCE AND MINOR
REPAIR .......................................................... 8-1
Owner’s manual and tool kit ....................... 8-1Periodic maintenance chart for the
emission control system ...........................8-3
General maintenance and lubrication
chart ..........................................................8-4
Removing and installing panels ..................8-8
Removing the radiator grills ......................8-19
Checking the spark plug ...........................8-20
Engine oil and oil filter cartridge ................8-22
Final gear oil .............................................8-26
Differential gear oil ....................................8-28
Coolant .....................................................8-30
Cleaning the air filter element ...................8-36
Cleaning the spark arrester ......................8-40
V-belt case drain plug ...............................8-42
Adjusting the engine idling speed .............8-42
Adjusting the throttle cable free play .........8-43
Valve clearance ........................................8-44
Adjusting the drive select lever safety
system cable ...........................................8-44
Checking the front and rear brake pads ...8-44
Checking the rear brake hose
protectors ................................................8-45
Checking the brake fluid level ...................8-46
Changing the brake fluid ...........................8-47
Checking the front and rear brake lever
free play ..................................................8-48
U3B462E0.book Page 2 Tuesday, March 20, 2007 11:46 AM

3-1
3
EBU17680
DESCRIPTION
EBU17690Left view
EBU17700Right view
1. Radiator cap
2. Battery
3. Fuses
4. Air filter case
5. Spark arrester
6. Engine oil dipstick
7. Oil filter cartridge
8. Coolant reservoir
1. Rear shock absorber assembly spring preload adjusting
ring
2. Rear storage compartment and tool kit
3. Fuel tank cap cover
4. Idle adjusting screw
5. Front shock absorber assembly spring preload adjusting
ring
6. Spark plug
7. Brake pedal
8. V-belt case drain plug
U3B462E0.book Page 1 Tuesday, March 20, 2007 11:46 AM

7-20
7
WARNING
EWB01640Never operate this ATV in fast flowing water or
in water deeper than that specified in your
Owner’s Manual. Remember that wet brakes
may have reduced stopping ability. Test your
brakes after leaving water. If necessary, apply
them several times to let friction dry out the lin-
ings. If the ATV is operated through deep or
fast flowing water, the tires may float, causing
loss of traction and loss of control, whichcould lead to an accident.Test your brakes after leaving the water. Do not
continue to ride your ATV without verifying that you
have regained proper braking ability.
CAUTION:ECB00840After riding your ATV in water, be sure to drain
the trapped water by removing the check hos-
es at the bottom of the air filter case. Also, re-
move the drain plugs from the front and rear
storage compartments and the V-belt case to
drain any water that may have accumulated.
Wash the ATV with fresh water if it has beenoperated in salt water or muddy conditions.
U3B462E0.book Page 20 Tuesday, March 20, 2007 11:46 AM

7-22
7 RIDING OVER ROUGH TERRAIN
Riding over rough terrain should be done with cau-
tion. Look out for obstacles which could cause
damage to the ATV or could lead to an upset or ac-
cident. Be sure to keep your feet firmly mounted on
the footboards at all times. Avoid jumping the ATV
as loss of control and damage to the ATV may re-
sult.
WARNING
EWB01650Before operating in a new area, check for ob-
stacles. Never attempt to ride over large obsta-
cles, such as large rocks or fallen trees. Whenyou go over obstacles, always follow proper
procedures as described in the Owner’s Manu-
al.
SLIDING AND SKIDDING
Care should be used when riding on loose or slip-
pery surfaces since the ATV may slide. If unex-
pected and uncorrected, sliding could lead to an
accident.
To reduce the tendency for the front wheels to slide
in loose or slippery conditions, positioning your
weight over the front wheels will sometimes help.
1. V-belt case drain plugU3B462E0.book Page 22 Tuesday, March 20, 2007 11:46 AM

8-35
8

If water has been added to the coolant, have
a Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible, oth-
erwise the effectiveness of the coolant willbe reduced.
13. Loosen the water pump air bleed bolt, without
removing it, to allow all of the air to escape
from the air bleed bolt hole.
14. When coolant begins to flow out of the bolt
hole, tighten the water pump air bleed bolt to
the specified torque.15. Remove panel E. (See page 8-8.)
16. Loosen the clamp screw, and then remove the
V-belt cooling duct.
17. Loosen the cylinder head air bleed bolt, with-
out removing it, to allow all of the air to escape
from the air bleed bolt hole.1. Water pump air bleed bolt
Tightening torque:
Water pump air bleed bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)1. V-belt cooling duct
2. Clamp screw
U3B462E0.book Page 35 Tuesday, March 20, 2007 11:46 AM

8-36
8 18. When coolant begins to flow out of the bolt
hole, tighten the cylinder head air bleed bolt to
the specified torque.
19. Start the engine and let it idle for ten minutes.
20. Rev the engine five times.
21. Pour the recommended coolant into the radia-
tor until it is full.22. Stop the engine and allow it to cool. If the cool-
ant level has dropped after the engine has
cooled, add sufficient coolant until it reaches
the top of the radiator, and then install the ra-
diator cap.
23. Start the engine, and then check for coolant
leakage.
NOTE:If any leakage is found, have a Yamaha dealercheck the cooling system.
24. Install the V-belt cooling duct, and then tighten
the clamp screw.
25. Install the panels.EBU27801Cleaning the air filter element The air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean the air filter element more
frequently if you are riding in unusually wet or dusty
areas.NOTE:There are two check hoses at the bottom of the air
filter case, which are located behind panels D and
E. (See page 8-8 for an explanation on removing
1. Cylinder head air bleed boltTightening torque:
Cylinder head air bleed bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
U3B462E0.book Page 36 Tuesday, March 20, 2007 11:46 AM

8-42
8
WARNING
EWB02380Never run the engine in an enclosed area when
purging the spark arrester, otherwise it could
cause injury to the eyes, burns, carbon monox-
ide poisoning, possibly leading to death, and
start a fire.
Always let the exhaust system cool prior to
touching exhaust components.
Always wear eye protection, and make sure
no one is behind the ATV.
Make sure there are no combustible materi-als in the area.EBU23930V-belt case drain plug After riding in water deep enough to allow it to en-
ter the V-belt case, remove this plug to drain the
water from the case.NOTE:If water drains from the V-belt case after removing
the plug, have a Yamaha dealer check the ATV asthe water may affect other engine parts.
EBU27310Adjusting the engine idling speed The engine idling speed must be checked and, if
necessary, adjusted as follows at the intervals
specified in the periodic maintenance and lubrica-
tion chart.NOTE:A diagnostic tachometer is needed to make thisadjustment.
1. Start the engine and warm it up.1. V-belt case drain plug
U3B462E0.book Page 42 Tuesday, March 20, 2007 11:46 AM

10-3
10
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)Clutch:Clutch type:
Wet, centrifugal automaticTransmission:Primary reduction system:
V-belt
Secondary reduction system:
Shaft drive
Secondary reduction ratio:
41/21 × 24/18 × 33/9 (9.544)
Transmission type:
V-belt automatic
Operation:
Left hand operation
Reverse gear:
23/14 × 28/23 (2.000)
Low range:
31/16 (1.938)
High range:
31/27 (1.148)Chassis:Frame type:
Steel tube frame
Caster angle:
5.0 °
Trail:
26.0 mm (1.02 in)
Front tire:Type:
Tubeless
Size:
AT25 x 8-12
Manufacturer/model:
CHENG SHIN/C828-4P (AUS)(NZL)
DUNLOP/KT421 (EUR)Rear tire:Type:
Tubeless
Size:
AT25 x 10-12
Manufacturer/model:
CHENG SHIN/C828-4P (AUS)(NZL)
DUNLOP/KT425 (EUR)Loading:Maximum loading limit:
220.0 kg (485 lb)
(Total weight of rider, cargo, accessories, and tongue)Tire air pressure (measured on cold tires):Recommended:
Front:
35.0 kPa (5.0 psi) (0.350 kgf/cm²)
Rear:
30.0 kPa (4.3 psi) (0.300 kgf/cm²)
Minimum:
Front:
32.0 kPa (4.6 psi) (0.320 kgf/cm²)
Rear:
27.0 kPa (3.9 psi) (0.270 kgf/cm²)
U3B462E0.book Page 3 Tuesday, March 20, 2007 11:46 AM

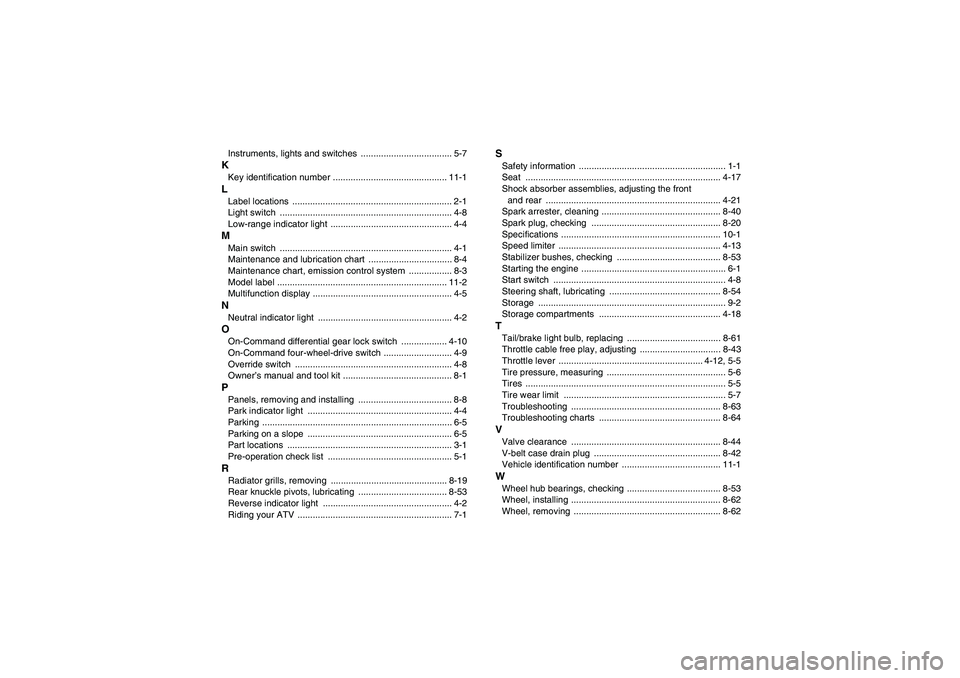

Instruments, lights and switches .................................... 5-7KKey identification number ............................................. 11-1LLabel locations ............................................................... 2-1
Light switch .................................................................... 4-8
Low-range indicator light ................................................ 4-4MMain switch .................................................................... 4-1
Maintenance and lubrication chart ................................. 8-4
Maintenance chart, emission control system ................. 8-3
Model label ................................................................... 11-2
Multifunction display ....................................................... 4-5NNeutral indicator light ..................................................... 4-2OOn-Command differential gear lock switch .................. 4-10
On-Command four-wheel-drive switch ........................... 4-9
Override switch .............................................................. 4-8
Owner’s manual and tool kit ........................................... 8-1PPanels, removing and installing ..................................... 8-8
Park indicator light ......................................................... 4-4
Parking ........................................................................... 6-5
Parking on a slope ......................................................... 6-5
Part locations ................................................................. 3-1
Pre-operation check list ................................................. 5-1RRadiator grills, removing .............................................. 8-19
Rear knuckle pivots, lubricating ................................... 8-53
Reverse indicator light ................................................... 4-2
Riding your ATV ............................................................. 7-1
SSafety information .......................................................... 1-1
Seat ............................................................................. 4-17
Shock absorber assemblies, adjusting the front
and rear ..................................................................... 4-21
Spark arrester, cleaning ............................................... 8-40
Spark plug, checking ................................................... 8-20
Specifications ............................................................... 10-1
Speed limiter ................................................................ 4-13
Stabilizer bushes, checking ......................................... 8-53
Starting the engine ......................................................... 6-1
Start switch .................................................................... 4-8
Steering shaft, lubricating ............................................ 8-54
Storage .......................................................................... 9-2
Storage compartments ................................................ 4-18TTail/brake light bulb, replacing ..................................... 8-61
Throttle cable free play, adjusting ................................ 8-43
Throttle lever ......................................................... 4-12, 5-5
Tire pressure, measuring ............................................... 5-6
Tires ............................................................................... 5-5
Tire wear limit ................................................................ 5-7
Troubleshooting ........................................................... 8-63
Troubleshooting charts ................................................ 8-64VValve clearance ........................................................... 8-44
V-belt case drain plug .................................................. 8-42
Vehicle identification number ....................................... 11-1WWheel hub bearings, checking ..................................... 8-53
Wheel, installing ........................................................... 8-62
Wheel, removing .......................................................... 8-62
U3B462E0.book Page 2 Tuesday, March 20, 2007 11:46 AM
