DESCRIPTION
EBU17690Left view
EBU17700Right view
1. Radiator cap
2. Battery
3. Fuses
4. Air filter case
5. Spark arrester
6. Engine oil dipstick
7. Oil filter cartridge
8. Coolant reservoir
1. Rear shock absorber assembly spring preload adjusting
ring
2. Rear storage compartment and tool kit
3. Fuel tank cap cover
4. Idle adjusting screw
5. Front shock absorber assembly spring preload adjusting
ring
6. Spark plug
7. Brake pedal
8. V-belt case drain plug
U3B462E0.book Page 1 Tuesday, March 20, 2007 11:46 AM

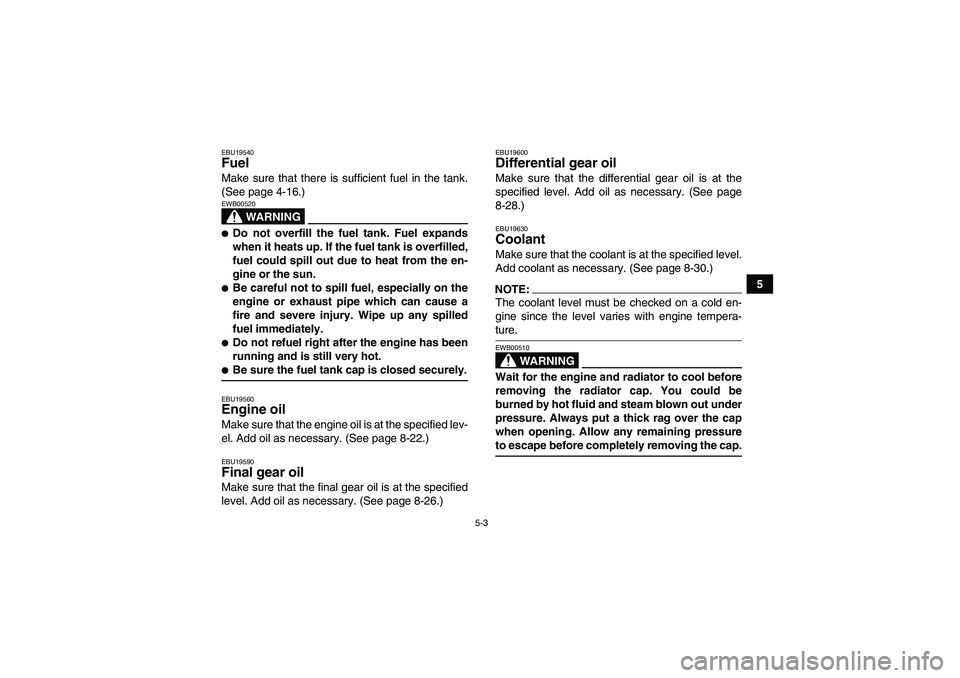

5-3
5
EBU19540Fuel Make sure that there is sufficient fuel in the tank.
(See page 4-16.)
WARNING
EWB00520
Do not overfill the fuel tank. Fuel expands
when it heats up. If the fuel tank is overfilled,
fuel could spill out due to heat from the en-
gine or the sun.
Be careful not to spill fuel, especially on the
engine or exhaust pipe which can cause a
fire and severe injury. Wipe up any spilled
fuel immediately.
Do not refuel right after the engine has been
running and is still very hot.
Be sure the fuel tank cap is closed securely.EBU19560Engine oil Make sure that the engine oil is at the specified lev-
el. Add oil as necessary. (See page 8-22.)EBU19590Final gear oil Make sure that the final gear oil is at the specified
level. Add oil as necessary. (See page 8-26.)
EBU19600Differential gear oil Make sure that the differential gear oil is at the
specified level. Add oil as necessary. (See page
8-28.)EBU19630Coolant Make sure that the coolant is at the specified level.
Add coolant as necessary. (See page 8-30.)NOTE:The coolant level must be checked on a cold en-
gine since the level varies with engine tempera-ture.
WARNING
EWB00510Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always put a thick rag over the cap
when opening. Allow any remaining pressureto escape before completely removing the cap.
U3B462E0.book Page 3 Tuesday, March 20, 2007 11:46 AM

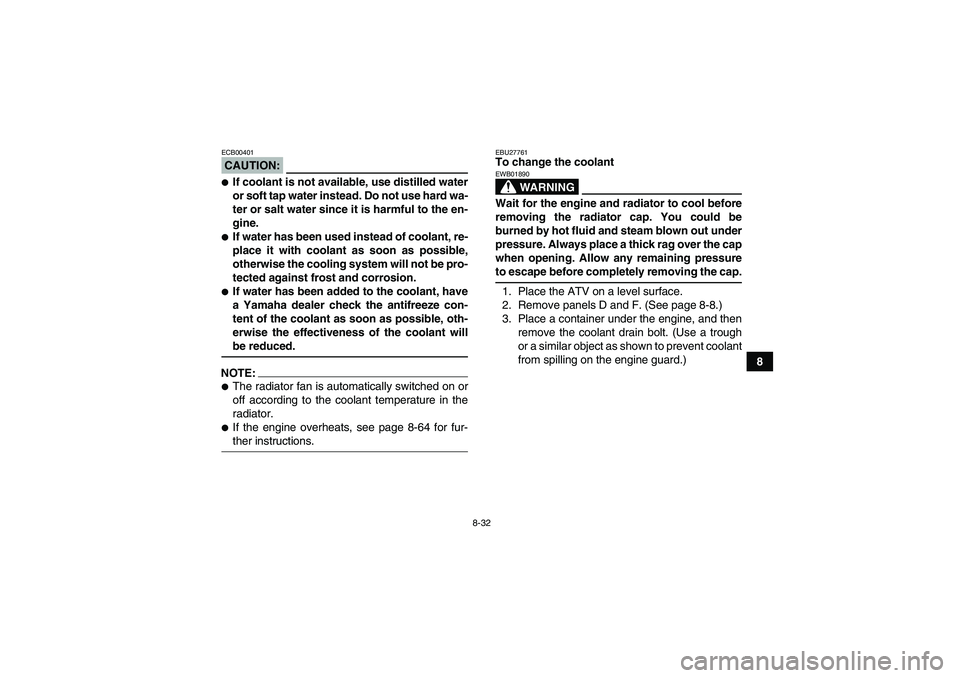

8-32
8
CAUTION:ECB00401
If coolant is not available, use distilled water
or soft tap water instead. Do not use hard wa-
ter or salt water since it is harmful to the en-
gine.
If water has been used instead of coolant, re-
place it with coolant as soon as possible,
otherwise the cooling system will not be pro-
tected against frost and corrosion.
If water has been added to the coolant, have
a Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible, oth-
erwise the effectiveness of the coolant willbe reduced.
NOTE:
The radiator fan is automatically switched on or
off according to the coolant temperature in the
radiator.
If the engine overheats, see page 8-64 for fur-ther instructions.
EBU27761To change the coolant
WARNING
EWB01890Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always place a thick rag over the cap
when opening. Allow any remaining pressureto escape before completely removing the cap.
1. Place the ATV on a level surface.
2. Remove panels D and F. (See page 8-8.)
3. Place a container under the engine, and then
remove the coolant drain bolt. (Use a trough
or a similar object as shown to prevent coolant
from spilling on the engine guard.)
U3B462E0.book Page 32 Tuesday, March 20, 2007 11:46 AM

8-33
8

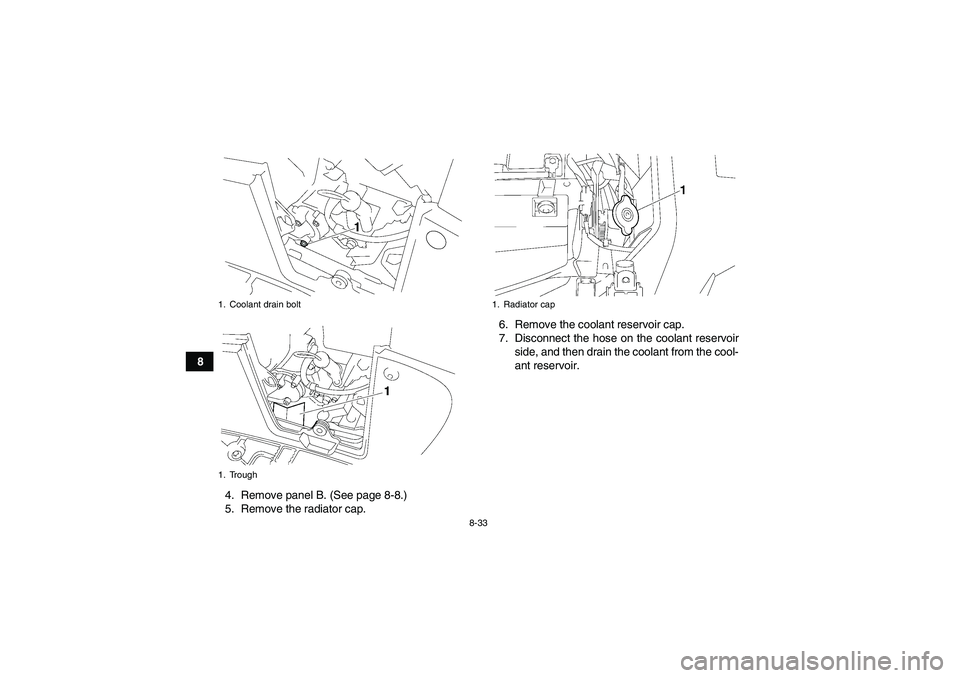

4. Remove panel B. (See page 8-8.)
5. Remove the radiator cap.6. Remove the coolant reservoir cap.
7. Disconnect the hose on the coolant reservoir
side, and then drain the coolant from the cool-
ant reservoir.
1. Coolant drain bolt
1. Trough
1. Radiator cap
U3B462E0.book Page 33 Tuesday, March 20, 2007 11:46 AM

8-34

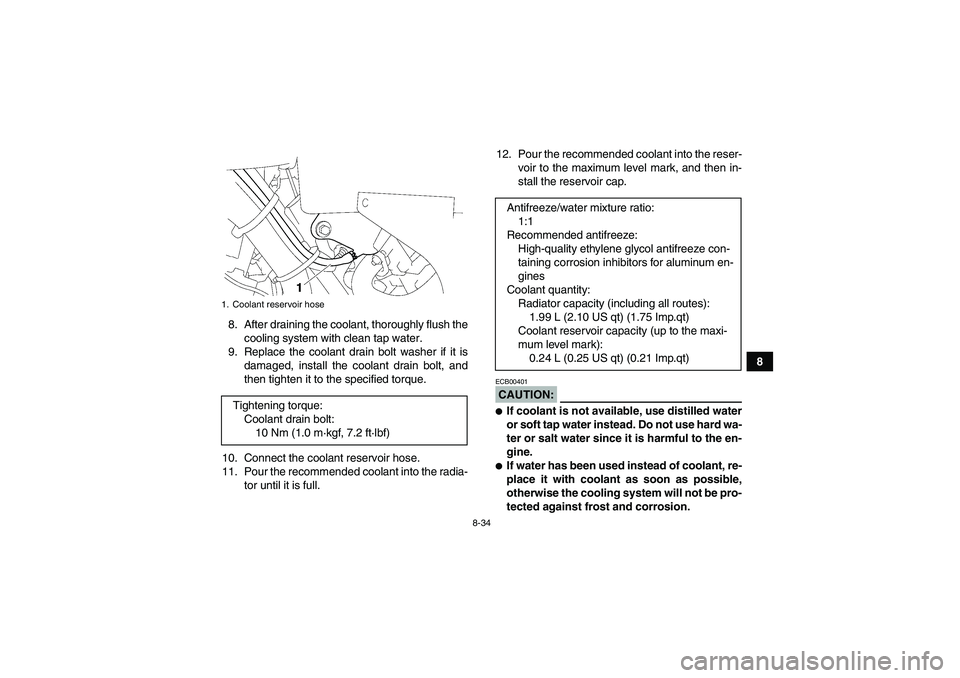

8 8. After draining the coolant, thoroughly flush the
cooling system with clean tap water.
9. Replace the coolant drain bolt washer if it is
damaged, install the coolant drain bolt, and
then tighten it to the specified torque.
10. Connect the coolant reservoir hose.
11. Pour the recommended coolant into the radia-
tor until it is full.12. Pour the recommended coolant into the reser-
voir to the maximum level mark, and then in-
stall the reservoir cap.
CAUTION:ECB00401
If coolant is not available, use distilled water
or soft tap water instead. Do not use hard wa-
ter or salt water since it is harmful to the en-
gine.
If water has been used instead of coolant, re-
place it with coolant as soon as possible,
otherwise the cooling system will not be pro-
tected against frost and corrosion.
1. Coolant reservoir hoseTightening torque:
Coolant drain bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Antifreeze/water mixture ratio:
1:1
Recommended antifreeze:
High-quality ethylene glycol antifreeze con-
taining corrosion inhibitors for aluminum en-
gines
Coolant quantity:
Radiator capacity (including all routes):
1.99 L (2.10 US qt) (1.75 Imp.qt)
Coolant reservoir capacity (up to the maxi-
mum level mark):
0.24 L (0.25 US qt) (0.21 Imp.qt)
U3B462E0.book Page 34 Tuesday, March 20, 2007 11:46 AM

8-36

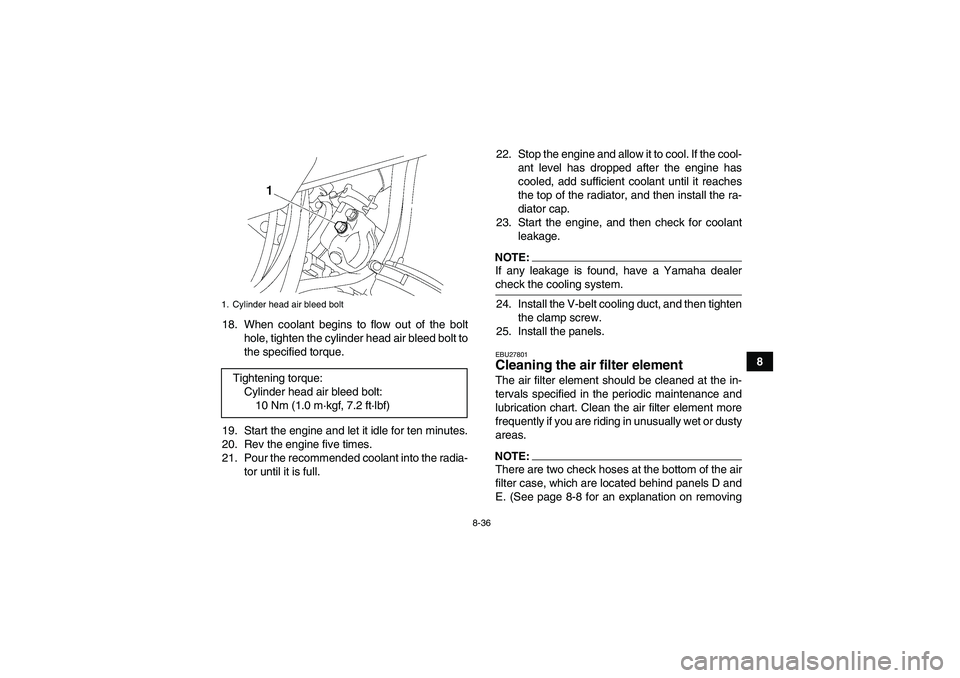

8 18. When coolant begins to flow out of the bolt
hole, tighten the cylinder head air bleed bolt to
the specified torque.
19. Start the engine and let it idle for ten minutes.
20. Rev the engine five times.
21. Pour the recommended coolant into the radia-
tor until it is full.22. Stop the engine and allow it to cool. If the cool-
ant level has dropped after the engine has
cooled, add sufficient coolant until it reaches
the top of the radiator, and then install the ra-
diator cap.
23. Start the engine, and then check for coolant
leakage.
NOTE:If any leakage is found, have a Yamaha dealercheck the cooling system.
24. Install the V-belt cooling duct, and then tighten
the clamp screw.
25. Install the panels.EBU27801Cleaning the air filter element The air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean the air filter element more
frequently if you are riding in unusually wet or dusty
areas.NOTE:There are two check hoses at the bottom of the air
filter case, which are located behind panels D and
E. (See page 8-8 for an explanation on removing
1. Cylinder head air bleed boltTightening torque:
Cylinder head air bleed bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
U3B462E0.book Page 36 Tuesday, March 20, 2007 11:46 AM

8-65

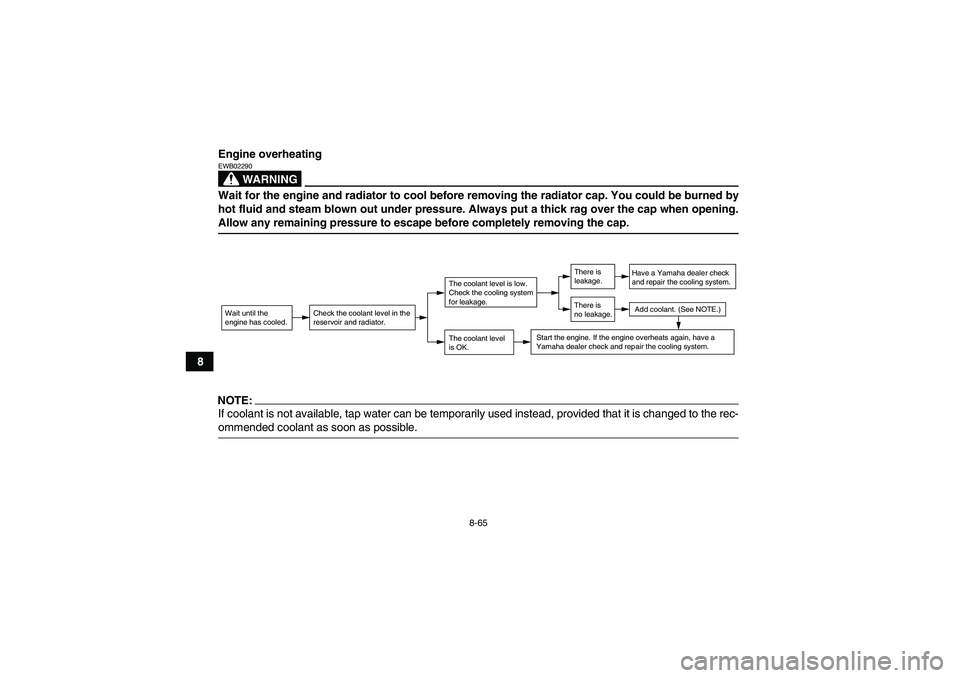

8Engine overheating
WARNING
EWB02290Wait for the engine and radiator to cool before removing the radiator cap. You could be burned by
hot fluid and steam blown out under pressure. Always put a thick rag over the cap when opening.Allow any remaining pressure to escape before completely removing the cap.NOTE:If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the rec-ommended coolant as soon as possible.Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer check
and repair the cooling system.Add coolant. (See NOTE.)
Start the engine. If the engine overheats again, have a
Yamaha dealer check and repair the cooling system.
There is
leakage.
There is
no leakage.
U3B462E0.book Page 65 Tuesday, March 20, 2007 11:46 AM

10-2
10
Engine oil:Type:
SAE5W30 or SAE10W30 or SAE10W40 or SAE15W40
or SAE20W40 or SAE20W50
Recommended engine oil grade:
API service SG type or higher, JASO standard MA
Engine oil quantity:
Without oil filter cartridge replacement:
2.00 L (2.11 US qt) (1.76 Imp.qt)
With oil filter cartridge replacement:
2.10 L (2.22 US qt) (1.85 Imp.qt)Final gear oil:Type:
SAE80 API GL-4 Hypoid gear oil
Quantity:
0.20 L (0.21 US qt) (0.18 Imp.qt)
Differential gear oil:Type:
SAE80 API GL-4 Hypoid gear oil
Quantity:
0.22 L (0.23 US qt) (0.19 Imp.qt)Cooling system:Coolant reservoir capacity (up to the maximum level mark):
0.24 L (0.25 US qt) (0.21 Imp.qt)
Radiator capacity (including all routes):
1.99 L (2.10 US qt) (1.75 Imp.qt)Air filter:Air filter element:
Wet elementFuel:Recommended fuel:
Regular unleaded gasoline only (EUR)
Unleaded gasoline only (AUS)(NZL)
Fuel tank capacity:
20.0 L (5.28 US gal) (4.40 Imp.gal)
Fuel reserve amount:
4.5 L (1.19 US gal) (0.99 Imp.gal)Fuel injection:Throttle body:
Type/quantity:
44EIS/1
Manufacturer:
MIKUNISpark plug (s):Manufacturer/model:
NGK/CPR7EA-9
