key YAMAHA GRIZZLY 700 2009 Owners Manual
[x] Cancel search | Manufacturer: YAMAHA, Model Year: 2009, Model line: GRIZZLY 700, Model: YAMAHA GRIZZLY 700 2009Pages: 166, PDF Size: 6.7 MB
Page 6 of 166
EBU17330
IMPORTANT MANUAL INFORMATION
EBU17342FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN RESULT IN SERIOUS IN-
JURY OR DEATH.
Particularly important information is distinguished in this manual by the following notations:
* Product and specifications are subject to change without notice.This is the safety alert symbol. It is used to alert you to potential per-
sonal injury hazards. Obey all safety messages that follow this sym-
bol to avoid possible injury or death.
A WARNING indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
A NOTICE indicates special precautions that must be taken to avoid
damage to the vehicle or other property.
A TIP provides key information to make procedures easier or clearer.
WARNING
NOTICETIPU43P60E0.book Page 1 Tuesday, May 20, 2008 5:33 PM
Page 24 of 166
4-1
4
EBU17732
INSTRUMENT AND CONTROL FUNCTIONS
EBU17760Main switch The positions of the main switch are as follows:
ON
All electrical systems are supplied with power. The
headlights and taillight come on when the light
switch is on, and the engine can be started. The
key cannot be removed.
OFF
All electrical systems are off. The key can be re-
moved.
1. Main switch
U43P60E0.book Page 1 Tuesday, May 20, 2008 5:33 PM
Page 25 of 166
4-2
4
EBU26692Indicator lights and warning lights
EBU17830Reverse indicator light“”
This indicator light comes on when the transmis-
sion is in the reverse position.EBU17860Neutral indicator light“”
This indicator light comes on when the transmis-
sion is in the neutral position.EBU28662Coolant temperature warning light“”
This warning light comes on when the engine over-
heats. When this occurs during operation, stop the
engine as soon as it is safe to do so and allow it to
cool down for about 10 minutes.
The electrical circuit of the warning light can be
checked by turning the key to “ON”. If the warning
light does not come on, have a Yamaha dealer
check the electrical circuit.NOTICEECB00891The engine may overheat if the ATV is over-
loaded. In this case, reduce the load to spec-
ification.
1. On-Command differential gear lock indicator light “DIFF.
LOCK”
2. Low-range indicator light “L”
3. High-range indicator light “H”
4. Neutral indicator light “N”
5. Reverse indicator light “R”
6. Park indicator light “P”
7. On-Command four-wheel-drive/differential gear lock
indicator“”/“”
8. Engine trouble warning light“”
9. Coolant temperature warning light“”
10.Electric Power Steering warning light “EPS”U43P60E0.book Page 2 Tuesday, May 20, 2008 5:33 PM
Page 26 of 166
4-3
4
The engine may also overheat if mud or dirt
has accumulated on the radiator (i.e., after
riding in wet terrain). In this case, see page
8-19 for an explanation on how to access the
radiator.Start the engine after making sure that the
warning light is out. Continuous use while
the warning light is on may cause damage tothe engine.EBU27280Engine trouble warning light“”
This warning light comes on or flashes when an
electrical circuit monitoring the engine is defective.
When this occurs, have a Yamaha dealer check
the self-diagnosis system. (See page 4-5 for an ex-
planation of the self-diagnosis device.)
The electrical circuit of the warning light can be
checked by turning the key to “ON”. If the warning
light does not come on, then go off, have a
Yamaha dealer check the electrical circuit.EBU27542Electric Power Steering warning light “EPS”
This warning light comes on when the key is turned
to “ON”, and then goes off once the engine is start-
ed. If the warning light remains on or comes on af-ter the engine is started, the EPS system may be
defective. When this occurs, have a Yamaha deal-
er check the EPS system.
The electrical circuit of the warning light can be
checked by turning the key to “ON”. If the warning
light does not come on, have a Yamaha dealer
check the electrical circuit.
TIPIf the engine is stopped using the engine stop
switch and the key is in the “ON” position, the
EPS warning light comes on to indicate that the
power assistance for the steering is not function-
ing.If the steering load is too heavy (i.e., excessive
steering use when the ATV is traveling at a slow
speed), the power assist is reduced to protectthe EPS motor from overheating.EBU17961On-Command four-wheel-drive/differential
gear lock indicator“”/“”
The On-Command four-wheel-drive indicator“”
comes on when the On-Command four-wheel-
drive switch is set to the “4WD” position.
U43P60E0.book Page 3 Tuesday, May 20, 2008 5:33 PM
Page 28 of 166
4-5
4

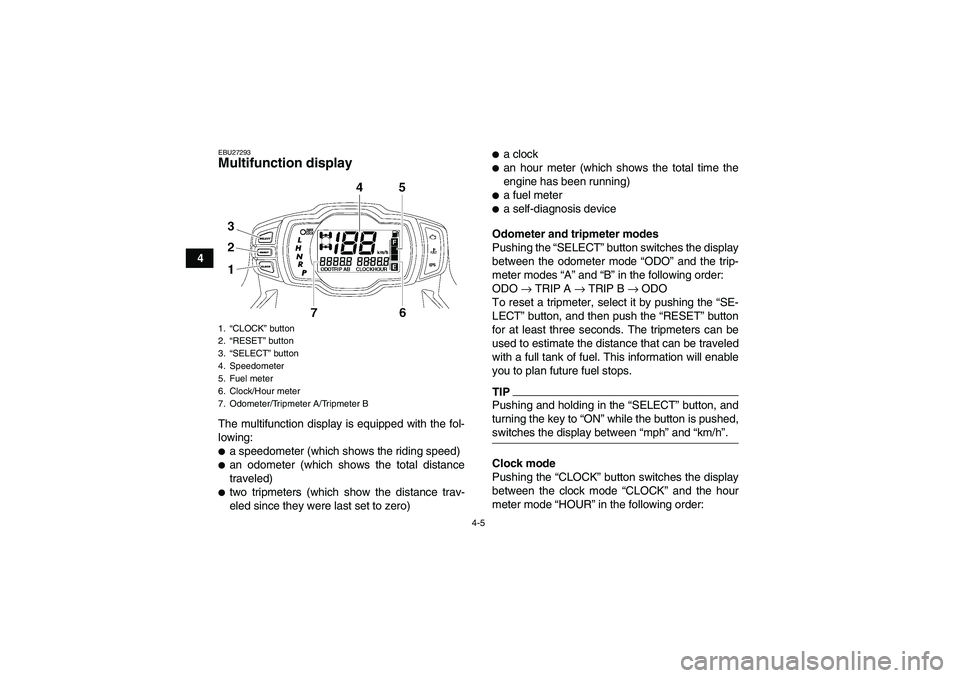

EBU27293Multifunction display The multifunction display is equipped with the fol-
lowing:a speedometer (which shows the riding speed)an odometer (which shows the total distance
traveled)two tripmeters (which show the distance trav-
eled since they were last set to zero)
a clockan hour meter (which shows the total time the
engine has been running)a fuel metera self-diagnosis device
Odometer and tripmeter modes
Pushing the “SELECT” button switches the display
between the odometer mode “ODO” and the trip-
meter modes “A” and “B” in the following order:
ODO → TRIP A → TRIP B → ODO
To reset a tripmeter, select it by pushing the “SE-
LECT” button, and then push the “RESET” button
for at least three seconds. The tripmeters can be
used to estimate the distance that can be traveled
with a full tank of fuel. This information will enable
you to plan future fuel stops.TIPPushing and holding in the “SELECT” button, and
turning the key to “ON” while the button is pushed,switches the display between “mph” and “km/h”.
Clock mode
Pushing the “CLOCK” button switches the display
between the clock mode “CLOCK” and the hour
meter mode “HOUR” in the following order:
1.“CLOCK” button
2.“RESET” button
3.“SELECT” button
4. Speedometer
5. Fuel meter
6. Clock/Hour meter
7. Odometer/Tripmeter A/Tripmeter BU43P60E0.book Page 5 Tuesday, May 20, 2008 5:33 PM
Page 143 of 166
8-58
8
The main fuse, the fuel injection system fuse, the
EPS fuse, and the fuse box are located under pan-
el A. (See page 8-8.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off all electrical
circuits.
NOTICEECB00640To prevent accidental short-circuiting, turn off
the main switch when checking or replacing afuse.
2. Remove the blown fuse, and then install a
new fuse of the specified amperage.
1. Ignition fuse
2. Headlight fuse
3. Four-wheel-drive motor fuse
4. Radiator fan fuse
5. Signaling system fuse
6. Auxiliary DC jack fuse
7. Spare fuseU43P60E0.book Page 58 Tuesday, May 20, 2008 5:33 PM
Page 144 of 166
8-59
8
WARNING
EWB02171Always use a fuse of the specified rating, and
never use a substitute object in place of the
proper fuse. An improper fuse or a substitute
object can cause damage to the electrical sys-tem, which could lead to a fire.
3. Turn the key to “ON” and turn on the electrical
circuits to check if the devices operate.
4. If the fuse immediately blows again, have a
Yamaha dealer check the electrical system.EBU27440Replacing a headlight bulb If a headlight bulb burns out, replace it as follows.
1. Remove the cover at the rear of the headlight
by pulling it off. Specified fuses:
Main fuse:
40.0 A
Headlight fuse:
15.0 A
Ignition fuse:
15.0 A
Four-wheel-drive motor fuse:
15.0 A
Signaling system fuse:
5.0 A
Auxiliary DC jack fuse:
15.0 A
Radiator fan fuse:
20.0 A
Fuel injection system fuse:
15.0 A
EPS fuse:
40.0 A
U43P60E0.book Page 59 Tuesday, May 20, 2008 5:33 PM
Page 161 of 166
11-1
11
EBU26000
CONSUMER INFORMATION
EBU26011Identification numbers Record the key identification number, vehicle iden-
tification number and model label information in
the spaces provided below for assistance when or-
dering spare parts from a Yamaha dealer or for ref-
erence in case the ATV is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:
EBU26020Key identification number
The key identification number is stamped into the
key. Record this number in the space provided and
use it for reference when ordering a new key.EBU26040Vehicle identification number
The vehicle identification number is stamped into
the frame.1. Key identification number
U43P60E0.book Page 1 Tuesday, May 20, 2008 5:33 PM
Page 165 of 166

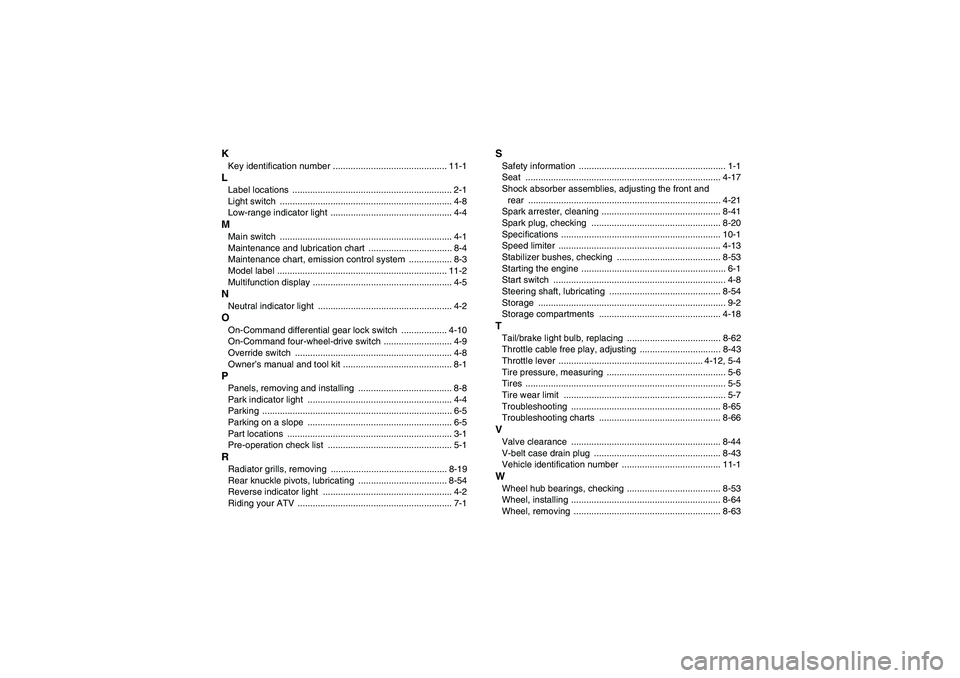

KKey identification number ............................................. 11-1LLabel locations ............................................................... 2-1
Light switch .................................................................... 4-8
Low-range indicator light ................................................ 4-4MMain switch .................................................................... 4-1
Maintenance and lubrication chart ................................. 8-4
Maintenance chart, emission control system ................. 8-3
Model label ................................................................... 11-2
Multifunction display ....................................................... 4-5NNeutral indicator light ..................................................... 4-2OOn-Command differential gear lock switch .................. 4-10
On-Command four-wheel-drive switch ........................... 4-9
Override switch .............................................................. 4-8
Owner’s manual and tool kit ........................................... 8-1PPanels, removing and installing ..................................... 8-8
Park indicator light ......................................................... 4-4
Parking ........................................................................... 6-5
Parking on a slope ......................................................... 6-5
Part locations ................................................................. 3-1
Pre-operation check list ................................................. 5-1RRadiator grills, removing .............................................. 8-19
Rear knuckle pivots, lubricating ................................... 8-54
Reverse indicator light ................................................... 4-2
Riding your ATV ............................................................. 7-1
SSafety information .......................................................... 1-1
Seat ............................................................................. 4-17
Shock absorber assemblies, adjusting the front and
rear ............................................................................ 4-21
Spark arrester, cleaning ............................................... 8-41
Spark plug, checking ................................................... 8-20
Specifications ............................................................... 10-1
Speed limiter ................................................................ 4-13
Stabilizer bushes, checking ......................................... 8-53
Starting the engine ......................................................... 6-1
Start switch .................................................................... 4-8
Steering shaft, lubricating ............................................ 8-54
Storage .......................................................................... 9-2
Storage compartments ................................................ 4-18TTail/brake light bulb, replacing ..................................... 8-62
Throttle cable free play, adjusting ................................ 8-43
Throttle lever ......................................................... 4-12, 5-4
Tire pressure, measuring ............................................... 5-6
Tires ............................................................................... 5-5
Tire wear limit ................................................................ 5-7
Troubleshooting ........................................................... 8-65
Troubleshooting charts ................................................ 8-66VValve clearance ........................................................... 8-44
V-belt case drain plug .................................................. 8-43
Vehicle identification number ....................................... 11-1WWheel hub bearings, checking ..................................... 8-53
Wheel, installing ........................................................... 8-64
Wheel, removing .......................................................... 8-63
U43P60E0.book Page 2 Tuesday, May 20, 2008 5:33 PM
