1-1
1
EBU29680
LOCATION OF THE WARNING AND SPECIFICATION LABELS
EBU27153Read and understand all of the labels on your ATV. These labels contain important information for safe and
proper operation.
Never remove any labels from your ATV. If a label becomes difficult to read or comes off, request a replace-
ment label from your Yamaha dealer.
For Europe
123
4
5 6
7
810
911
12
U43P62E0.book Page 1 Tuesday, February 17, 2009 1:09 PM

1-2
1
< 5880 N< 600 kgf< 1322 lbf
< 147 N
< 15 kgf
< 33 lbf
43P-2817S-00
43P-2817R-10< 85 kg
( 187 lbs)
35.0 kPa
0.35 kgf/cm²
5.0 psi30.0 kPa
0.30 kgf/cm²
4.4 psi
28P-2816M-M0
43P-2817R-00< 45 kg
( 99 lbs)
43P-2816P-00
1
2
34
5
U43P62E0.book Page 2 Tuesday, February 17, 2009 1:09 PM

1-3
1
5PG-2817L-10
YEAR OF CONSTRUCTION
: 2009
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
4D3-2816L-20
43P-2816N-00< 0.5 kg
( 1 lb )
6
7
89
U43P62E0.book Page 3 Tuesday, February 17, 2009 1:09 PM

1-4
1
43P-2816R-00
43P-2816S-00
10 11
12
U43P62E0.book Page 4 Tuesday, February 17, 2009 1:09 PM

1-5

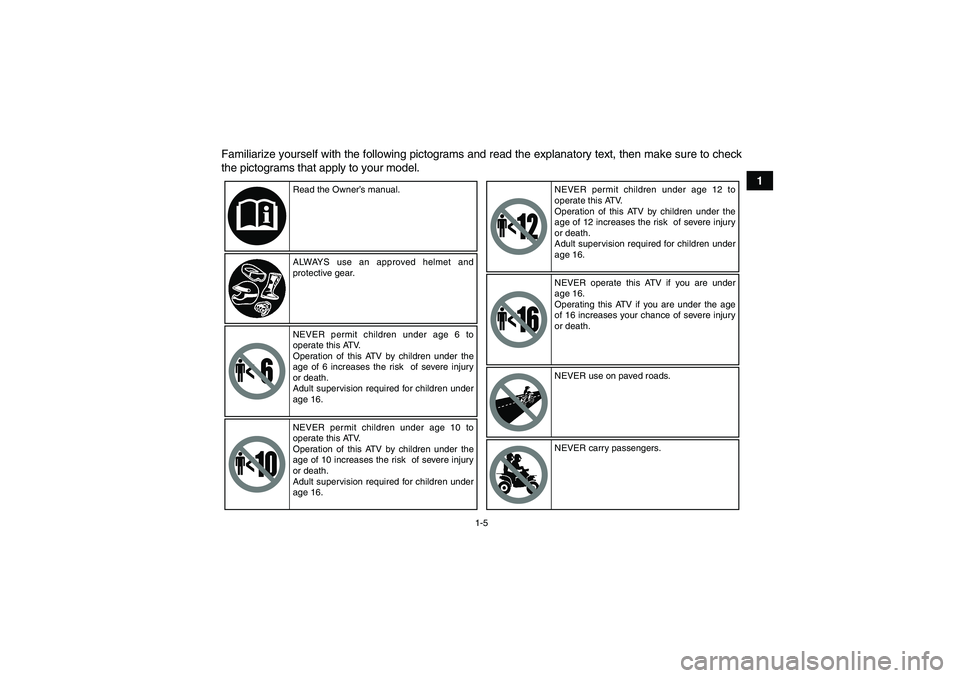

1 Familiarize yourself with the following pictograms and read the explanatory text, then make sure to check
the pictograms that apply to your model.
Read the Owner’s manual.
ALWAYS use an approved helmet and
protective gear.
NEVER permit children under age 6 to
operate this ATV.
Operation of this ATV by children under the
age of 6 increases the risk of severe injury
or death.
Adult supervision required for children under
age 16.
NEVER permit children under age 10 to
operate this ATV.
Operation of this ATV by children under the
age of 10 increases the risk of severe injury
or death.
Adult supervision required for children under
age 16.NEVER permit children under age 12 to
operate this ATV.
Operation of this ATV by children under the
age of 12 increases the risk of severe injury
or death.
Adult supervision required for children under
age 16.
NEVER operate this ATV if you are under
age 16.
Operating this ATV if you are under the age
of 16 increases your chance of severe injury
or death.
NEVER use on paved roads.
NEVER carry passengers.
U43P62E0.book Page 5 Tuesday, February 17, 2009 1:09 PM

1-6
1
**.* kPa
*.** kgf/cm²
*.* psi**.* kPa
*.** kgf/cm²
*.* psi
NEVER use with drugs or alcohol.
NEVER store fuel or flammable liquids.
This unit contains high-pressure nitrogen
gas.
Mishandling can cause explosion. Do not
incinerate, puncture or open.
Use unleaded gasoline only.
Measure tire pressure when tires are cold.Adjust tire pressure.
Improper tire pressure can cause loss of
control.
Loss of control can result in severe injury or
death.
Turning the ATV in 4WD-LOCK
(“DIFF.LOCK”) takes more effort.
Operate at a slow speed and allow extra
time and distance for maneuvers to avoid
loss of control.
This pictogram shows the loading limits
and/or maximum load capacity for this ATV.
Follow all load limits and other loading
guidelines in this manual.
Load may include the driver, passenger,
human protective gear, accessories, goods,
luggage, and all other load related items.
Make sure you do not exceed the load limits.
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
U43P62E0.book Page 6 Tuesday, February 17, 2009 1:09 PM

1-7
1
This pictogram shows trailer Hitch Tow
weight limit. (Combined weight of the trailer
and all cargo in the trailer.)
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
This pictogram shows trailer Hitch Tongue
weight limit. (Weight on the trailer tongue.)
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
U43P62E0.book Page 7 Tuesday, February 17, 2009 1:09 PM

1-8

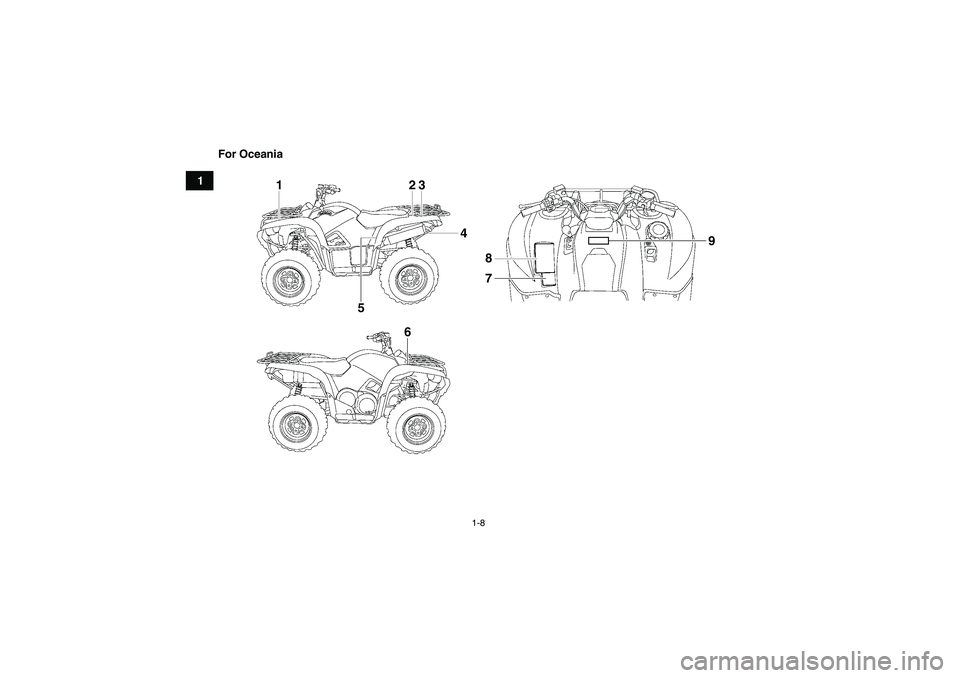

1For Oceania
123
4
5
68
79
U43P62E0.book Page 8 Tuesday, February 17, 2009 1:09 PM

1-9
1
LOAD LIMIT45 kg{99 lbs}
3GC-24877-A0
LOAD LIMIT85 kg{187 lbs}
4WV-24877-A0
MAXIMUM LOADING LIMIT
43P-2151K-00
PULLING LOAD: 5880 N (600 kgf)
1322 lbf
TONGUE WEIGHT: 147 N ( 15 kgf)
33 lbf
3B4-2151H-00
WARNINGNEVER ride as a
passenger.Passengers can cause
a loss of control,
resulting in SEVERE
INJURY or DEATH.
1
3 24
5
U43P62E0.book Page 9 Tuesday, February 17, 2009 1:09 PM

1-10
1
8 6
7
U43P62E0.book Page 10 Tuesday, February 17, 2009 1:09 PM
