wheel size YAMAHA GRIZZLY 700 2010 Owners Manual

2-1
2
EBU17431
SAFETY INFORMATION
EBU27251AN ATV IS NOT A TOY AND CAN BE HAZARD-OUS TO OPERATE.An ATV handles differently from other vehicles, in-
cluding motorcycles and cars. A collision or roll-
over can occur quickly, even during routine
maneuvers such as turning and riding on hills or
over obstacles, if you fail to take proper precau-
tions.
SEVERE INJURY OR DEATH can result if you do
not follow these instructions:
Read this manual and all labels carefully and fol-
low the operating procedures described.
Never operate an ATV without proper training or
instruction.
Always follow the age recommendation:
– A child under 16 years old should never oper-
ate an ATV with engine size greater than 90 cc.
Never allow a child under age 16 to operate an
ATV without adult supervision, and never allow
continued use of an ATV by a child if he or she
does not have the abilities to operate it safely.

Never carry a passenger on an ATV.
Always avoid operating an ATV on any paved
surfaces, including sidewalks, driveways, park-
ing lots and paved streets.
Never operate an ATV on any paved street,
paved road or motorway.
Watch carefully for other vehicles when operat-
ing on unpaved public streets or roads. Make
sure you know your country’s laws and regula-
tions before you ride on unpaved public streets
or roads.
Never operate an ATV without wearing an ap-
proved motorcycle helmet that fits properly. You
should also wear eye protection (goggles or face
shield), gloves, boots, a long-sleeved shirt or a
jacket, and long pants.
Never consume alcohol or drugs before or while
operating this ATV.
Never operate at speeds too fast for your skills
or the riding conditions. Always go at a speed
that is proper for the terrain, visibility, operating
conditions, and your experience.
Never attempt wheelies, jumps, or other stunts.
U43P62E0.book Page 1 Tuesday, February 17, 2009 1:09 PM

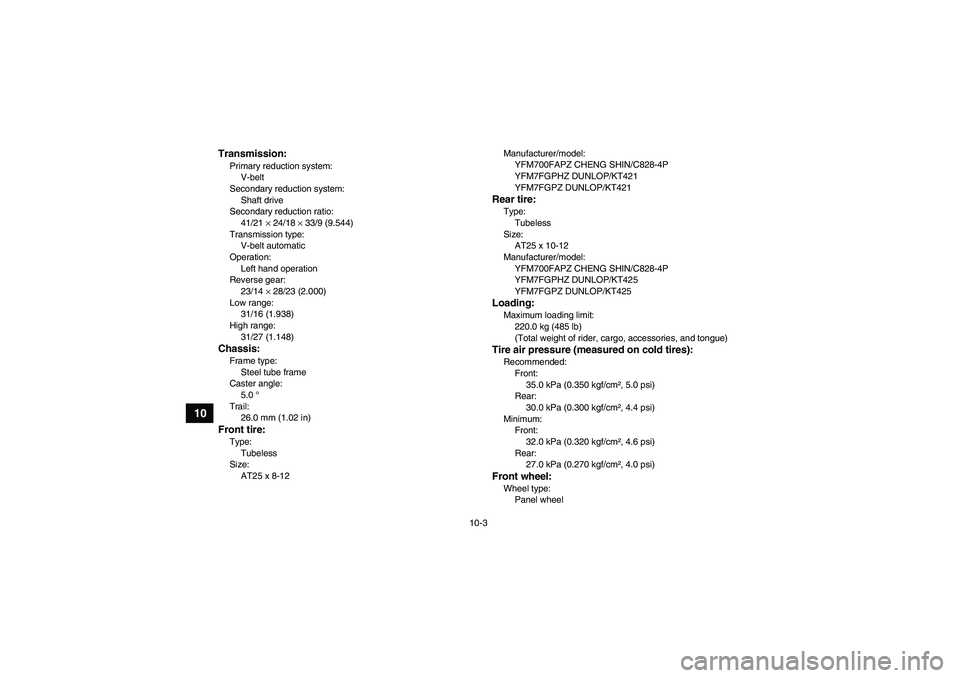

10-3
10
Transmission:Primary reduction system:
V-belt
Secondary reduction system:
Shaft drive
Secondary reduction ratio:
41/21 × 24/18 × 33/9 (9.544)
Transmission type:
V-belt automatic
Operation:
Left hand operation
Reverse gear:
23/14 × 28/23 (2.000)
Low range:
31/16 (1.938)
High range:
31/27 (1.148)Chassis:Frame type:
Steel tube frame
Caster angle:
5.0 °
Trail:
26.0 mm (1.02 in)Front tire:Type:
Tubeless
Size:
AT25 x 8-12Manufacturer/model:
YFM700FAPZ CHENG SHIN/C828-4P
YFM7FGPHZ DUNLOP/KT421
YFM7FGPZ DUNLOP/KT421
Rear tire:Type:
Tubeless
Size:
AT25 x 10-12
Manufacturer/model:
YFM700FAPZ CHENG SHIN/C828-4P
YFM7FGPHZ DUNLOP/KT425
YFM7FGPZ DUNLOP/KT425Loading:Maximum loading limit:
220.0 kg (485 lb)
(Total weight of rider, cargo, accessories, and tongue)Tire air pressure (measured on cold tires):Recommended:
Front:
35.0 kPa (0.350 kgf/cm², 5.0 psi)
Rear:
30.0 kPa (0.300 kgf/cm², 4.4 psi)
Minimum:
Front:
32.0 kPa (0.320 kgf/cm², 4.6 psi)
Rear:
27.0 kPa (0.270 kgf/cm², 4.0 psi)Front wheel:Wheel type:
Panel wheel
U43P62E0.book Page 3 Tuesday, February 17, 2009 1:09 PM

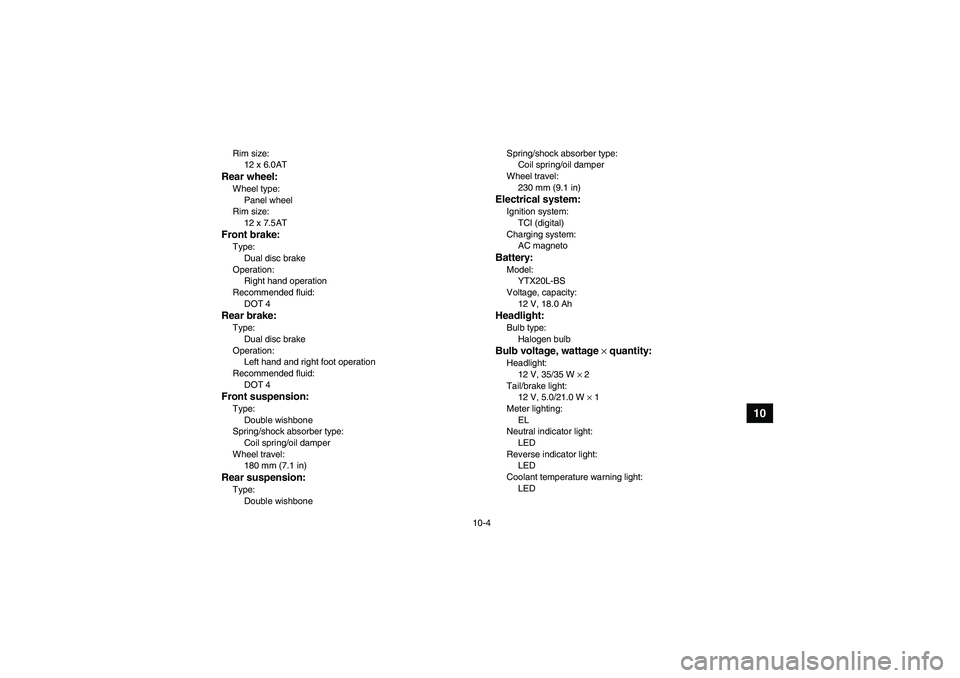

10-4
10
Rim size:
12 x 6.0ATRear wheel:Wheel type:
Panel wheel
Rim size:
12 x 7.5ATFront brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Dual disc brake
Operation:
Left hand and right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Double wishbone
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
180 mm (7.1 in)Rear suspension:Type:
Double wishboneSpring/shock absorber type:
Coil spring/oil damper
Wheel travel:
230 mm (9.1 in)
Electrical system:Ignition system:
TCI (digital)
Charging system:
AC magnetoBattery:Model:
YTX20L-BS
Voltage, capacity:
12 V, 18.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 35/35 W × 2
Tail/brake light:
12 V, 5.0/21.0 W × 1
Meter lighting:
EL
Neutral indicator light:
LED
Reverse indicator light:
LED
Coolant temperature warning light:
LED
U43P62E0.book Page 4 Tuesday, February 17, 2009 1:09 PM
