5. Pull the battery out of its compartment.
NOTICEECB00622Never attempt to open the battery or remove
the battery cell seals, as this would permanent-
ly damage the battery. To charge the battery
 Confirm the recommended charging rate as
specified on the battery itself. 
Select a suitable charger and follow the manu-
facturer’s instructions.
NOTICEECB00933To charge a VRLA (valve-regulated lead-acid)
battery, a special battery charger is required.
Using a conventional battery charger will dam-
age the battery. To store the battery
If the ATV will not be used for more than one
month, remove the battery, fully charge it, and
then place it in a cool, dry place.
 If the battery will be stored for more than two
months, check it at least once a month and fully
charge it if necessary.NOTICEECB00942Always keep the battery charged. Storing the
battery in a discharged state for an extended
period of time will cause permanent battery
damage.
 Do not store the battery in an excessively
cold or warm place [below freezing or above
30 °C (90 °F)].
1. Battery holding plate
2. Nut
3. Negative battery lead (black)
4. Positive battery lead (red)
12
43
UB1A60E0.book Page 55 Wednesday, March 1, 2017 2:36 PM

8-56
8To install the battery
1. Place the battery in its compartment.
2. Connect the positive battery lead first, then connect the negative battery lead by installing
their bolt. NOTICE: When installing the bat-
tery, the main switch must be off, and the
positive lead must be connected before
the negative lead.
[ECB01111]
3. Install the battery holding plate by installing the nuts.
4. Install the front carrier by installing the bolts and tightening them to the specified torques. 5. Install the panel.
TIP
Make sure the positive and negative battery
leads are installed as shown.
 Fully charge the battery before installing it.
1. Positive battery lead (red)
2. Negative battery lead (black)
12
Tightening torques:
Carrier bolt (upper):34 N·m (3.4 kgf·m, 25 lb·ft)
Carrier bolt (lower): 34 N·m (3.4 kgf·m, 25 lb·ft)
Carrier bolt (under the fenders): 7 N·m (0.7 kgf·m, 5.2 lb·ft)
UB1A60E0.book Page 56 Wednesday, March 1, 2017 2:36 PM

8-57
8
EBU30522Replacing a fuse
If an electrical problem is suspected, check the
fuse and replace it if necessary as follows.NOTICEECB00641To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse. 1. Turn off all electrical systems. (See page 4-1.)
1. Fuse box
2. Main fuse
3. EPS fuse
4. Fuel injection system spare fuse
5. Fuel injection system fuse
2345
1
1. Headlight fuse
2. Signaling system fuse
3. Radiator fan motor fuse
4. Ignition fuse
5. Four-wheel-drive motor fuse
6. Auxiliary DC jack fuse
7. Spare fuse
123456
7
UB1A60E0.book Page 57 Wednesday, March 1, 2017 2:36 PM

8-58
82. Remove panel A. (See page 8-10.)
3. Remove the blown fuse, and then install a
new fuse of the specified amperage.
WARNING! Always use a fuse of the spec-
ified rating, and never use a substitute ob-
ject in place of the proper fuse. An
improper fuse or a substitute object can
cause damage to the electrical system,
which could lead to a fire.
[EWB02173]
4. Turn on the main switch and start the engine.
5. If the fuse immediately blows again, have aYamaha dealer check the vehicle.
Specified fuses:
Main fuse:40.0 A
Headlight fuse: 10.0 A
Ignition fuse: 10.0 A
Four-wheel-drive motor fuse: 10.0 A
Signaling system fuse: 10.0 A
Auxiliary DC jack fuse: 10.0 A
Radiator fan motor fuse: 20.0 A
Fuel injection system fuse: 15.0 A
EPS fuse: 40.0 A
UB1A60E0.book Page 58 Wednesday, March 1, 2017 2:36 PM

8-59
8
EBU34712Replacing a headlight bulbLeft and right headlights
This model is equipped with LED-type headlights.
If a headlight does not come on, have a Yamaha
dealer check the vehicle and replace the headlight
if necessary.
Handlebar-mounted light
If the handlebar-mounted light bulb burns out, re-
place it with the specified bulb as follows.1. Remove the handlebar-mounted light cover by removing the quick fasteners. 2. Remove the bulb cover by pulling it off.
3. Remove the socket by pushing it in and turn-
ing it counterclockwise.1. Handlebar-mounted light cover
2. Quick fastener
1
2
2
1. Bulb cover
1
UB1A60E0.book Page 59 Wednesday, March 1, 2017 2:36 PM

8-60
84. Remove the burnt-out bulb.
5. Place a new bulb into position.
NOTICE: Do
not touch the glass part of the bulb. Oil
from your fingers or other contamination
will adversely affect the transparency of
the glass, luminosity of the bulb, and bulb
life. Thoroughly clean off any dirt and fin-
gerprints using a cloth moistened with al-
cohol or thinner.
[ECB00653]
6. Install the socket by pushing it in and turning it clockwise.
7. Install the bulb cover. NOTICE: Make sure
the bulb cover is securely fitted over the
socket and seated properly.
[ECB03320]
8. Install the handlebar-mounted light cover as shown, and then install the quick fasteners.

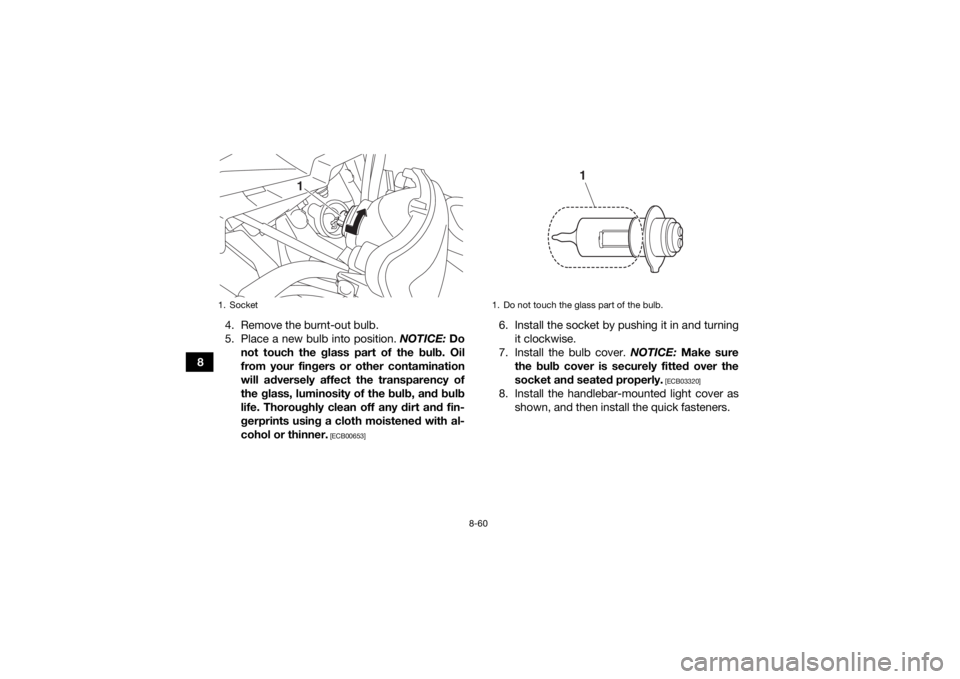

1. Socket
1
1. Do not touch the glass part of the bulb.
1
UB1A60E0.book Page 60 Wednesday, March 1, 2017 2:36 PM

8-61
8
9. Adjust the handlebar-mounted light beam if
necessary.
EBU25553Adjusting a headlight beamNOTICEECB00691It is advisable to have a Yamaha dealer make
this adjustment. To raise a headlight beam, turn the headlight
beam adjusting screw in direction (a).
To lower a headlight beam, turn the adjusting
screw in direction (b).1. Handlebar-mounted light cover
1
1. Handlebar-mounted light beam adjusting screw
1. Adjusting screw (left and right headlights)
(b)
(a)
1
(b)
(a)
1
UB1A60E0.book Page 61 Wednesday, March 1, 2017 2:36 PM

8-62
8
EBU26921Tail/brake lightThis model is equipped with an LED type of
tail/brake light.
If the tail/brake light does not come on, have a
Yamaha dealer check it.EBU25652Removing a wheel1. Place the ATV on a level surface.
2. Loosen the wheel nuts.
3. Elevate the ATV and place a suitable stand under the frame.
4. Remove the nuts from the wheel.
5. Remove the wheel.
EBU36243Installing a wheel1. Install the wheel with the arrow mark pointing in the forward rotating direction of the wheel,
and then install the wheel nuts.TIPFor YFM70GPXJ: be sure to install the nuts with
their tapered side towards the wheel.
1. Wheel nut
1
1
1. Arrow mark
2. Forward rotating direction
3. Wheel nut
1
3
3
2
UB1A60E0.book Page 62 Wednesday, March 1, 2017 2:36 PM

8-63
8
2. Lower the ATV to the ground.
3. Tighten the wheel nuts to the specified
torques.
EBU25741TroubleshootingAlthough Yamaha ATVs receive a thorough in-
spection before shipment from the factory, trouble
may occur during operation. Any problem in the
fuel, compression, or ignition systems, for exam-
ple, can cause poor starting and loss of power.
The following troubleshooting charts represent
quick and easy procedures for checking these vi-
tal systems yourself. However, should your ATV
require any repair, take it to a Yamaha dealer,
whose skilled technicians have the necessary
tools, experience, and know-how to service the
ATV properly.
Use only genuine Yamaha replacement parts. Im-
itation parts may look like Yamaha parts, but they
are often inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWB02281Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe inju-
ry or property damage. Make sure there are no
open flames or sparks in the area, including pi-
lot lights from water heaters or furnaces.
1. Tapered nutTightening torques:Front wheel nut:55 N·m (5.5 kgf·m, 41 lb·ft)
Rear wheel nut: 55 N·m (5.5 kgf·m, 41 lb·ft)1
UB1A60E0.book Page 63 Wednesday, March 1, 2017 2:36 PM

8-64
8
EBU27695Troubleshooting chartsStarting problems or poor engine performance
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.There is no fuel.
Check the battery.
Supply fuel.
The engine does not start.
Check the battery.
Operate the electric starter.4. Compression
There is compression.
There is no compression.
The engine does not start.
Have a Yamaha dealer check the ATV.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug. Have a Yamaha dealer check the ATV.
The engine does not start.
Check the compression.
DryWet
Operate the electric starter.
Have a Yamaha dealer check the ATV.
The engine does not start.
Check the ignition.
Operate the electric starter.2. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and have a Yamaha dealer charge
the battery if necessary.
