11-2
11
Carbon dioxide (CO2) level:Carbon dioxide (CO2) emissions (2016/1628):904.6 g/kWh (BDE2, BDE7, BDEA, BDEE, BDEJ)Engine:Combustion cycle:4-stroke
Cooling system: Liquid cooled
Valve train:
SOHC
Number of cylinders: Single cylinder
Displacement: 686 cm³
Bore × stroke:
102.0 × 84.0 mm (4.02 × 3.31 in)
Compression ratio: 10.0 : 1
Starting system: Electric starter
Lubrication system:
Wet sumpEngine oil:Recommended brand:

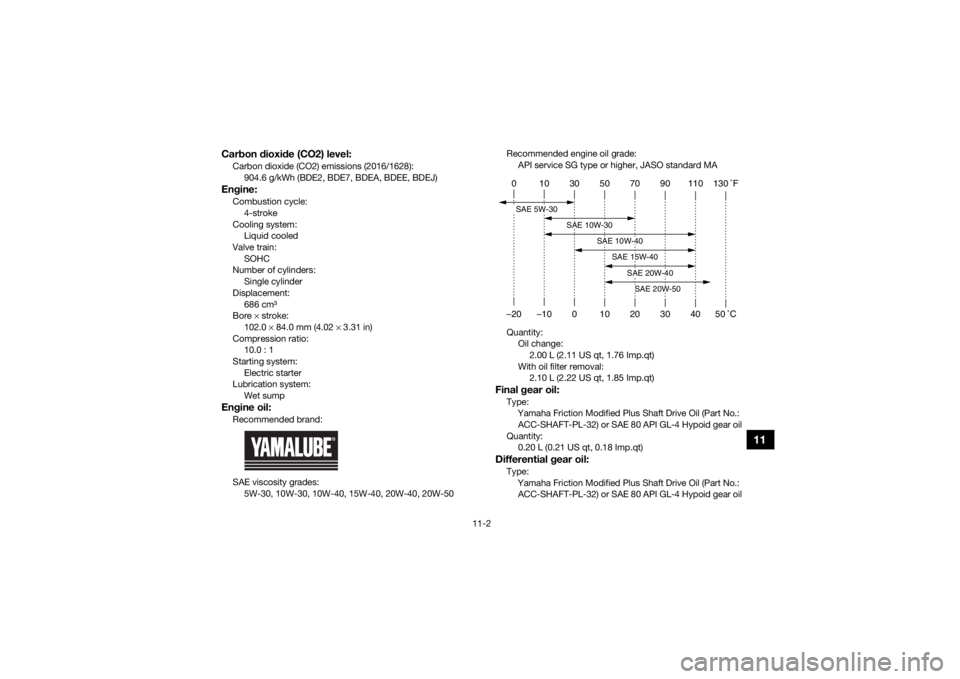

SAE viscosity grades:5W-30, 10W-30, 10W-40, 15W-40, 20W-40, 20W-50 Recommended engine oil grade:
API service SG type or higher, JASO standard MA
Quantity: Oil change:2.00 L (2.11 US qt, 1.76 Imp.qt)
With oil filter removal: 2.10 L (2.22 US qt, 1.85 Imp.qt)
Final gear oil:Type:Yamaha Friction Modified Plus Shaft Drive Oil (Part No.:
ACC-SHAFT-PL-32) or SAE 80 API GL-4 Hypoid gear oil
Quantity: 0.20 L (0.21 US qt, 0.18 Imp.qt)Differential gear oil:Type:
Yamaha Friction Modified Plus Shaft Drive Oil (Part No.: ACC-SHAFT-PL-32) or SAE 80 API GL-4 Hypoid gear oil0 10 30 50 70 90 110 130 F
–20 –10 0 10 20 30 40 50 CSAE 5W-30
SAE 10W-30
SAE 10W-40
SAE 15W-40
SAE 20W-40SAE 20W-50
