4-1
4
EBU17681

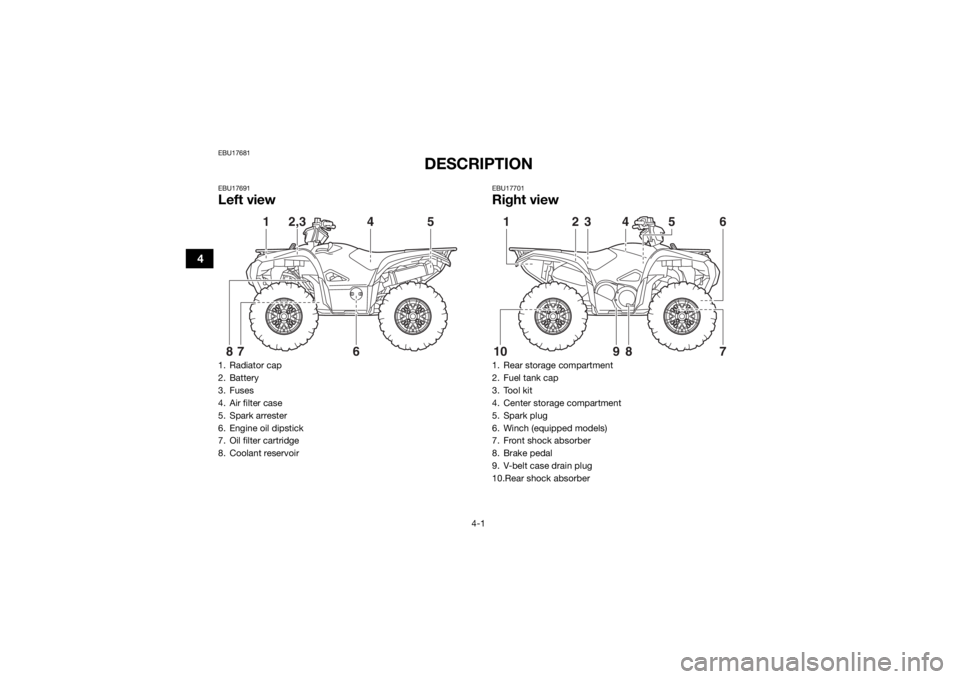

DESCRIPTION
EBU17691Left view
EBU17701Right view
1. Radiator cap
2. Battery
3. Fuses
4. Air filter case
5. Spark arrester
6. Engine oil dipstick
7. Oil filter cartridge
8. Coolant reservoir
5
1
2,3
4
6
7
8
1. Rear storage compartment
2. Fuel tank cap
3. Tool kit
4. Center storage compartment
5. Spark plug
6. Winch (equipped models)
7. Front shock absorber
8. Brake pedal
9. V-belt case drain plug
10.Rear shock absorber
5
6
1
7
10
2
3
489
UBDE60E0.book Page 1 Monday, April 22, 2019 4:12 PM

9-31
93. If the coolant is at or below the minimum level
mark, remove panels A and C to access the
coolant reservoir. (See page 9-10.)
4. Remove the coolant reservoir cap, add cool- ant or distilled water to the maximum level
mark, install the reservoir cap, and then install
the panels. NOTICE: If coolant is not avail-
able, use distilled water or soft tap water
instead. Do not use hard water or salt wa-
ter since they are harmful to the engine. If
water has been used instead of coolant,
replace it with coolant as soon as possible,
otherwise the cooling system will not be
protected against frost and corrosion. If
water has been added to the coolant, have
a Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible,
otherwise the effectiveness of the coolant
will be reduced.
[ECB01012]
TIP The radiator fan is automatically switched on or
off according to the coolant temperature in the
radiator.
 If the engine overheats, see page 9-65 for fur-
ther instructions. 1. Coolant reservoir capCoolant reservoir capacity (up to the maxi-
mum level mark):
0.24 L (0.25 US qt, 0.21 Imp.qt)
1
UBDE60E0.book Page 31 Monday, April 22, 2019 4:12 PM

9-32
9
EBU34213To change the coolant
WARNING
EWB01891Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always place a thick rag over the cap
when opening. Allow any remaining pressure
to escape before completely removing the cap. 1. Park the ATV on a level surface.
2. Remove panels A, B, C, and D. (See page9-10.)
3. Remove the footboard by removing the bolts and nuts. 4. Remove the radiator cap.
1. Footboard
2. Bolt and nut
3. Bolt
3
2
2
3
1
UBDE60E0.book Page 32 Monday, April 22, 2019 4:12 PM

9-33

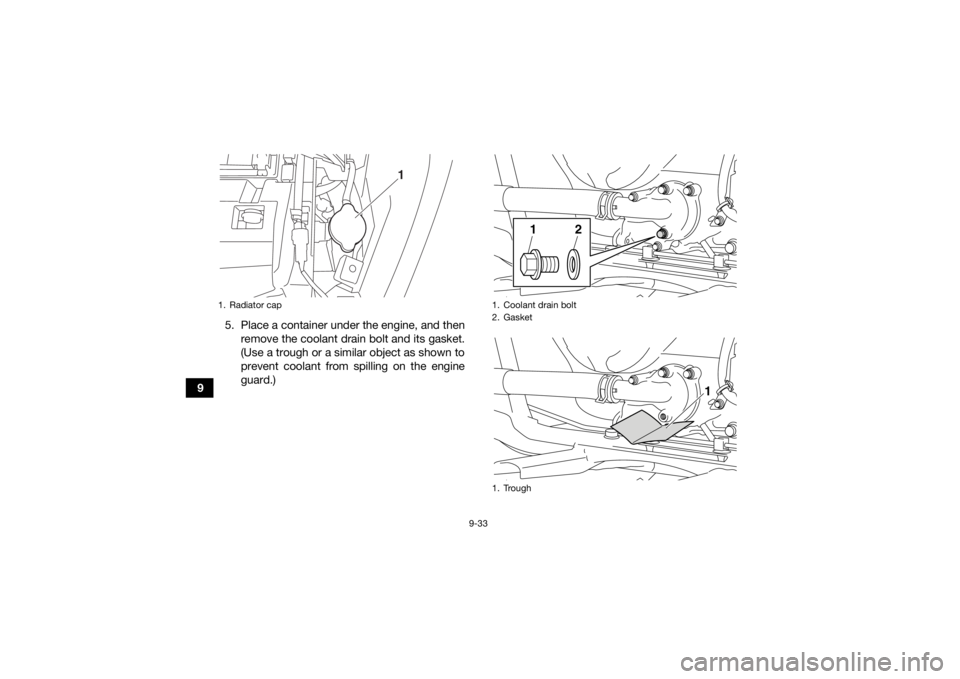

95. Place a container under the engine, and then
remove the coolant drain bolt and its gasket.
(Use a trough or a similar object as shown to
prevent coolant from spilling on the engine
guard.)
1. Radiator cap
1
1. Coolant drain bolt
2. Gasket
1. Trough
1
2
1
UBDE60E0.book Page 33 Monday, April 22, 2019 4:12 PM

9-36
9
22. Pour additional coolant into the radiator until
it is full.
23. Stop the engine and allow it to cool. If the coolant level has dropped after the engine
has cooled, add sufficient coolant until it
reaches the top of the radiator, and then in-
stall the radiator cap.
24. Start the engine, and then check for coolant leakage.
TIPIf any leakage is found, have a Yamaha dealer
check the cooling system. 25. Install the V-belt cooling duct, and then tight-en the clamp screw.
26. Install the footboard by installing the bolts and nuts, and then tighten them to the speci-
fied torques.
TIPTighten footboard bolts B in the order shown. 1. Footboard nut
2. Footboard bolt A
3. Footboard bolt B
3
1
2
1
UBDE60E0.book Page 36 Monday, April 22, 2019 4:12 PM

9-65
9Engine overheating
WARNING
EWB02291Wait for the engine and radiator to cool before removing the radiator cap. You could be burned by
hot fluid and steam blown out under pressure. Always put a thick rag over the cap when opening.
Allow any remaining pressure to escape before completely removing the cap. TIP
Tap water can be used in an emergency. Change to the recommended coolant as soon as possible.
 The engine will tend to overheat if the radiator is caked with mud, or if the ATV is overloaded. Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer check
and repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again, have a
Yamaha dealer check and repair the cooling system.
There is
leakage.
There is
no leakage.
UBDE60E0.book Page 65 Monday, April 22, 2019 4:12 PM

11-3
11
Quantity:0.21 L (0.23 US qt, 0.19 Imp.qt)Coolant quantity:Radiator (including all routes):
1.99 L (2.10 US qt, 1.75 Imp.qt)
Coolant reservoir (up to the maximum level mark): 0.24 L (0.25 US qt, 0.21 Imp.qt)Air filter:Air filter element:
Wet element
Air filter oil grade: Foam air-filter oilFuel:Recommended fuel:
Regular unleaded gasoline only
Minimum research octane: 91
Fuel tank capacity: 18 L (4.8 US gal, 4.0 Imp.gal)
Fuel reserve amount:
4.0 L (1.06 US gal, 0.88 Imp.gal)Throttle body:ID mark:B4F100Spark plug (s):Manufacturer/model:NGK/CPR7EA-9
Spark plug gap: 0.8–0.9 mm (0.031–0.035 in)
Drivetrain:Primary reduction ratio:1.000
Secondary reduction ratio:
10.142 (41/21 x 17/12 x 20/15 x 33/12)
Final drive: Shaft
Clutch type: Wet, centrifugal, shoe
Transmission type:
CVT automatic with reverse
Gear ratio: Transmission ratio:
2.380–0.700 : 1
Reverse gear: 2.000 (23/14 x 28/23)
Low range: 1.938 (31/16)
High range:
1.148 (31/27)Front tire:Size:AT26 x 8-12 (BDE2, BDE7, BDEA, BDEE, BDE3)
AT27 x 10-14 (BDEJ, BDEK)
Manufacturer/model: MAXXIS/MU01Y (BDEJ, BDEK)
MAXXIS/MU05Y (BDE2, BDE7, BDEA, BDEE, BDE3)Rear tire:Size:
AT26 x 10-12 (BDE2, BDE7, BDEA, BDEE, BDE3)
AT27 x 10-14 (BDEJ, BDEK)
