YAMAHA JOG50R 2004 User Guide

• Never refuel while smoking or
in the vicinity of an open flame.
Never start the engine or let it run
for any length of time in a closed
area. The exhaust fumes are poi-
sonous and may cause loss of
consciousness and death within
a short time. Always operate your
scooter in an area that has ade-
quate ventilation.
Always turn the engine off before
leaving the scooter unattended
and remove the key from the
main switch. When parking the
scooter, note the following:
• The engine and exhaust sys-
tem may be hot, therefore,
park the scooter in a place
where pedestrians or children
are not likely to touch these hot
areas.
• Do not park the scooter on a
slope or soft ground, otherwise
it may fall over.
• Do not park the scooter near a
flammable source (e.g., a kero-
sene heater, or near an open
flame), otherwise it could catch
fire.
If you should swallow any gasoli-
ne, inhale a lot of gasoline vapor,
or allow gasoline to get into your
eyes, see your doctor immedia-
tely. If any gasoline spills on your
skin or clothing, immediately
wash the affected area with soap
and water and change your clot-
hes.
EAU10360
Further safe-riding points
Be sure to signal clearly when
making turns.
Braking can be extremely difficult
on a wet road. Avoid hard bra-
king, because the scooter could
slide. Apply the brakes slowly
when stopping on a wet surface.
Slow down as you approach a
corner or turn. Once you have
completed a turn, accelerate
slowly.
Be careful when passing parked
cars. A driver might not see you
and open a door in your path.
Railroad crossings, streetcar
rails, iron plates on road cons-
truction sites, and manholecovers become extremely slip-
pery when wet. Slow down and
cross them with caution. Keep
the scooter upright, otherwise it
could slide out from under you.
The brake lining could get wet
when you wash the scooter. After
washing the scooter, check the
brakes before riding.
Always wear a helmet, gloves,
trousers (tapered around the cuff
and ankle so they do not flap),
and a bright colored jacket.
Do not carry too much luggage
on the scooter. An overloaded
scooter is unstable. Use a strong
cord to secure any luggage to the
carriers. A loose load will affect
the stability of the scooter and
could divert your attention from
the road.
1
SAFETY INFORMATION t
1-4
5RW-F8199-E3.qxd 23/12/2004 09:33 Página 11

EAU10410
Left view
DESCRIPTION
2-1
2
1. Headlight (page 6-16)
2. Front blinker (page 6-16)
3. Seat (page 3-6)
4. Handle 5. Left rear blinker (page 6-16)
6. kickstarter (page 3-6)
7. Air filter (page 6-8)
8. Center stand (page 6-14)
1
2
3
4
5
6
87
5RW-F8199-E3.qxd 23/12/2004 09:33 Página 12

EAU10420
Right view
DESCRIPTION
2-2
2
9. Wheel (Front) (page 6-15)
10. Right rear blinker (page 6-16)
11. Tail light (page 6-16)
12. Fuel tank (page 3-4)13. Storage compartment (page 3-6)
14. Battery (page 6-17)
15. Wheel (Rear) (page 6-15)
16. Coolant reservoir (page 6-7)
15
10 1112 13 14
16
9
5RW-F8199-E3.qxd 23/12/2004 09:33 Página 13

EAU10430
Controls and instruments
DESCRIPTION
2-3
2
17. Rear brake lever (page 6-11)
18. Left handlebar switch (page 3-3)
19. Speedometer (page 3-2)
20. Turn signal indicator light (page 3-1)
21. High beam light (page 3-1)
22. Oil level warning light (page 3-1)
23. Coolant temperature warning light (page 3-1)
24. "TRIP" button (page 3-2)25. Fuel gauge (page 3-3)
26. Front brake lever (page 3-4 )
27. Right handlebar switch (page 3-3)
28. Turn signal switch (page 3-3)
29. Horn switch (page 3-3)
30. Main switch (page 3-1)
31. Coolant level gauge window (page 6-7)
kb
ajd
z
c4050
30
10 2060
70
80
0
y
17
2928
31 30 2726
20 21
25 23 19 20
18
2422
5RW-F8199-E3.qxd 23/12/2004 09:33 Página 14

EAU10460
Main switch/steering lock
The main switch/steering lock con-
trols the ignition and lighting systems,
and is used to lock the steering. The
various positions are described
below.
EAU10630
ON
All electrical systems are supplied
with power, and the engine can be
started. The key cannot be removed.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU10670
*
The 2-stroke engine oil level warning
light should come on. (See page 3-1.)
EAU10680
LOCK
The steering is locked, and all electri-
cal systems are off. The key can be
removed.
T
o lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF”
position, and then turn it to
“LOCK” while still pushing it.
3. Remove the key.
T
o unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.
EWA10060
s s
WARNING
Never turn the key to “OFF” or
“LOCK” while the vehicle is
moving, otherwise the electrical
systems will be switched off, which
may result in loss of control or an
accident. Make sure that the vehi-
cle is stopped before turning the
key to “OFF” or “LOCK”.
EAU10980
Indicator lights
1. Turn signal indicator lights “b”
2. High beam indicator light “j”
3. Oil level warning light “z”
4. Coolant temperature warning light “y”
j
d
z
c4050
30
10 2060
70
80
0
y
00000.0
23:08TOTALExF
3
INSTRUMENT AND CONTROL FUNCTIONS
3-1
2 1
4
3
1
5RW-F8199-E3.qxd 23/12/2004 09:33 Página 15

EAU11030
Turn signal indicator lights “c” and
“d”
The corresponding indicator light flas-
hes when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “j”
This indicator light comes on when
the high beam of the headlight is swit-
ched on.
EAU11130
2-stroke engine oil level warning
light “z”
This warning light comes on when the
2-stroke engine oil level is low.
The electrical circuit of the warning
light can be checked according to the
following procedure.
1. Turn the key to “ON”.
2. Shift the transmission into the
neutral position.
3. If the warning light does not
come on, have a Yamaha dealer
check the electrical circuit.
ECA11570
CAUTION
Do not operate the motorcycle until
you know that the 2-stroke engine
oil level is sufficient.
NOTE:
Even if the 2-stroke engine oil level is
sufficient, the warning light may flic-
ker when riding on a slope or during
sudden acceleration or deceleration,
but this is not a malfunction.
EAU11430
Coolant temperature warning light
“y”
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and
allow the engine to cool.
ECA10020
CAUTION
Do not operate the engine if it is
overheated.
EAUM1090
Speedometer unit
1. Speedometer unit
2. Fuel gauge
3. Clock
4. Odometer (TOTAL/TRIP)
5. “TRIP” button
The speedometer unit is equipped
with a speedometer, an odometer and
a tripmeter. The speedometer shows
riding speed. The odometer shows
the total distance traveled. The trip-
meter shows the distance traveled
since it was last set to zero.
Pushing the reset button switches the
display between the odometer mode
“TOTAL” and the tripmeter mode
“TRIP”. To reset the tripmeter, enter
the “TRIP” mode, and then hold down
j
d
z
c4050
30
10 2060
70
80
0
y
00000.0
23:08TOTALExF
3
INSTRUMENT AND CONTROL FUNCTIONS
3-2
14
3
2 5
5RW-F8199-E3.qxd 23/12/2004 09:33 Página 16

the reset button for at least two
second.
The tripmeter can be used together
with the fuel gauge to estimate the
distance that can be traveled with a
full tank of fuel. This information will
enable you to plan future fuel stops.
EAU12140
Fuel gauge
The fuel gauge indicates the amount
of fuel in the fuel tank. The needle
moves towards “E” (Empty) as the
fuel level decreases. When the needle
reaches “E”, refuel as soon as possi-
ble.
NOTE:
Do not allow the fuel tank to empty
itself completely.
EAUS1010
Clock
To set the clock
1. Turn the key to “f”.
2. Set the odometer/tripmeter dis-
play to “TOTAL” by pushing the
“SET” button.3. Push the “SET” button for at least
two seconds.
4. When the hours digits start flas-
hing, push the “SET” button to
set the hours.
5. Push the “SET” button for at least
two seconds and the minutes
digits will start flashing.
6. Push the “SET” button to set the
minutes.
7. Push the “SET” button for at least
two seconds to start the clock
and return to the odometer/trip-
meter mode.
NOTE:
The clock is displayed only when the
key is in the “f” position.
EAU12343
Handlebar switches
1. Horn switch
2. Turn signal switch
3. Dimmer swith
EAU12400
Dimmer switch “j/k”
Set this switch to “j” for the high
beam and to “k” for the low beam.
EAU12440
Turn signal switch “TURN”
To signal a right-hand turn, push this
switch to the right. To signal a left-
hand turn, push this switch to the left.
When released, the switch returns to
the center position. To cancel the turn
signal lights, push the switch in after it
has returned to the center position.
kb
a
3
INSTRUMENT AND CONTROL FUNCTIONS
3-3
13
2
5RW-F8199-E3.qxd 23/12/2004 09:33 Página 17

EAU12500

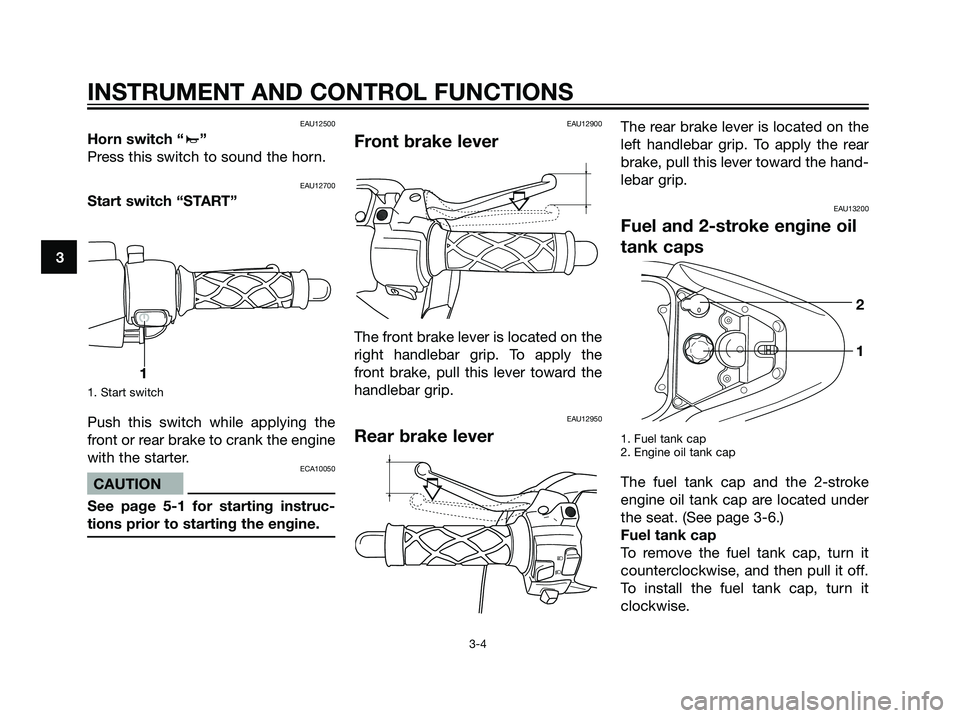

Horn switch “a”
Press this switch to sound the horn.
EAU12700
Start switch “START”
1. Start switch
Push this switch while applying the
front or rear brake to crank the engine
with the starter.
ECA10050
CAUTION
See page 5-1 for starting instruc-
tions prior to starting the engine.
EAU12900
Front brake lever
The front brake lever is located on the
right handlebar grip. To apply the
front brake, pull this lever toward the
handlebar grip.
EAU12950
Rear brake lever
The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the hand-
lebar grip.
EAU13200
Fuel and 2-stroke engine oil
tank caps
1. Fuel tank cap
2. Engine oil tank cap
The fuel tank cap and the 2-stroke
engine oil tank cap are located under
the seat. (See page 3-6.)
Fuel tank cap
To remove the fuel tank cap, turn it
counterclockwise, and then pull it off.
To install the fuel tank cap, turn it
clockwise.
j
k
3
INSTRUMENT AND CONTROL FUNCTIONS
3-4
1


2
1
5RW-F8199-E3.qxd 23/12/2004 09:33 Página 18

2-stroke engine oil tank cap
To remove the 2-stroke engine oil tank
cap, pull it off.
To install the 2-stroke engine oil tank
cap, push it into the oil tank opening.
EWA10140
s s
WARNING
Make sure that the fuel and 2-stro-
ke engine oil tank caps are properly
installed before riding the scooter.
EAU13220
Fuel
1. Refill pipe
2. Fuel level
Make sure that there is sufficient fuel
in the tank. When refueling, be sure to
insert the pump nozzle into the fuel
tank filler hole and to fill the tank to
the bottom of the filler tube as shown.
EWA10880
s s
WARNING
Do not overfill the fuel tank,
otherwise it may overflow
when the fuel warms up and
expands.
Avoid spilling fuel on the hot
engine.
ECA10070
CAUTION
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfa-
ces or plastic parts.
EAU13270
Your Yamaha engine has been desig-
ned to use regular unleaded gasoline
with a research octane number of 91
or higher. If knocking (or pinging)occurs, use a gasoline of a different
brand or premium unleaded fuel. Use
of unleaded fuel will extend spark
plug life and reduce maintenance
costs.
EAU13460
2-stroke engine oil
Make sure that there is sufficient oil in
the 2-stroke engine oil tank. Add the
recommended 2-stroke engine oil if
necessary.
NOTE:
Make sure that the 2-stroke engine oil
tank cap is properly installed.
Recommended oil:
Yamalube 2 or equivalent 2-stroke
engine oil (JASO grade “FC”, or
ISO grades “EG-C” or “EG-D”)
Oil quantity:
1,4L (0,31 US qt)(1,23 Imp.qt)Recommended fuel:
REGULAR UNLEADED GASOLINE
ONLY
Fuel tank capacity:
5,5L (1,21 US gal) (4,8Imp.gal)
Fuel reserve amount:
1,9L(0,42US gal) (1,67Imp.gal)
3
INSTRUMENT AND CONTROL FUNCTIONS
3-5
5RW-F8199-E3.qxd 23/12/2004 09:33 Página 19

EAUS1050
Kickstarter
1. Kickstarter
To start the engine, push the kickstar-
ter down lightly with your foot until the
gears engage, and then push it down
smoothly but forcefully.
EAU13931
Seat
To open the seat
1. Place the scooter on the centers-
tand.
2. Insert the key into the main
switch, and then turn it counter-
clockwise.
NOTE:
Do not push inward when turning the
key.
3. Fold the seat up.
To close the seat
1. Fold the seat down, and then
push it down to lock it in place.
2. Remove the key from the main
switch if the scooter will be left
unattended.
NOTE:
Make sure that the seat is properly
secured before riding.
EAU14440
Storage compartment
1. Storage compartment
EAU14510
Storage compartment
There is a storage compartment
under the seat. (See page 3-6.)
EWA10960
s s
WARNING
Do not exceed the load limit of
3,5 kg (7,4 lb) for the storage
compartment.
Do not exceed the maximum
load of 158kg (348,4lb) CS50Z
or 161kg (355lb) CS50 for the
vehicle.
3
INSTRUMENT AND CONTROL FUNCTIONS
3-6
1
1
5RW-F8199-E3.qxd 23/12/2004 09:33 Página 20
