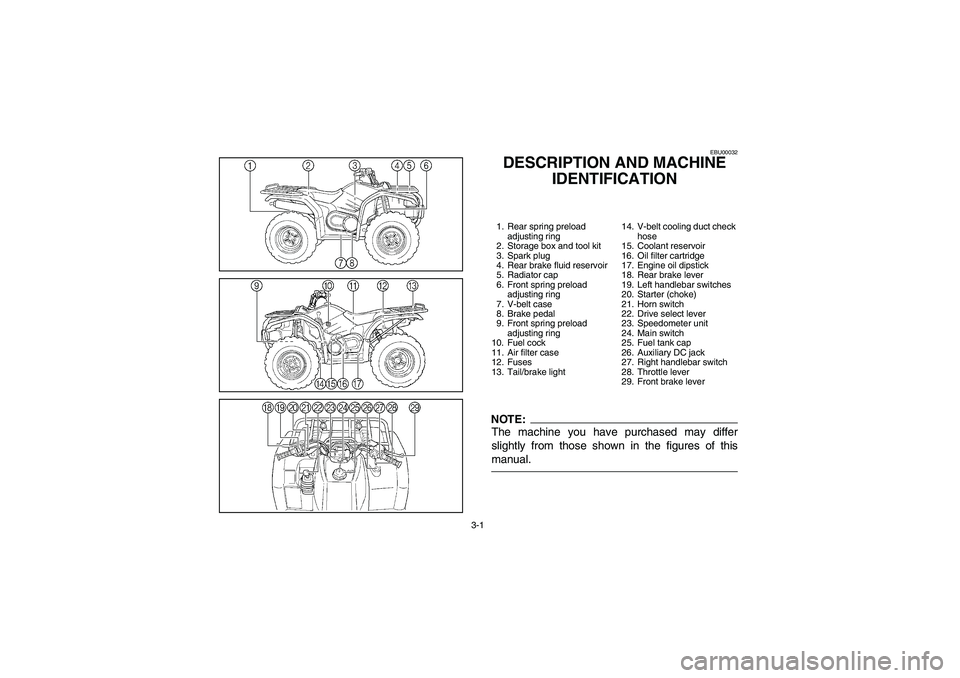

DESCRIPTION AND MACHINE
IDENTIFICATION1. Rear spring preload
adjusting ring
2. Storage box and tool kit
3. Spark plug
4. Rear brake fluid reservoir
5. Radiator cap
6. Front spring preload
adjusting ring
7. V-belt case
8. Brake pedal
9. Front spring preload
adjusting ring
10. Fuel cock
11. Air filter case
12. Fuses
13. Tail/brake light14. V-belt cooling duct check
hose
15. Coolant reservoir
16. Oil filter cartridge
17. Engine oil dipstick
18. Rear brake lever
19. Left handlebar switches
20. Starter (choke)
21. Horn switch
22. Drive select lever
23. Speedometer unit
24. Main switch
25. Fuel tank cap
26. Auxiliary DC jack
27. Right handlebar switch
28. Throttle lever
29. Front brake leverNOTE:The machine you have purchased may differ
slightly from those shown in the figures of this
manual.
U5ND60.book Page 1 Friday, May 10, 2002 12:10 PM

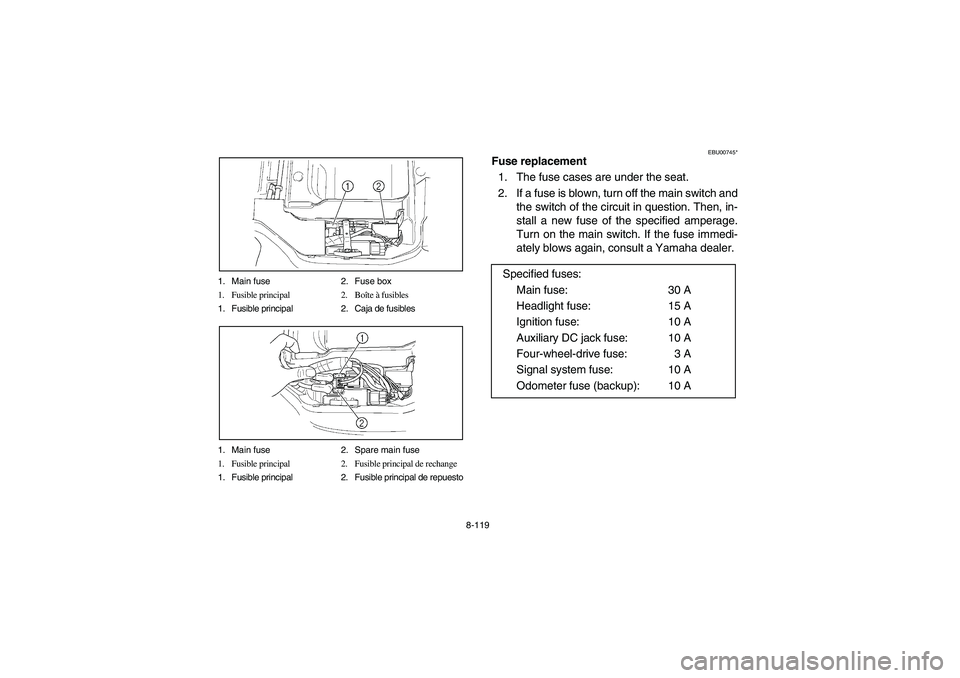

8-119 1. Main fuse 2. Fuse box
1. Fusible principal 2. Boîte à fusibles
1. Fusible principal 2. Caja de fusibles
1. Main fuse 2. Spare main fuse
1. Fusible principal 2. Fusible principal de rechange
1. Fusible principal 2. Fusible principal de repuesto
EBU00745*
Fuse replacement
1. The fuse cases are under the seat.
2. If a fuse is blown, turn off the main switch and
the switch of the circuit in question. Then, in-
stall a new fuse of the specified amperage.
Turn on the main switch. If the fuse immedi-
ately blows again, consult a Yamaha dealer.
Specified fuses:
Main fuse: 30 A
Headlight fuse: 15 A
Ignition fuse: 10 A
Auxiliary DC jack fuse: 10 A
Four-wheel-drive fuse: 3 A
Signal system fuse: 10 A
Odometer fuse (backup): 10 A
