1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ...................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION ................................... 3-1
Identification number records ............... 3-3
Key identification number ..................... 3-5
Vehicle identification number ............... 3-7
Model label ........................................... 3-9
CONTROL FUNCTIONS ........................ 4-1
Main switch........................................... 4-1
Indicator lights ...................................... 4-3
Speedometer unit ................................. 4-9
Fuel gauge ......................................... 4-15
Handlebar switches ............................ 4-17
Throttle lever ...................................... 4-29
Speed limiter ...................................... 4-31
Front brake lever ................................ 4-33
Rear brake pedal and lever ................ 4-35
Drive select lever ................................ 4-37
Recoil starter ...................................... 4-37
1234
Fuel tank cap ..................................... 4-39
Fuel cock............................................ 4-41
Starter (choke) ................................... 4-43
Seat.................................................... 4-45
Storage compartment ........................ 4-47
Front carrier ....................................... 4-49
Rear carrier ........................................ 4-49
Front shock absorber adjustment ...... 4-51
Rear shock absorber adjustment ....... 4-55
Auxiliary DC jack ................................ 4-59
PRE-OPERATION CHECKS .................. 5-1
Front and rear brakes .......................... 5-5
Fuel ...................................................... 5-9
Engine oil ........................................... 5-13
Final gear oil ...................................... 5-17
Differential gear oil ............................. 5-19
Throttle lever ...................................... 5-19
Fittings and fasteners......................... 5-19
Lights ................................................. 5-21
Switches............................................. 5-21
Tires ................................................... 5-23
How to measure tire pressure ............ 5-27
Tire wear limit..................................... 5-29
5
U5ND60.book Page 1 Friday, May 10, 2002 12:10 PM

2-15

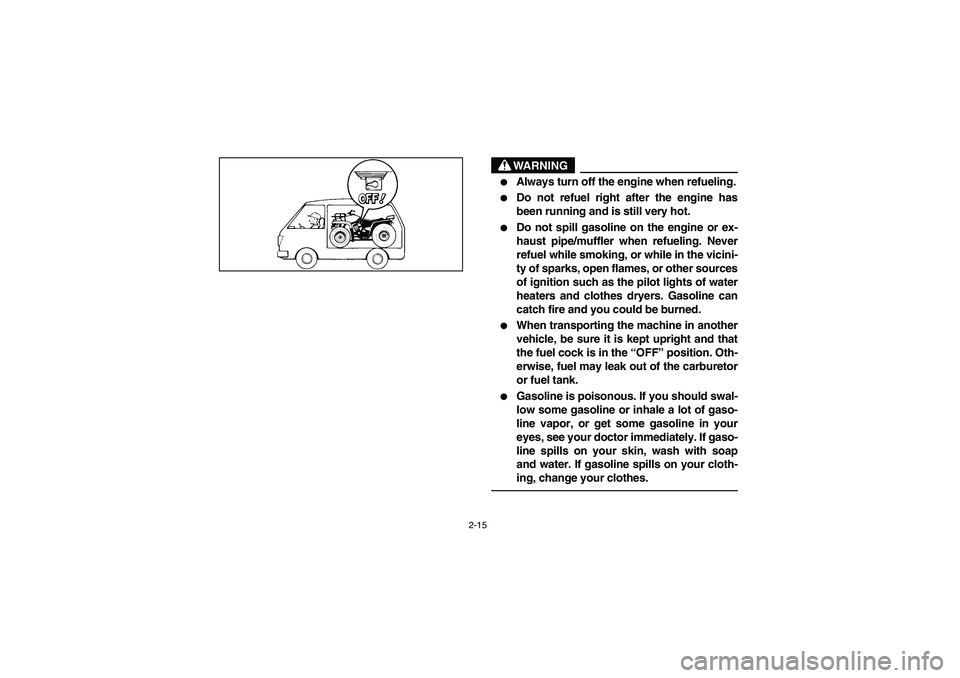

WARNING
_

Always turn off the engine when refueling.


Do not refuel right after the engine has
been running and is still very hot.


Do not spill gasoline on the engine or ex-
haust pipe/muffler when refueling. Never
refuel while smoking, or while in the vicini-
ty of sparks, open flames, or other sources
of ignition such as the pilot lights of water
heaters and clothes dryers. Gasoline can
catch fire and you could be burned.


When transporting the machine in another
vehicle, be sure it is kept upright and that
the fuel cock is in the “OFF” position. Oth-
erwise, fuel may leak out of the carburetor
or fuel tank.


Gasoline is poisonous. If you should swal-
low some gasoline or inhale a lot of gaso-
line vapor, or get some gasoline in your
eyes, see your doctor immediately. If gaso-
line spills on your skin, wash with soap
and water. If gasoline spills on your cloth-
ing, change your clothes.
_
U5ND60.book Page 15 Friday, May 10, 2002 12:10 PM

4-3 1. Differencial gear lock indicator light “DIFF. LOCK”
2. Low-range indicator light “L”
3. High-range indicator light “H”4. Neutral indicator light “N”
5. Reverse indicator light “R”6. Park indicator light “P”
7. Differencial gear lock indicator “”
8. Coolant temperature warning light “”
1. Témoin de blocage du différentiel “DIFF. LOCK”
2Témoin du rapport inférieur “L”
3. Témoin du rapport supérieur “H”4. Témoin de point mort “N”
5. Témoin de marche arrière “R”
6. Témoin de stationnement “P”
7. Indicateur de blocage du différentiel “”
8. Témoin d’avertissement de la température du liquide de
refroidissement “”
1. Luz indicadora de bloqueo del diferencial “DIFF. LOCK”
2 Luz indicadora de margen bajo “L”
3. Luz indicadora de margen alto “H”
4. Luz de control de punto muerto “N”
5. Luz de control de marcha atrás “R”
6. Luz indicadora de estacionamiento “P”
7. Indicadora de bloqueo del diferencial “”
8. Luz de aviso de la temperatura del refrigerante “”
DIFF.
LOCKDIFF.
LOCK
DIFF.
LOCK
EBU00043

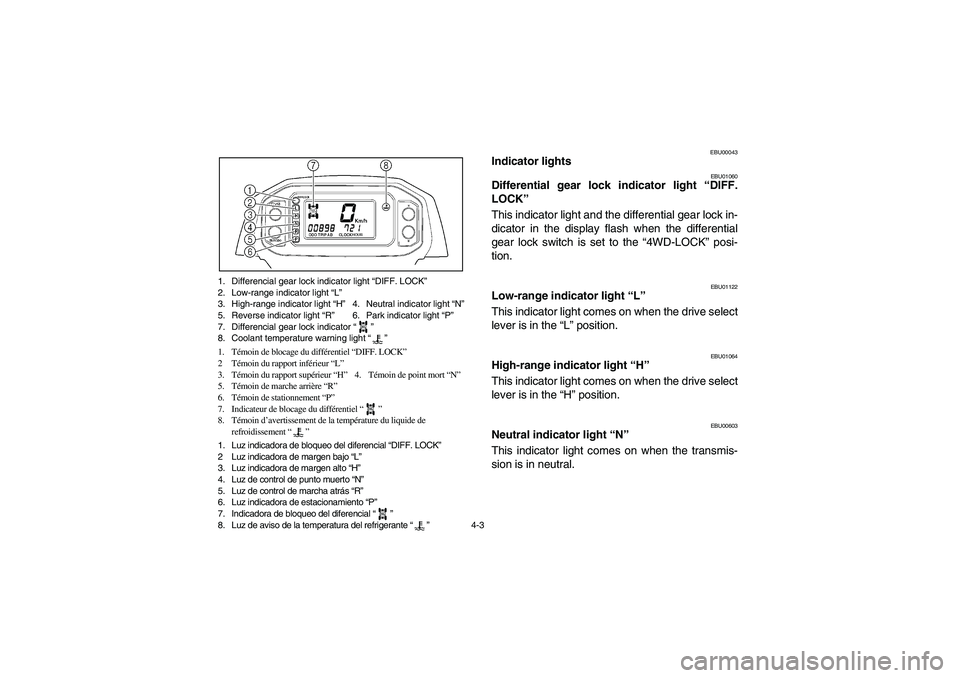

Indicator lights
EBU01060
Differential gear lock indicator light “DIFF.
LOCK”
This indicator light and the differential gear lock in-
dicator in the display flash when the differential
gear lock switch is set to the “4WD-LOCK” posi-
tion.
EBU01122
Low-range indicator light “L”
This indicator light comes on when the drive select
lever is in the “L” position.
EBU01064
High-range indicator light “H”
This indicator light comes on when the drive select
lever is in the “H” position.
EBU00603
Neutral indicator light “N”
This indicator light comes on when the transmis-
sion is in neutral.
U5ND60.book Page 3 Friday, May 10, 2002 12:10 PM

4-5 1. Differencial gear lock indicator light “DIFF. LOCK”
2. Low-range indicator light “L”
3. High-range indicator light “H” 4. Neutral indicator light “N”
5. Reverse indicator light “R” 6. Park indicator light “P”
7. Differencial gear lock indicator “ ”
8. Coolant temperature warning light “ ”
1. Témoin de blocage du différentiel “DIFF. LOCK”
2 Témoin du rapport inférieur “L”
3. Témoin du rapport supérieur “H” 4. Témoin de point mort “N”
5. Témoin de marche arrière “R”
6. Témoin de stationnement “P”
7. Indicateur de blocage du différentiel “ ”
8. Témoin d’avertissement de la température du liquide de
refroidissement “ ”
1. Luz indicadora de bloqueo del diferencial “DIFF. LOCK”
2 Luz indicadora de margen bajo “L”
3. Luz indicadora de margen alto “H”
4. Luz de control de punto muerto “N”
5. Luz de control de marcha atrás “R”
6. Luz indicadora de estacionamiento “P”
7. Indicadora de bloqueo del diferencial “ ”
8. Luz de aviso de la temperatura del refrigerante “ ”
DIFF.
LOCKDIFF.
LOCK
DIFF.
LOCK
EBU00602

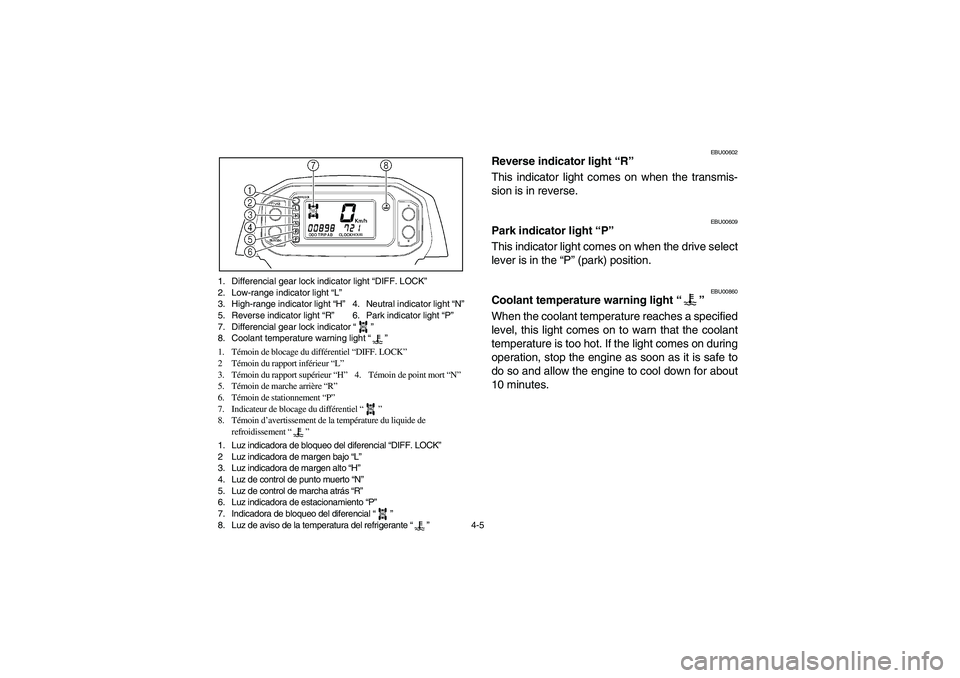

Reverse indicator light “R”
This indicator light comes on when the transmis-
sion is in reverse.
EBU00609
Park indicator light “P”
This indicator light comes on when the drive select
lever is in the “P” (park) position.
EBU00860
Coolant temperature warning light “ ”
When the coolant temperature reaches a specified
level, this light comes on to warn that the coolant
temperature is too hot. If the light comes on during
operation, stop the engine as soon as it is safe to
do so and allow the engine to cool down for about
10 minutes.
E-4.fm Page 5 Tuesday, September 17, 2002 9:21 AM

4-27

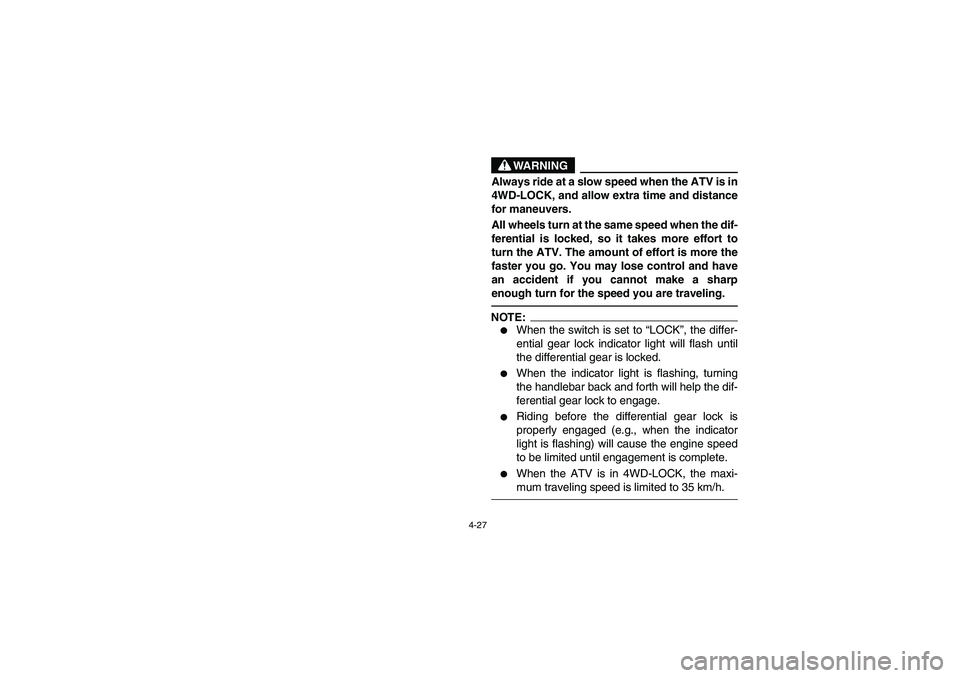

WARNING
_ Always ride at a slow speed when the ATV is in
4WD-LOCK, and allow extra time and distance
for maneuvers.
All wheels turn at the same speed when the dif-
ferential is locked, so it takes more effort to
turn the ATV. The amount of effort is more the
faster you go. You may lose control and have
an accident if you cannot make a sharp
enough turn for the speed you are traveling. _ NOTE:_

When the switch is set to “LOCK”, the differ-
ential gear lock indicator light will flash until
the differential gear is locked.


When the indicator light is flashing, turning
the handlebar back and forth will help the dif-
ferential gear lock to engage.


Riding before the differential gear lock is
properly engaged (e.g., when the indicator
light is flashing) will cause the engine speed
to be limited until engagement is complete.


When the ATV is in 4WD-LOCK, the maxi-
mum traveling speed is limited to 35 km/h.
_
U5ND60.book Page 27 Friday, May 10, 2002 12:10 PM

4-37 1. Drive select lever
1. Levier de présélection
1. Palanca de selección de marcha
1. Recoil starter
1. Lanceur à réenroulement
1. Arranque por tracción de cable
EBU00608

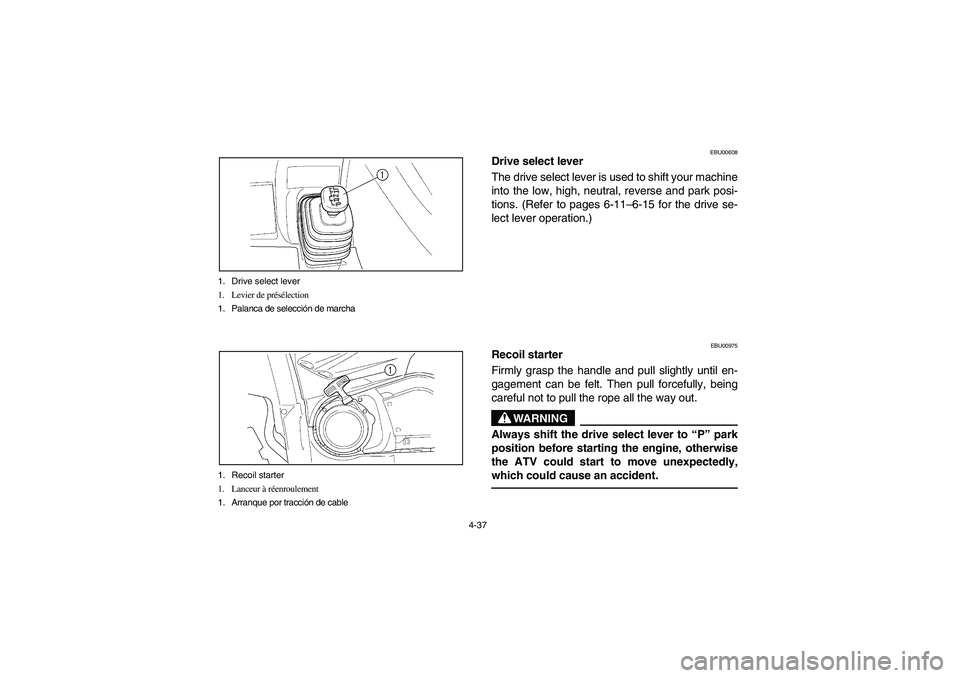

Drive select lever
The drive select lever is used to shift your machine
into the low, high, neutral, reverse and park posi-
tions. (Refer to pages 6-11–6-15 for the drive se-
lect lever operation.)
EBU00975
Recoil starter
Firmly grasp the handle and pull slightly until en-
gagement can be felt. Then pull forcefully, being
careful not to pull the rope all the way out.
WARNING
_ Always shift the drive select lever to “P” park
position before starting the engine, otherwise
the ATV could start to move unexpectedly,
which could cause an accident. _
U5ND60.book Page 37 Friday, May 10, 2002 12:10 PM

8-121 1. Headlight fuse
2. Ignition fuse
3. Auxiliary DC jack fuse
4. Four-wheel-drive fuse
5. Signaling system fuse
6. Odometer fuse (backup)
7. Spare fuse (× 3)
1. Fusible de phare
2. Fusible d’allumage
3. Fusible de prise pour accessoires
4. Fusible du système 4x4
5. Fusible de signalisation
6. Fusible du compteur kilométrique
7. Fusible de rechange (× 3)
1. Fusible del faro
2. Fusible del sistema de encendido
3. Fusible de la toma de CC auxiliar
4. Fusible del sistema de tracción en las cuatro ruedas
5. Fusible del sistema de señalización
6. Fusible del cuentakilómetros (reserva)
7. Fusible de repuesto (× 3)
WARNING
Always use a fuse of the specified rating. Nev-
er use any type of material or object in place of
the proper fuse. An improper fuse can cause
damage to the electrical system which could
lead to a fire.CAUTION:
To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse.
U5ND60.book Page 121 Friday, May 10, 2002 12:10 PM

8-125

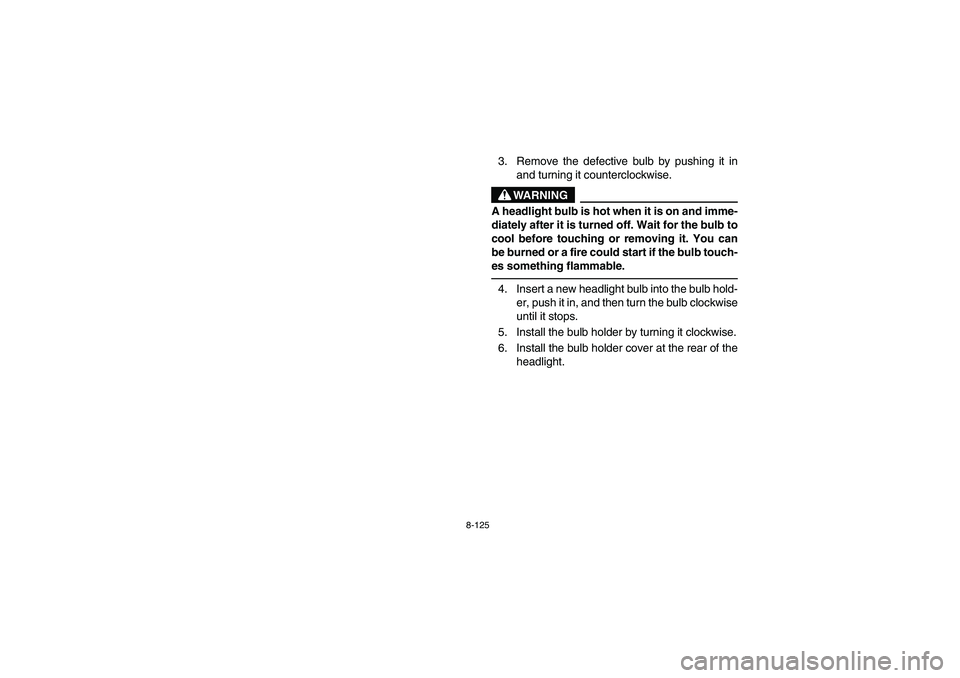

3. Remove the defective bulb by pushing it in
and turning it counterclockwise.
WARNING
_ A headlight bulb is hot when it is on and imme-
diately after it is turned off. Wait for the bulb to
cool before touching or removing it. You can
be burned or a fire could start if the bulb touch-
es something flammable. _4. Insert a new headlight bulb into the bulb hold-
er, push it in, and then turn the bulb clockwise
until it stops.
5. Install the bulb holder by turning it clockwise.
6. Install the bulb holder cover at the rear of the
headlight.
U5ND60.book Page 125 Friday, May 10, 2002 12:10 PM

8-129
EBU00413

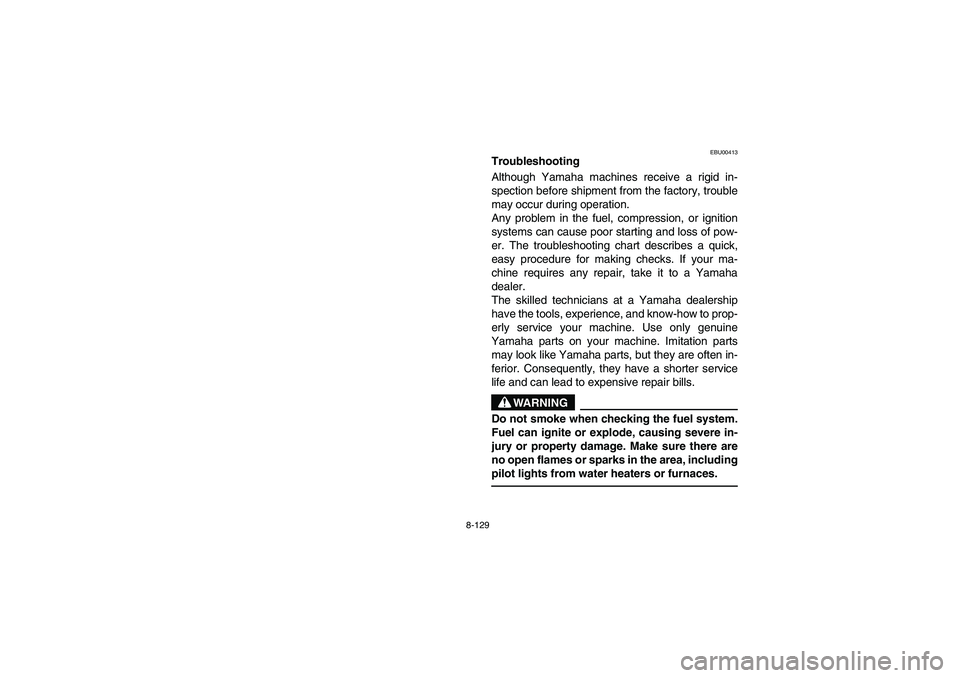

Troubleshooting
Although Yamaha machines receive a rigid in-
spection before shipment from the factory, trouble
may occur during operation.
Any problem in the fuel, compression, or ignition
systems can cause poor starting and loss of pow-
er. The troubleshooting chart describes a quick,
easy procedure for making checks. If your ma-
chine requires any repair, take it to a Yamaha
dealer.
The skilled technicians at a Yamaha dealership
have the tools, experience, and know-how to prop-
erly service your machine. Use only genuine
Yamaha parts on your machine. Imitation parts
may look like Yamaha parts, but they are often in-
ferior. Consequently, they have a shorter service
life and can lead to expensive repair bills.
WARNING
Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe in-
jury or property damage. Make sure there are
no open flames or sparks in the area, including
pilot lights from water heaters or furnaces.
U5ND60.book Page 129 Friday, May 10, 2002 12:10 PM

10-6

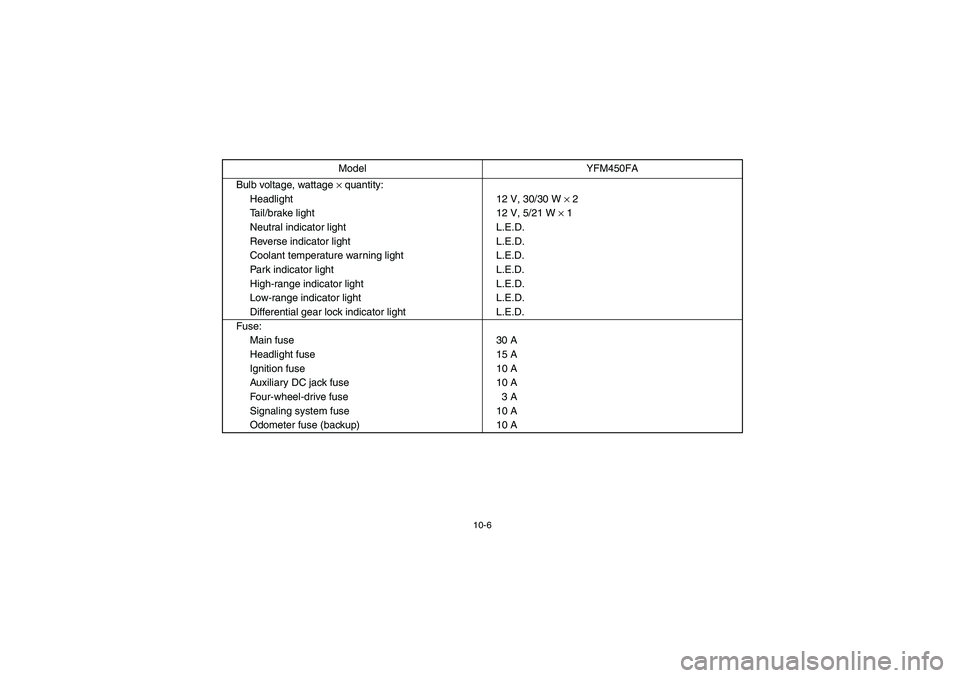

Bulb voltage, wattage
× quantity:
Headlight 12 V, 30/30 W
× 2
Tail/brake light 12 V, 5/21 W
× 1
Neutral indicator light L.E.D.
Reverse indicator light L.E.D.
Coolant temperature warning light L.E.D.
Park indicator light L.E.D.
High-range indicator light L.E.D.
Low-range indicator light L.E.D.
Differential gear lock indicator light L.E.D.
Fuse:
Main fuse 30 A
Headlight fuse 15 A
Ignition fuse 10 A
Auxiliary DC jack fuse 10 A
Four-wheel-drive fuse 3 A
Signaling system fuse 10 A
Odometer fuse (backup) 10 AModel YFM450FA
U5ND60.book Page 6 Friday, May 10, 2002 12:10 PM
