engine oil YAMAHA KODIAK 450 2005 Manuale de Empleo (in Spanish)

EBU00015
1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ...................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION ................................... 3-1
Identification number records ............... 3-3
Key identification number ..................... 3-5
Vehicle identification number ............... 3-7
Model label ........................................... 3-9
CONTROL FUNCTIONS ........................ 4-1
Main switch........................................... 4-1
Indicator and warning lights.................. 4-3
Speedometer unit ................................. 4-9
Fuel gauge ......................................... 4-15
Handlebar switches ............................ 4-17
Throttle lever ...................................... 4-35
Speed limiter ...................................... 4-37
Front brake lever ................................ 4-39
Brake pedal and rear brake lever ....... 4-41
Drive select lever ................................ 4-43
Recoil starter ...................................... 4-43
1234
Fuel tank cap ..................................... 4-45
Fuel cock............................................ 4-47
Starter (choke) .................................. 4-49
Seat.................................................... 4-51
Storage compartment ........................ 4-53
Front carrier ....................................... 4-55
Rear carrier ........................................ 4-55
Front and rear shock absorber
adjustment ....................................... 4-57
Auxiliary DC jack ................................ 4-61
PRE-OPERATION CHECKS .................. 5-1
Front and rear brakes .......................... 5-5
Fuel ...................................................... 5-9
Engine oil ........................................... 5-13
Final gear oil ...................................... 5-15
Differential gear oil ............................. 5-17
Coolant............................................... 5-19
Throttle lever ...................................... 5-21
Fittings and fasteners......................... 5-21
Lights ................................................. 5-23
Switches............................................. 5-23
Tires ................................................... 5-25
How to measure tire pressure ............ 5-29
5
U1D960.book Page 1 Wednesday, June 23, 2004 3:59 PM

Tire wear limit......................................5-31
OPERATION ...........................................6-1
Starting a cold engine ...........................6-3
Starting a warm engine .........................6-9
Warming up...........................................6-9
Drive select lever operation and
reverse driving ..................................6-11
Engine break-in ...................................6-17
Parking ................................................6-19
Parking on a slope ..............................6-21
Accessories and loading .....................6-23
RIDING YOUR ATV..................................7-1
Getting to know your ATV .....................7-3
Ride with care and good judgement .....7-5
Be careful where you ride ...................7-27
Turning your ATV ................................7-39
Climbing uphill.....................................7-45
Riding downhill ....................................7-55
Crossing a slope .................................7-59
Crossing through shallow water ..........7-63
Riding over rough terrain ....................7-69
Sliding and skidding ............................7-71
What to do if .......................................7-75
What to do ..........................................7-75
67
PERIODIC MAINTENANCE AND
ADJUSTMENT ........................................ 8-1
Owner’s manual and tool kit ................. 8-3
Periodic maintenance/lubrication.......... 8-7
Panel removal and installation............ 8-17
Engine oil and oil filter cartridge ......... 8-33
Final gear oil ....................................... 8-43
Differential gear oil.............................. 8-51
Cooling system ................................... 8-57
Changing the coolant.......................... 8-61
Axle boots ........................................... 8-67
Spark plug inspection ......................... 8-69
Air filter element cleaning ................... 8-75
V-belt cooling duct check hose ........... 8-83
V-belt case drain plug ......................... 8-83
Carburetor adjustment ........................ 8-85
Idle speed adjustment ........................ 8-87
Valve clearance adjustment ............... 8-89
Throttle lever adjustment .................... 8-91
Select lever safety system cable
adjustment ........................................ 8-93
Front brake pad check ........................ 8-93
Rear brake pad check ........................ 8-95
Inspecting the brake fluid level ........... 8-97
Brake fluid replacement .................... 8-101
Front brake lever free play................ 8-103
8
U1D960.book Page 2 Wednesday, June 23, 2004 3:59 PM

3-1
EBU00032
DESCRIPTION AND MACHINE
IDENTIFICATION1. Rear shock absorber
assembly spring preload
adjusting ring
2. Storage compartment
and tool kit
3. Spark plug
4. Rear brake fluid reservoir
5. Front shock absorber
assembly spring preload
adjusting ring
6. Brake pedal
7. V-belt case
8. Radiator cap
9. Fuel cock
10. Air filter case
11. Fuses
12. Tail/brake light
13. Engine oil dipstick
14. Oil filter cartridge15. Coolant reservoir
16. V-belt cooling duct check
hose
17. Rear brake lever
18. Left handlebar switches
19. Starter (choke)
20. Horn switch
21. Drive select lever
22. Speedometer unit
23. Main switch
24. Fuel tank cap
25. Auxiliary DC jack
26. Right handlebar switch
27. Throttle lever
28. Front brake leverNOTE:The machine you have purchased may differ
slightly from those shown in the figures of this
manual.
U1D960.book Page 1 Wednesday, June 23, 2004 3:59 PM

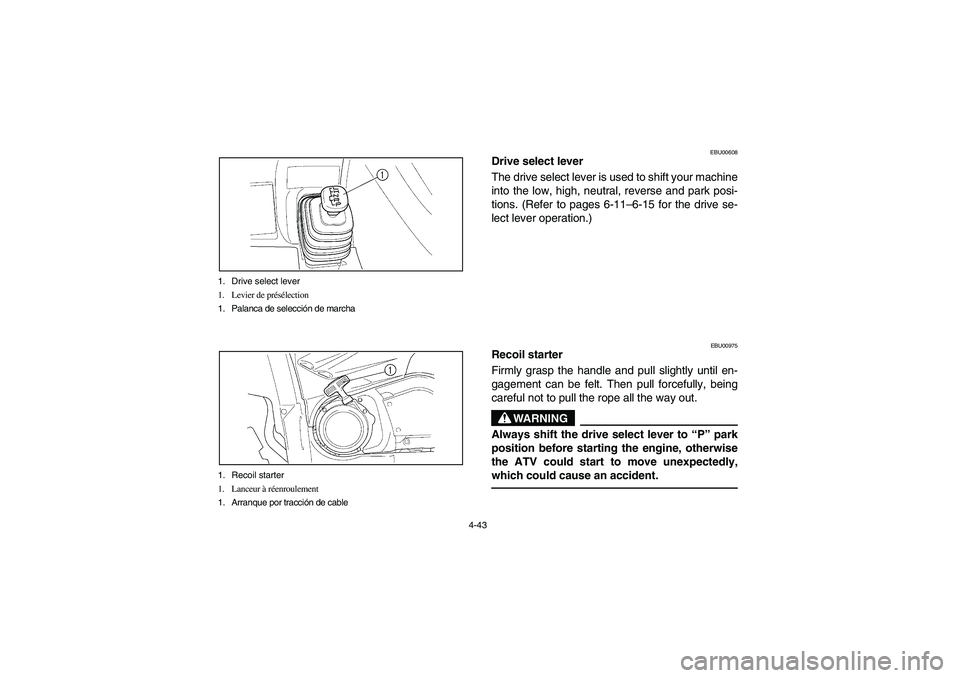

4-43 1. Drive select lever
1. Levier de présélection
1. Palanca de selección de marcha
1. Recoil starter
1. Lanceur à réenroulement
1. Arranque por tracción de cable
EBU00608
Drive select lever
The drive select lever is used to shift your machine
into the low, high, neutral, reverse and park posi-
tions. (Refer to pages 6-11–6-15 for the drive se-
lect lever operation.)
EBU00975
Recoil starter
Firmly grasp the handle and pull slightly until en-
gagement can be felt. Then pull forcefully, being
careful not to pull the rope all the way out.
WARNING
_ Always shift the drive select lever to “P” park
position before starting the engine, otherwise
the ATV could start to move unexpectedly,
which could cause an accident. _
U1D960.book Page 43 Wednesday, June 23, 2004 3:59 PM

5-1
EBU00113
PRE-OPERATION CHECKS
Before using this machine, check the following points:
ITEM ROUTINE PAGE
Front brakeCheck operation, lever free play, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-5–5-7,
8-93, 8-97–8-103
Rear brakeCheck operation, lever free play, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-5–5-7,
8-95–8-101,
8-105–8-107
FuelCheck fuel level.
Fill with fuel if necessary.5-9–5-11
Engine oilCheck oil level.
Fill with oil if necessary.5-13, 8-33–8-43
Coolant reservoirCheck coolant level in reservoir.
Fill with coolant if necessary.5-19–5-21,
8-57–8-67
Final gear oil and
differential gear oilCheck for leakage.5-15–5-17,
8-43–8-55
ThrottleCheck for proper throttle cable operation and free play. 5-21, 8-91
Wheels and tiresCheck tire pressure, wear and damage.5-25–5-31,
8-115–8-117
Fittings and fastenersCheck all fittings and fasteners. 5-21
Lights and switchesCheck for proper operation.5-23, 8-109,
8-129–8-133
Axle bootsCheck for damage. 8-67
U1D960.book Page 1 Wednesday, June 23, 2004 3:59 PM

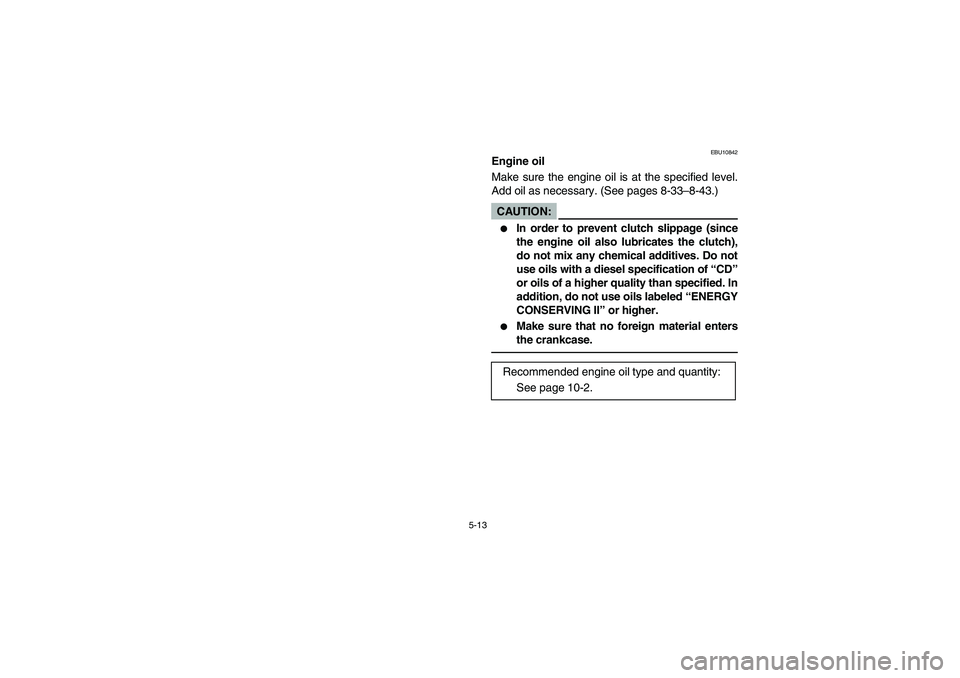

5-13
EBU10842
Engine oil
Make sure the engine oil is at the specified level.
Add oil as necessary. (See pages 8-33–8-43.)CAUTION:_

In order to prevent clutch slippage (since
the engine oil also lubricates the clutch),
do not mix any chemical additives. Do not
use oils with a diesel specification of “CD”
or oils of a higher quality than specified. In
addition, do not use oils labeled “ENERGY
CONSERVING II” or higher.


Make sure that no foreign material enters
the crankcase.
_
Recommended engine oil type and quantity:
See page 10-2.
U1D960.book Page 13 Wednesday, June 23, 2004 3:59 PM

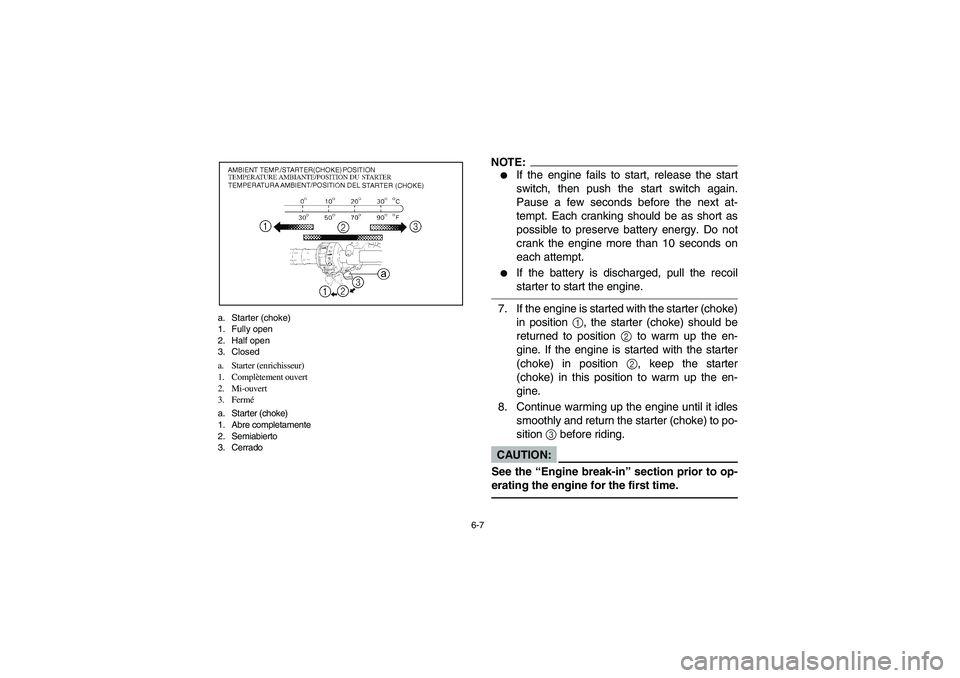

6-7 a. Starter (choke)
1. Fully open
2. Half open
3. Closed
a. Starter (enrichisseur)
1. Complètement ouvert
2. Mi-ouvert
3. Fermé
a. Starter (choke)
1. Abre completamente
2. Semiabierto
3. Cerrado
NOTE:_

If the engine fails to start, release the start
switch, then push the start switch again.
Pause a few seconds before the next at-
tempt. Each cranking should be as short as
possible to preserve battery energy. Do not
crank the engine more than 10 seconds on
each attempt.


If the battery is discharged, pull the recoil
starter to start the engine.
_7. If the engine is started with the starter (choke)
in position
1, the starter (choke) should be
returned to position
2 to warm up the en-
gine. If the engine is started with the starter
(choke) in position
2, keep the starter
(choke) in this position to warm up the en-
gine.
8. Continue warming up the engine until it idles
smoothly and return the starter (choke) to po-
sition
3 before riding.CAUTION:_ See the “Engine break-in” section prior to op-
erating the engine for the first time. _
U1D960.book Page 7 Wednesday, June 23, 2004 3:59 PM

8-8
Fuel line*Check fuel hose for cracks or damage.
Replace if necessary.Engine oil
Replace. (Warm engine before draining.)Engine oil filter cartridge
Replace.Engine oil strainer*
Clean.Final gear oil
Check oil level/oil leakage.
Replace every 12 month.Differential gear oil
Front brake*Check operation/fluid leakage. (See NOTE page 8-9.)
Correct if necessary.Rear brake*Check operation/fluid leakage.(See NOTE page 8-9.)
Correct if necessary.Select lever safety system
cable*Check operation.
Adjust if necessary.V-belt*Check operation.
Check for cracks or damage.Wheels*Check balance/damage/runout.
Repair if necessary.Wheel bearing*Check bearing assemblies for looseness/damage.
Replace if damaged.Front and rear
suspension*Check operation.
Correct if necessary.Steering system*Check operation./Replace if damaged.
Check toe-in./Adjust if necessary.Rear upper and lower
knuckle pivots*Lubricate with lithium-soap-based grease.Drive shaft universal
joint*Lubricate with lithium-soap-based grease.Engine mount*
Check for cracks or damage.
ITEM ROUTINEWhichever
comes firstINITIAL EVERY
month136612
km
(mi)320
(200)1,200
(750)2,400
(1,500)2,400
(1,500)4,800
(3,000)
hours 20 75 150 150 300
U1D960.book Page 8 Wednesday, June 23, 2004 3:59 PM

8-33 1. Engine oil filler cap
1. Bouchon de remplissage d’huile de moteur
1. Tapa de relleno de aceite de motor
1. Maximum level mark 2. Minimum level mark
1. Repère de niveau maximum 2. Repère de niveau minimum
1. Marca de nivel máximo 2. Marca de nivel mínimo
EBU10992
Engine oil and oil filter cartridge
The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter cartridge replaced at the intervals
specified in the periodic maintenance and lubrica-
tion chart.
To check the engine oil level
1. Remove panel F. (See page 8-31 for panel
removal and installation procedures.)
2. Place the ATV on a level surface.
3. Start the engine, warm it up for several min-
utes, and then turn it off.
4. Wait a few minutes until the oil settles.
5. Remove the engine oil filler cap and wipe off
the dipstick with a clean rag.
6. Insert the dipstick in the oil filler hole (without
screwing it in), and then remove it again to
check the oil level.NOTE:_ The engine oil should be between the minimum
and maximum level marks. _
U1D960.book Page 33 Wednesday, June 23, 2004 3:59 PM

8-35 1. Engine oil drain bolt
1. Boulon de vidange de l’huile de moteur
1. Perno de drenaje del aceite de motor
7. If the engine oil is at or below the minimum
level mark, add sufficient oil of the recom-
mended type to raise it to the correct level.
8. Insert the dipstick into the oil filler hole, and
then tighten the oil filler cap.
9. Install the panel.
To change the engine oil (with or without oil fil-
ter cartridge replacement)
1. Remove panel F. (See page 8-31 for panel
removal and installation procedures.)
2. Start the engine, warm it up for several min-
utes, and then turn it off.
3. Place an oil pan under the engine to collect
the used oil, and then remove the engine oil
filler cap.
4. Remove the engine oil drain bolt to drain the
oil from the crankcase.
U1D960.book Page 35 Wednesday, June 23, 2004 3:59 PM
