maintenance YAMAHA KODIAK 450 2005 Manuale de Empleo (in Spanish)

EBU00946
1-INTRODUCTION
Congratulations on your purchase of the Yamaha
YFM450FA. It represents the result of many years
of Yamaha experience in the production of fine
sporting, touring, and pacesetting racing ma-
chines. With the purchase of this Yamaha, you can
now appreciate the high degree of craftsmanship
and reliability that have made Yamaha a leader in
these fields.
This manual will provide you with a good basic un-
derstanding of the features and operation of this
ATV.
This manual includes important safety in-
formation. It provides information about spe-
cial techniques and skills necessary to ride
your ATV. It also includes basic maintenance and
inspection procedures. If you have any questions
regarding the operation or maintenance of your
ATV, please consult a Yamaha dealer.
U1D960.book Page 4 Wednesday, June 23, 2004 3:59 PM

Tire wear limit......................................5-31
OPERATION ...........................................6-1
Starting a cold engine ...........................6-3
Starting a warm engine .........................6-9
Warming up...........................................6-9
Drive select lever operation and
reverse driving ..................................6-11
Engine break-in ...................................6-17
Parking ................................................6-19
Parking on a slope ..............................6-21
Accessories and loading .....................6-23
RIDING YOUR ATV..................................7-1
Getting to know your ATV .....................7-3
Ride with care and good judgement .....7-5
Be careful where you ride ...................7-27
Turning your ATV ................................7-39
Climbing uphill.....................................7-45
Riding downhill ....................................7-55
Crossing a slope .................................7-59
Crossing through shallow water ..........7-63
Riding over rough terrain ....................7-69
Sliding and skidding ............................7-71
What to do if .......................................7-75
What to do ..........................................7-75
67
PERIODIC MAINTENANCE AND
ADJUSTMENT ........................................ 8-1
Owner’s manual and tool kit ................. 8-3
Periodic maintenance/lubrication.......... 8-7
Panel removal and installation............ 8-17
Engine oil and oil filter cartridge ......... 8-33
Final gear oil ....................................... 8-43
Differential gear oil.............................. 8-51
Cooling system ................................... 8-57
Changing the coolant.......................... 8-61
Axle boots ........................................... 8-67
Spark plug inspection ......................... 8-69
Air filter element cleaning ................... 8-75
V-belt cooling duct check hose ........... 8-83
V-belt case drain plug ......................... 8-83
Carburetor adjustment ........................ 8-85
Idle speed adjustment ........................ 8-87
Valve clearance adjustment ............... 8-89
Throttle lever adjustment .................... 8-91
Select lever safety system cable
adjustment ........................................ 8-93
Front brake pad check ........................ 8-93
Rear brake pad check ........................ 8-95
Inspecting the brake fluid level ........... 8-97
Brake fluid replacement .................... 8-101
Front brake lever free play................ 8-103
8
U1D960.book Page 2 Wednesday, June 23, 2004 3:59 PM

Adjusting the rear brake lever and
brake pedal .................................... 8-105
Adjusting the rear brake light
switch ............................................. 8-109
Cable inspection and lubrication ...... 8-111
Lubricating the brake levers and
brake pedal .................................... 8-113
Rear knuckle upper and lower
pivot lubrication .............................. 8-115
Wheel removal ................................. 8-115
Wheel installation ............................. 8-117
Battery .............................................. 8-119
Battery maintenance ........................ 8-123
Fuse replacement............................. 8-125
Replacing a headlight bulb ............... 8-129
Headlight beam adjustment.............. 8-133
Tail/brake light bulb replacement ..... 8-133
Troubleshooting................................ 8-137
Troubleshooting chart....................... 8-139
CLEANING AND STORAGE .................. 9-1
A. Cleaning ........................................... 9-1
B. Storage ............................................ 9-7
SPECIFICATIONS ................................ 10-1
910
CONVERSION TABLE .......................... 11-1
11
U1D960.book Page 3 Wednesday, June 23, 2004 3:59 PM

2-5

Always inspect your ATV each time you use it
to make sure it is in safe operating condition.
Always follow the inspection and maintenance
procedures and schedules described in this
manual.


Always keep both hands on the handlebars
and both feet on the footboards of the ATV dur-
ing operation.


Always go slowly and be extra careful when op-
erating on unfamiliar terrain. Always be alert to
changing terrain conditions when operating the
ATV.


Never operate on excessively rough, slippery
or loose terrain until you have learned and
practiced the skills necessary to control the
ATV on such terrain. Always be especially cau-
tious on these kinds of terrain.


Always follow proper procedures for turning as
described in this manual. Practice turning at
low speeds before attempting to turn at faster
speeds. Do not turn at excessive speed.
U1D960.book Page 5 Wednesday, June 23, 2004 3:59 PM

5-4
WARNING
Always inspect your ATV each time you use it to make sure the ATV is in safe operating condition.
Always follow the inspection and maintenance procedures and schedules described in the Own-
er’s Manual. Failure to inspect increases the possibility of an accident or equipment damage.
AVERTISSEMENT
_ Toujours effectuer ces contrôles avant chaque départ afin de s’assurer que le VTT peut être utilisé en toute sécu-
rité. Toujours respecter les procédés et intervalles de contrôle et d’entretien repris dans ce manuel. Omettre ces
contrôles accroît les risques d’accident ou d’endommagement du véhicule. _
ADVERTENCIA
_ Inspeccionar siempre el ATV cada vez que vaya a utilizarse, para asegurarse de que está en condicio-
nes de funcionar sin peligro. Seguir siempre los procedimientos y programas de inspección y mante-
nimiento descritos en el Manual del Propietario. Si no se inspecciona la máquina, aumenta el riesgo de
accidente o avería. _U1D960.book Page 4 Wednesday, June 23, 2004 3:59 PM

8-1
EBU00516
PERIODIC MAINTENANCE AND
ADJUSTMENTPeriodic inspection, adjustment and lubrication will
keep your machine in the safest and most efficient
condition possible. Safety is an obligation of the
machine owner. The most important points of ma-
chine inspection, adjustment and lubrication are
explained on the following pages.
WARNING
Never service an engine while it is running.
Moving parts can catch clothing or parts of the
body, causing injury. Electrical components
can cause shocks or can start fires. Turn off
the engine when performing maintenance un-
less otherwise specified. Have a Yamaha deal-
er perform service if you are not familiar with
machine service.
U1D960.book Page 1 Wednesday, June 23, 2004 3:59 PM

8-3 1. Owner’s manual
2. Owner’s tool kit
3. Low-pressure tire gauge
1. Manuel du propriétaire
2. Trousse à outils
3. Manomètre basse pression pour pneus
1. Manual del propietario
2. Juego de herramientas
3. Manómetro de baja presión
EBU14520
Owner’s manual and tool kit
You are recommended to put this owner’s manual
in the vinyl bag and always carry it on the bottom
of the seat as shown. Put the owner’s tool kit and
low-pressure tire gauge under the seat.
The service information included in this manual is
intended to provide you, the owner, with the nec-
essary information for completing your own pre-
ventive maintenance and minor repairs. The tools
provided in the Owner’s tool kit are sufficient for
this purpose, except that a torque wrench is also
necessary to properly tighten nuts and bolts.NOTE:_ If you do not have a torque wrench available dur-
ing a service operation requiring one, take your
machine to a Yamaha dealer to check the torque
settings and adjust them as necessary. _
U1D960.book Page 3 Wednesday, June 23, 2004 3:59 PM

8-7
EBU02621
PERIODIC MAINTENANCE/LUBRICATION
NOTE:_

For ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.


For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance intervals. How-
ever, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance intervals should be
followed.
_
ITEM ROUTINEWhichever
comes firstINITIAL EVERY
month136612
km
(mi)320
(200)1,200
(750)2,400
(1,500)2,400
(1,500)4,800
(3,000)
hours 20 75 150 150 300
Valves*Check valve clearance.
Adjust if necessary.
Cooling systemCheck coolant leakage.
Repair if necessary.
Replace coolant every 24 months.Spark plugCheck condition.
Adjust gap and clean.
Replace if necessary.Air filter elementClean.
Replace if necessary.Every 20–40 hours
(More often in wet or dusty areas.)
Carburetor*Check starter (choke).
Adjust engine idling speed.Crankcase breather
system*Check breather hose for cracks or damage.
Replace if necessary.Exhaust system*Check for leakage.
Tighten if necessary.
Replace gasket(s) if necessary.U1D960.book Page 7 Wednesday, June 23, 2004 3:59 PM

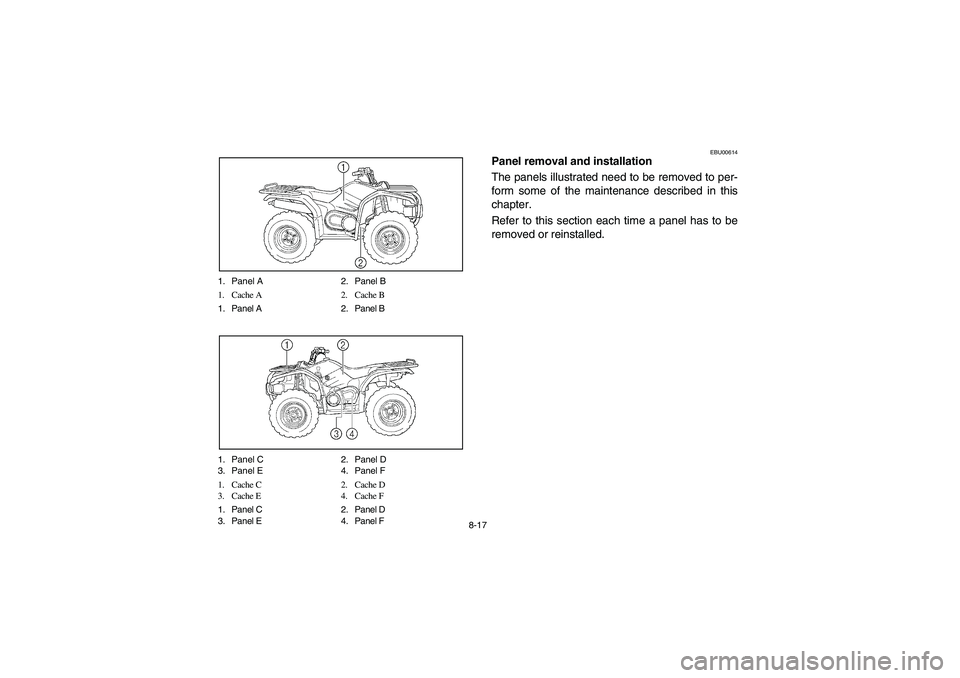

8-17 1. Panel A 2. Panel B
1. Cache A 2. Cache B
1. Panel A 2. Panel B
1. Panel C 2. Panel D
3. Panel E 4. Panel F
1. Cache C 2. Cache D
3. Cache E 4. Cache F
1. Panel C 2. Panel D
3. Panel E 4. Panel F
EBU00614
Panel removal and installation
The panels illustrated need to be removed to per-
form some of the maintenance described in this
chapter.
Refer to this section each time a panel has to be
removed or reinstalled.
U1D960.book Page 17 Wednesday, June 23, 2004 3:59 PM

8-33 1. Engine oil filler cap
1. Bouchon de remplissage d’huile de moteur
1. Tapa de relleno de aceite de motor
1. Maximum level mark 2. Minimum level mark
1. Repère de niveau maximum 2. Repère de niveau minimum
1. Marca de nivel máximo 2. Marca de nivel mínimo
EBU10992
Engine oil and oil filter cartridge
The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter cartridge replaced at the intervals
specified in the periodic maintenance and lubrica-
tion chart.
To check the engine oil level
1. Remove panel F. (See page 8-31 for panel
removal and installation procedures.)
2. Place the ATV on a level surface.
3. Start the engine, warm it up for several min-
utes, and then turn it off.
4. Wait a few minutes until the oil settles.
5. Remove the engine oil filler cap and wipe off
the dipstick with a clean rag.
6. Insert the dipstick in the oil filler hole (without
screwing it in), and then remove it again to
check the oil level.NOTE:_ The engine oil should be between the minimum
and maximum level marks. _
U1D960.book Page 33 Wednesday, June 23, 2004 3:59 PM
