Tire wear limit......................................5-31
OPERATION ...........................................6-1
Starting a cold engine ...........................6-3
Starting a warm engine .........................6-9
Warming up...........................................6-9
Drive select lever operation and
reverse driving ..................................6-11
Engine break-in ...................................6-17
Parking ................................................6-19
Parking on a slope ..............................6-21
Accessories and loading .....................6-23
RIDING YOUR ATV..................................7-1
Getting to know your ATV .....................7-3
Ride with care and good judgement .....7-5
Be careful where you ride ...................7-27
Turning your ATV ................................7-39
Climbing uphill.....................................7-45
Riding downhill ....................................7-55
Crossing a slope .................................7-59
Crossing through shallow water ..........7-63
Riding over rough terrain ....................7-69
Sliding and skidding ............................7-71
What to do if .......................................7-75
What to do ..........................................7-75
67
PERIODIC MAINTENANCE AND
ADJUSTMENT ........................................ 8-1
Owner’s manual and tool kit ................. 8-3
Periodic maintenance/lubrication.......... 8-7
Panel removal and installation............ 8-17
Engine oil and oil filter cartridge ......... 8-33
Final gear oil ....................................... 8-43
Differential gear oil.............................. 8-51
Cooling system ................................... 8-57
Changing the coolant.......................... 8-61
Axle boots ........................................... 8-67
Spark plug inspection ......................... 8-69
Air filter element cleaning ................... 8-75
V-belt cooling duct check hose ........... 8-83
V-belt case drain plug ......................... 8-83
Carburetor adjustment ........................ 8-85
Idle speed adjustment ........................ 8-87
Valve clearance adjustment ............... 8-89
Throttle lever adjustment .................... 8-91
Select lever safety system cable
adjustment ........................................ 8-93
Front brake pad check ........................ 8-93
Rear brake pad check ........................ 8-95
Inspecting the brake fluid level ........... 8-97
Brake fluid replacement .................... 8-101
Front brake lever free play................ 8-103
8
U1D960.book Page 2 Wednesday, June 23, 2004 3:59 PM

3-1
EBU00032
DESCRIPTION AND MACHINE
IDENTIFICATION1. Rear shock absorber
assembly spring preload
adjusting ring
2. Storage compartment
and tool kit
3. Spark plug
4. Rear brake fluid reservoir
5. Front shock absorber
assembly spring preload
adjusting ring
6. Brake pedal
7. V-belt case
8. Radiator cap
9. Fuel cock
10. Air filter case
11. Fuses
12. Tail/brake light
13. Engine oil dipstick
14. Oil filter cartridge15. Coolant reservoir
16. V-belt cooling duct check
hose
17. Rear brake lever
18. Left handlebar switches
19. Starter (choke)
20. Horn switch
21. Drive select lever
22. Speedometer unit
23. Main switch
24. Fuel tank cap
25. Auxiliary DC jack
26. Right handlebar switch
27. Throttle lever
28. Front brake leverNOTE:The machine you have purchased may differ
slightly from those shown in the figures of this
manual.
U1D960.book Page 1 Wednesday, June 23, 2004 3:59 PM

6-19
0–10 hours:
Avoid continuous operation above half throttle. Al-
low a cooling off period of five to ten minutes after
every hour of operation. Vary the speed of the ma-
chine from time to time. Do not operate it at one
set throttle position.
10–20 hours:
Avoid prolonged operation above 3/4 throttle. Rev
the machine freely but do not use full throttle at any
time.
After break-in:
Avoid prolonged full throttle operation. Vary
speeds occasionally.
EBU00612
Parking
When parking, stop the engine and shift the drive
select lever into the park position, then turn the fuel
cock to the “OFF” position.
U1D960.book Page 19 Wednesday, June 23, 2004 3:59 PM

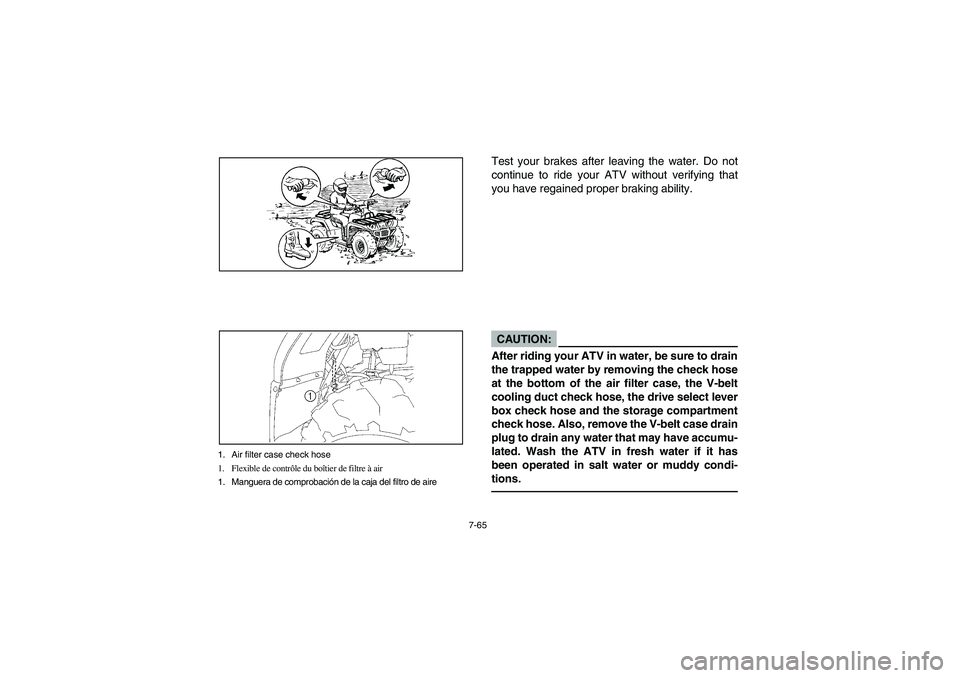

7-65
1. Air filter case check hose
1. Flexible de contrôle du boîtier de filtre à air
1. Manguera de comprobación de la caja del filtro de aire
Test your brakes after leaving the water. Do not
continue to ride your ATV without verifying that
you have regained proper braking ability.CAUTION:_ After riding your ATV in water, be sure to drain
the trapped water by removing the check hose
at the bottom of the air filter case, the V-belt
cooling duct check hose, the drive select lever
box check hose and the storage compartment
check hose. Also, remove the V-belt case drain
plug to drain any water that may have accumu-
lated. Wash the ATV in fresh water if it has
been operated in salt water or muddy condi-
tions. _
U1D960.book Page 65 Wednesday, June 23, 2004 3:59 PM

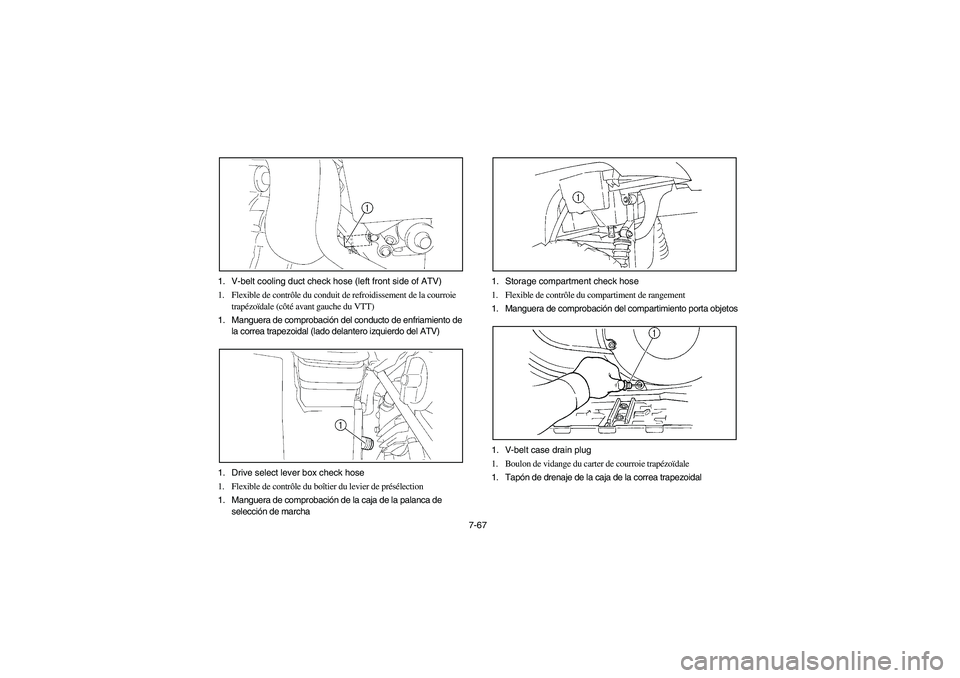

7-67 1. V-belt cooling duct check hose (left front side of ATV)
1. Flexible de contrôle du conduit de refroidissement de la courroie
trapézoïdale (côté avant gauche du VTT)
1. Manguera de comprobación del conducto de enfriamiento de
la correa trapezoidal (lado delantero izquierdo del ATV)
1. Drive select lever box check hose
1. Flexible de contrôle du boîtier du levier de présélection
1. Manguera de comprobación de la caja de la palanca de
selección de marcha
1. Storage compartment check hose
1. Flexible de contrôle du compartiment de rangement
1. Manguera de comprobación del compartimiento porta objetos
1. V-belt case drain plug
1. Boulon de vidange du carter de courroie trapézoïdale
1. Tapón de drenaje de la caja de la correa trapezoidal
U1D960.book Page 67 Wednesday, June 23, 2004 3:59 PM

8-7
EBU02621
PERIODIC MAINTENANCE/LUBRICATION
NOTE:_

For ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.


For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance intervals. How-
ever, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance intervals should be
followed.
_
ITEM ROUTINEWhichever
comes firstINITIAL EVERY
month136612
km
(mi)320
(200)1,200
(750)2,400
(1,500)2,400
(1,500)4,800
(3,000)
hours 20 75 150 150 300
Valves*Check valve clearance.
Adjust if necessary.
Cooling systemCheck coolant leakage.
Repair if necessary.
Replace coolant every 24 months.Spark plugCheck condition.
Adjust gap and clean.
Replace if necessary.Air filter elementClean.
Replace if necessary.Every 20–40 hours
(More often in wet or dusty areas.)
Carburetor*Check starter (choke).
Adjust engine idling speed.Crankcase breather
system*Check breather hose for cracks or damage.
Replace if necessary.Exhaust system*Check for leakage.
Tighten if necessary.
Replace gasket(s) if necessary.U1D960.book Page 7 Wednesday, June 23, 2004 3:59 PM

8-57 1. Coolant reservoir cap
2. Maximum level mark
3. Minimum level mark
1. Bouchon du vase d’expansion
2. Repère de niveau maximum
3. Repère de niveau minimum
1. Tapa del depósito de refrigerante
2. Marca de nivel máximo
3. Marca de nivel mínimo
EBU13210
Cooling system
1. Place the ATV on a level surface.
2. Check the coolant level in the coolant reser-
voir when the engine is cold as the coolant
level will vary with engine temperature.NOTE:_ The coolant level should be between the minimum
and maximum level marks. _3. If the coolant is at or below the minimum level
mark, remove panel D. (See pages 8-19–
8-21 for panel removal and installation proce-
dures.)
4. Remove the reservoir cap, add coolant to the
maximum level mark, install the reservoir
cap, and then install the panel.
U1D960.book Page 57 Wednesday, June 23, 2004 3:59 PM

8-63 1. Radiator cap
1. Bouchon du radiateur
1. Tapa del radiador
1. Coolant reservoir hose
1. Flexible du vase d’expansion
1. Manguera del depósito de refrigerante
5. Remove the radiator cap.
6. Remove panel D. (See pages 8-19–8-21 for
panel removal and installation procedures.)
7. Remove the coolant reservoir cap.
8. Disconnect the hose on the coolant reservoir
side, and then drain the coolant from the
coolant reservoir.
9. After draining the coolant, thoroughly flush
the cooling system with clean tap water.
10. Replace the coolant drain bolt washer if it is
damaged, install the coolant drain bolt, and
then tighten it to the specified torque.
11. Connect the coolant reservoir hose.
12. Pour the recommended coolant into the res-
ervoir to the maximum level mark, and then
install the reservoir cap and panel D.
13. Pour the recommended coolant into the radi-
ator until it is full, and then install the radiator
cap. Tightening torque:
Coolant drain bolt:
10 Nm (1.0 m·kgf)
U1D960.book Page 63 Wednesday, June 23, 2004 3:59 PM

8-67 1. Front axle boot (× 2 each side)
1. Soufflet d’axe avant (× 2 de chaque côté)
1. Guardapolvo de eje delantero (× 2 en cada lado)
NOTE:_ If any leakage is found, ask a Yamaha dealer to in-
spect the cooling system. _16. Install the panels and the front carrier.
EBU00862
Axle boots
Check the protective boots for holes or tears. If any
damage is found, have them replaced by a
Yamaha dealer.
U1D960.book Page 67 Wednesday, June 23, 2004 3:59 PM

8-83 1. V-belt cooling duct check hose (left front side of ATV)
1. Flexible de contrôle du conduit de refroidissement de la courroie
trapézoïdale (côté avant gauche du VTT)
1. Manguera de comprobación del conducto de enfriamiento de
la correa trapezoidal (lado delantero izquierdo del ATV)
1. V-belt case drain plug
1. Boulon de vidange du carter de courroie trapézoïdale
1. Tapón de drenaje de la caja de la correa trapezoidal
EBU06411
V-belt cooling duct check hose
If dust or water collects in the V-belt cooling duct
check hose, remove the hose and clean it.
EBU08741
V-belt case drain plug
After riding in water deep enough to allow it to en-
ter the V-belt case, remove this plug to drain the
water from the case.NOTE:_ If water drains from the V-belt case after removing
the plug, have a Yamaha dealer inspect the ATV
as the water may affect other engine parts. _
U1D960.book Page 83 Wednesday, June 23, 2004 3:59 PM
