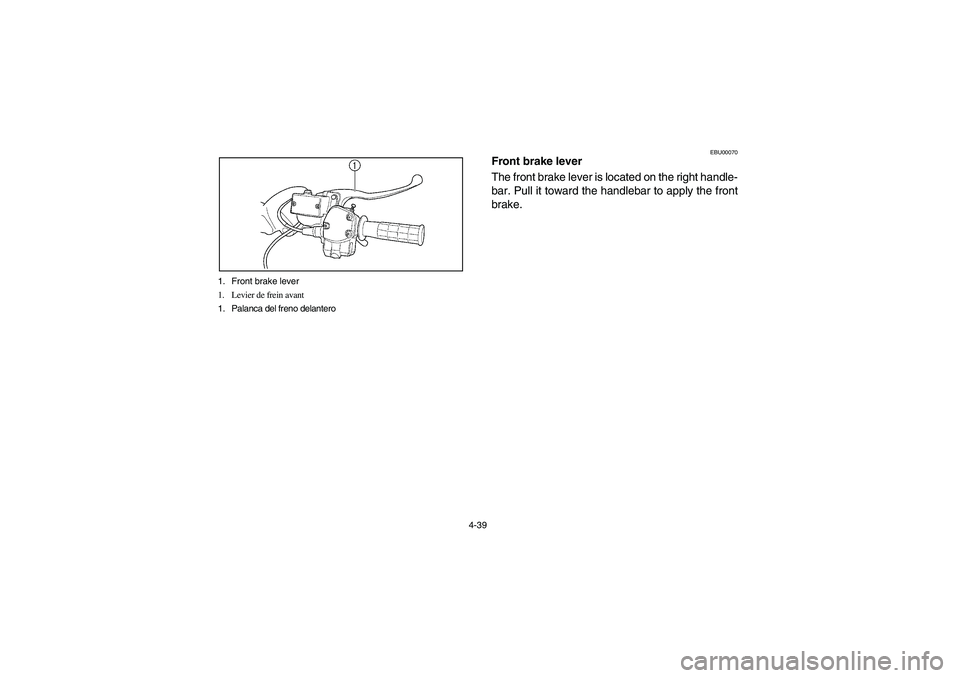

4-39 1. Front brake lever
1. Levier de frein avant
1. Palanca del freno delantero
EBU00070
Front brake lever
The front brake lever is located on the right handle-
bar. Pull it toward the handlebar to apply the front
brake.
U1D960.book Page 39 Wednesday, June 23, 2004 3:59 PM

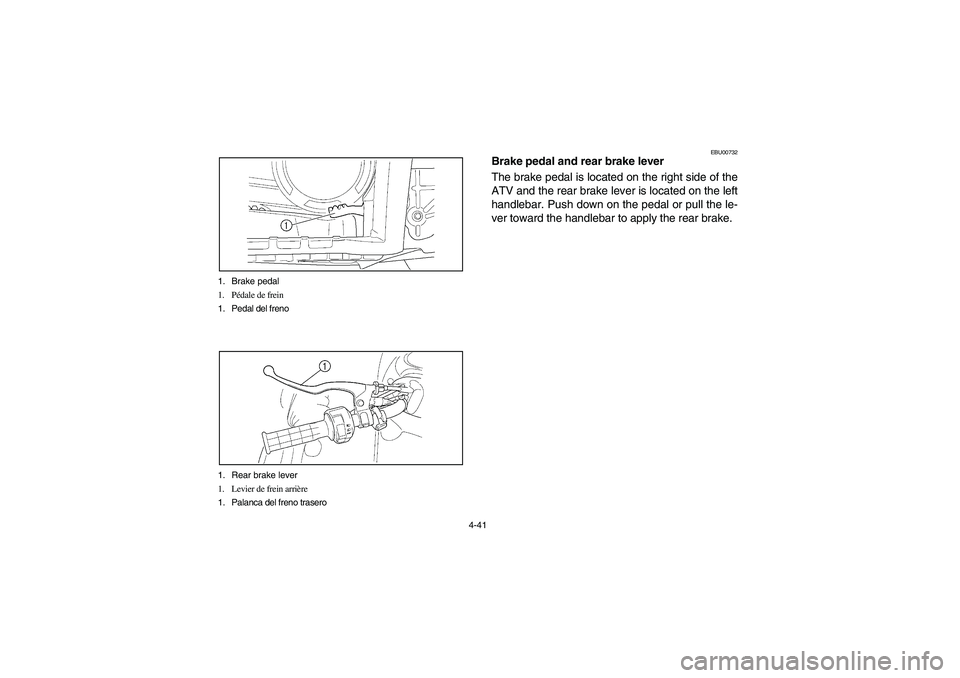

4-41 1. Brake pedal
1. Pédale de frein
1. Pedal del freno
1. Rear brake lever
1. Levier de frein arrière
1. Palanca del freno trasero
EBU00732
Brake pedal and rear brake lever
The brake pedal is located on the right side of the
ATV and the rear brake lever is located on the left
handlebar. Push down on the pedal or pull the le-
ver toward the handlebar to apply the rear brake.
U1D960.book Page 41 Wednesday, June 23, 2004 3:59 PM

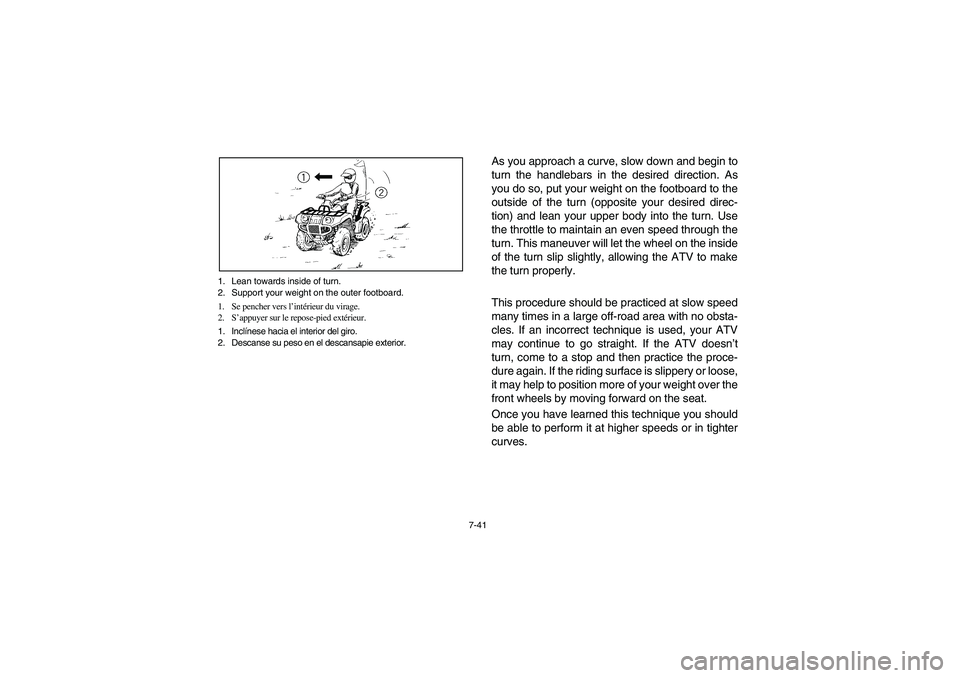

7-41 1. Lean towards inside of turn.
2. Support your weight on the outer footboard.
1. Se pencher vers l’intérieur du virage.
2. S’appuyer sur le repose-pied extérieur.
1. Inclínese hacia el interior del giro.
2. Descanse su peso en el descansapie exterior.
As you approach a curve, slow down and begin to
turn the handlebars in the desired direction. As
you do so, put your weight on the footboard to the
outside of the turn (opposite your desired direc-
tion) and lean your upper body into the turn. Use
the throttle to maintain an even speed through the
turn. This maneuver will let the wheel on the inside
of the turn slip slightly, allowing the ATV to make
the turn properly.
This procedure should be practiced at slow speed
many times in a large off-road area with no obsta-
cles. If an incorrect technique is used, your ATV
may continue to go straight. If the ATV doesn’t
turn, come to a stop and then practice the proce-
dure again. If the riding surface is slippery or loose,
it may help to position more of your weight over the
front wheels by moving forward on the seat.
Once you have learned this technique you should
be able to perform it at higher speeds or in tighter
curves.
