EBU00015

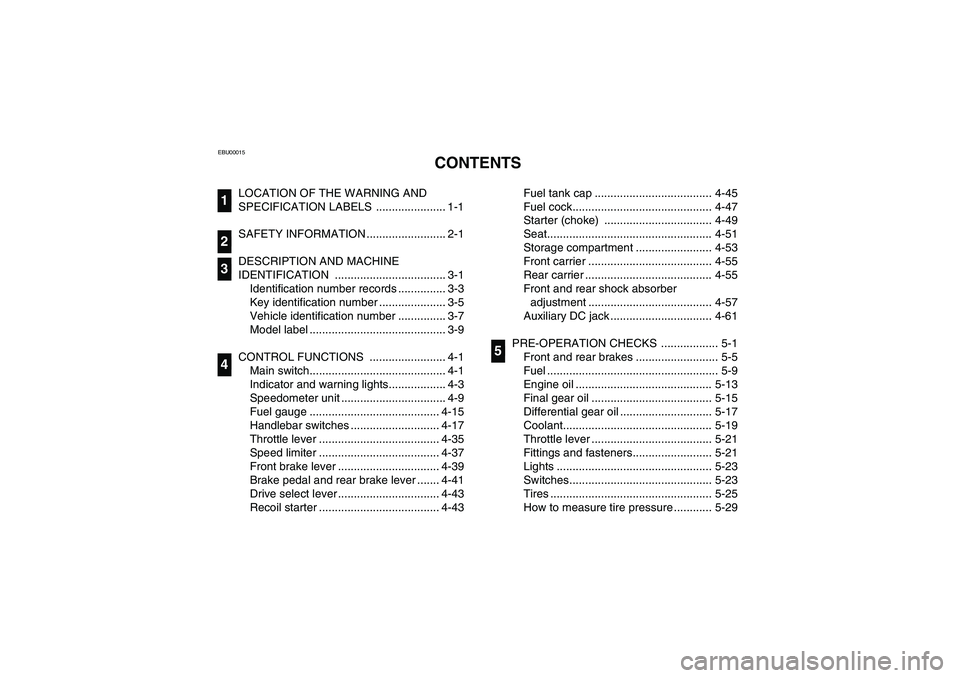

1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ...................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION ................................... 3-1
Identification number records ............... 3-3
Key identification number ..................... 3-5
Vehicle identification number ............... 3-7
Model label ........................................... 3-9
CONTROL FUNCTIONS ........................ 4-1
Main switch........................................... 4-1
Indicator and warning lights.................. 4-3
Speedometer unit ................................. 4-9
Fuel gauge ......................................... 4-15
Handlebar switches ............................ 4-17
Throttle lever ...................................... 4-35
Speed limiter ...................................... 4-37
Front brake lever ................................ 4-39
Brake pedal and rear brake lever ....... 4-41
Drive select lever ................................ 4-43
Recoil starter ...................................... 4-43
1234
Fuel tank cap ..................................... 4-45
Fuel cock............................................ 4-47
Starter (choke) .................................. 4-49
Seat.................................................... 4-51
Storage compartment ........................ 4-53
Front carrier ....................................... 4-55
Rear carrier ........................................ 4-55
Front and rear shock absorber
adjustment ....................................... 4-57
Auxiliary DC jack ................................ 4-61
PRE-OPERATION CHECKS .................. 5-1
Front and rear brakes .......................... 5-5
Fuel ...................................................... 5-9
Engine oil ........................................... 5-13
Final gear oil ...................................... 5-15
Differential gear oil ............................. 5-17
Coolant............................................... 5-19
Throttle lever ...................................... 5-21
Fittings and fasteners......................... 5-21
Lights ................................................. 5-23
Switches............................................. 5-23
Tires ................................................... 5-25
How to measure tire pressure ............ 5-29
5
EE.book Page 1 Wednesday, May 11, 2005 1:21 PM

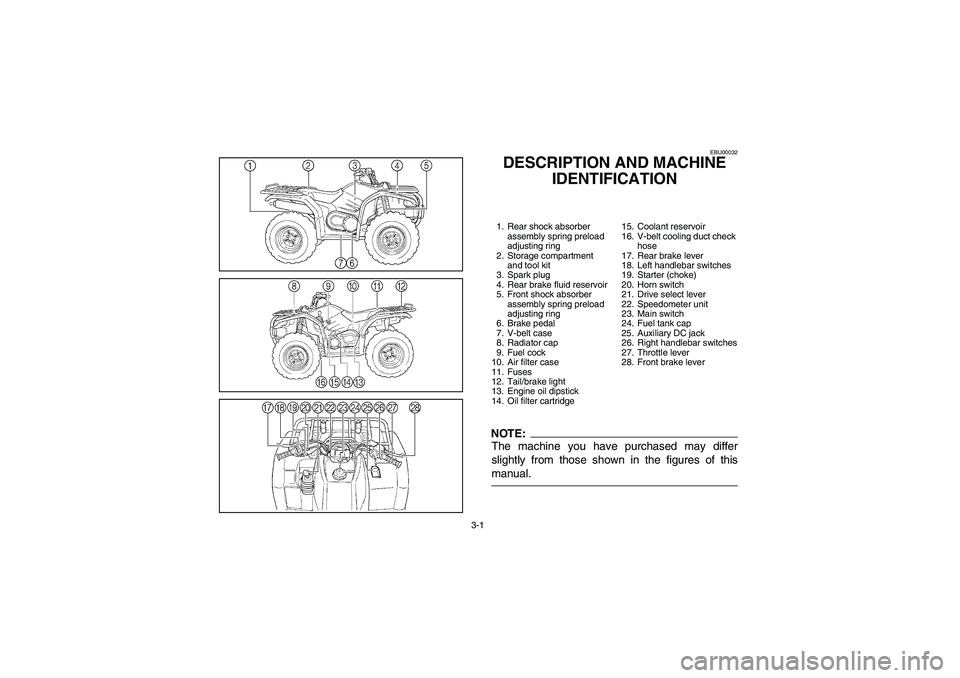

3-1
EBU00032
DESCRIPTION AND MACHINE
IDENTIFICATION1. Rear shock absorber
assembly spring preload
adjusting ring
2. Storage compartment
and tool kit
3. Spark plug
4. Rear brake fluid reservoir
5. Front shock absorber
assembly spring preload
adjusting ring
6. Brake pedal
7. V-belt case
8. Radiator cap
9. Fuel cock
10. Air filter case
11. Fuses
12. Tail/brake light
13. Engine oil dipstick
14. Oil filter cartridge15. Coolant reservoir
16. V-belt cooling duct check
hose
17. Rear brake lever
18. Left handlebar switches
19. Starter (choke)
20. Horn switch
21. Drive select lever
22. Speedometer unit
23. Main switch
24. Fuel tank cap
25. Auxiliary DC jack
26. Right handlebar switches
27. Throttle lever
28. Front brake leverNOTE:The machine you have purchased may differ
slightly from those shown in the figures of this
manual.
EE.book Page 1 Wednesday, May 11, 2005 1:21 PM

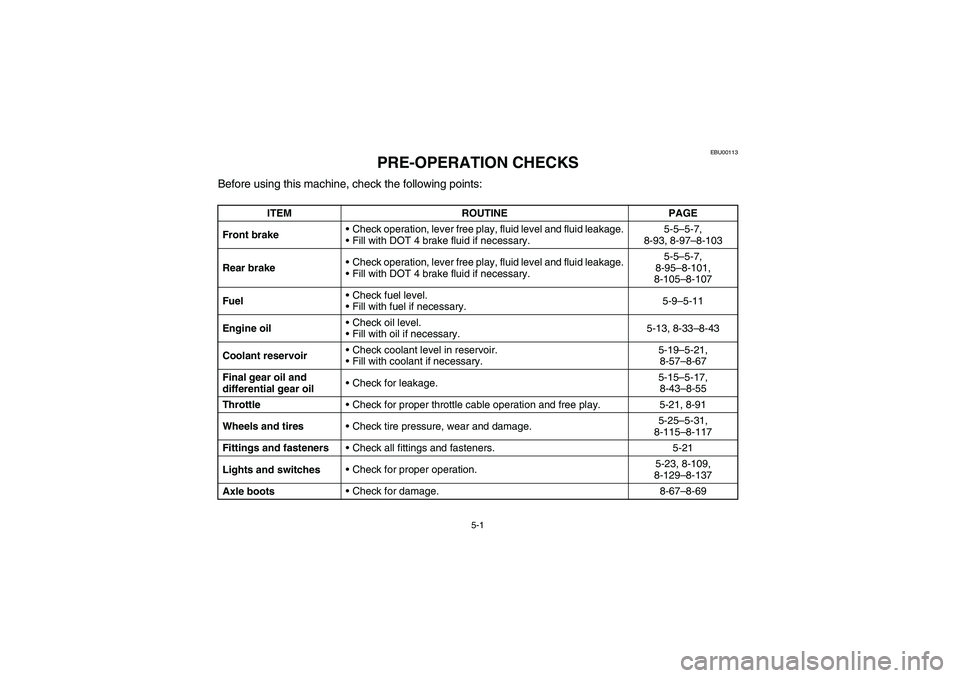

5-1
EBU00113
PRE-OPERATION CHECKS
Before using this machine, check the following points:
ITEM ROUTINE PAGE
Front brakeCheck operation, lever free play, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-5–5-7,
8-93, 8-97–8-103
Rear brakeCheck operation, lever free play, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-5–5-7,
8-95–8-101,
8-105–8-107
FuelCheck fuel level.
Fill with fuel if necessary.5-9–5-11
Engine oilCheck oil level.
Fill with oil if necessary.5-13, 8-33–8-43
Coolant reservoirCheck coolant level in reservoir.
Fill with coolant if necessary.5-19–5-21,
8-57–8-67
Final gear oil and
differential gear oilCheck for leakage.5-15–5-17,
8-43–8-55
ThrottleCheck for proper throttle cable operation and free play. 5-21, 8-91
Wheels and tiresCheck tire pressure, wear and damage.5-25–5-31,
8-115–8-117
Fittings and fastenersCheck all fittings and fasteners. 5-21
Lights and switchesCheck for proper operation.5-23, 8-109,
8-129–8-137
Axle bootsCheck for damage. 8-67–8-69
EE.book Page 1 Wednesday, May 11, 2005 1:21 PM

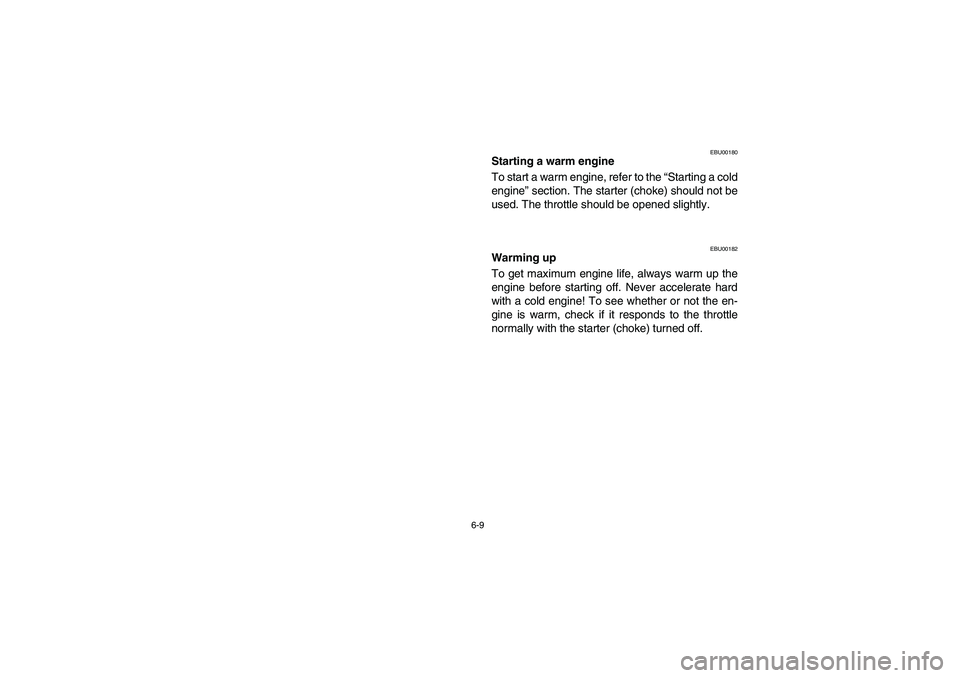

6-9
EBU00180
Starting a warm engine
To start a warm engine, refer to the “Starting a cold
engine” section. The starter (choke) should not be
used. The throttle should be opened slightly.
EBU00182
Warming up
To get maximum engine life, always warm up the
engine before starting off. Never accelerate hard
with a cold engine! To see whether or not the en-
gine is warm, check if it responds to the throttle
normally with the starter (choke) turned off.
EE.book Page 9 Wednesday, May 11, 2005 1:21 PM

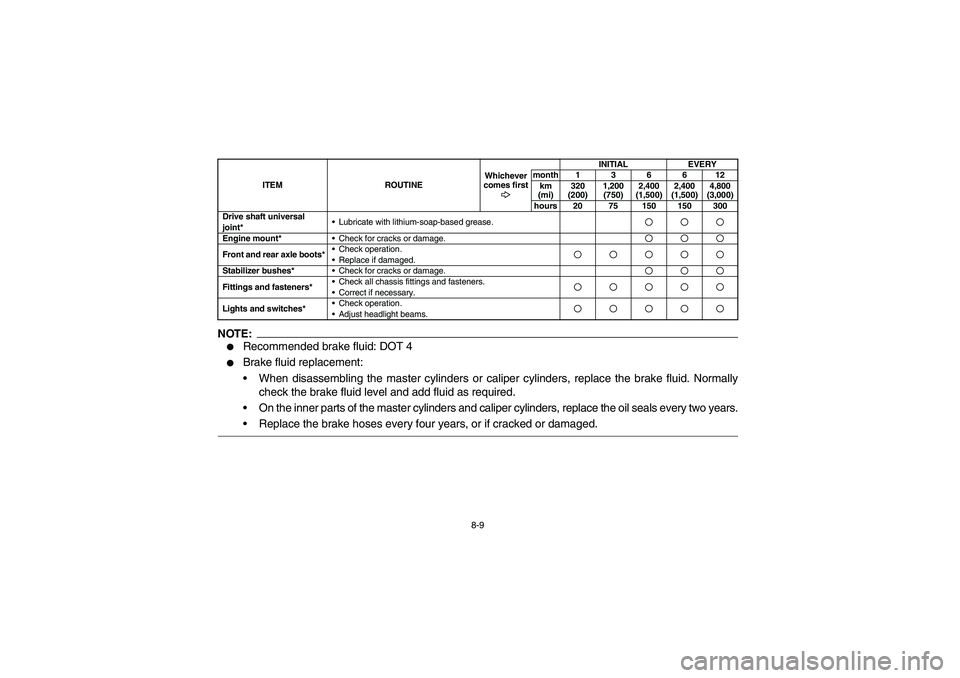

8-9
NOTE:

Recommended brake fluid: DOT 4


Brake fluid replacement:
When disassembling the master cylinders or caliper cylinders, replace the brake fluid. Normally
check the brake fluid level and add fluid as required.
On the inner parts of the master cylinders and caliper cylinders, replace the oil seals every two years.
Replace the brake hoses every four years, or if cracked or damaged.
Drive shaft universal
joint*Lubricate with lithium-soap-based grease.Engine mount*
Check for cracks or damage.Front and rear axle boots*Check operation.
Replace if damaged.Stabilizer bushes*
Check for cracks or damage.Fittings and fasteners*Check all chassis fittings and fasteners.
Correct if necessary.Lights and switches*Check operation.
Adjust headlight beams.
ITEM ROUTINEWhichever
comes firstINITIAL EVERY
month136612
km
(mi)320
(200)1,200
(750)2,400
(1,500)2,400
(1,500)4,800
(3,000)
hours 20 75 150 150 300
