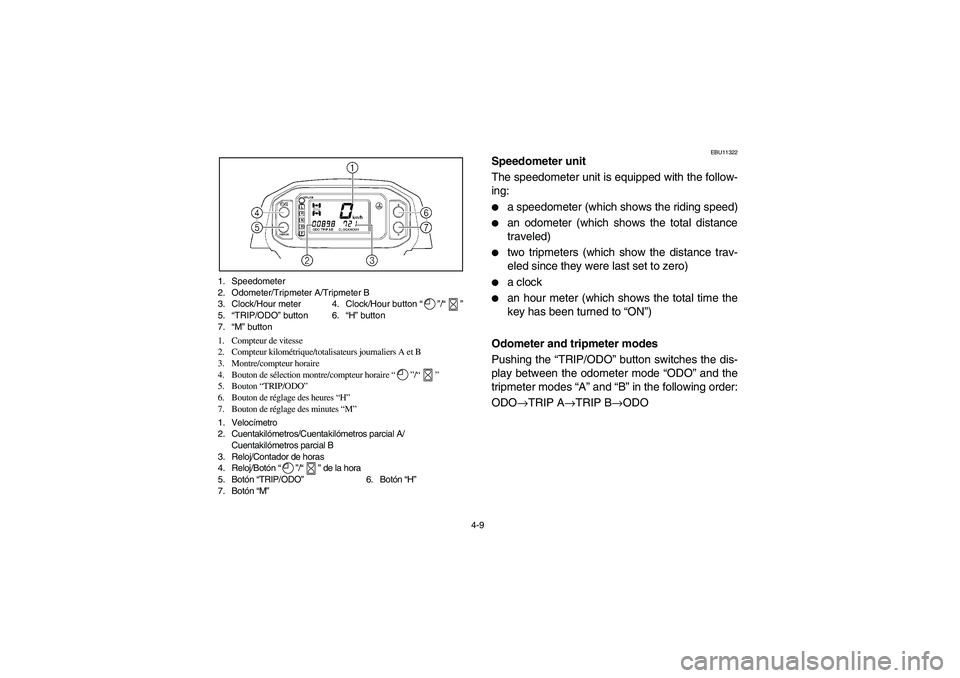

4-9 1. Speedometer
2. Odometer/Tripmeter A/Tripmeter B
3. Clock/Hour meter 4. Clock/Hour button “”/“”
5.“TRIP/ODO” button 6.“H” button
7.“M” button
1. Compteur de vitesse
2. Compteur kilométrique/totalisateurs journaliers A et B
3. Montre/compteur horaire
4. Bouton de sélection montre/compteur horaire “”/“”
5. Bouton “TRIP/ODO”
6. Bouton de réglage des heures “H”
7. Bouton de réglage des minutes “M”
1. Velocímetro
2. Cuentakilómetros/Cuentakilómetros parcial A/
Cuentakilómetros parcial B
3. Reloj/Contador de horas
4. Reloj/Botón “”/“” de la hora
5. Botón “TRIP/ODO”6. Botón “H”
7. Botón “M”
EBU11322
Speedometer unit
The speedometer unit is equipped with the follow-
ing:

a speedometer (which shows the riding speed)


an odometer (which shows the total distance
traveled)


two tripmeters (which show the distance trav-
eled since they were last set to zero)


a clock


an hour meter (which shows the total time the
key has been turned to “ON”)
Odometer and tripmeter modes
Pushing the “TRIP/ODO” button switches the dis-
play between the odometer mode “ODO” and the
tripmeter modes “A” and “B” in the following order:
ODO
→TRIP A
→TRIP B
→ODO
EE.book Page 9 Wednesday, May 11, 2005 1:21 PM

4-11 1. Speedometer
2. Odometer/Tripmeter A/Tripmeter B
3. Clock/Hour meter 4. Clock/Hour button “”/“”
5.“TRIP/ODO” button 6.“H” button
7.“M” button
1. Compteur de vitesse
2. Compteur kilométrique/totalisateurs journaliers A et B
3. Montre/compteur horaire
4. Bouton de sélection montre/compteur horaire “”/“”
5. Bouton “TRIP/ODO”
6. Bouton de réglage des heures “H”
7. Bouton de réglage des minutes “M”
1. Velocímetro
2. Cuentakilómetros/Cuentakilómetros parcial A/
Cuentakilómetros parcial B
3. Reloj/Contador de horas
4. Reloj/Botón “”/“” de la hora
5. Botón “TRIP/ODO”6. Botón “H”
7. Botón “M”
To reset a tripmeter, select it by pushing the
“TRIP/ODO” button, and then push the
“TRIP/ODO” button for at least three seconds. The
tripmeters can be used to estimate the distance
that can be traveled with a full tank of fuel. This in-
formation will enable you to plan future fuel stops.NOTE:_ Holding in the “TRIP/ODO” button and then turning
the key to “ON” switches the display between
“mph” and “km/h”. _Clock mode
Pushing the “”/“” button switches the dis-
play between the clock mode “CLOCK” and the
hour meter mode “HOUR” in the following order:
CLOCK
→HOUR
→CLOCK
EE.book Page 11 Wednesday, May 11, 2005 1:21 PM

4-13
To set the clock1. Set the display to the clock mode.
2. Push the “”/“” button until the clock
starts flashing.
3. Set the hours by pushing the “H” button.
4. Set the minutes by pushing the “M” button.
5. Push the “”/“” button, and then re-
lease it to start the clock.
