engine coolant YAMAHA KODIAK 450 2020 User Guide

8-31
8
tent of the coolant as soon as possible,
otherwise the effectiveness of the coolant
will be reduced.
[ECB01012]
EBU37131
To change the coolant
WARNING
EWB01891Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always place a thick rag over the cap
when opening. Allow any remaining pressure
to escape before completely removing the cap. 1. Park the ATV on a level surface.
2. Remove the front carrier and panel F. (See page 8-10.)
3. Remove the radiator cap. 4. Remove panels D and E. (See page 8-10.)
5. Place a container under the engine, and then
remove the coolant drain bolt and its gasket.
(Use a trough or a similar object as shown to
prevent coolant from spilling on the footrest.)
1. Radiator cap
1
UBB562E0.book Page 31 Thursday, March 14, 2019 9:59 AM

8-33
8
12. Pour the recommended coolant into the radi-
ator until it is full, and then install the radiator
cap.
13. Start the engine, let it idle for several minutes, and then turn it off.
TIPWhile the engine is idling, check the cooling sys-
tem for leaks. 14. When the engine is cool, remove the radiatorcap to check the coolant level in the radiator.
If it is low, add sufficient coolant until it reach-
es the top of the radiator, and then install the
radiator cap.
15. Install the panels and the front carrier.EBU37113Cleaning the air filterThe main air filter element and sub air filter ele-
ment should be cleaned every 20–40 hours of en-
gine operation. When servicing the air filter
elements, check the air filter case inlet for obstruc-
tions. Check the air filter case rubber joint to the
throttle body and the rubber joint manifold fittings
for an air-tight seal. Tighten all fittings securely to
avoid the possibility of unfiltered air entering the
engine.
TIP Replace the air filter elements if damaged.
 Service the air filter more frequently if you often
ride in wet or dusty areas.
 There is a check hose at the bottom of the air fil-
ter case. If dust or water collects in this hose,
empty the hose and clean the air filter case and
air filter elements. 1. Park the ATV on a level surface.
2. Remove the seat. (See page 4-18.)
3. Remove the air filter case cover by unhooking

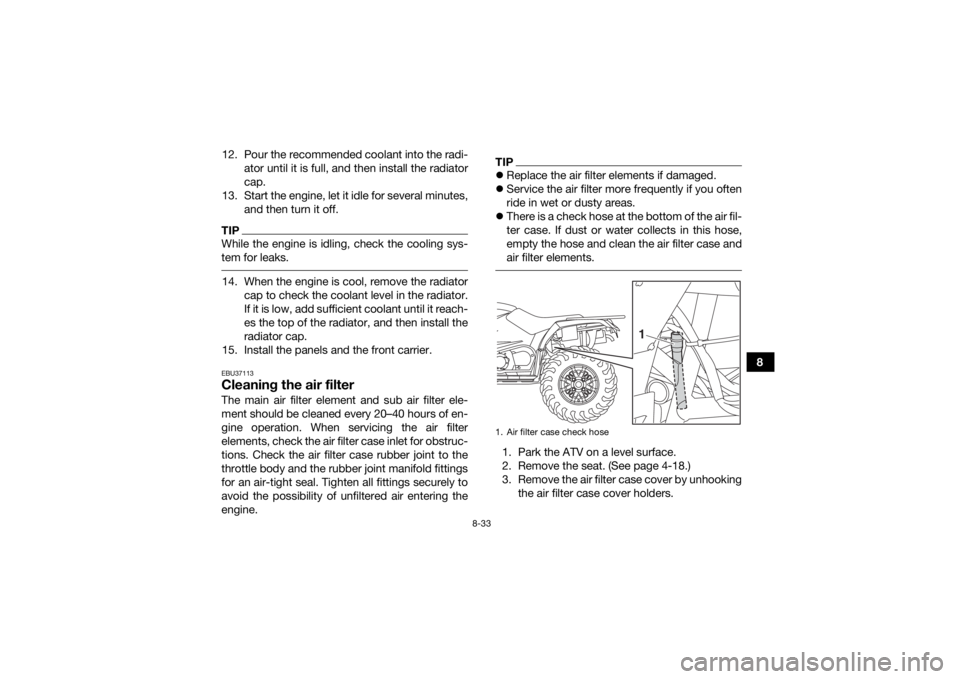

the air filter case cover holders.1. Air filter case check hose
1
UBB562E0.book Page 33 Thursday, March 14, 2019 9:59 AM

8-67
8

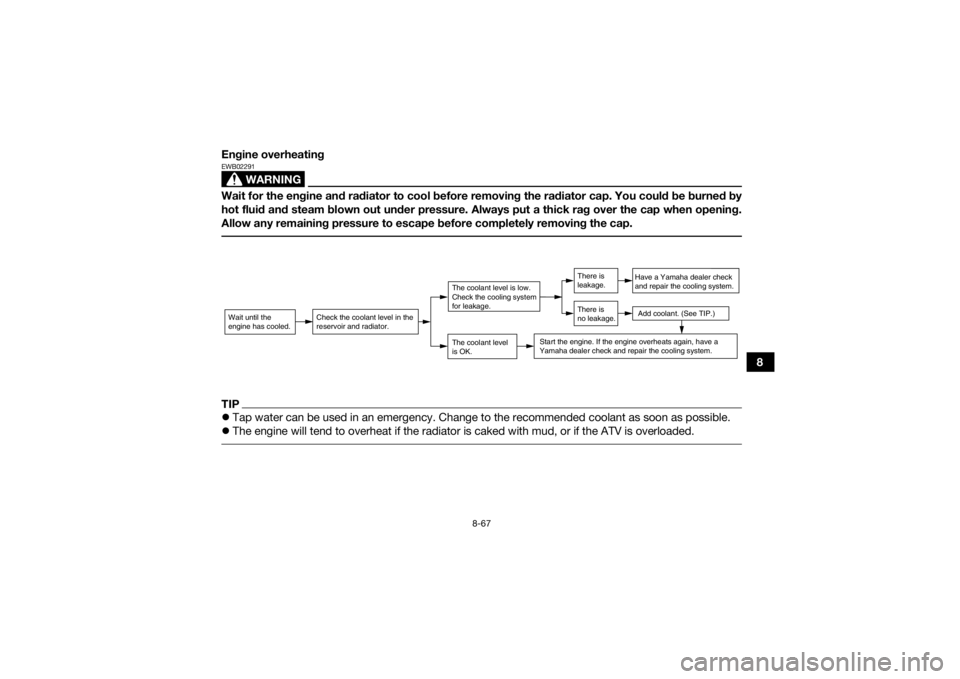

Engine overheating
WARNING
EWB02291Wait for the engine and radiator to cool before removing the radiator cap. You could be burned by
hot fluid and steam blown out under pressure. Always put a thick rag over the cap when opening.
Allow any remaining pressure to escape before completely removing the cap. TIP
Tap water can be used in an emergency. Change to the recommended coolant as soon as possible.
 The engine will tend to overheat if the radiator is caked with mud, or if the ATV is overloaded. Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer check
and repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again, have a
Yamaha dealer check and repair the cooling system.
There is
leakage.
There is
no leakage.
UBB562E0.book Page 67 Thursday, March 14, 2019 9:59 AM

10-5
10
Shock absorber:Gas-hydraulic damper
Wheel travel: 171 mm (6.8 in)Rear suspension:Type:Double wishbone
Spring: Coil spring
Shock absorber:
Gas-hydraulic damper
Wheel travel: 189 mm (7.4 in)Electrical system:System voltage:
12 V
Ignition system: TCI
Charging system: AC magnetoBattery:Model:YTX20L-BS
Voltage, capacity: 12 V, 18.0 AhLights:Headlight:T19L, 30.0 W/30.0 W
Handlebar-mounted light: T15H, 35.0 W/36.5 W (YFM450FWBD, YFM45KPAL) Brake/tail light:
21.0 W/5.0 W
Meter lighting: LED
Neutral indicator light:
LED
Reverse indicator light: LED
Coolant temperature warning light: LED
Park indicator light:
LED
Four-wheel-drive indicator light: LED
Engine trouble warning light: LED
Differential gear lock indicator light:
LED (B5R1/B5R2/B5R3)
EPS warning light: LED (YFM450FWBD, YFM45KPAL)
Fuses:Main fuse:
40.0 A
Headlight fuse: 15.0 A
Signaling system fuse: 10.0 A
Ignition fuse:
10.0 A
Auxiliary DC jack fuse: 10.0 A
UBB562E0.book Page 5 Thursday, March 14, 2019 9:59 AM

12-1
12
INDEX
AAccessories and loading ................................................ 6-5
Accessories, DC jack ................................................... 4-24
Air filter, cleaning ......................................................... 8-33
Axle boots .................................................................... 8-47BBattery ......................................................................... 8-53
Brake fluid, changing ................................................... 8-42
Brake fluid level, checking ........................................... 8-40
Brake lever free play, checking the front ..................... 8-42
Brake lever, front ......................................................... 4-14
Brake levers, checking and lubricating ........................ 8-49
Brake light switches ..................................................... 8-48
Brake pads and friction plates, checking .................... 8-40
Brake pedal and rear brake lever ................................. 4-14
Brake pedal, checking and lubricating ........................ 8-50
Brakes .......................................................................... 8-39
Brakes, front and rear .................................................... 5-3
Brake/tail light bulb, replacing ..................................... 8-63CCables, checking and lubricating ................................ 8-49
Carrier, front ................................................................. 4-20
Carrier, rear .................................................................. 4-20
Chassis fasteners .......................................................... 5-7
Cleaning ......................................................................... 9-1
Coolant .................................................................5-3, 8-29
Coolant temperature warning light ................................ 4-2DDifferential gear lock, indicator (equipped models) ....... 4-4Differential gear oil ......................................................... 5-3
Differential gear oil, changing ...................................... 8-27
Display unit .................................................................... 4-4
Drive select lever ......................................................... 4-15
Drive select lever and driving in reverse ........................ 6-2
Drive shaft universal joint, lubricating .......................... 8-51
EEmissions Certification label (for
Europe) .................... 11-2
Engine break-in .............................................................. 6-4
Engine oil ....................................................................... 5-3
Engine oil and oil filter cartridge .................................. 8-19
Engine stop switch ........................................................ 4-9
Engine trouble warning light .......................................... 4-3
EPS warning light (equipped models) ............................ 4-3FFinal gear oil ......................................................... 5-3, 8-24
Four-wheel drive indicator light ..................................... 4-4
Four-wheel drive switch (On-Command 4WD) ............ 4-11
Fuel ....................................................................... 4-17, 5-3
Fuel tank cap ............................................................... 4-16
Fuses, replacing .......................................................... 8-57HHandlebar switches ....................................................... 4-7
Headlight beam, adjusting ........................................... 8-62
Headlight bulb, replacing ............................................. 8-59
Horn switch .................................................................... 4-9IIdentification numbers ................................................. 11-1
Indicator lights and warning lights ................................. 4-1
