torque YAMAHA KODIAK 450 2020 Owners Manual

8-2
8
EBU21693Owner’s Manual and tool kitBe sure to put the Owner’s Manual and the low-
pressure tire gauge in the plastic bag and always
carry them along with the tool kit under the seat.
The information included in this manual and the
tools provided in the tool kit are intended to assist
you in the performance of preventive maintenance
and minor repairs. However, additional tools, such
as a torque wrench, are necessary to perform cer-
tain maintenance work correctly.
TIPIf you do not have the tools or experience required
for a particular job, have a Yamaha dealer perform
it for you.
1. Tool kit
2. Owner’s Manual
3. Low-pressure tire gauge
13
2
UBB562E0.book Page 2 Thursday, March 14, 2019 9:59 AM

8-16
85. Remove the quick fasteners.
6. Lift up the panel and disconnect the coupler.
To install the panel
1. Connect the coupler, and then place the pan-
el in the original position.
2. Install the quick fasteners.
3. Place the carrier in the original position, and then install the carrier bolts under the fenders.
4. Install the carrier top bolts, and then tighten all bolts to the specified torques.

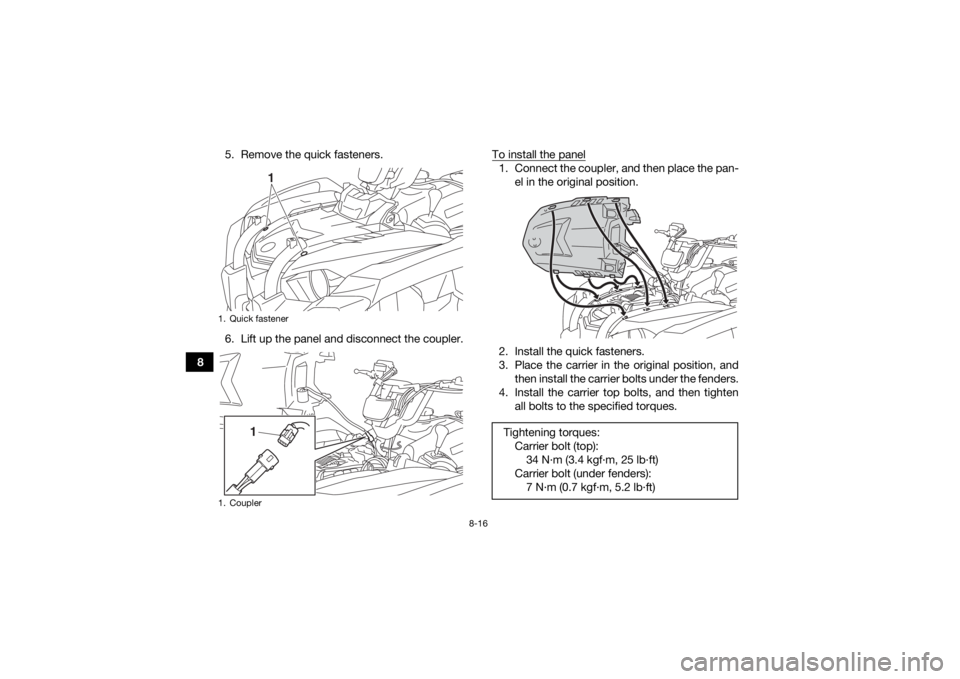

1. Quick fastener
1. Coupler
1
1
Tightening torques:Carrier bolt (top):34 N·m (3.4 kgf·m, 25 lb·ft)
Carrier bolt (under fenders): 7 N·m (0.7 kgf·m, 5.2 lb·ft)
UBB562E0.book Page 16 Thursday, March 14, 2019 9:59 AM

8-18
8To check the spark plug
1. Check that the porcelain insulator around the center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).
TIPIf the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-
stead, have a Yamaha dealer check the ATV. 2. Check the spark plug for electrode erosionand excessive carbon or other deposits, and
replace it if necessary.
3. Measure the spark plug gap with a wire thick- ness gauge and, if necessary, adjust the gap
to specification. To install the spark plug
1. Clean the surface of the spark plug gasket and its mating surface, and then wipe off any
grime from the spark plug threads.
2. Install the spark plug with the spark plug wrench, and then tighten it to the specified
torque.
Specified spark plug:
NGK/DR7EA
1. Spark plug gapSpark plug gap:0.6–0.7 mm (0.024–0.028 in)
UBB562E0.book Page 18 Thursday, March 14, 2019 9:59 AM

8-19
8
TIPIf a torque wrench is not available when installing
the spark plug, a good estimate of the correct
torque is 1/4–1/2 turn past finger tight. However,
the spark plug should be tightened to the speci-
fied torque as soon as possible. 3. Install the spark plug cap.EBU30245Engine oil and oil filter cartridgeThe engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter cartridge replaced at the intervals
specified in the periodic maintenance chart.
To check the engine oil level1. Park the ATV on a level surface.
2. Remove panel E. (See page 8-10.)
3. Check the engine oil level on a cold engine.
TIPIf the engine was started before checking the oil
level, warm up the engine, and then wait at least
ten minutes until the oil settles for an accurate
reading. 4. Remove the engine oil filler cap, and then wipe the dipstick with a clean rag.
5. Insert the dipstick into the filler hole (without screwing it in), and then remove it again to
check the oil level.
Tightening torque:

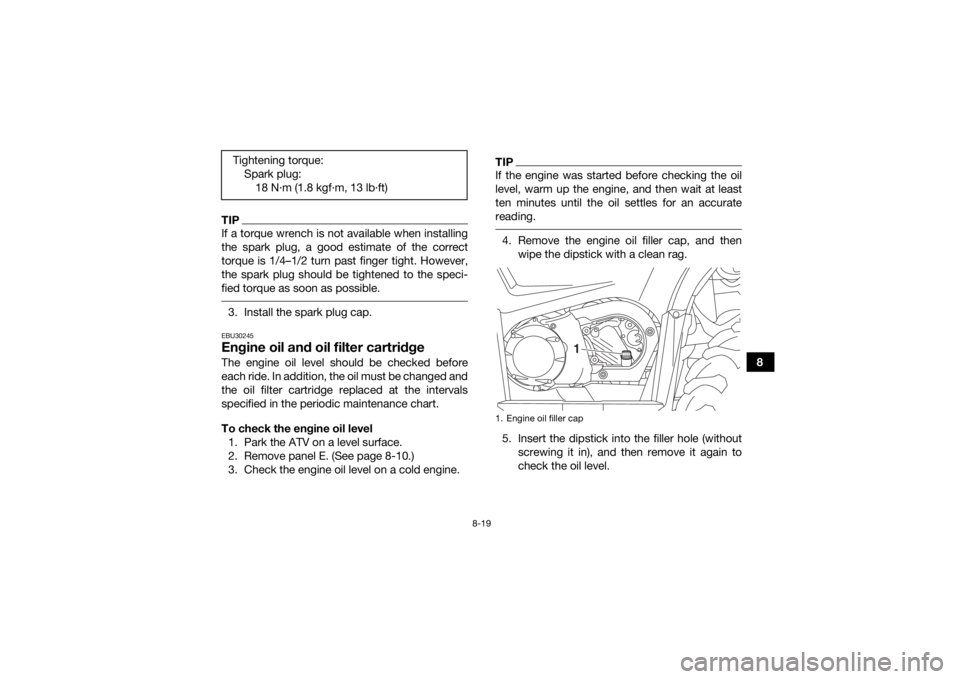

Spark plug:18 N·m (1.8 kgf·m, 13 lb·ft)1. Engine oil filler cap
1
UBB562E0.book Page 19 Thursday, March 14, 2019 9:59 AM

8-22
8
TIPAn oil filter wrench is available at a nearby Yamaha
dealer. 8. Apply a thin coat of engine oil to the O-ring ofthe new oil filter cartridge.TIPMake sure that the O-ring is properly seated. 9. Install the new oil filter cartridge with an oil fil-ter wrench, and then tighten it to the specified
torque with a torque wrench. 10. Install panels D and C.
11. Install the engine oil drain bolt and its new
gasket, and then tighten the bolt to the spec-

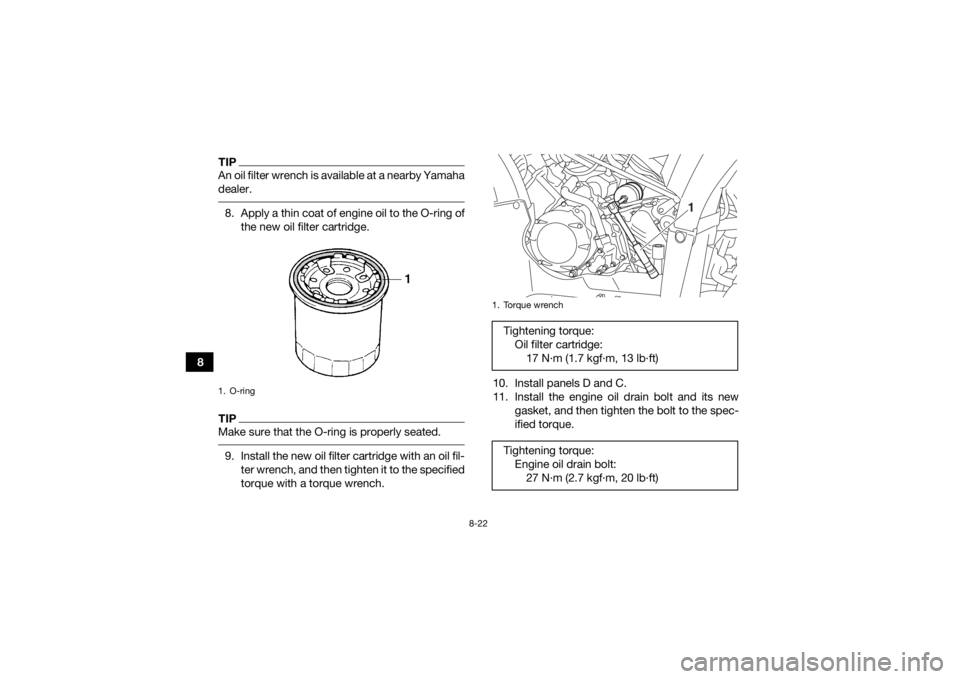

ified torque.1. O-ring
1. Torque wrenchTightening torque:Oil filter cartridge:17 N·m (1.7 kgf·m, 13 lb·ft)
Tightening torque: Engine oil drain bolt:27 N·m (2.7 kgf·m, 20 lb·ft)
1
UBB562E0.book Page 22 Thursday, March 14, 2019 9:59 AM

8-24
8research and development into oil since the
1960’s helps make Yamalube the best choice for
your Yamaha engine.
EBU28568Final gear oilThe final gear case must be checked for oil leak-
age before each ride. If any leakage is found, have
a Yamaha dealer check and repair the ATV. In ad-
dition, the final gear oil level must be checked and
the oil changed as follows at the intervals speci-
fied in the periodic maintenance and lubrication
chart.
To check the final gear oil level
1. Park the ATV on a level surface. 2. Remove the final gear oil filler bolt and its gas-
ket, and then check the oil level in the final
gear case. The oil level should be at the brim
of the filler hole.
3. If the oil is below the brim of the filler hole, add sufficient oil of the recommended type to
raise it to the correct level.
4. Check the oil filler bolt gasket for damage, and replace it if necessary.
5. Install the oil filler bolt and its gasket, and then tighten the bolt to the specified torque.

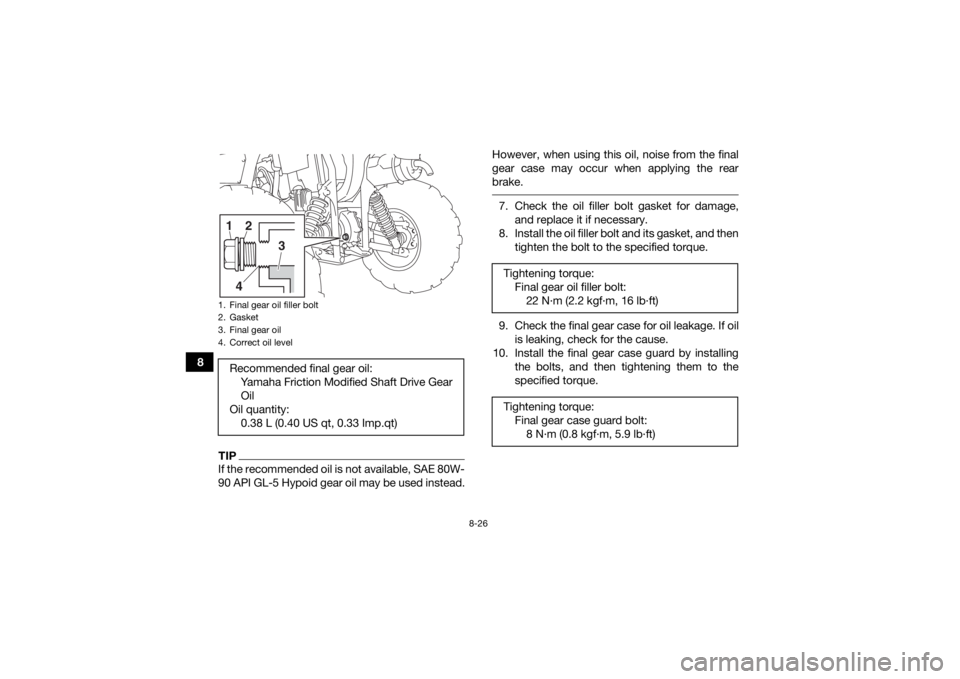

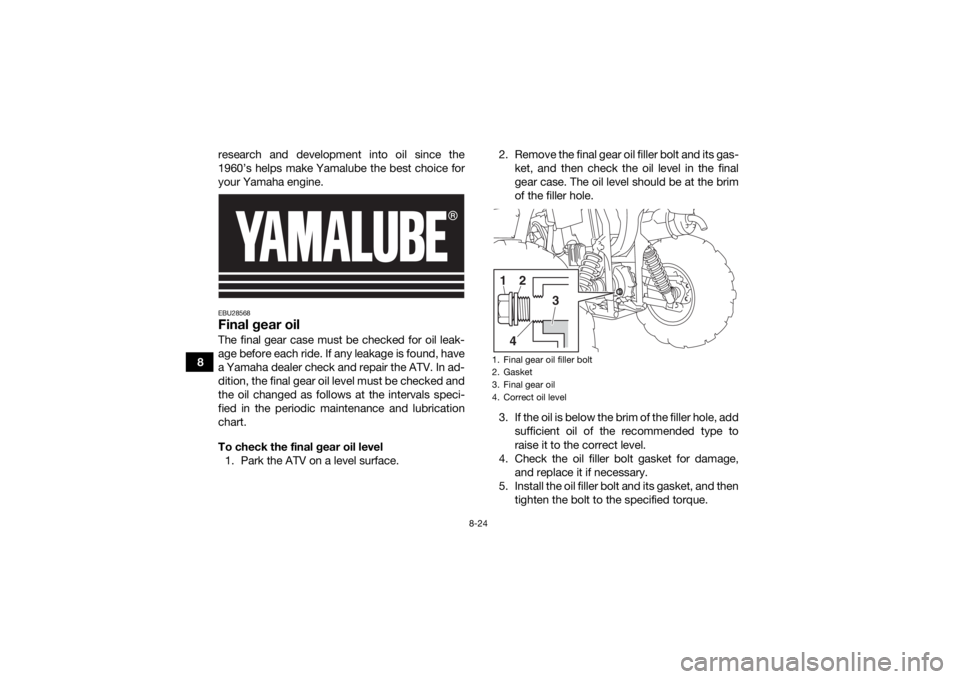

1. Final gear oil filler bolt
2. Gasket
3. Final gear oil
4. Correct oil level1
2
3
4
UBB562E0.book Page 24 Thursday, March 14, 2019 9:59 AM

8-25
8
To change the final gear oil
1. Park the ATV on a level surface.
2. Remove the final gear case guard by remov- ing the bolts.
3. Place an oil pan under the final gear case to collect the used oil.
4. Remove the final gear oil filler bolt, the final gear oil drain bolt and their gasket to drain the
oil from the final gear case. 5. Install the drain bolt and its new gasket, and
then tighten the bolt to the specified torque.
6. Refill with the recommended final gear oil to the brim of the filler hole as shown. NOTICE:
Be sure no foreign material enters the final
gear case.
[ECB00422]

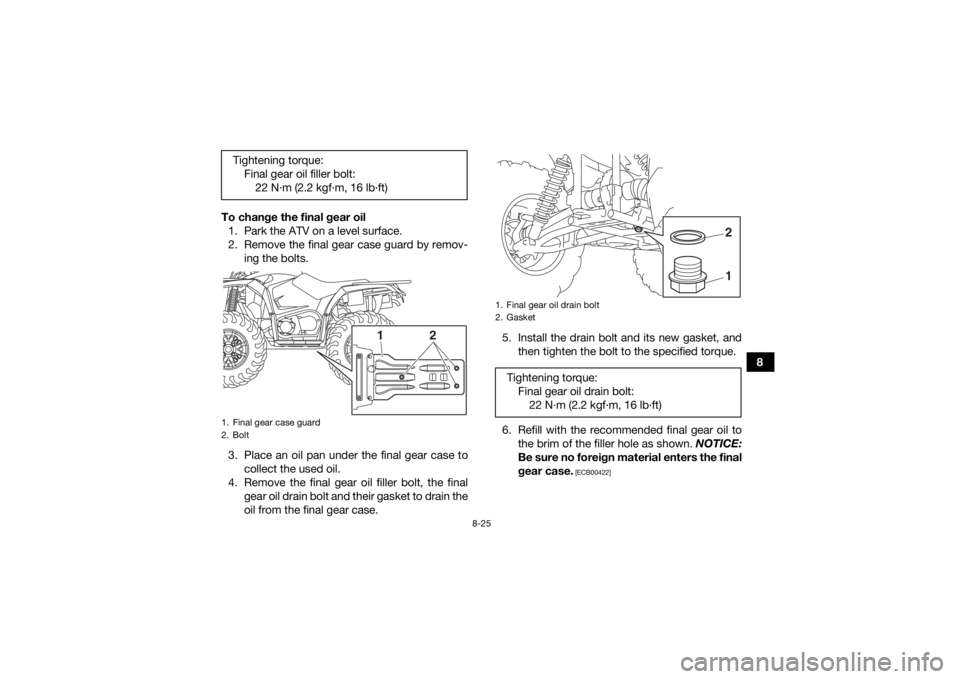

Tightening torque: Final gear oil filler bolt:22 N·m (2.2 kgf·m, 16 lb·ft)1. Final gear case guard
2. Bolt
1
2
1. Final gear oil drain bolt
2. GasketTightening torque: Final gear oil drain bolt:22 N·m (2.2 kgf·m, 16 lb·ft)
12
UBB562E0.book Page 25 Thursday, March 14, 2019 9:59 AM

8-26
8
TIPIf the recommended oil is not available, SAE 80W-
90 API GL-5 Hypoid gear oil may be used instead.However, when using this oil, noise from the final
gear case may occur when applying the rear
brake.
7. Check the oil filler bolt gasket for damage,
and replace it if necessary.
8. Install the oil filler bolt and its gasket, and then tighten the bolt to the specified torque.
9. Check the final gear case for oil leakage. If oil is leaking, check for the cause.
10. Install the final gear case guard by installing the bolts, and then tightening them to the
specified torque.
1. Final gear oil filler bolt
2. Gasket
3. Final gear oil
4. Correct oil levelRecommended final gear oil:Yamaha Friction Modified Shaft Drive Gear Oil
Oil quantity: 0.38 L (0.40 US qt, 0.33 Imp.qt)1
2
3
4
Tightening torque: Final gear oil filler bolt:22 N·m (2.2 kgf·m, 16 lb·ft)
Tightening torque: Final gear case guard bolt:8 N·m (0.8 kgf·m, 5.9 lb·ft)
UBB562E0.book Page 26 Thursday, March 14, 2019 9:59 AM

8-28
81. Park the ATV on a level surface.
2. Place an oil pan under the differential gear
case to collect the used oil.
3. Remove the differential gear oil filler bolt, the differential gear oil drain bolt and their gasket
to drain the oil from the differential gear case. 4. Install the drain bolt and its new gasket, and
then tighten the bolt to the specified torque.
5. Refill with the specified amount of the recom- mended differential gear oil. NOTICE: Be
sure no foreign material enters the differ-
ential gear case.
[ECB00412]
TIP Do not exceed the specified differential gear oil
quantity when filling. Overfilling will cause the oil
to seep out of the breather hose during and af-
ter riding.
 The differential gear case capacity is greater
than the recommended oil quantity, therefore
the oil level cannot be accurately checked from
the oil filler hole. 6. Check the oil filler bolt gasket for damage,
and replace it if necessary.
7. Install the oil filler bolt and its gasket, and then tighten the bolt to the specified torque.
Recommended differential gear oil:
Yamaha Friction Modified Plus Shaft Drive Oil (Part No.: ACC-SHAFT-PL-32) or SAE 80
API GL-4 Hypoid gear oil
Oil quantity: 0.23 L (0.24 US qt, 0.20 Imp.qt)

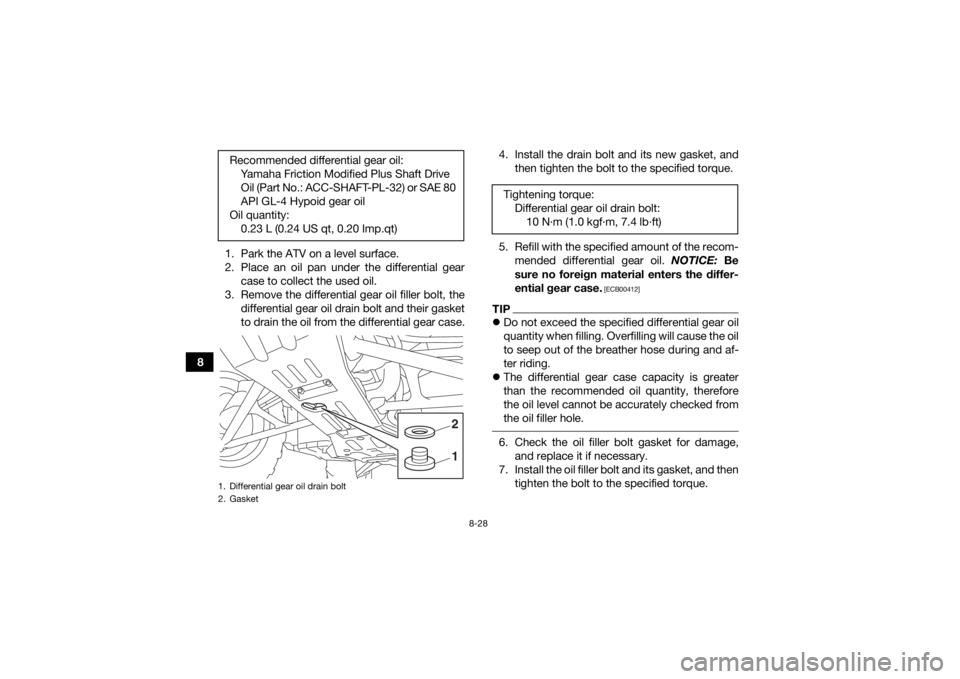

1. Differential gear oil drain bolt
2. Gasket
12
Tightening torque:Differential gear oil drain bolt:10 N·m (1.0 kgf·m, 7.4 lb·ft)
UBB562E0.book Page 28 Thursday, March 14, 2019 9:59 AM

8-29
8
8. Check the differential gear case for oil leak-
age. If oil is leaking, check for the cause.
EBU23472CoolantThe coolant level should be checked regularly. In
addition, the coolant must be changed at the in-
tervals specified in the periodic maintenance and
lubrication chart.
TIPIf genuine Yamaha coolant is not available, use an
ethylene glycol antifreeze containing corrosion in-
hibitors for aluminum engines and mix with dis-
tilled water at a 1:1 ratio. NOTICEECB02190Mix antifreeze with distilled water only. Howev-
er, if distilled water is not available, soft water
may be used for refilling. Do not use hard water
or salt water since they are harmful to the en-
gine. EBU2712ATo check the coolant level1. Park the ATV on a level surface.TIPThe coolant level must be checked on a cold en-
gine since the level varies with engine tempera-
ture. 2. Check the coolant level in the coolant reser- voir.
Tightening torque:
Differential gear oil filler bolt:23 N·m (2.3 kgf·m, 17 lb·ft)
Recommended coolant: YAMALUBE coolant
Coolant quantity: Coolant reservoir (up to full level):0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator (including all routes): 1.32 L (1.40 US qt, 1.16 Imp.qt)
UBB562E0.book Page 29 Thursday, March 14, 2019 9:59 AM
