Page 11 of 172
1-1
1
EBU38860
VEHICLE IDENTIFICATION
EBU28205Identification numbersRecord the vehicle identification number and
model label information in the spaces provided
below.
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:EBU26032Vehicle identification number
The vehicle identification number is stamped into
the frame. This 17-digit number is used to identify
your individual ATV.

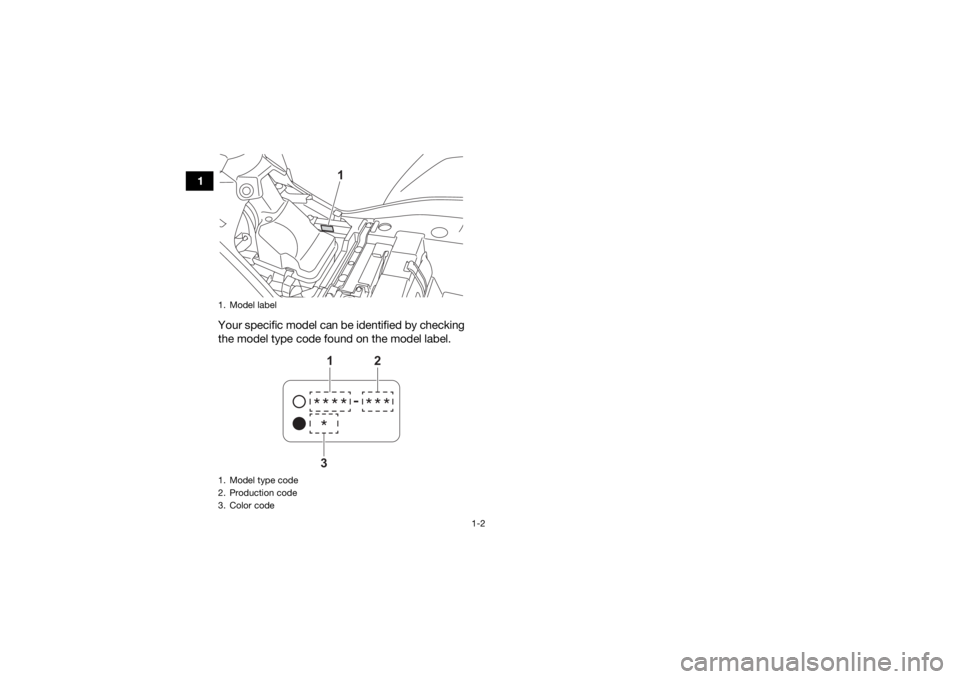

EBU26053Model label
The model label is affixed at the location shown.1. Vehicle identification number (front left side)
1
UBEY60E0.book Page 1 Monday, July 27, 2020 10:46 AM
Page 12 of 172
1-2
1Your specific model can be identified by checking
the model type code found on the model label.
1. Model label
1. Model type code
2. Production code
3. Color code
1
*
****
-
***1
3
2
UBEY60E0.book Page 2 Monday, July 27, 2020 10:46 AM
Page 13 of 172
2-1
2
EBU29681

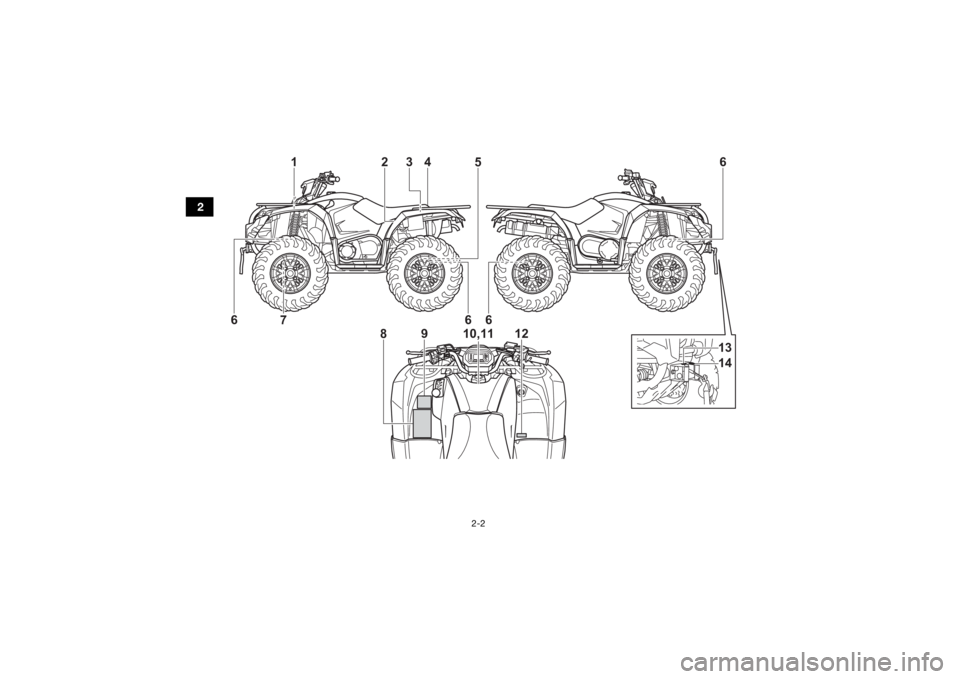

LOCATION OF THE WARNING AND SPECIFICATION LABELS
EBU37262Read and understand all of the labels on your ATV. These labels contain important information for safe and
proper operation.
Never remove any labels from your ATV. If a label becomes difficult to read or comes off, request a re-
placement label from your Yamaha dealer.UBEY60E0.book Page 1 Monday, July 27, 2020 10:46 AM
Page 14 of 172
2-2
2
1
4
2
3
8
9
10,11
12
56
6
6
7
6
1413
UBEY60E0.book Page 2 Monday, July 27, 2020 10:46 AM
Page 15 of 172
2-3
2
37S-F817R-00< 40 kg
( 88 lbs)37S-F817R-10< 80 kg
( 176 lbs)
1P0-F816P-20
YAMAHA BB5-F816M-M035.0 kPa
0.35 kgf/cm²
5.0 psi30.0 kPa
0.30 kgf/cm²
4.4 psi 50.0 kPa
0.50 kgf/cm²
7.3 psi50.0 kPa
0.50 kgf/cm²
7.3 psi
12
34
UBEY60E0.book Page 3 Monday, July 27, 2020 10:46 AM
Page 16 of 172
2-4
2
< 5880 N< 600 kgf< 1322 lbf
< 147 N
< 15 kgf
< 33 lbf
37S-F817S-00
1P0-F816R-00
BB5-F2259-20
B16-F811S-01
8
5
6
7
UBEY60E0.book Page 4 Monday, July 27, 2020 10:46 AM
Page 17 of 172
2-5
2
YAMAHA
1HP-F811R-00
E10
E5
B4F-F817K-00
910
11
UBEY60E0.book Page 5 Monday, July 27, 2020 10:46 AM
Page 18 of 172
2-6
2
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPANYFM450FWB
20.0 kW
301 kg
2020
BJ5-F155A-40
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPANYFM450FWBD
20.0 kW
308 kg
2020
B5R-F155A-20
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPANYFM450FWBD
20.0 kW
313 kg
2020
B5R-F155A-30
BAS-F8459-00
12 BJ5K
12 BEY1
12 BEY2 / BEY3 14 13UBEY60E0.book Page 6 Monday, July 27, 2020 10:46 AM
Page 19 of 172
2-7
2

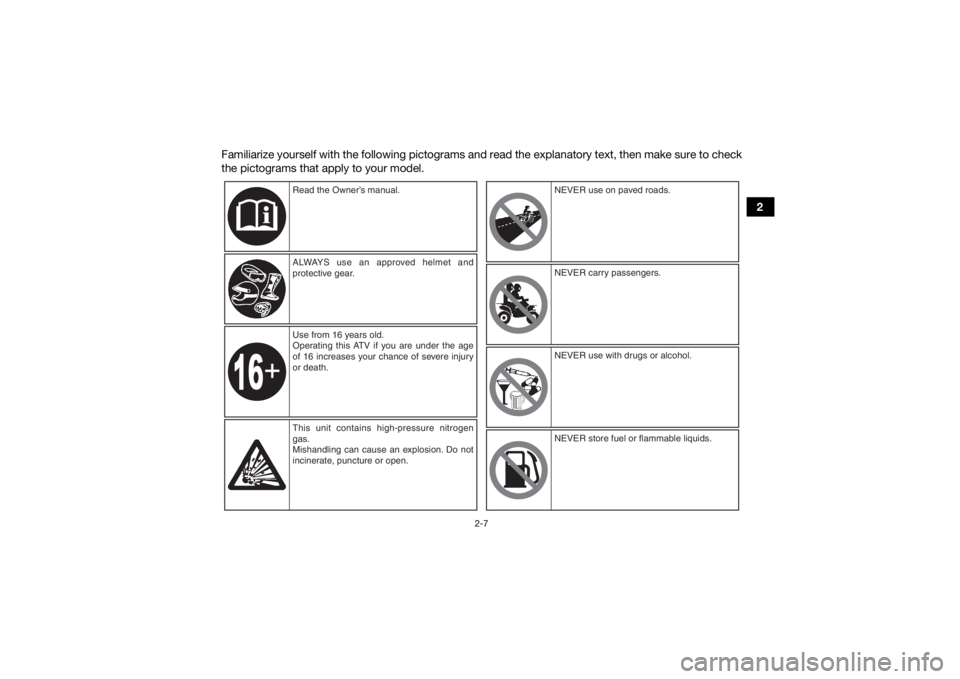

Familiarize yourself with the following pictograms and read the explanatory text, then make sure to check
the pictograms that apply to your model.
Read the Owner’s manual.
ALWAYS use an approved helmet and
protective gear.
Use from 16 years old.
Operating this ATV if you are under the age
of 16 increases your chance of severe injury
or death. NEVER use on paved roads.
NEVER carry passengers.
NEVER use with drugs or alcohol.
NEVER store fuel or flamma
ble liquids.

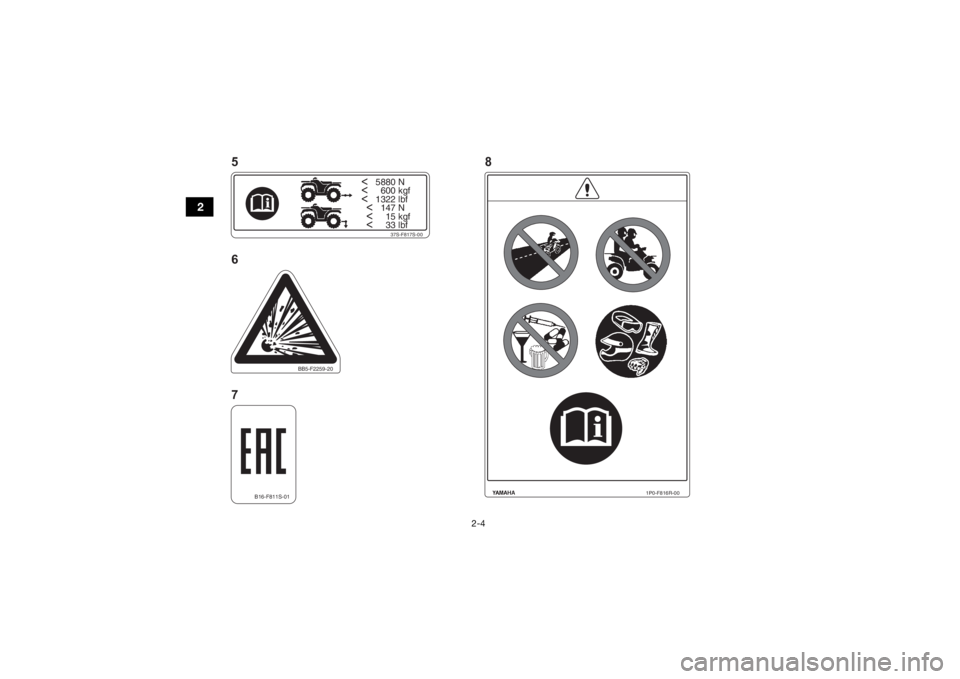

This unit contains high-pressure nitrogen
gas.
Mishandling can cause an explosion. Do not
incinerate, puncture or open.
UBEY60E0.book Page 7 Monday, July 27, 2020 10:46 AM
Page 20 of 172
2-8
2
E10E5
**.* kPa
*.** kgf/cm²
*.* psi **.* kPa
*.** kgf/cm²
*.* psi
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
******
*** kW
*** kg
****1
2
34 This pictogram sho
ws trailer Hitch To w
w eight limit. (Combined w eight of the trailer
and all cargo in the trailer.)
Ov erloading can cause loss of control.
Loss of control can result in se vere injury or
death.

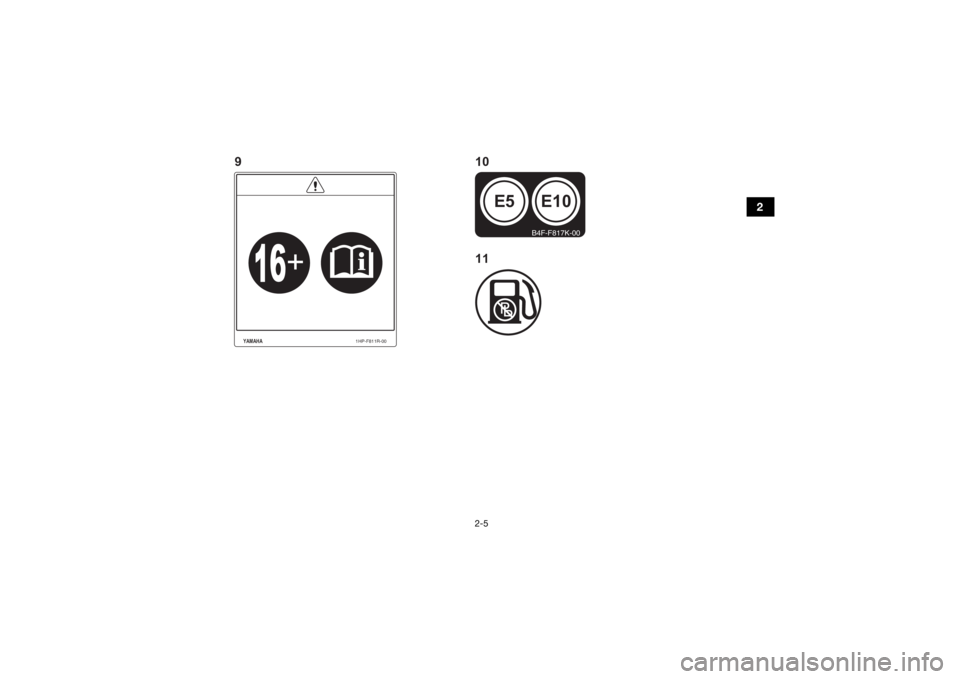

EN228 fuel identification mark.
Gasoline of ethanol 10% or less can be
used. EN228 fuel identification mark.
Gasoline of ethanol 5% or less can be
used.
Use unleaded gasoline only.
Measure the tire pressure when the tires are
cold. Adjust the tire pressure.
Improper tire pressu
re can cause loss of
control.
Loss of control can result in se vere injury or
death.

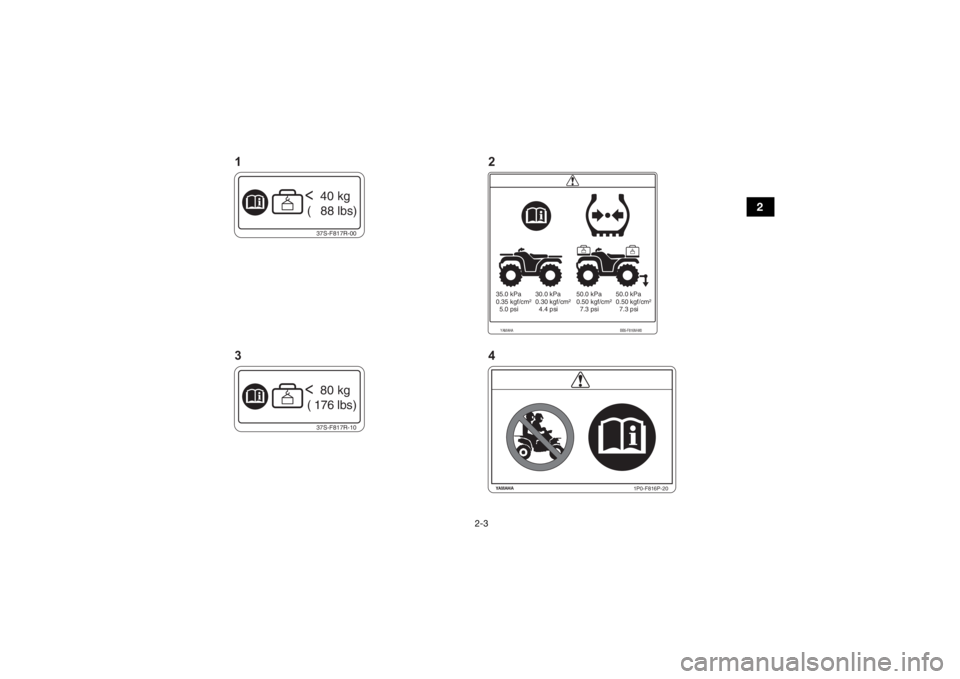

This pictogram sho ws the loading limits
and/or maxim um load capacity for this ATV .
Follo w all load limits and other loading
guidelines in this man ual.
Load may inclu de the driver, passenger,
human protectiv e gear, accessories, goods,
luggage, and all other load related items.
Make sure you do not exceed the load limits.
Ov er
loading can cause loss of control.
Loss of control can res u
lt in severe injury or
death.
This pictogram sho ws trailer Hitch Tong ue
w eight limit. (W eight on the trailer tongue.)
Ov erloading can cause loss of control.
Loss of control can result in se vere injury or
death.

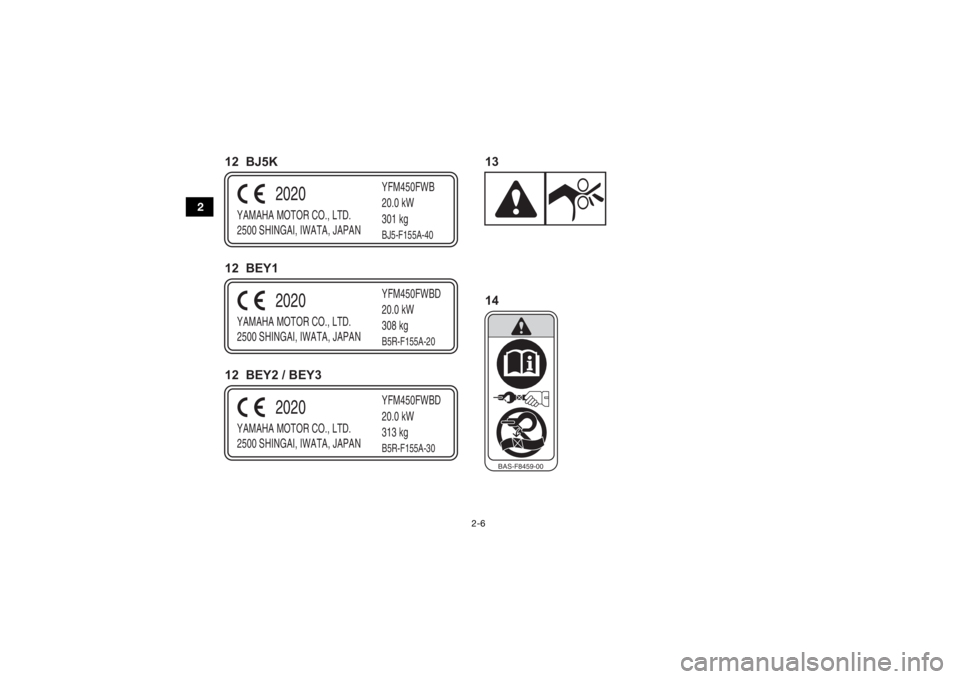

1
2
3
4 Year of constr
uction
Model Name
Max. Po wer
Mass In Running Order
