SPECIFICATIONS
EBU38811TIPThe 4-digit model type code can be confirmed by
checking the model label. (See page 1-1.) Dimensions:Overall length:2042 mm (80.4 in)
Overall width: 1180 mm (46.5 in)
Overall height: 1194 mm (47.0 in)
Wheelbase:
1240 mm (48.8 in)
Ground clearance: 245 mm (9.6 in)Weight:Curb weight:
301.4 kg (664 lb) (YFM450FWB)
308.3 kg (680 lb) (BHT1)
313.5 kg (691 lb) (BHT2)Loading:Maximum load:240.0 kg (530 lb)
(Total weight of rider, cargo, accessories, and tongue)
Noise and vibration level:Noise level (77/311/EEC):78.0 dB(A) at 3125 r/min
Uncertainty of measurement: 3.0 dB(A)
Vibration on seat (EN1032, ISO5008):
Will not exceed 0.5 m/s²
Uncertainty of measurement: 0.0 m/s²
Vibration on handle (EN1032, ISO5008): Will not exceed 2.5 m/s²
Uncertainty of measurement:
0.2 m/s² (YFM450FWBD)
0.6 m/s² (YFM450FWB)Carbon dioxide (CO2) level:Carbon dioxide (CO2) emissions (2016/1628):1015.0 g/kWhEngine:Combustion cycle:
4-stroke
Cooling system: Liquid cooled
Valve train: SOHC
Number of cylinders:
Single cylinder
Displacement: 421 cm³
UBHT60E0.book Page 1 Wednesday, August 4, 2021 8:09 AM

11-2
11
Bore × stroke:
84.5 × 75.0 mm (3.33 × 2.95 in)
Starting system: Electric starterEngine oil:Recommended brand:
SAE viscosity grades:
5W-30, 10W-30, 10W-40, 15W-40, 20W-40, 20W-50
Recommended engine oil grade: API service SG type or higher, JASO standard MA
Quantity: Oil change: 2.30 L (2.43 US qt, 2.02 Imp.qt) With oil filter removal:
2.40 L (2.54 US qt, 2.11 Imp.qt)
Final gear oil:Type:
Yamaha Friction Modified Shaft Drive Gear Oil
Quantity: 0.38 L (0.40 US qt, 0.33 Imp.qt)Differential gear oil:Type:
Yamaha Friction Modified Shaft Drive Gear Oil or SAE 80
API GL-4 Hypoid gear oil
Quantity:
0.23 L (0.24 US qt, 0.20 Imp.qt) (YFM450FWBD)
0.35 L (0.37 US qt, 0.31 Imp.qt) (YFM450FWB)Coolant quantity:Radiator (including all routes):1.32 L (1.40 US qt, 1.16 Imp.qt)
Coolant reservoir (up to the maximum level mark): 0.25 L (0.26 US qt, 0.22 Imp.qt)Fuel:Recommended fuel:Regular unleaded gasoline (Gasohol [E10] acceptable)
Minimum research octane: 91
Fuel tank capacity:
14 L (3.7 US gal, 3.1 Imp.gal)
Fuel reserve amount: 4.0 L (1.06 US gal, 0.88 Imp.gal)Throttle body:ID mark:
BB51
0 10 30 50 70 90 110 130 F
–20 –10 0 10 20 30 40 50 CSAE 5W-30
SAE 10W-30
SAE 10W-40
SAE 15W-40
SAE 20W-40SAE 20W-50
UBHT60E0.book Page 2 Wednesday, August 4, 2021 8:09 AM

11-3
11
Front tire:Size:AT25x8-12
Manufacturer/model:
CHENG SHIN/CU905Rear tire:Size:AT25x10-12
Manufacturer/model:
CHENG SHIN/CU906Front brake:Type:Hydraulic disc brakeRear brake:Type:Mechanical wet multiple disc brakeFront suspension:Type:
Double wishboneRear suspension:Type:Double wishboneElectrical system:System voltage:12 VBattery:Model:
YTX20L-BS
Voltage, capacity: 12 V, 18.0 Ah
Lights:Headlight:T19L, 30.0 W/30.0 W
Handlebar-mounted light:
T15H, 35.0 W/36.5 W (YFM450FWBD)
Brake/tail light: 21.0 W/5.0 WEBU30403Noise and vibration levels statement (for Eu-
rope)
The figures quoted are emission levels and are not
necessarily safe working levels. Whilst there is a
correlation between the emission and exposure
levels, this cannot be used reliably to determine
whether or not further precautions are required.
Factors that influence the actual level of exposure
of work-force include the characteristics of the
work room, the other sources of noise, etc. i.e. the
number of machines and other adjacent process-
es, and the length of time for which an operator is
exposed to the noise. Also the permissible expo-
sure level can vary from country. This information,
however, will enable the user of the machine to
make a better evaluation of the hazard and risk.
UBHT60E0.book Page 3 Wednesday, August 4, 2021 8:09 AM

11-4
11
EBU38670CO2 emissions levels statement (for Europe)
This CO2 measurement results from testing over a
fixed test cycle under laboratory conditions a(n)
(parent) engine representative of the engine type
(engine family) and shall not imply or express any
guarantee of the performance of a particular en-
gine.UBHT60E0.book Page 4 Wednesday, August 4, 2021 8:09 AM

12-1
12
EBU26004
CONSUMER INFORMATION
EBU38690Emissions Certification label (for Eu-
rope)This engine conforms to the Non-Road Mobile
Machinery (NRMM) regulation(s) in effect at the
time of manufacture.
The NRMM regulation limits gaseous and particu-
late pollution emissions for internal combustion
engines of non-road mobile machinery.Your Yamaha engine was designed and tested to
give an optimal blend of performance without ex-
cessive emissions. Therefore, do not attempt to
alter the engine specifications or tamper with the
intake, engine, or exhaust systems.
NOTICEECB03790Tampering with the engine or emissions con-
trol system will void the European Union type-
approval of this engine.

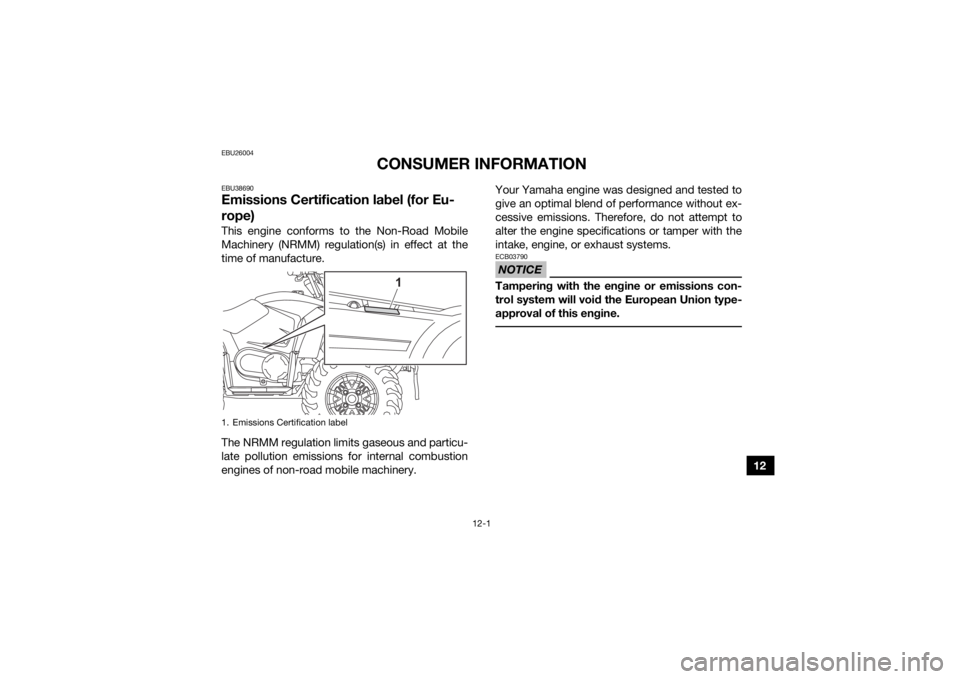

1. Emissions Certification label
1
UBHT60E0.book Page 1 Wednesday, August 4, 2021 8:09 AM

13-1
13
