Brake light switches .................................. 8-48
Checking and lubricating the cables......... 8-49
Checking and lubricating the front and rear brake levers ..................................... 8-49
Checking and lubricating the brake pedal ....................................................... 8-50
Checking the wheel hub bearings............. 8-51
Checking the stabilizer bushes ................. 8-51
Lubricating the rear knuckle pivots ........... 8-52
Lubricating the steering shaft ................... 8-52
Battery....................................................... 8-53
Replacing a fuse ....................................... 8-57
Replacing a headlight bulb ....................... 8-59
Adjusting a headlight beam ...................... 8-62
Replacing the tail/brake light bulb ............ 8-63
Removing a wheel ..................................... 8-64
Installing a wheel....................................... 8-64
Troubleshooting ........................................ 8-65
Troubleshooting charts ............................. 8-66
CLEANING AND STORAGE ........................... 9-1 Cleaning ...................................................... 9-1
Storage........................................................ 9-2 SPECIFICATIONS ........................................ 10-1
CONSUMER INFORMATION....................... 11-1
Identification numbers .............................. 11-1
INDEX .......................................................... 12-1
UB1662E0.book Page 3 Monday, April 17, 2017 11:39 AM
Page 27 of 172

2-6
2
gerous loss of lights or engine power. Also, the
battery tends to discharge more quickly if elec-
trical accessories are added.
WARNING
EWB00073Avoid Carbon Monoxide Poisoning
All engine exhaust contains carbon monoxide,
a deadly gas. Breathing carbon monoxide can
cause headaches, dizziness, drowsiness, nau-
sea, confusion, and eventually death.
Carbon Monoxide is a colorless, odorless,
tasteless gas which may be present even if you
do not see or smell any engine exhaust. Deadly
levels of carbon monoxide can collect rapidly
and you can quickly be overcome and unable
to save yourself. Also, deadly levels of carbon
monoxide can linger for hours or days in en-
closed or poorly ventilated areas. If you experi-
ence any symptoms of carbon monoxide
poisoning, leave the area immediately, get
fresh air, and SEEK MEDICAL TREATMENT.
Do not run engine indoors. Even if you try to
ventilate engine exhaust with fans or open
windows and doors, carbon monoxide can
rapidly reach dangerous levels.
Do not run engine in poorly ventilated or par-
tially enclosed areas such as barns, garages,
or carports.
Do not run engine outdoors where engine
exhaust can be drawn into a building through
openings such as windows and doors.
UB1662E0.book Page 6 Monday, April 17, 2017 11:39 AM
Page 28 of 172

3-1
3
EBU17681
DESCRIPTION
EBU17691Left view
EBU17701Right view
1. Radiator cap
2. Battery
3. Fuses
4. Air filter
5. Spark arrester
6. Rear brake light switch
7. Engine oil dipstick
8. Oil filter cartridge
9. Coolant reservoir
5
1
2,3
47
8
6
9
1. Rear shock absorber
2. Fuel tank cap
3. Owner’s tool kit
4. Storage compartment
5. Spark plug
6. Front shock absorber
7. Brake pedal
8. V-belt case drain plug
5
1
6
23
478
UB1662E0.book Page 1 Monday, April 17, 2017 11:39 AM
Page 39 of 172

4-10
4
EBU18102Start switch “ ”
Push this switch to crank the engine with the start-
er. See the starting instructions on page 6-1 prior
to starting the engine.EBU34123Light switch “ / /OFF”
Set this switch to “ ” to turn on the left and right
headlights (low beams) and the taillight. Set the
switch to “ ” to turn on the left and right head-
lights (high beams), the handlebar-mounted light
(YFM70KPXJ / YFM70KPAJ / YFM70KPHJ /
YFM70KPSJ), and the taillight. Set the switch to
“OFF” to turn off all the lights.NOTICEECB00046Do not use the headlights with the engine
turned off for an extended period of time. The
battery may discharge to the point that the
starter will not have enough power to crank the
engine. If this should happen, remove the bat-
tery and recharge it. (See page 8-53.) EBU18171Horn switch “ ”
Press the switch to sound the horn.
EBU18192Override switch “OVERRIDE” (YFM70KPXJ /
YFM70KPAJ / YFM70KPHJ / YFM70KPSJ)
Top speed is normally limited when operating in
differential gear lock. If conditions require more
engine power when riding forward, push and hold
this switch to override the differential gear lock
speed limiting function. (See page 4-12.) Releas-
ing the switch restores the speed limiting function.
While the override switch is pushed, the segments
of the speedometer digits will appear as shown in
the figure.
UB1662E0.book Page 10 Monday, April 17, 2017 11:39 AM
Page 53 of 172

4-24
4
EBU19185Auxiliary DC jackA 12-V accessory, such as a work light or radio
with the proper adapter, can be used when the en-
gine is running and the headlights are turned off.1. Start the engine. (See page 6-1.)
2. Turn the headlights off. (See page 4-10.)
3. Turn the accessory off.
4. Open the auxiliary DC jack cap.
5. Insert the accessory power plug into the jack. 6. Turn the accessory on.
TIP
When inserting or removing the accessory pow-
er plug, turn the accessory off.
When the auxiliary DC jack is not being used,
cover it with the cap. NOTICEECB00121Do not use accessories requiring more than
the above maximum capacity. This may
overload the circuit and cause the fuse to
blow.
If accessories are used without the engine
running or with the headlights turned on, the
battery will lose its charge and engine start-
ing may become difficult.
Do not use an automotive cigarette lighter or
other accessories with a plug that gets hot
because the jack can be damaged.
1. Auxiliary DC jack cap
2. Auxiliary DC jackAuxiliary DC jack maximum capacity:
10 A (120 W)
21
UB1662E0.book Page 24 Monday, April 17, 2017 11:39 AM
Page 61 of 172

6-2
6
The rear brake lever or brake pedal is applied
with the drive select lever in any position. How-
ever, it is recommended to shift into the neutral
or park position before starting the engine.
3. Apply the rear brake lever or brake pedal.
4. Completely close the throttle lever and start
the engine by pushing the start switch.TIPIf the engine fails to start, release the start switch,
then push it again. Pause a few seconds before
the next attempt. Each cranking should be as
short as possible to preserve battery energy. Do
not crank the engine more than 10 seconds on
each attempt. NOTICEECB00164For maximum engine life, never accelerate
hard when the engine is cold!
EBU36230Operating the drive select lever and
driving in reverseNOTICEECB03330Do not shift without coming to a complete stop
and waiting for the engine to return to normal
idle speed. Damage to the engine or drivetrain
may occur. Shifting: Neutral to High-range and High-range
to Low-range1. Bring the ATV to a complete stop.
2. Apply the brake pedal, and then shift by mov- ing the drive select lever along the shift guide.TIPMake sure that the drive select lever is completely
shifted into position.
UB1662E0.book Page 2 Monday, April 17, 2017 11:39 AM
Page 142 of 172

8-53
8YFM70KDXJ / YFM70KDHJ
YFM70KPXJ / YFM70KPAJ / YFM70KPHJ /
YFM70KPSJ
TIPFor parts equipped with a grease nipple, use a
grease gun. EBU2904FBatteryThis model is equipped with a 12-volt VRLA
(valve-regulated lead-acid) battery. There is no
need to check the electrolyte or to add distilled
water. However, the battery lead connections
need to be checked and tightened, and the bat-
tery terminals cleaned if corroded. If the battery
seems to have discharged, recharge it as soon as
possible.TIP
Wear gloves and eye protection in a ventilated
area away from sparks and open flames. Wash
hands after handling.
It is recommended to have the battery serviced
by a Yamaha dealer.
UB1662E0.book Page 53 Monday, April 17, 2017 11:39 AM
Page 143 of 172

8-54
8
WARNING
EWB02161Battery electrolyte is poisonous and danger-
ous, as it contains sulfuric acid, which can cau-
se severe burns. Avoid contact with skin, eyes
or clothing. Always shield your eyes when
working near batteries.
Antidote:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten egg
or vegetable oil. Call a physician immediately.
EYES: Flush with water for 15 minutes and get
prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes or other sources of
ignition away. Ventilate when charging or using
in an enclosed space.
KEEP OUT OF REACH OF CHILDREN. To remove the battery1. Remove panel A. (See page 8-9.)
2. Remove the front carrier by removing the bolts.

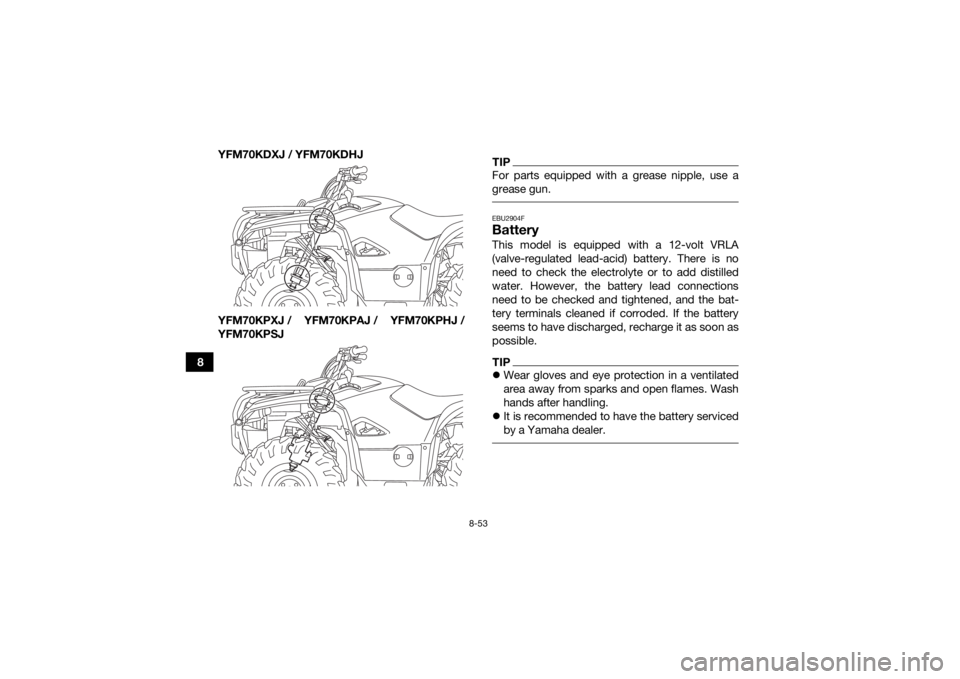

1. Front carrier
2. Carrier bolt (upper)
1. Carrier bolt (under the fenders)
2. Carrier bolt (lower)
1
2
2
1
2
2
1
UB1662E0.book Page 54 Monday, April 17, 2017 11:39 AM
Page 144 of 172

8-55
83. Remove the battery holding plate by remov-
ing the nuts.
4. Disconnect the negative battery lead first, then the positive battery lead by removing
their bolt. NOTICE: When removing the bat-
tery, the main switch must be off, and the
negative lead must be disconnected be-
fore the positive lead.
[ECB01002]
5. Pull the battery out of its compartment.
NOTICEECB00622Never attempt to open the battery or remove
the battery cell seals, as this would permanent-
ly damage the battery. To charge the battery
Confirm the recommended charging rate as
specified on the battery itself.
Select a suitable charger and follow the manu-
facturer’s instructions.NOTICEECB00933To charge a VRLA (valve-regulated lead-acid)
battery, a special battery charger is required.
Using a conventional battery charger will dam-
age the battery. To store the battery
If the ATV will not be used for more than one
month, remove the battery, fully charge it, and
then place it in a cool, dry place.
If the battery will be stored for more than two
months, check it at least once a month and fully
charge it if necessary.

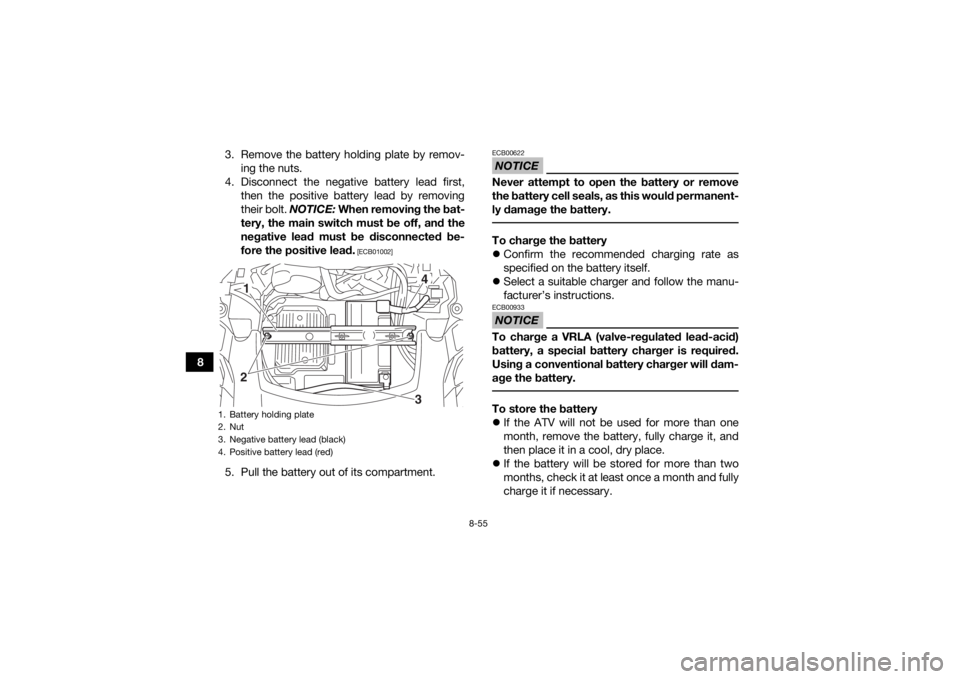

1. Battery holding plate
2. Nut
3. Negative battery lead (black)
4. Positive battery lead (red)
12
43
UB1662E0.book Page 55 Monday, April 17, 2017 11:39 AM
Page 145 of 172

8-56
8
NOTICEECB00942Always keep the battery charged. Storing the
battery in a discharged state for an extended
period of time will cause permanent battery
damage.
Do not store the battery in an excessively
cold or warm place [below freezing or above
30 °C (90 °F)]. To install the battery
1. Place the battery in its compartment.
2. Connect the positive battery lead first, then connect the negative battery lead by installing
their bolt. NOTICE: When installing the bat-
tery, the main switch must be off, and the
positive lead must be connected before
the negative lead.
[ECB01111]
3. Install the battery holding plate by installing the nuts.
4. Install the front carrier by installing the bolts and tightening them to the specified torques.1. Positive battery lead (red)
2. Negative battery lead (black)Tightening torques:Carrier bolt (upper):34 N·m (3.4 kgf·m, 25 lb·ft)
Carrier bolt (lower): 34 N·m (3.4 kgf·m, 25 lb·ft)
Carrier bolt (under the fenders): 7 N·m (0.7 kgf·m, 5.2 lb·ft)
12
