oil filter YAMAHA KODIAK 700 2021 Owners Manual

OPERATION ................................................... 7-1Starting the engine ...................................... 7-1
Operating the drive select lever and driving in reverse ....................................... 7-2
Engine break-in ........................................... 7-4
Parking ........................................................ 7-4
Parking on a slope ...................................... 7-5
Accessories and loading ............................. 7-5
RIDING YOUR ATV ........................................ 8-1 GETTING TO KNOW YOUR ATV ................ 8-2
RIDE WITH CARE AND GOOD JUDGMENT .............................................. 8-2
BE CAREFUL WHERE YOU RIDE ............... 8-9
TURNING YOUR ATV................................ 8-12
CLIMBING UPHILL ................................... 8-13
RIDING DOWNHILL .................................. 8-16
CROSSING A SLOPE................................ 8-17
CROSSING THROUGH SHALLOW WATER .................................................... 8-18
RIDING OVER ROUGH TERRAIN ............. 8-20
SLIDING AND SKIDDING.......................... 8-21
WHAT TO DO IF... ..................................... 8-22
PERIODIC MAINTENANCE AND
ADJUSTMENT................................................ 9-1 Owner’s Manuals and Tool Kit .................... 9-2 Periodic maintenance chart: Emission
control system .......................................... 9-3
Periodic maintenance chart: General maintenance and lubrication .................... 9-5
Removing and installing panels .................. 9-9
Checking the spark plug........................... 9-17
Engine oil and oil filter cartridge ............... 9-19
Why Yamalube ......................................... 9-23
Final gear oil ............................................. 9-24
Differential gear oil .................................... 9-26
Coolant ..................................................... 9-28
Cleaning the air filter element ................... 9-36
Cleaning the spark arrester ...................... 9-39
V-belt case drain plug............................... 9-40
Adjusting the throttle lever free play ......... 9-41
Valve clearance......................................... 9-41
Brakes....................................................... 9-41
Checking the front brake pads and rear brake friction plates ................................ 9-42
Checking the brake fluid level .................. 9-43
Changing the brake fluid .......................... 9-44
Checking the front brake lever free play... 9-44
Adjusting the rear brake lever and brake pedal free play ........................................ 9-44
Axle boots................................................. 9-47
Brake light switches ................................. 9-48
Checking and lubricating the cables ........ 9-48UB5K63E0.book Page 2 Monday, October 12, 2020 4:59 PM

4-1
4
EBU17681
DESCRIPTION
EBU17691Left view
EBU17701Right view
1. Radiator cap
2. Battery
3. Fuses
4. Air filter
5. Spark arrester
6. Rear brake light switch
7. Engine oil dipstick
8. Oil filter cartridge
9. Coolant reservoir
5
1
2,3
47
8
6
9
1. Rear shock absorber
2. Fuel tank cap
3. Tool kit
4. Storage compartment
5. Spark plug
6. Winch
7. Front shock absorber
8. Brake pedal
9. V-belt case drain plug
5
1
6
2348
7
9
UB5K63E0.book Page 1 Monday, October 12, 2020 4:59 PM

9-7
9
14*Steering shaft • Lubricate with lithium-soap-based grease. √√√
15 *Steering system • Check operation and repair or replace if dam-
aged.
• Check toe-in and adjust if necessary. √√√√√
16 *Engine mounts • Check for cracks or other damage, and replace if
necessary. √√√
17 *Axle boots • Check for cracks or other damage, and replace if
necessary. √√√√√
18 Engine oil • Change.
• Check ATV for oil leakage, and correct if neces-
sary. √ √√√
19 Engine oil filter car-
tridge • Replace.
√√√
20 Differential gear oil • Change.
• Check ATV for oil leakage, and correct if neces-
sary. √√
21 Final gear oil • Change.
• Check ATV for oil leakage, and correct if neces-
sary. √ √√√
22 Cooling system • Check coolant level and ATV for coolant leakage,
and correct if necessary. √√√√√
• Replace coolant. Every 2 years
NO.
ITEM CHECK OR MAINTENANCE
JOB INITIAL
EVERY
Whichev-
er comes first month136612
km (mi) 240
(150) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320UB5K63E0.book Page 7 Monday, October 12, 2020 4:59 PM

9-19
9
TIPIf a torque wrench is not available when installing
the spark plug, a good estimate of the correct
torque is 1/4–1/2 turn past finger tight. However,
the spark plug should be tightened to the speci-
fied torque as soon as possible. 3. Install the spark plug cap.
4. Install the panels.EBU2746DEngine oil and oil filter cartridgeThe engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter cartridge replaced at the intervals
specified in the periodic maintenance chart.
To check the engine oil level1. Park the ATV on a level surface.
2. Check the engine oil level on a cold engine.
TIPIf the engine was started before checking the oil
level, warm up the engine, and then wait at least
10 minutes until the oil settles for an accurate
reading. 3. Remove the access cover by turning it coun- terclockwise.
4. Remove the engine oil dipstick, and then wipe it off with a clean rag.
Tightening torque:
Spark plug:13 N

9-21
9To change the engine oil (with or without oil fil-
ter cartridge replacement)
1. Park the ATV on a level surface.
2. Start the engine, warm it up for several min- utes, and then turn it off.
3. Remove the access cover by turning it coun- terclockwise.
4. Place an oil pan under the engine to collect the used oil.
5. Remove the dipstick, and then remove the engine oil drain bolt and its gasket to drain the
oil from the crankcase.
TIPSkip steps 6–10 if the oil filter cartridge is not be-
ing replaced. 6. Remove panel F. (See page 9-9.)
7. Remove the oil filter cartridge with an oil filterwrench.TIPAn oil filter wrench is available at a nearby Yamaha
dealer. 8. Apply a thin coat of engine oil to the O-ring ofthe new oil filter cartridge.

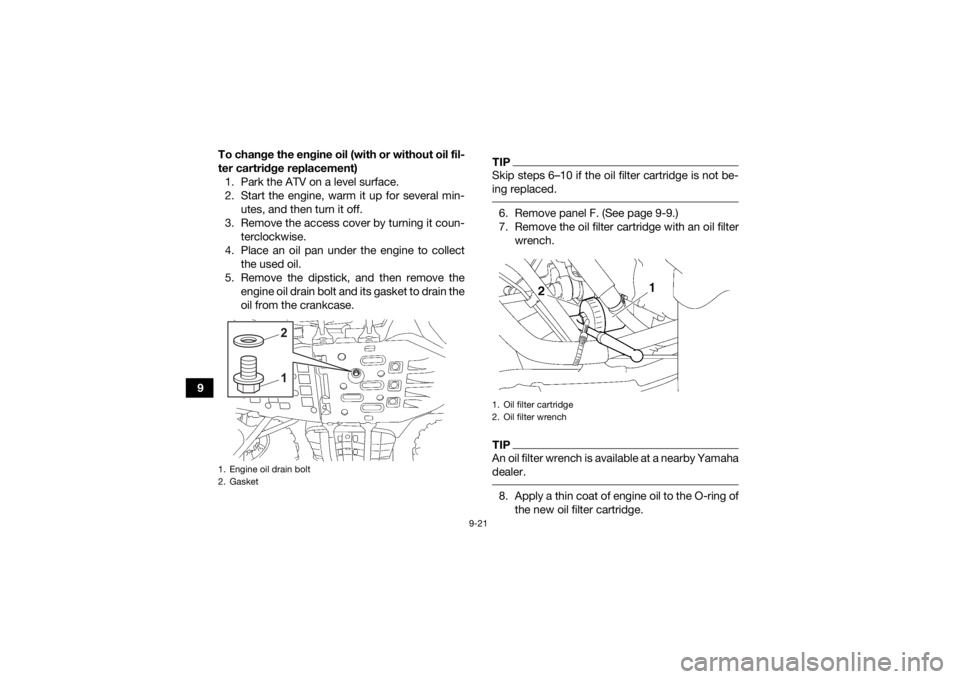

1. Engine oil drain bolt
2. Gasket
12
1. Oil filter cartridge
2. Oil filter wrench
UB5K63E0.book Page 21 Monday, October 12, 2020 4:59 PM

9-22
9

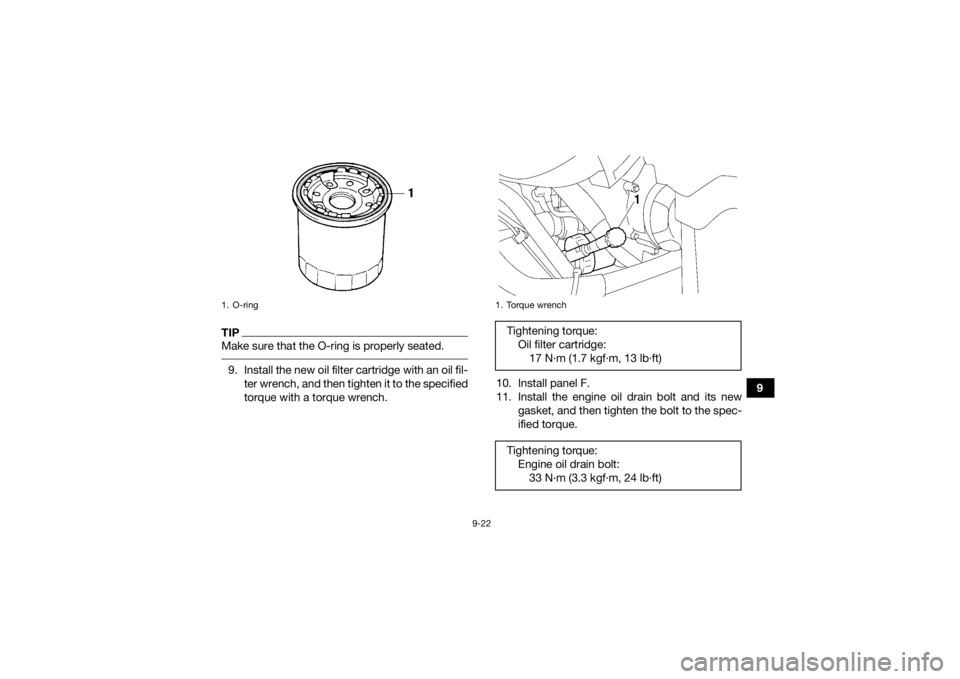

TIPMake sure that the O-ring is properly seated. 9. Install the new oil filter cartridge with an oil fil-ter wrench, and then tighten it to the specified
torque with a torque wrench. 10. Install panel F.
11. Install the engine oil drain bolt and its new
gasket, and then tighten the bolt to the spec-
ified torque.1. O-ring
1. Torque wrenchTightening torque:Oil filter cartridge:17 N·m (1.7 kgf·m, 13 lb·ft)
Tightening torque: Engine oil drain bolt:33 N·m (3.3 kgf·m, 24 lb·ft)
UB5K63E0.book Page 22 Monday, October 12, 2020 4:59 PM

9-23
912. Refill with the specified amount of the recom-
mended engine oil, and then insert the dip-
stick completely into the oil filler hole.
TIPBe sure to wipe off spilled oil on any parts after the
engine and exhaust system have cooled down. NOTICEECB00301In order to prevent clutch slippage (since the
engine oil also lubricates the clutch), do not
mix any chemical additives. Do not use oils
with a diesel specification of “CD” or oils of
a higher quality than specified. In addition,
do not use oils labeled “ENERGY CONSERV-
ING II” or higher. 
Make sure that no foreign material enters the
crankcase.
13. Start the engine, and then let it idle for several
minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
14. Turn the engine off, wait at least ten minutes, and then check the oil level and correct it if
necessary.
15. Install the access cover by turning it clock- wise.EBU38620Why YamalubeYAMALUBE oil is a Genuine YAMAHA Part born ofthe engineers’ passion and belief that engine oil is
an important liquid engine component. We form
teams of specialists in the fields of mechanical en-
gineering, chemistry, electronics and track test-
ing, and have them develop the engine together
with the oil it will use. Yamalube oils take full ad-
vantage of the base oil’s qualities and blend in the
ideal balance of additives to make sure the final oil
clears our performance standards. Thus,
Yamalube mineral, semi synthetic and synthetic
oils have their own distinct characters and value.
Recommended oil:
See page 11-1.
Oil quantity: Without oil filter cartridge replacement:2.00 L (2.11 US qt, 1.76 Imp.qt)
With oil filter cartridge replacement: 2.10 L (2.22 US qt, 1.85 Imp.qt)
UB5K63E0.book Page 23 Monday, October 12, 2020 4:59 PM

9-38
9

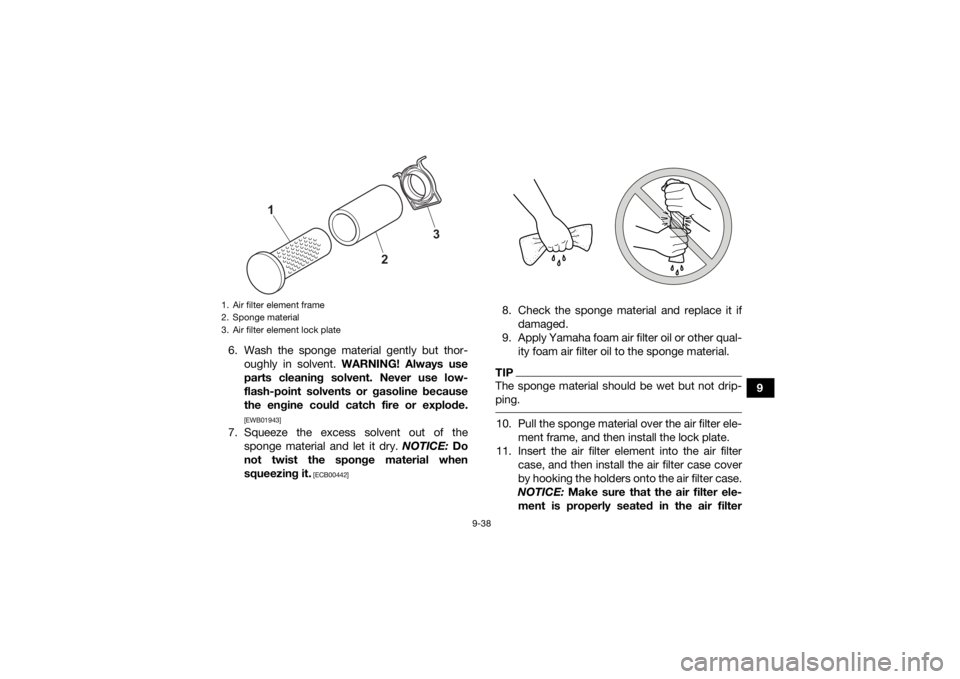

6. Wash the sponge material gently but thor-
oughly in solvent. WARNING! Always use
parts cleaning solvent. Never use low-
flash-point solvents or gasoline because
the engine could catch fire or explode.
[EWB01943]
7. Squeeze the excess solvent out of the sponge material and let it dry. NOTICE: Do
not twist the sponge material when
squeezing it.
[ECB00442]
8. Check the sponge material and replace it if damaged.
9. Apply Yamaha foam air filter oil or other qual- ity foam air filter oil to the sponge material.TIPThe sponge material should be wet but not drip-
ping. 10. Pull the sponge material over the air filter ele- ment frame, and then install the lock plate.
11. Insert the air filter element into the air filter case, and then install the air filter case cover
by hooking the holders onto the air filter case.
NOTICE: Make sure that the air filter ele-
ment is properly seated in the air filter
1. Air filter element frame
2. Sponge material
3. Air filter element lock plate
3
2
1
UB5K63E0.book Page 38 Monday, October 12, 2020 4:59 PM

11-2
11
Engine:Combustion cycle:4-stroke
Cooling system:
Liquid cooled
Valve train: SOHC
Number of cylinders: Single cylinder
Displacement:
686 cm³
Bore × stroke:
102.0 × 84.0 mm (4.02 × 3.31 in)
Compression ratio: 10.0 : 1
Starting system:
Electric starter
Lubrication system: Wet sumpEngine oil:Recommended brand:
SAE viscosity grades:5W-30, 10W-30, 10W-40, 15W-40, 20W-40, 20W-50 Recommended engine oil grade:
API service SG type or higher, JASO standard MA
Quantity: Oil change:2.00 L (2.11 US qt, 1.76 Imp.qt)
With oil filter removal: 2.10 L (2.22 US qt, 1.85 Imp.qt)
Final gear oil:Type:Yamaha Friction Modified Plus Shaft Drive Oil (Part No.:
ACC-SHAFT-PL-32)
Quantity: 0.52 L (0.55 US qt, 0.46 Imp.qt)Differential gear oil:Type:
Yamaha Friction Modified Plus Shaft Drive Oil (Part No.: ACC-SHAFT-PL-32) or SAE 80 API GL-4 Hypoid gear oil0 10 30 50 70 90 110 130 F
–20 –10 0 10 20 30 40 50 CSAE 5W-30
SAE 10W-30
SAE 10W-40
SAE 15W-40
SAE 20W-40SAE 20W-50
UB5K63E0.book Page 2 Monday, October 12, 2020 4:59 PM

11-3
11
Quantity:0.21 L (0.23 US qt, 0.19 Imp.qt)Coolant quantity:Radiator (including all routes):
1.99 L (2.10 US qt, 1.75 Imp.qt)
Coolant reservoir (up to the maximum level mark): 0.24 L (0.25 US qt, 0.21 Imp.qt)Air filter:Air filter element:
Wet element
Air filter oil grade: Foam air-filter oilFuel:Recommended fuel:
Regular unleaded gasoline (Gasohol [E10] acceptable)
Minimum research octane: 91
Fuel tank capacity: 18 L (4.8 US gal, 4.0 Imp.gal)
Fuel reserve amount:
4.0 L (1.06 US gal, 0.88 Imp.gal)Throttle body:ID mark:B4F1Spark plug (s):Manufacturer/model:NGK/CPR7EA-9
Spark plug gap: 0.8–0.9 mm (0.031–0.035 in)
Drivetrain:Primary reduction ratio:1.000
Secondary reduction ratio:
9.545 (41/21 x 24/18 x 20/15 x 33/12)
Final drive: Shaft
Clutch type: Wet, centrifugal, shoe
Transmission type:
CVT automatic with reverse
Gear ratio: Transmission ratio:
2.380–0.700 : 1
Reverse gear: 2.000 (23/14 x 28/23)
Low range: 1.938 (31/16)
High range:
1.148 (31/27)Front tire:Size:AT25 x 8-12
Manufacturer/model:
MAXXIS/MU19Rear tire:Size:AT25 x 10-12
Manufacturer/model:
MAXXIS/MU20
UB5K63E0.book Page 3 Monday, October 12, 2020 4:59 PM
