3. Install the battery holding plate by installing
the nuts.
4. Install the front carrier by installing the bolts and tightening them to the specified torques. 5. Install the panel.
TIP
Make sure the positive and negative battery
leads are installed as shown.
 Fully charge the battery before installing it. EBU30525Replacing a fuse
1. Positive battery lead (red)
2. Negative battery lead (black)Tightening torques:
Carrier bolt (upper):34 N·m (3.4 kgf·m, 25 lb·ft)
Carrier bolt (lower): 34 N·m (3.4 kgf·m, 25 lb·ft)
Carrier bolt (under the fenders): 7 N·m (0.7 kgf·m, 5.2 lb·ft)
12
1. Fuse box
2. Main fuse
3. EPS fuse (YFM700FWBDF
4. Fuel injection system spare fuse
5. Fuel injection system fuse
2345
1
UB5K64E0.book Page 56 Thursday, September 16, 2021 9:00 AM

9-57
9YFM700FWB YFM700FWBD
If an electrical problem is suspected, check the
fuse and replace it if necessary as follows.
NOTICEECB00641To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse.
1. Headlight fuse
2. Signaling system fuse
3. Radiator fan motor fuse
4. Ignition fuse
5. Auxiliary DC jack fuse
6. Spare fuse
12345
6
1. Headlight fuse
2. Radiator fan motor fuse
3. Signaling system fuse
4. Ignition fuse
5. Four-wheel-drive motor fuse
6. Auxiliary DC jack fuse
7. Spare fuse
123456
7
UB5K64E0.book Page 57 Thursday, September 16, 2021 9:00 AM

9-58
9
1. Turn off all electrical systems. (See page 5-1.)
2. Remove panel A. (See page 9-9.)
3. Remove the blown fuse, and then install a
new fuse of the specified amperage.
WARNING! Always use a fuse of the spec- ified rating, and never use a substitute ob-
ject in place of the proper fuse. An
improper fuse or a substitute object can
cause damage to the electrical system,
which could lead to a fire.
[EWB02173]
4. Turn on the main switch and start the engine.
5. If the fuse immediately blows again, have a Yamaha dealer check the vehicle.
6. Install the panel. Specified fuses:
Main fuse:40.0 A
Headlight fuse: 10.0 A (YFM700FWB)
15.0 A (YFM700FWBD)
Ignition fuse: 10.0 A
Four-wheel-drive motor fuse: 10.0 A (YFM700FWBD)
Signaling system fuse: 10.0 A
Auxiliary DC jack fuse: 10.0 A
Radiator fan motor fuse: 20.0 A
Fuel injection system fuse: 15.0 A
EPS fuse: 40.0 A (YFM700FWBD)
UB5K64E0.book Page 58 Thursday, September 16, 2021 9:00 AM

9-59
9
EBU34223Replacing a headlight bulbIf a headlight bulb burns out, replace it with the
specified bulb as follows.
Left and right headlight bulbs1. Remove the cover at the rear of the headlight by pulling it off.
2. Remove the bulb cover by pulling it off. 3. Remove the socket by pushing it in and turn-
ing it counterclockwise.1. Cover at the rear of the headlight
1
1. Bulb cover
1. Socket
1
1
UB5K64E0.book Page 59 Thursday, September 16, 2021 9:00 AM

9-60
9
4. Remove the burnt-out bulb.
5. Place a new bulb into position.
NOTICE: Do
not touch the glass part of the bulb. Oil
from your fingers or other contamination
will adversely affect the transparency of
the glass, luminosity of the bulb, and bulb
life. Thoroughly clean off any dirt and fin-
gerprints using a cloth moistened with al-
cohol or thinner.
[ECB00653]
6. Install the socket by pushing it in and turning it clockwise. 7. Install the bulb cover and the cover at the rear
of the headlight. NOTICE: Make sure the
bulb cover is securely fitted over the sock-
et and seated properly.
[ECB03320]
8. Adjust the headlight beam if necessary.
Handlebar-mounted light bulb (YFM700FWBD) 1. Remove the handlebar-mounted light cover by removing the quick fasteners.
2. Remove the bulb cover by pulling it off.
1. Do not touch the glass part of the bulb.
1. Handlebar-mounted light cover
2. Quick fastener
1
2
2
UB5K64E0.book Page 60 Thursday, September 16, 2021 9:00 AM

9-61
93. Remove the socket by pushing it in and turn-
ing it counterclockwise. 4. Remove the burnt-out bulb.
5. Place a new bulb into position.
NOTICE: Do
not touch the glass part of the bulb. Oil
from your fingers or other contamination
will adversely affect the transparency of
the glass, luminosity of the bulb, and bulb
life. Thoroughly clean off any dirt and fin-
gerprints using a cloth moistened with al-
cohol or thinner.
[ECB00653]
6. Install the socket by pushing it in and turning it clockwise.
7. Install the bulb cover. NOTICE: Make sure
the bulb cover is securely fitted over the
socket and seated properly.
[ECB03320]
1. Bulb cover
1. Socket
1
1
1. Do not touch the glass part of the bulb.
1
UB5K64E0.book Page 61 Thursday, September 16, 2021 9:00 AM

9-62
9

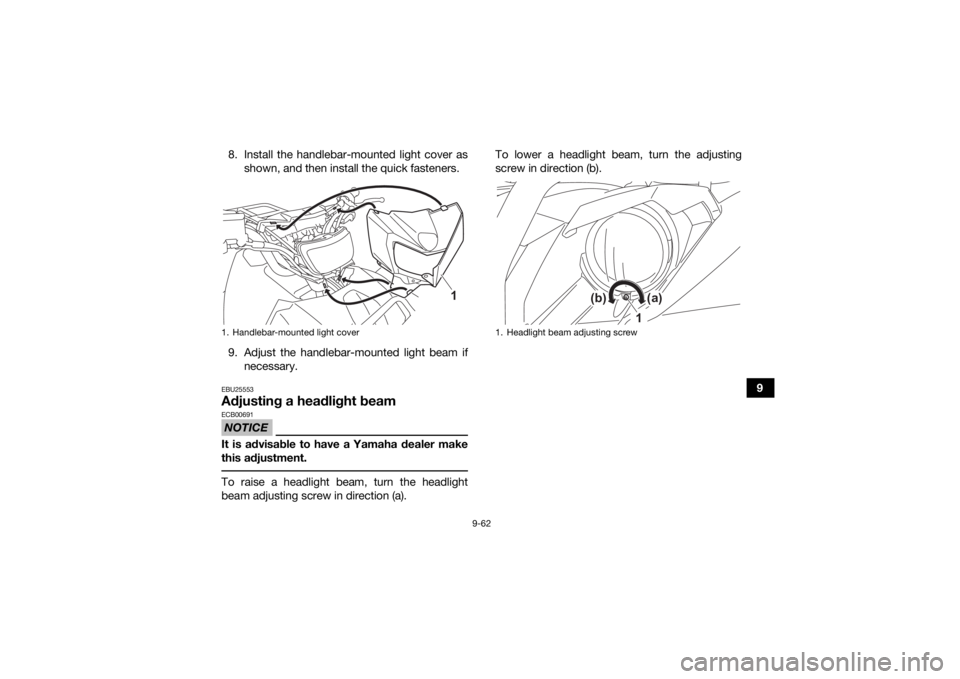

8. Install the handlebar-mounted light cover as
shown, and then install the quick fasteners.
9. Adjust the handlebar-mounted light beam if necessary.
EBU25553Adjusting a headlight beamNOTICEECB00691It is advisable to have a Yamaha dealer make
this adjustment. To raise a headlight beam, turn the headlight
beam adjusting screw in direction (a). To lower a headlight beam, turn the adjusting
screw in direction (b).1. Handlebar-mounted light cover
1
1. Headlight beam adjusting screw
(b)
(a)
1
UB5K64E0.book Page 62 Thursday, September 16, 2021 9:00 AM

9-63
9YFM700FWBD
EBU25615Replacing the brake/tail light bulbIf the brake/tail light bulb burns out, replace it as
follows.
1. Remove the brake/tail light bulb holder (to- gether with the bulb) by turning it counter-
clockwise. 2. Remove the burnt-out bulb by pushing it in
and turning it counterclockwise.1. Handlebar-mounted light beam adjusting screw
(b)
(a)
1
1. Brake/tail light bulb holder
1. Brake/tail light bulb
1
1
UB5K64E0.book Page 63 Thursday, September 16, 2021 9:00 AM

9-64
9
3. Insert a new bulb into the bulb holder, push it
in, and then turn it clockwise until it stops.
4. Install the bulb holder (together with the bulb) by turning it clockwise.
EBU25653Removing a wheel1. Park the ATV on a level surface.
2. Loosen the wheel nuts.
3. Elevate the ATV and place a suitable standunder the frame.
4. Remove the nuts from the wheel.
5. Remove the wheel.
EBU36243Installing a wheel1. Install the wheel with the arrow mark pointing in the forward rotating direction of the wheel,
and then install the wheel nuts.TIPFor B6KJ / BGFD: be sure to install the nuts with
their tapered side towards the wheel.
1. Wheel nut
1
1
1. Arrow mark
2. Forward rotating direction
3. Wheel nut
1
3
3
2
UB5K64E0.book Page 64 Thursday, September 16, 2021 9:00 AM

9-65
92. Lower the ATV to the ground.
3. Tighten the wheel nuts to the specified
torques.
EBU25741TroubleshootingAlthough Yamaha ATVs receive a thorough in-
spection before shipment from the factory, trouble
may occur during operation. Any problem in the
fuel, compression, or ignition systems, for exam-
ple, can cause poor starting and loss of power.
The following troubleshooting charts represent
quick and easy procedures for checking these vi-
tal systems yourself. However, should your ATV
require any repair, take it to a Yamaha dealer,
whose skilled technicians have the necessary
tools, experience, and know-how to service the
ATV properly.
Use only genuine Yamaha replacement parts. Im-
itation parts may look like Yamaha parts, but they
are often inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWB02281Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe inju-
ry or property damage. Make sure there are no
open flames or sparks in the area, including pi-
lot lights from water heaters or furnaces.
1. Tapered nutTightening torques:Front wheel nut:55 N·m (5.5 kgf·m, 41 lb·ft)
Rear wheel nut: 55 N·m (5.5 kgf·m, 41 lb·ft)1
