93. Remove the socket by pushing it in and turn-
ing it counterclockwise. 4. Remove the burnt-out bulb.
5. Place a new bulb into position.
NOTICE: Do
not touch the glass part of the bulb. Oil
from your fingers or other contamination
will adversely affect the transparency of
the glass, luminosity of the bulb, and bulb
life. Thoroughly clean off any dirt and fin-
gerprints using a cloth moistened with al-
cohol or thinner.
[ECB00653]
6. Install the socket by pushing it in and turning it clockwise.
7. Install the bulb cover. NOTICE: Make sure
the bulb cover is securely fitted over the
socket and seated properly.
[ECB03320]

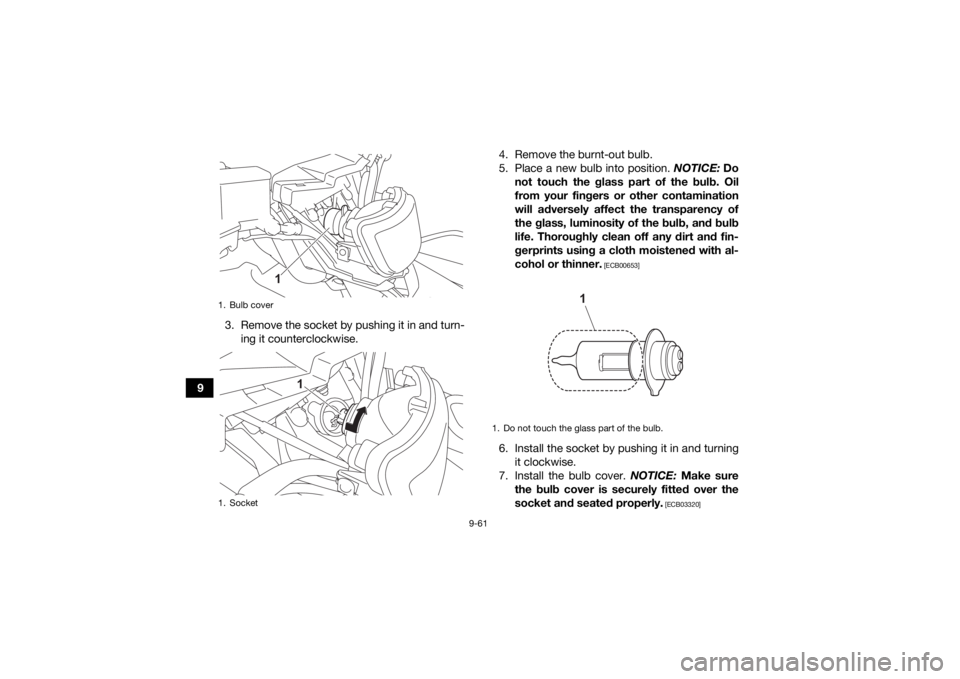

1. Bulb cover
1. Socket
1
1
1. Do not touch the glass part of the bulb.
1
UB5K64E0.book Page 61 Thursday, September 16, 2021 9:00 AM

9-63
9YFM700FWBD
EBU25615Replacing the brake/tail light bulbIf the brake/tail light bulb burns out, replace it as
follows.
1. Remove the brake/tail light bulb holder (to- gether with the bulb) by turning it counter-
clockwise. 2. Remove the burnt-out bulb by pushing it in

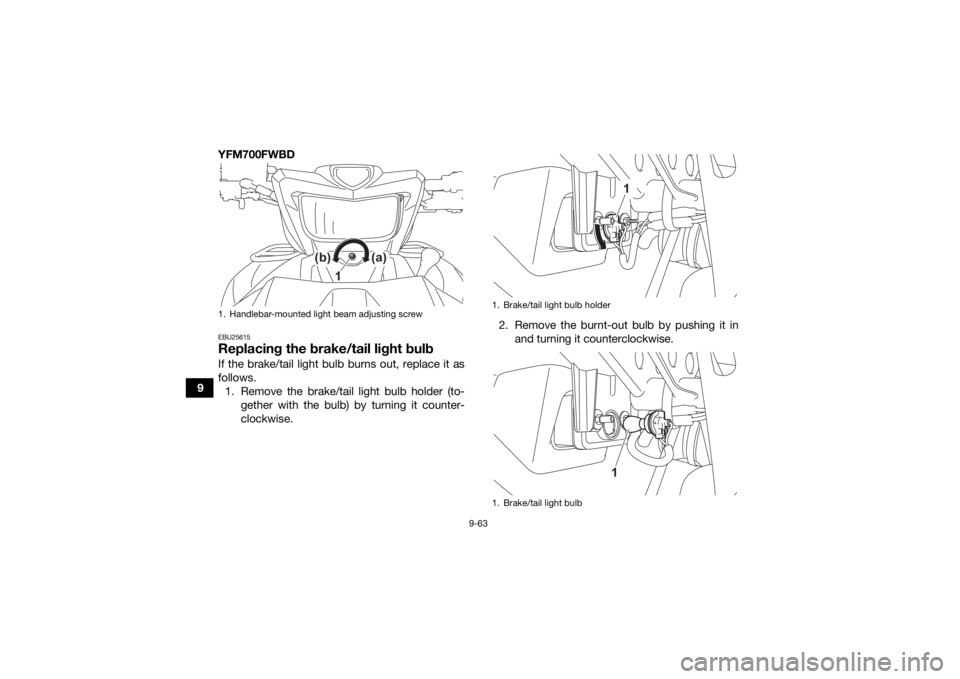

and turning it counterclockwise.1. Handlebar-mounted light beam adjusting screw
(b)
(a)
1
1. Brake/tail light bulb holder
1. Brake/tail light bulb
1
1
UB5K64E0.book Page 63 Thursday, September 16, 2021 9:00 AM

9-64
9
3. Insert a new bulb into the bulb holder, push it
in, and then turn it clockwise until it stops.
4. Install the bulb holder (together with the bulb) by turning it clockwise.
EBU25653Removing a wheel1. Park the ATV on a level surface.
2. Loosen the wheel nuts.
3. Elevate the ATV and place a suitable standunder the frame.
4. Remove the nuts from the wheel.
5. Remove the wheel.
EBU36243Installing a wheel1. Install the wheel with the arrow mark pointing in the forward rotating direction of the wheel,
and then install the wheel nuts.TIPFor B6KJ / BGFD: be sure to install the nuts with
their tapered side towards the wheel.
1. Wheel nut
1
1
1. Arrow mark
2. Forward rotating direction
3. Wheel nut
1
3
3
2
