headlight bulb YAMAHA KODIAK 700 2022 Owners Manual

Checking and lubricating the front and rear brake levers ..................................... 9-49
Checking and lubricating the brake pedal ....................................................... 9-50
Checking the wheel hub bearings............. 9-50
Checking the stabilizer bushes ................. 9-51
Lubricating the rear knuckle pivots ........... 9-51
Lubricating the steering shaft ................... 9-52
Battery....................................................... 9-53
Replacing a fuse ....................................... 9-56
Replacing a headlight bulb ....................... 9-59
Adjusting a headlight beam ...................... 9-62
Replacing the brake/tail light bulb ............ 9-63
Removing a wheel ..................................... 9-64
Installing a wheel....................................... 9-64
Troubleshooting ........................................ 9-65
Troubleshooting charts ............................. 9-66
CLEANING AND STORAGE ......................... 10-1 Cleaning .................................................... 10-1
Storage...................................................... 10-2
SPECIFICATIONS ........................................ 11-1
CONSUMER INFORMATION ....................... 12-1 Emissions Certification label (for Europe) ............................................. 12-1 INDEX .......................................................... 13-1
UB5K64E0.book Page 3 Thursday, September 16, 2021 9:00 AM

9-59
9
EBU34223Replacing a headlight bulbIf a headlight bulb burns out, replace it with the
specified bulb as follows.
Left and right headlight bulbs1. Remove the cover at the rear of the headlight by pulling it off.
2. Remove the bulb cover by pulling it off. 3. Remove the socket by pushing it in and turn-
ing it counterclockwise.1. Cover at the rear of the headlight
1
1. Bulb cover
1. Socket
1
1
UB5K64E0.book Page 59 Thursday, September 16, 2021 9:00 AM

9-60
9
4. Remove the burnt-out bulb.
5. Place a new bulb into position.
NOTICE: Do
not touch the glass part of the bulb. Oil
from your fingers or other contamination
will adversely affect the transparency of
the glass, luminosity of the bulb, and bulb
life. Thoroughly clean off any dirt and fin-
gerprints using a cloth moistened with al-
cohol or thinner.
[ECB00653]
6. Install the socket by pushing it in and turning it clockwise. 7. Install the bulb cover and the cover at the rear
of the headlight. NOTICE: Make sure the
bulb cover is securely fitted over the sock-
et and seated properly.
[ECB03320]
8. Adjust the headlight beam if necessary.

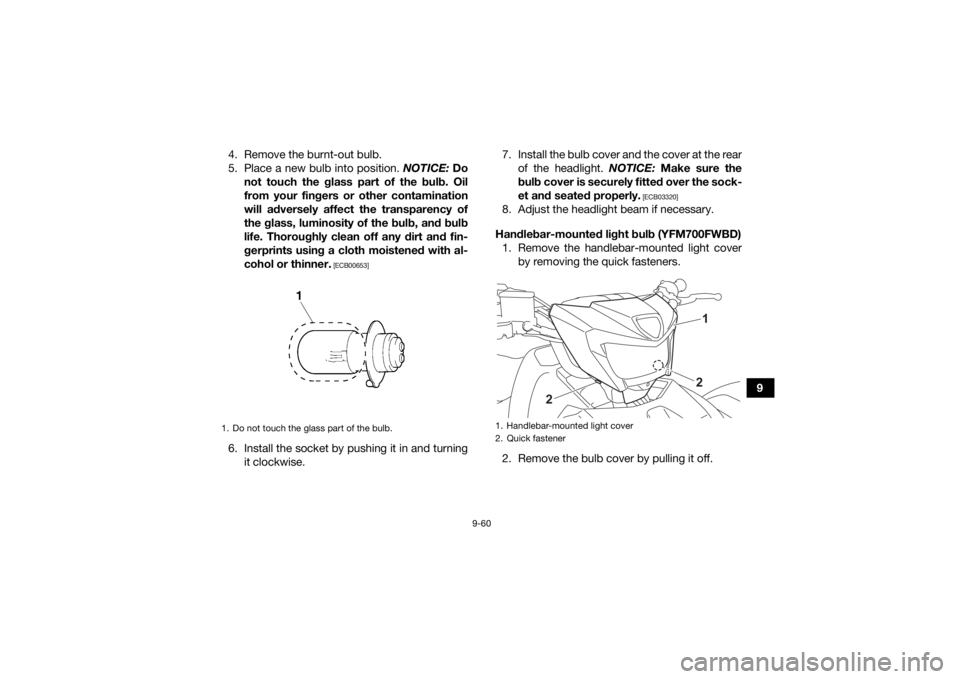

Handlebar-mounted light bulb (YFM700FWBD) 1. Remove the handlebar-mounted light cover by removing the quick fasteners.
2. Remove the bulb cover by pulling it off.
1. Do not touch the glass part of the bulb.
1. Handlebar-mounted light cover
2. Quick fastener
1
2
2
UB5K64E0.book Page 60 Thursday, September 16, 2021 9:00 AM

13-1
13
INDEX
AAccessories and loading ................................................ 7-5
Accessories, DC jack ................................................... 5-30
Air filter element, cleaning ........................................... 9-36
Axle boots .................................................................... 9-47BBattery ......................................................................... 9-53
Battery voltage warning light ......................................... 5-3
Brake fluid, changing ................................................... 9-44
Brake fluid level, checking ........................................... 9-43
Brake lever free play, checking the front ..................... 9-44
Brake lever, front ......................................................... 5-19
Brake levers, checking and lubricating ........................ 9-49
Brake light switches ..................................................... 9-48
Brake pads and friction plates, checking .................... 9-42
Brake pedal and rear brake lever ................................. 5-20
Brake pedal, checking and lubricating ........................ 9-50
Brakes .......................................................................... 9-41
Brakes, front and rear .................................................... 6-3
Brake/tail light bulb, replacing ..................................... 9-63CCables, checking and lubricating ................................ 9-48
Carrier, front ................................................................. 5-26
Carrier, rear .................................................................. 5-26
Chassis fasteners .......................................................... 6-7
Cleaning ....................................................................... 10-1
Coolant .................................................................6-3, 9-28
Coolant temperature warning light ................................ 5-3
DDifferential gear lock, indicators (YFM700FWBD) ......... 5-5
Differential gear oil ................................................6-3, 9-26
Drive lever 2WD/4WD (YFM700FWB) .......................... 5-17
Drive select lever ......................................................... 5-21
Drive select lever and driving in reverse ........................ 7-2EEmissions Certification label (for Europe) .................... 12-1
Engine break-in .............................................................. 7-4
Engine oil ....................................................................... 6-3
Engine oil and oil filter cartridge .................................. 9-19
Engine stop switch ...................................................... 5-13
Engine trouble warning light .......................................... 5-4
EPS warning light (YFM700FWBD) ................................ 5-4FFinal gear oil ......................................................... 6-3, 9-24
Four-wheel drive icon (YFM700FWBD) ......................... 5-5
Four-wheel drive indicator light (YFM700FWB) ............. 5-5
Four-wheel drive switch (On-Command 4WD) (YFM700FWBD) ......................................................... 5-15
Fuel ....................................................................... 5-22, 6-3
Fuel level warning light (YFM700FWB) .......................... 5-4
Fuel tank cap ............................................................... 5-21
Fuses, replacing .......................................................... 9-56HHandlebar switches ..................................................... 5-12
Headlight beam, adjusting ........................................... 9-62
Headlight bulb, replacing ............................................. 9-59
High beam indicator light ............................................... 5-3
