Loading
The total weight of the operator, pas-
senger, accessories and cargo must
not exceed the maximum load limit of
183kg, (403,5lb). When loading within
this weight limit, keep the following in
mind:
Cargo and accessory weight
should be kept as low and close
to the scooter as possible. Make
sure to distribute the weight as
evenly as possible on both sides
of the scooter to minimize imba-
lance or instability.
Shifting weights can create a
sudden imbalance. Make sure
that accessories and cargo are
securely attached to the scooter
before riding. Check accessory
mounts and cargo restraints fre-
quently.
Never attach any large or heavy
items to the handlebar, front fork,
or front fender. Such items can
create unstable handling or a
slow steering response.Accessories
Genuine Yamaha accessories have
been specifically designed for use on
this scooter. Since Yamaha cannot
test all other accessories that may be
available, you must personally be res-
ponsible for the proper selection, ins-
tallation and use of non-Yamaha
accessories. Use extreme caution
when selecting and installing any
accessories.
Keep the following guidelines in mind,
as well as those provided under “Loa-
ding” when mounting accessories.
Never install accessories or carry
cargo that would impair the per-
formance of your scooter. Care-
fully inspect the accessory befo-
re using it to make sure that it
does not in any way reduce
ground clearance or cornering
clearance, limit suspension tra-
vel, steering travel or control ope-
ration, or obscure lights or reflec-
tors.• Accessories fitted to the hand-
lebar or the front fork area can
create instability due to impro-
per weight distribution or
aerodynamic changes. If
accessories are added to the
handlebar or front fork area,
they must be as lightweight as
possible and should be kept to
a minimum.
• Bulky or large accessories may
seriously affect the stability of
the scooter due to aerodyna-
mic effects. Wind may attempt
to lift the scooter, or the scoo-
ter may become unstable in
cross winds. These accesso-
ries may also cause instability
when passing or being passed
by large vehicles.
• Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the
freedom of movement of the
operator and may limit control
ability, therefore, such acces-
sories are not recommended.
1
SAFETY INFORMATION t
1-3
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 9

EAU21540

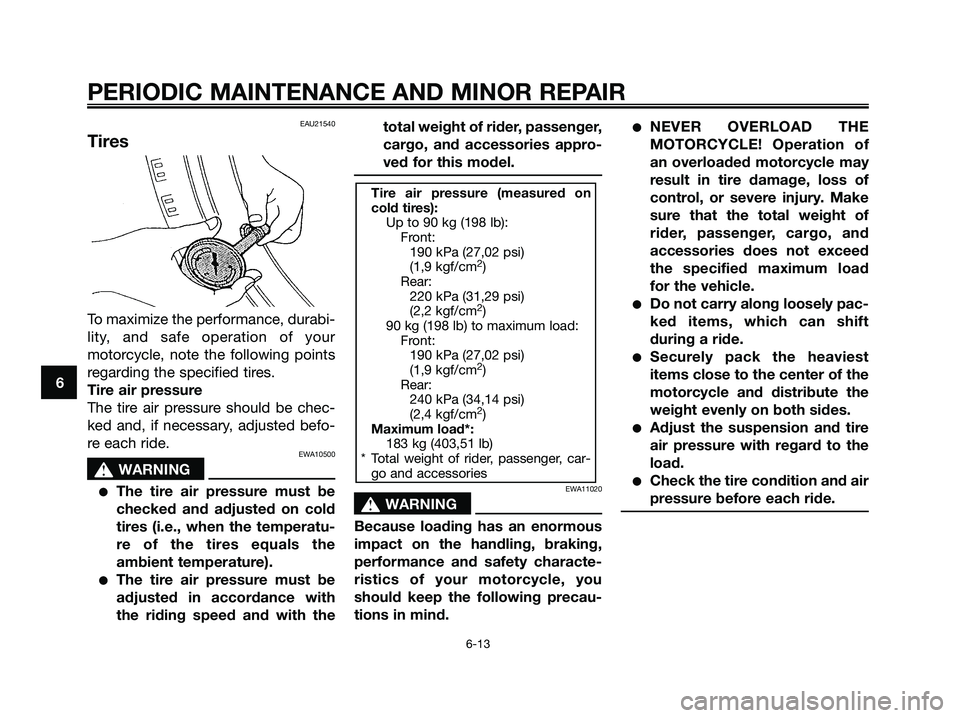

Tires
To maximize the performance, durabi-
lity, and safe operation of your
motorcycle, note the following points
regarding the specified tires.
Tire air pressure
The tire air pressure should be chec-
ked and, if necessary, adjusted befo-
re each ride.
EWA10500
s s
WARNING
The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperatu-
re of the tires equals the
ambient temperature).
The tire air pressure must be
adjusted in accordance with
the riding speed and with thetotal weight of rider, passenger,
cargo, and accessories appro-
ved for this model.
EWA11020
s s
WARNING
Because loading has an enormous
impact on the handling, braking,
performance and safety characte-
ristics of your motorcycle, you
should keep the following precau-
tions in mind.
NEVER OVERLOAD THE
MOTORCYCLE! Operation of
an overloaded motorcycle may
result in tire damage, loss of
control, or severe injury. Make
sure that the total weight of
rider, passenger, cargo, and
accessories does not exceed
the specified maximum load
for the vehicle.
Do not carry along loosely pac-
ked items, which can shift
during a ride.
Securely pack the heaviest
items close to the center of the
motorcycle and distribute the
weight evenly on both sides.
Adjust the suspension and tire
air pressure with regard to the
load.
Check the tire condition and air
pressure before each ride.
Tire air pressure (measured on
cold tires):
Up to 90 kg (198 lb):
Front:
190 kPa (27,02 psi)
(1,9 kgf/cm
2)
Rear:
220 kPa (31,29 psi)
(2,2 kgf/cm
2)
90 kg (198 lb) to maximum load:
Front:
190 kPa (27,02 psi)
(1,9 kgf/cm
2)
Rear:
240 kPa (34,14 psi)
(2,4 kgf/cm
2)
Maximum load*:
183 kg (403,51 lb)
* Total weight of rider, passenger, car-
go and accessories
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 42

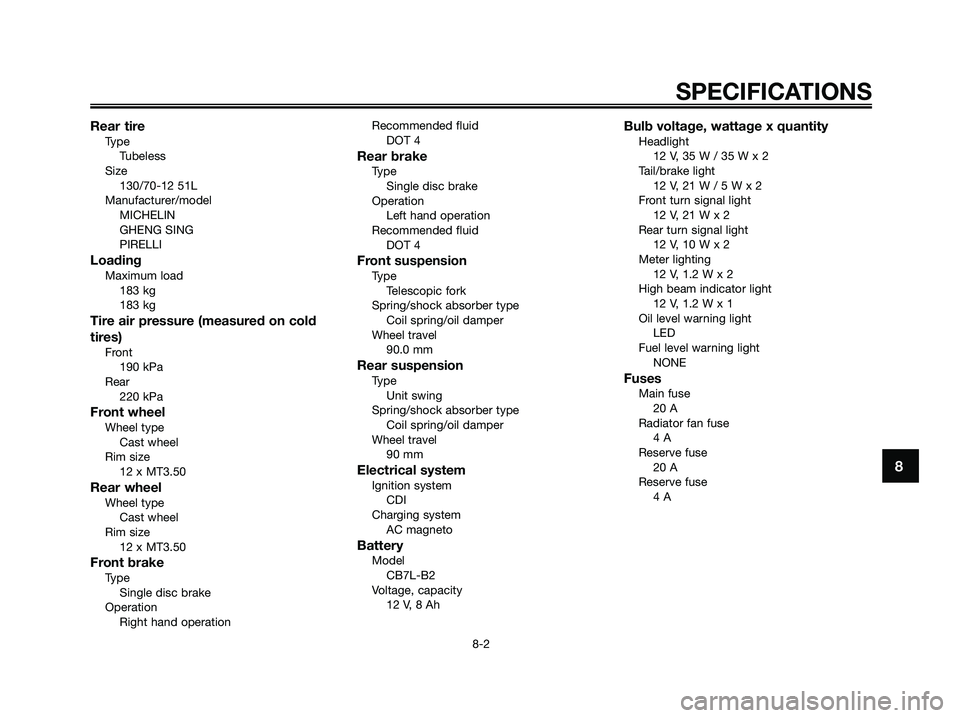

Rear tireType
Tubeless
Size
130/70-12 51L
Manufacturer/model
MICHELIN
GHENG SING
PIRELLI
LoadingMaximum load
183 kg
183 kg
Tire air pressure (measured on cold
tires)
Front
190 kPa
Rear
220 kPa
Front wheelWheel type
Cast wheel
Rim size
12 x MT3.50
Rear wheelWheel type
Cast wheel
Rim size
12 x MT3.50
Front brakeType
Single disc brake
Operation
Right hand operationRecommended fluid
DOT 4
Rear brakeType
Single disc brake
Operation
Left hand operation
Recommended fluid
DOT 4
Front suspensionType
Telescopic fork
Spring/shock absorber type
Coil spring/oil damper
Wheel travel
90.0 mm
Rear suspensionType
Unit swing
Spring/shock absorber type
Coil spring/oil damper
Wheel travel
90 mm
Electrical systemIgnition system
CDI
Charging system
AC magneto
BatteryModel
CB7L-B2
Voltage, capacity
12 V, 8 Ah
Bulb voltage, wattage x quantityHeadlight
12 V, 35 W / 35 W x 2
Tail/brake light
12 V, 21 W / 5 W x 2
Front turn signal light
12 V, 21 W x 2
Rear turn signal light
12 V, 10 W x 2
Meter lighting
12 V, 1.2 W x 2
High beam indicator light
12 V, 1.2 W x 1
Oil level warning light
LED
Fuel level warning light
NONE
FusesMain fuse
20 A
Radiator fan fuse
4 A
Reserve fuse
20 A
Reserve fuse
4 A
8
SPECIFICATIONS
8-2
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 59
