INTRODUCTION
IMPORTANT MANUAL INFORMATION

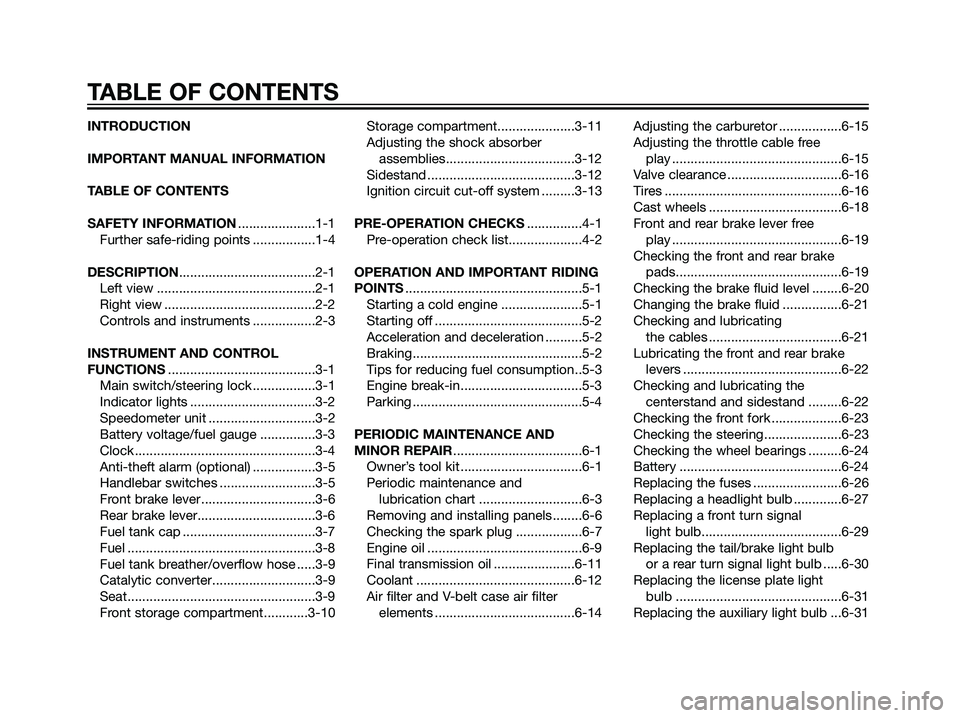

TABLE OF CONTENTS
SAFETY INFORMATION.....................1-1
Further safe-riding points .................1-4
DESCRIPTION.....................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments .................2-3
INSTRUMENT AND CONTROL
FUNCTIONS........................................3-1
Main switch/steering lock .................3-1
Indicator lights ..................................3-2
Speedometer unit .............................3-2
Battery voltage/fuel gauge ...............3-3
Clock .................................................3-4
Anti-theft alarm (optional) .................3-5
Handlebar switches ..........................3-5
Front brake lever...............................3-6
Rear brake lever................................3-6
Fuel tank cap ....................................3-7
Fuel ...................................................3-8
Fuel tank breather/overflow hose .....3-9
Catalytic converter............................3-9
Seat...................................................3-9
Front storage compartment............3-10Storage compartment.....................3-11
Adjusting the shock absorber
assemblies...................................3-12
Sidestand ........................................3-12
Ignition circuit cut-off system .........3-13
PRE-OPERATION CHECKS...............4-1
Pre-operation check list....................4-2
OPERATION AND IMPORTANT RIDING
POINTS................................................5-1
Starting a cold engine ......................5-1
Starting off ........................................5-2
Acceleration and deceleration ..........5-2
Braking..............................................5-2
Tips for reducing fuel consumption..5-3
Engine break-in.................................5-3
Parking ..............................................5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR...................................6-1
Owner’s tool kit .................................6-1
Periodic maintenance and
lubrication chart ............................6-3
Removing and installing panels........6-6
Checking the spark plug ..................6-7
Engine oil ..........................................6-9
Final transmission oil ......................6-11
Coolant ...........................................6-12
Air filter and V-belt case air filter
elements ......................................6-14Adjusting the carburetor .................6-15
Adjusting the throttle cable free
play ..............................................6-15
Valve clearance ...............................6-16
Tires ................................................6-16
Cast wheels ....................................6-18
Front and rear brake lever free
play ..............................................6-19
Checking the front and rear brake
pads.............................................6-19
Checking the brake fluid level ........6-20
Changing the brake fluid ................6-21
Checking and lubricating
the cables ....................................6-21
Lubricating the front and rear brake
levers ...........................................6-22
Checking and lubricating the
centerstand and sidestand .........6-22
Checking the front fork ...................6-23
Checking the steering.....................6-23
Checking the wheel bearings .........6-24
Battery ............................................6-24
Replacing the fuses ........................6-26
Replacing a headlight bulb .............6-27
Replacing a front turn signal
light bulb......................................6-29
Replacing the tail/brake light bulb
or a rear turn signal light bulb .....6-30
Replacing the license plate light
bulb .............................................6-31
Replacing the auxiliary light bulb ...6-31
TABLE OF CONTENTS
5D8-F8199-E0.qxd 1/6/07 16:20 Página 6
Page 16 of 80
EAU10980

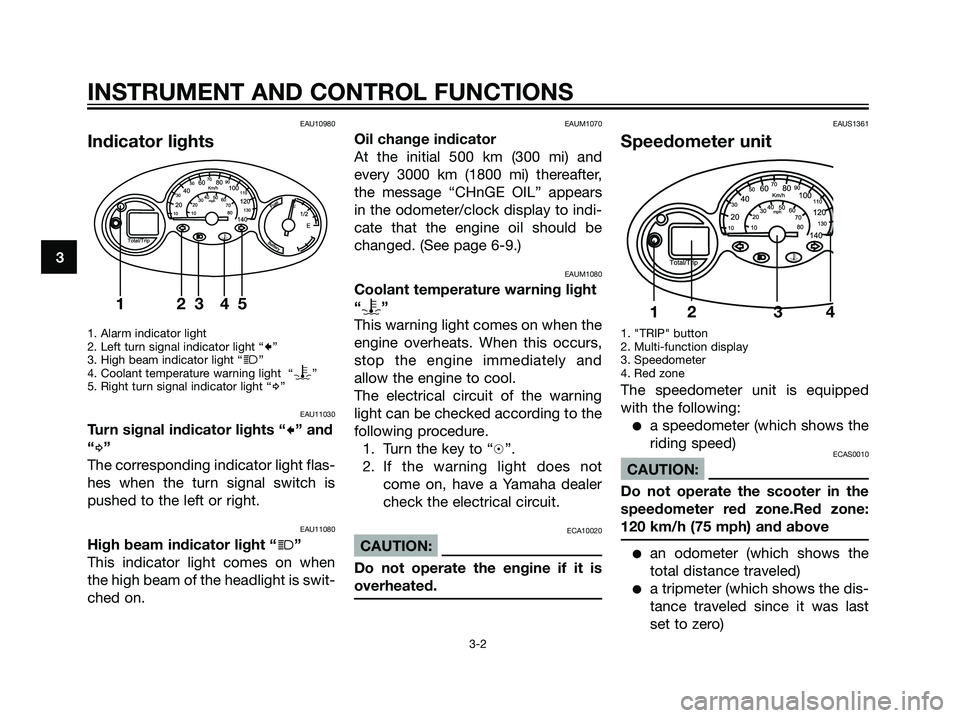

Indicator lights
1. Alarm indicator light
2. Left turn signal indicator light “c”
3. High beam indicator light “j”
4. Coolant temperature warning light “y”
5. Right turn signal indicator light “d”
EAU11030
Turn signal indicator lights “c” and
“
d”
The corresponding indicator light flas-
hes when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “j”
This indicator light comes on when
the high beam of the headlight is swit-
ched on.
EAUM1070
Oil change indicator
At the initial 500 km (300 mi) and
every 3000 km (1800 mi) thereafter,
the message “CHnGE OIL” appears
in the odometer/clock display to indi-
cate that the engine oil should be
changed. (See page 6-9.)
EAUM1080
Coolant temperature warning light
“
y”
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and
allow the engine to cool.
The electrical circuit of the warning
light can be checked according to the
following procedure.
1. Turn the key to “h”.
2. If the warning light does not
come on, have a Yamaha dealer
check the electrical circuit.
ECA10020
CAUTION:
Do not operate the engine if it is
overheated.
EAUS1361
Speedometer unit
1. "TRIP" button
2. Multi-function display
3. Speedometer
4. Red zone
The speedometer unit is equipped
with the following:
a speedometer (which shows the
riding speed)
ECAS0010
CAUTION:
Do not operate the scooter in the
speedometer red zone.Red zone:
120 km/h (75 mph) and above
an odometer (which shows the
total distance traveled)
a tripmeter (which shows the dis-
tance traveled since it was last
set to zero)
12 3
y
4
y
12345
3
INSTRUMENT AND CONTROL FUNCTIONS
3-2
5D8-F8199-E0.qxd 1/6/07 16:20 Página 16
Page 18 of 80
ses. When the needle reaches “E”,
refuel as soon as possible.
NOTE:
Do not allow the fuel tank to empty
itself completely.
EAUS1210

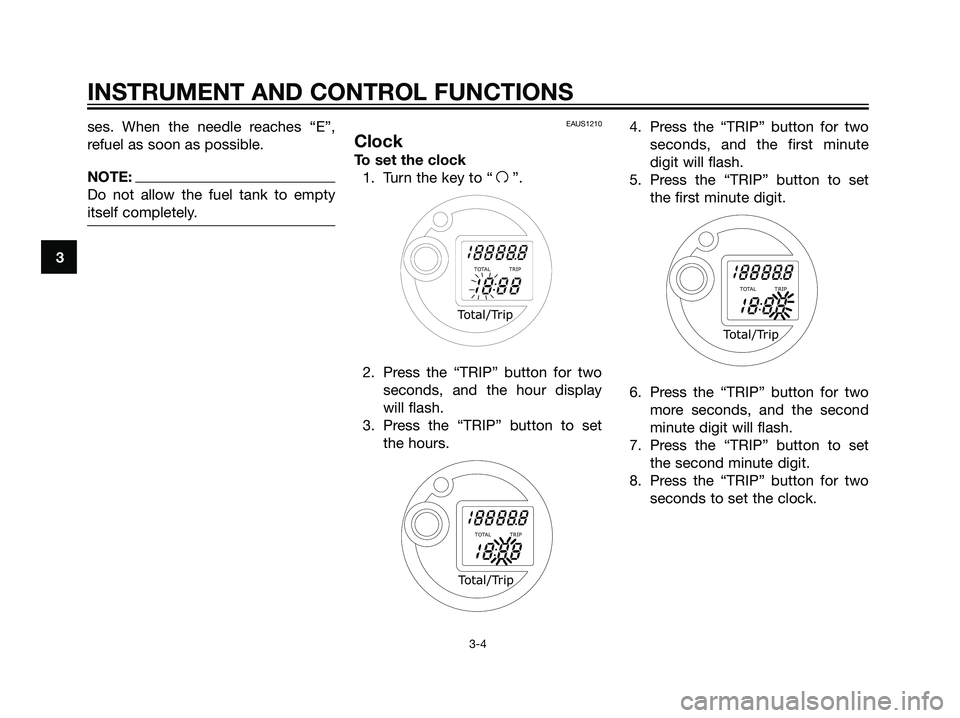

Clock
To set the clock
1. Turn the key to “
f”.
2. Press the “TRIP” button for two
seconds, and the hour display
will flash.
3. Press the “TRIP” button to set
the hours.4. Press the “TRIP” button for two
seconds, and the first minute
digit will flash.
5. Press the “TRIP” button to set
the first minute digit.
6. Press the “TRIP” button for two
more seconds, and the second
minute digit will flash.
7. Press the “TRIP” button to set
the second minute digit.
8. Press the “TRIP” button for two
seconds to set the clock.
Total/Trip
TOTAL TRIP
Total/Trip
TOTAL TRIP
Total/Trip
TOTAL TRIP3
INSTRUMENT AND CONTROL FUNCTIONS
3-4
5D8-F8199-E0.qxd 1/6/07 16:20 Página 18
Page 21 of 80
EAUS1040

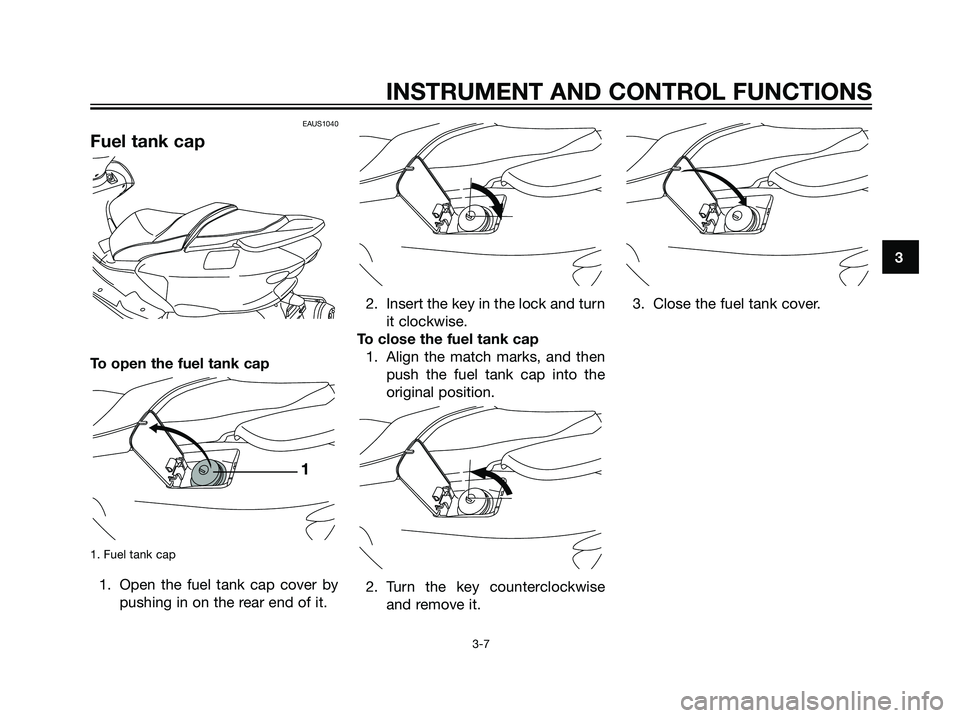

Fuel tank cap
To open the fuel tank cap
1. Fuel tank cap
1. Open the fuel tank cap cover by
pushing in on the rear end of it.2. Insert the key in the lock and turn
it clockwise.
To close the fuel tank cap
1. Align the match marks, and then
push the fuel tank cap into the
original position.
2. Turn the key counterclockwise
and remove it.3. Close the fuel tank cover.
1
3
INSTRUMENT AND CONTROL FUNCTIONS
3-7
5D8-F8199-E0.qxd 1/6/07 16:20 Página 21
Page 24 of 80

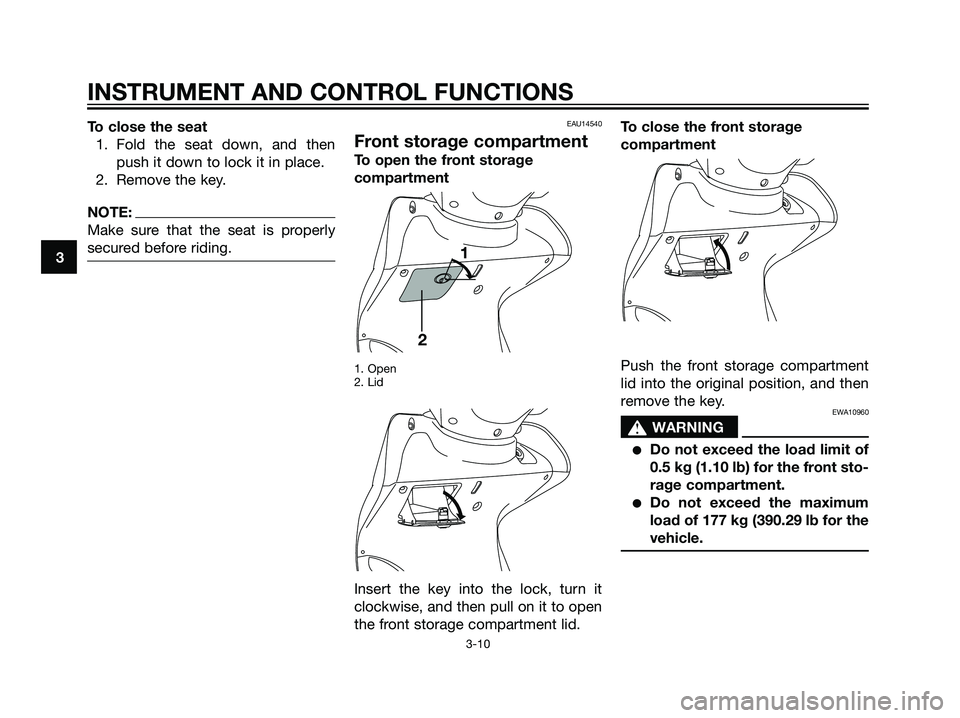

To close the seat
1. Fold the seat down, and then
push it down to lock it in place.
2. Remove the key.
NOTE:
Make sure that the seat is properly
secured before riding.
EAU14540
Front storage compartment
To open the front storage
compartment
1. Open
2. Lid
Insert the key into the lock, turn it
clockwise, and then pull on it to open
the front storage compartment lid.To close the front storage
compartment
Push the front storage compartment
lid into the original position, and then
remove the key.
EWA10960
s s
WARNING
Do not exceed the load limit of
0.5 kg (1.10 lb) for the front sto-
rage compartment.
Do not exceed the maximum
load of 177 kg (390.29 lb for the
vehicle.
1
2
3
INSTRUMENT AND CONTROL FUNCTIONS
3-10
5D8-F8199-E0.qxd 1/6/07 16:20 Página 24
Page 63 of 80

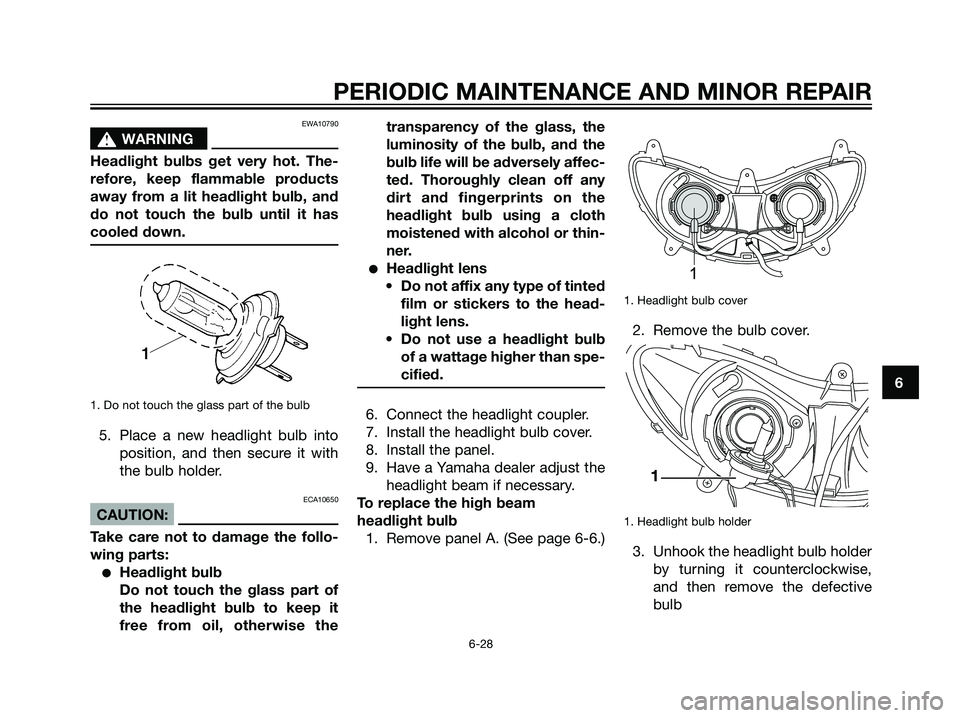

EWA10790
s s
WARNING
Headlight bulbs get very hot. The-
refore, keep flammable products
away from a lit headlight bulb, and
do not touch the bulb until it has
cooled down.
1. Do not touch the glass part of the bulb
5. Place a new headlight bulb into
position, and then secure it with
the bulb holder.
ECA10650
CAUTION:
Take care not to damage the follo-
wing parts:
Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it
free from oil, otherwise thetransparency of the glass, the
luminosity of the bulb, and the
bulb life will be adversely affec-
ted. Thoroughly clean off any
dirt and fingerprints on the
headlight bulb using a cloth
moistened with alcohol or thin-
ner.
Headlight lens
• Do not affix any type of tinted
film or stickers to the head-
light lens.
• Do not use a headlight bulb
of a wattage higher than spe-
cified.
6. Connect the headlight coupler.
7. Install the headlight bulb cover.
8. Install the panel.
9. Have a Yamaha dealer adjust the
headlight beam if necessary.
To replace the high beam
headlight bulb
1. Remove panel A. (See page 6-6.)
1. Headlight bulb cover
2. Remove the bulb cover.
1. Headlight bulb holder
3. Unhook the headlight bulb holder
by turning it counterclockwise,
and then remove the defective
bulb
1
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
5D8-F8199-E0.qxd 1/6/07 16:20 Página 63
Page 64 of 80

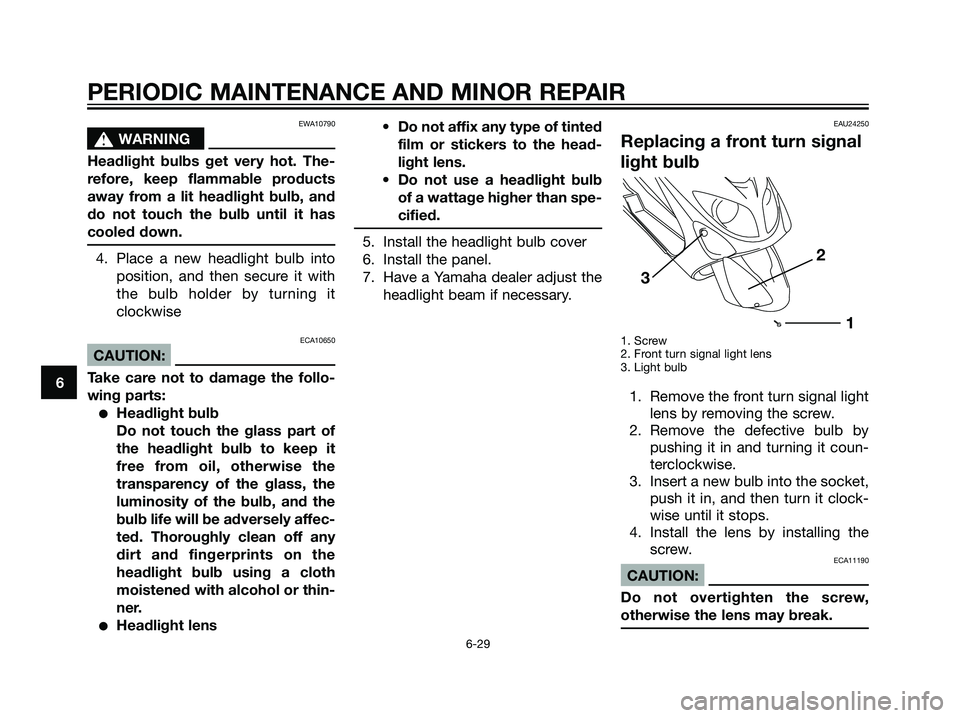

EWA10790
s s
WARNING
Headlight bulbs get very hot. The-
refore, keep flammable products
away from a lit headlight bulb, and
do not touch the bulb until it has
cooled down.
4. Place a new headlight bulb into
position, and then secure it with
the bulb holder by turning it
clockwise
ECA10650
CAUTION:
Take care not to damage the follo-
wing parts:
Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it
free from oil, otherwise the
transparency of the glass, the
luminosity of the bulb, and the
bulb life will be adversely affec-
ted. Thoroughly clean off any
dirt and fingerprints on the
headlight bulb using a cloth
moistened with alcohol or thin-
ner.
Headlight lens• Do not affix any type of tinted
film or stickers to the head-
light lens.
• Do not use a headlight bulb
of a wattage higher than spe-
cified.
5. Install the headlight bulb cover
6. Install the panel.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24250
Replacing a front turn signal
light bulb
1. Screw
2. Front turn signal light lens
3. Light bulb
1. Remove the front turn signal light
lens by removing the screw.
2. Remove the defective bulb by
pushing it in and turning it coun-
terclockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw.
ECA11190
CAUTION:
Do not overtighten the screw,
otherwise the lens may break.
1 2
3
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
5D8-F8199-E0.qxd 1/6/07 16:20 Página 64
Page 65 of 80
EAUS1130

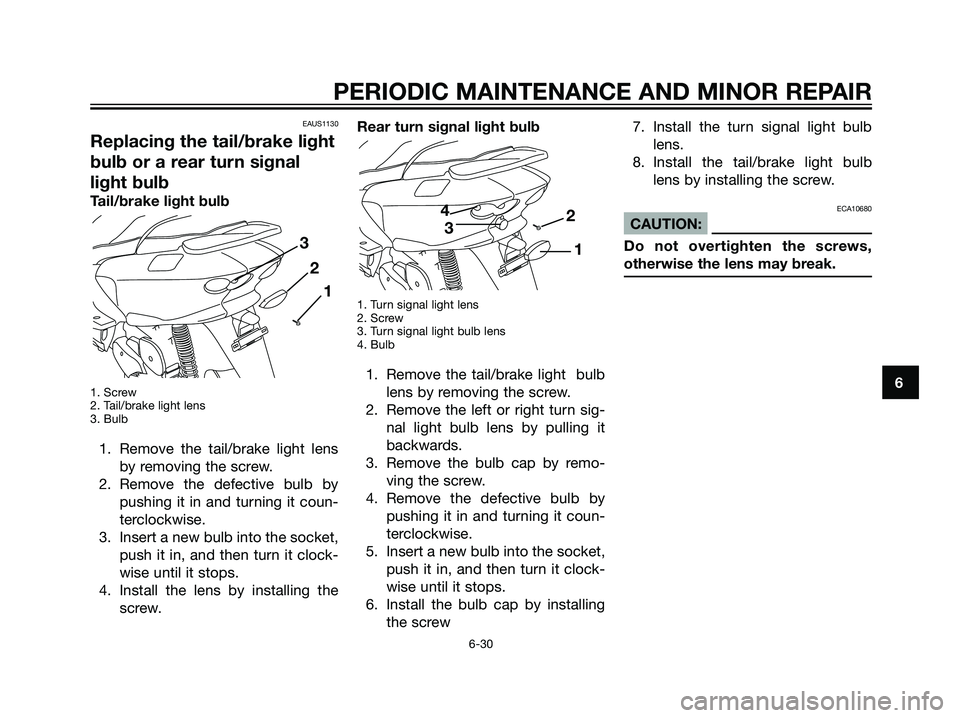

Replacing the tail/brake light
bulb or a rear turn signal
light bulb
Tail/brake light bulb
1. Screw
2. Tail/brake light lens
3. Bulb
1. Remove the tail/brake light lens
by removing the screw.
2. Remove the defective bulb by
pushing it in and turning it coun-
terclockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw.Rear turn signal light bulb
1. Turn signal light lens
2. Screw
3. Turn signal light bulb lens
4. Bulb
1. Remove the tail/brake light bulb
lens by removing the screw.
2. Remove the left or right turn sig-
nal light bulb lens by pulling it
backwards.
3. Remove the bulb cap by remo-
ving the screw.
4. Remove the defective bulb by
pushing it in and turning it coun-
terclockwise.
5. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
6. Install the bulb cap by installing
the screw7. Install the turn signal light bulb
lens.
8. Install the tail/brake light bulb
lens by installing the screw.
ECA10680
CAUTION:
Do not overtighten the screws,
otherwise the lens may break.
1 2
3 4
1 2 3
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
5D8-F8199-E0.qxd 1/6/07 16:20 Página 65
Page 68 of 80
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-33

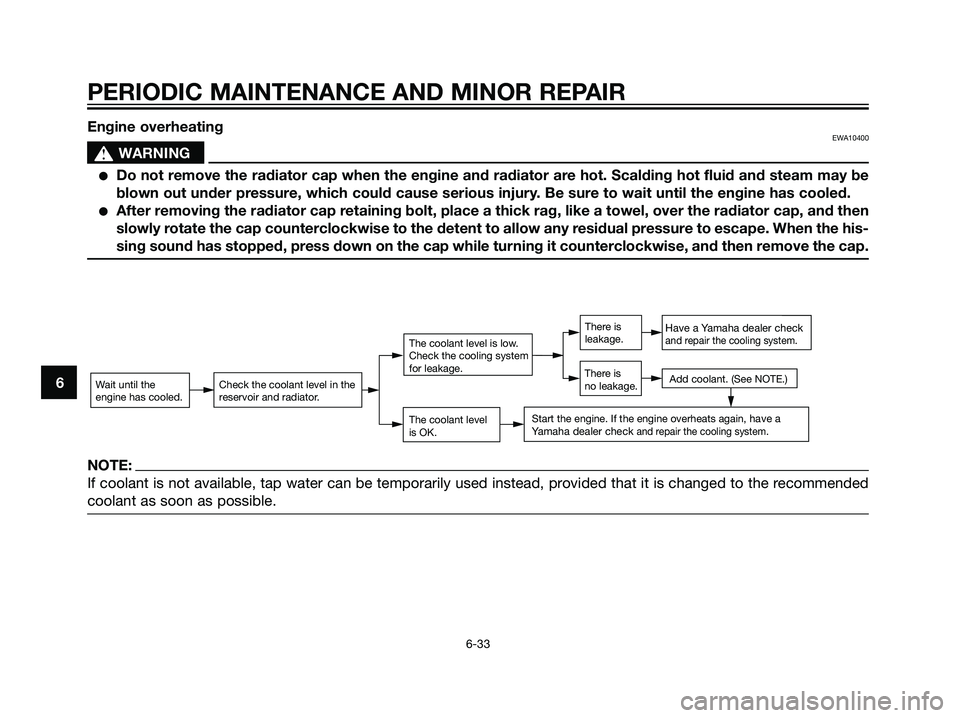

Engine overheatingEWA10400
s s
WARNING
Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.
After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the his-
sing sound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.
Wait until the
engine has cooled.Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.
The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.
Add coolant. (See NOTE.)
Start the engine. If the engine overheats again, have a
Yamaha dealer check and repair the cooling system.
There is
leakage.
There is
no leakage.
NOTE:
If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended
coolant as soon as possible.
5D8-F8199-E0.qxd 1/6/07 16:20 Página 68
Page 78 of 80
AAcceleration and deceleration ...................5-2
Air filter and V-belt case air filter
elements ................................................6-14
Anti-theft alarm (optional) ..........................3-5
Auxiliary light bulb, replacing ...................6-31
BBattery......................................................6-24
Brake fluid level, checking .......................6-20
Brake fluid, changing ...............................6-21
Brake lever, front ........................................3-6
Brake lever, rear .........................................3-6
Brake levers, lubricating ..........................6-22
Braking .......................................................5-2
CCables, checking and lubricating ............6-21
Carburetor,adjusting.................................6-15
Care............................................................7-1
Catalytic converter .....................................3-9
Caution, matte color ..................................7-1
Centerstand and sidestand, checking
and lubricating .......................................6-22
Clock ..........................................................3-4
Coolant.....................................................6-12
Coolant temperature warning light ............3-2
DDimmer switch ...........................................3-5
EEngine break-in ..........................................5-3
Engine oil ...................................................6-9
FFinal transmission oil ...............................6-11
Front and rear brake lever free play.........6-19
Front and rear brake pads, checking ......6-19Front fork, checking .................................6-23
Front Storage compartment ....................3-10
Fuel ............................................................3-8
Fuel consumption, tips for reducing ..........5-3
Fuel tank breather/overflow hose ..............3-9
Fuel tank cap .............................................3-7
Fuses, replacing .......................................6-26
HHandlebar switches ...................................3-5
Hazard switch ............................................3-6
Headlight bulb, replacing .........................6-27
High beam indicator light...........................3-2
Horn switch ................................................3-5
IIdentification numbers ...............................9-1
Ignition circuit cut-off system ..................3-13
Indicator lights ...........................................3-2
KKey identification number ..........................9-1
LLicense plate light bulb, replacing ...........6-31
MMain switch/steering lock ..........................3-1
Model label ................................................9-2
OOil change indicator ...................................3-2
PPanels, removing and installing .................6-6
Parking .......................................................5-4
Part locations .............................................2-1
Periodic maintenance and lubrication
chart .........................................................6-3
Pre-operation check list .............................4-2
SSafe-riding points.......................................1-4
Safety information ......................................1-1
Seat ............................................................3-9
Shock absorber assemblies, adjusting....3-12
Sidestand .................................................3-12
Spark plug, checking .................................6-7
Specifications.............................................8-1
Speedometer unit ......................................3-2
Start switch ................................................3-5
Starting a cold engine ................................5-1
Starting off .................................................5-2
Steering, checking ...................................6-23
Storage.......................................................7-3
Storage compartment ..............................3-11
TTail/brake light bulb or rear turn signal
light bulb, replacing ...............................6-30
Throttle cable free play, adjusting ............6-15
Tires .........................................................6-16
Tool kit ........................................................6-1
Troubleshooting .......................................6-31
Troubleshooting charts ............................6-32
Turn signal indicator lights .........................3-2
Turn signal light bulb (front), replacing ....6-29
Turn signal switch ......................................3-5
VValve clearance ........................................6-16
Vehicle identification number .....................9-1
WWheel bearings, checking........................6-24
Wheels .....................................................6-18
INDEX
5D8-F8199-E0.qxd 1/6/07 16:20 Página 78
