PRE-OPERATION CHECKS
4-2
EAU15605

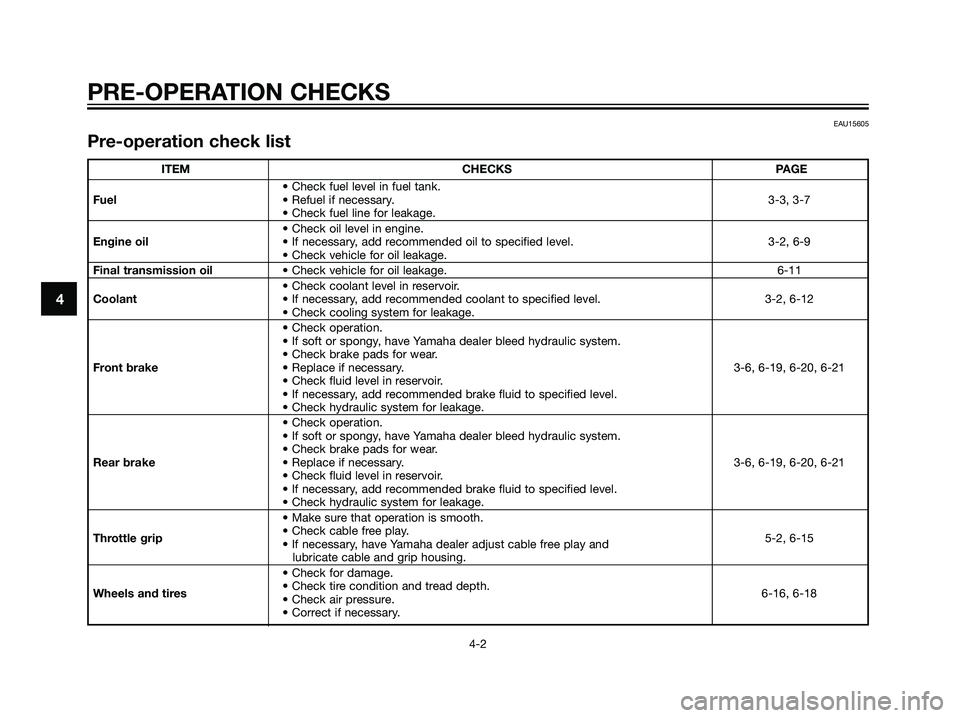

Pre-operation check list
ITEM CHECKS PAGE
• Check fuel level in fuel tank.
Fuel• Refuel if necessary. 3-3, 3-7
• Check fuel line for leakage.
• Check oil level in engine.
Engine oil• If necessary, add recommended oil to specified level. 3-2, 6-9
• Check vehicle for oil leakage.
Final transmission oil• Check vehicle for oil leakage. 6-11
• Check coolant level in reservoir.
Coolant• If necessary, add recommended coolant to specified level. 3-2, 6-12
• Check cooling system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
Front brake• Replace if necessary. 3-6, 6-19, 6-20, 6-21
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
Rear brake• Replace if necessary. 3-6, 6-19, 6-20, 6-21
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Make sure that operation is smooth.
Throttle grip• Check cable free play.
5-2, 6-15
• If necessary, have Yamaha dealer adjust cable free play and
lubricate cable and grip housing.
• Check for damage.
Wheels and tires• Check tire condition and tread depth.
6-16, 6-18
• Check air pressure.
• Correct if necessary.
5D8-F8199-E0.qxd 1/6/07 16:20 Página 30

ODOMETER READING (x 1000 Km)
ANNUAL

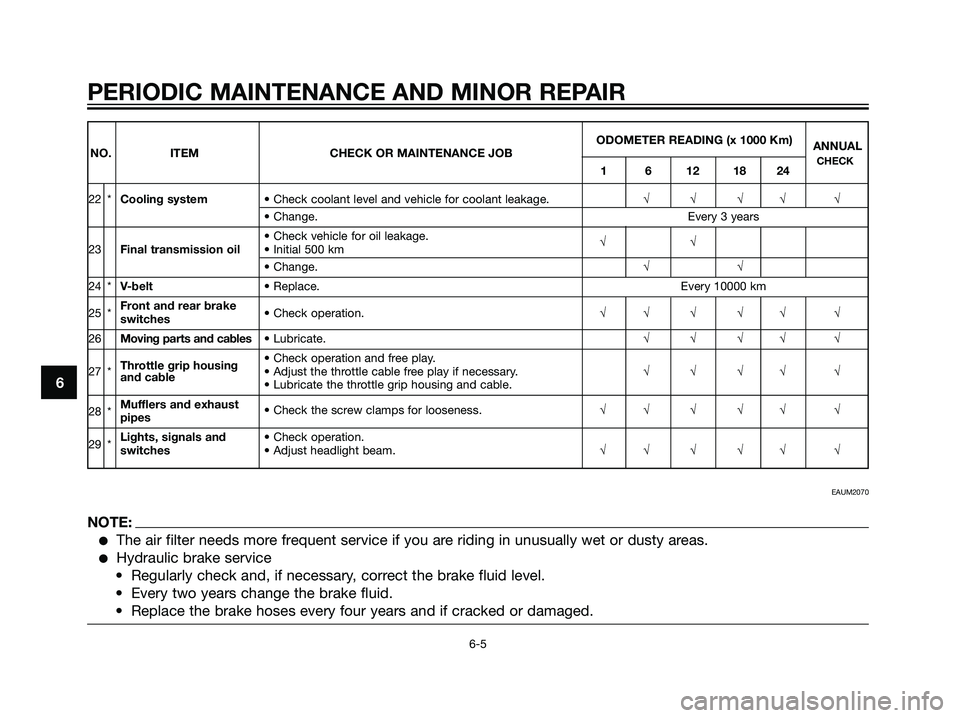

NO. ITEM CHECK OR MAINTENANCE JOB
1 6 12 18 24CHECK
22 *Cooling system• Check coolant level and vehicle for coolant leakage.√√√√ √
• Change. Every 3 years
• Check vehicle for oil leakage.
23Final transmission oil• Initial 500 km√√
• Change.√√
24 *V-belt• Replace. Every 10000 km
25 *Front and rear brake
• Check operation.√√ √ √√ √
switches
26Moving parts and cables• Lubricate.√√√√ √
Throttle grip housing • Check operation and free play.
27 * • Adjust the throttle cable free play if necessary.√√√√ √
and cable
• Lubricate the throttle grip housing and cable.
28 *Mufflers and exhaust
pipes• Check the screw clamps for looseness.√√ √ √√ √
29 *Lights, signals and • Check operation.
switches• Adjust headlight beam.√√ √ √√ √
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
EAUM2070
NOTE:
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
Hydraulic brake service
• Regularly check and, if necessary, correct the brake fluid level.
• Every two years change the brake fluid.
• Replace the brake hoses every four years and if cracked or damaged.
5D8-F8199-E0.qxd 1/6/07 16:20 Página 40

6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-33
Engine overheatingEWA10400
s s
WARNING
Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.
After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the his-
sing sound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.
Wait until the
engine has cooled.Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.
The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.
Add coolant. (See NOTE.)
Start the engine. If the engine overheats again, have a
Yamaha dealer check and repair the cooling system.
There is
leakage.
There is
no leakage.
NOTE:
If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended
coolant as soon as possible.
5D8-F8199-E0.qxd 1/6/07 16:20 Página 68

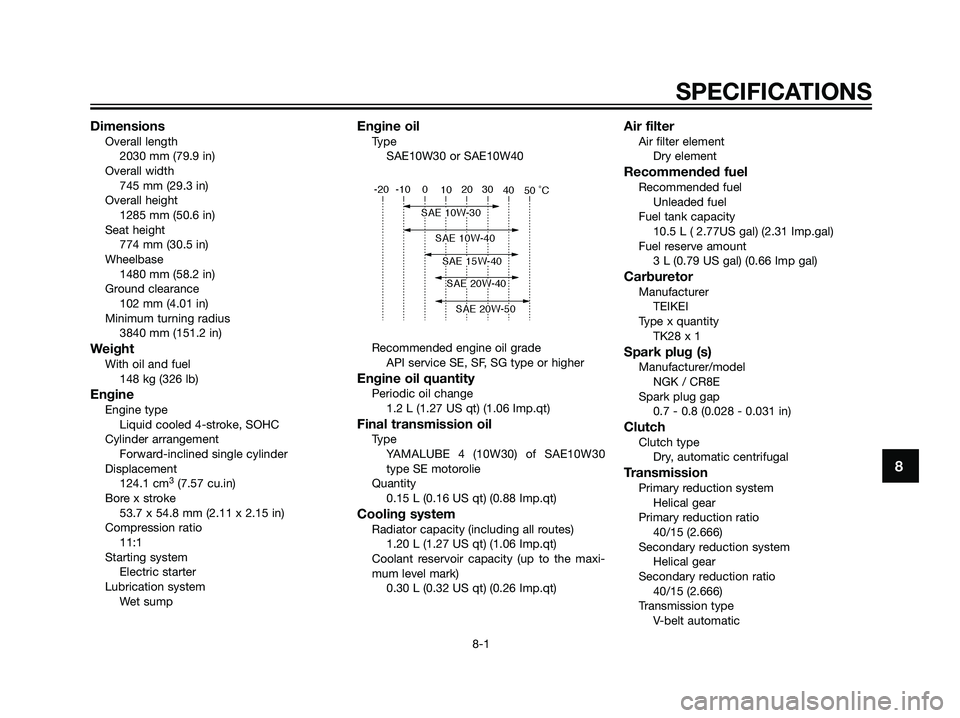

DimensionsOverall length
2030 mm (79.9 in)
Overall width
745 mm (29.3 in)
Overall height
1285 mm (50.6 in)
Seat height
774 mm (30.5 in)
Wheelbase
1480 mm (58.2 in)
Ground clearance
102 mm (4.01 in)
Minimum turning radius
3840 mm (151.2 in)
WeightWith oil and fuel
148 kg (326 lb)
EngineEngine type
Liquid cooled 4-stroke, SOHC
Cylinder arrangement
Forward-inclined single cylinder
Displacement
124.1 cm
3(7.57 cu.in)
Bore x stroke
53.7 x 54.8 mm (2.11 x 2.15 in)
Compression ratio
11:1
Starting system
Electric starter
Lubrication system
Wet sump
Engine oilType
SAE10W30 or SAE10W40
Recommended engine oil grade
API service SE, SF, SG type or higher
Engine oil quantityPeriodic oil change
1.2 L (1.27 US qt) (1.06 Imp.qt)
Final transmission oilType
YAMALUBE 4 (10W30) of SAE10W30
type SE motorolie
Quantity
0.15 L (0.16 US qt) (0.88 Imp.qt)
Cooling systemRadiator capacity (including all routes)
1.20 L (1.27 US qt) (1.06 Imp.qt)
Coolant reservoir capacity (up to the maxi-
mum level mark)
0.30 L (0.32 US qt) (0.26 Imp.qt)
Air filterAir filter element
Dry element
Recommended fuelRecommended fuel
Unleaded fuel
Fuel tank capacity
10.5 L ( 2.77US gal) (2.31 Imp.gal)
Fuel reserve amount
3 L (0.79 US gal) (0.66 Imp gal)
CarburetorManufacturer
TEIKEI
Type x quantity
TK28 x 1
Spark plug (s)Manufacturer/model
NGK / CR8E
Spark plug gap
0.7 - 0.8 (0.028 - 0.031 in)
ClutchClutch type
Dry, automatic centrifugal
TransmissionPrimary reduction system
Helical gear
Primary reduction ratio
40/15 (2.666)
Secondary reduction system
Helical gear
Secondary reduction ratio
40/15 (2.666)
Transmission type
V-belt automatic
