EAU10410
Left view
2
DESCRIPTION
2-1
@ @ @ @
123 4
5 6 7 8

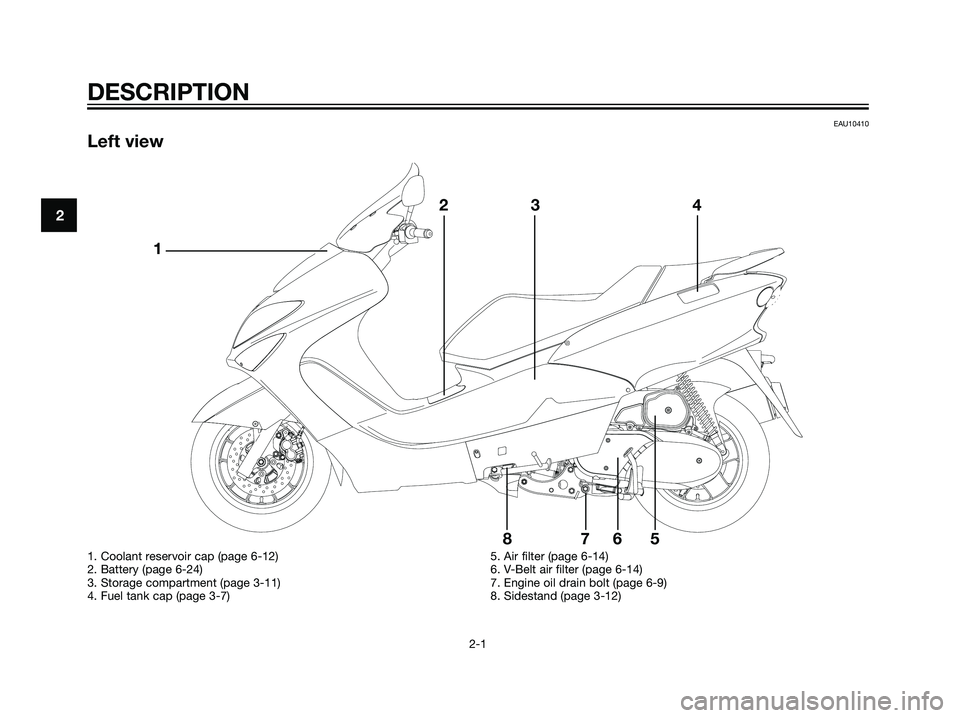

1. Coolant reservoir cap (page 6-12)
2. Battery (page 6-24)
3. Storage compartment (page 3-11)
4. Fuel tank cap (page 3-7)5. Air filter (page 6-14)
6. V-Belt air filter (page 6-14)
7. Engine oil drain bolt (page 6-9)
8. Sidestand (page 3-12)
5D8-F8199-E0.qxd 1/6/07 16:20 Página 12

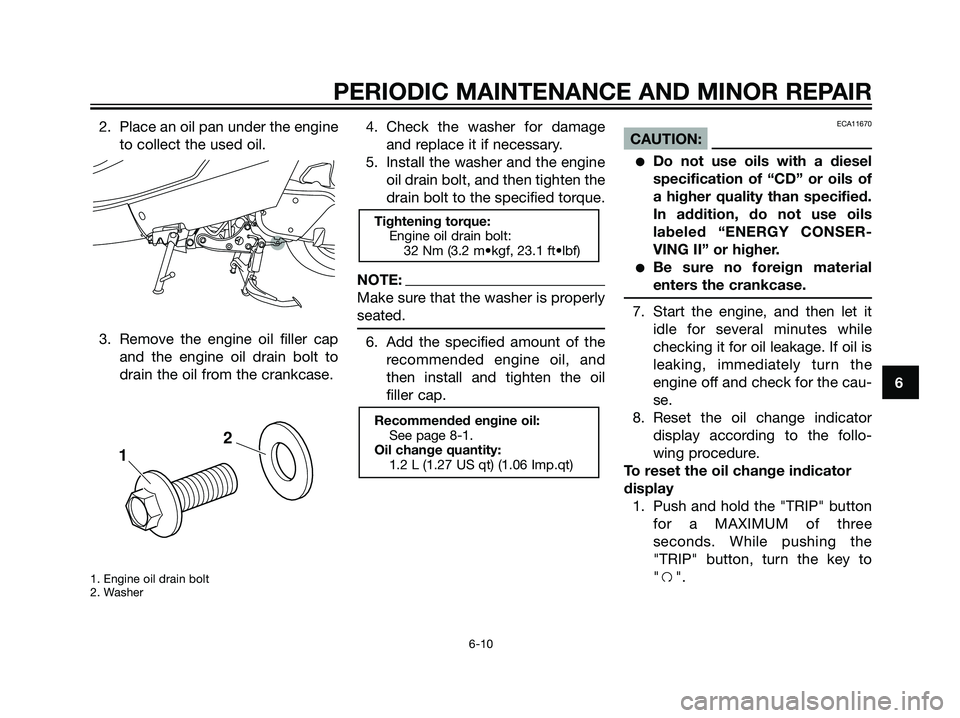

2. Place an oil pan under the engine
to collect the used oil.
3. Remove the engine oil filler cap
and the engine oil drain bolt to
drain the oil from the crankcase.
1. Engine oil drain bolt
2. Washer
4. Check the washer for damage
and replace it if necessary.
5. Install the washer and the engine
oil drain bolt, and then tighten the
drain bolt to the specified torque.
NOTE:
Make sure that the washer is properly
seated.
6. Add the specified amount of the
recommended engine oil, and
then install and tighten the oil
filler cap.
ECA11670
CAUTION:
Do not use oils with a diesel
specification of “CD” or oils of
a higher quality than specified.
In addition, do not use oils
labeled “ENERGY CONSER-
VING II” or higher.
Be sure no foreign material
enters the crankcase.
7. Start the engine, and then let it
idle for several minutes while
checking it for oil leakage. If oil is
leaking, immediately turn the
engine off and check for the cau-
se.
8. Reset the oil change indicator
display according to the follo-
wing procedure.
To reset the oil change indicator
display
1. Push and hold the "TRIP" button
for a MAXIMUM of three
seconds. While pushing the
"TRIP" button, turn the key to
"f".
Recommended engine oil:
See page 8-1.
Oil change quantity:
1.2 L (1.27 US qt) (1.06 Imp.qt)
Tightening torque:
Engine oil drain bolt:
32 Nm (3.2 m•kgf, 23.1 ft•lbf)
2
1
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
5D8-F8199-E0.qxd 1/6/07 16:20 Página 45

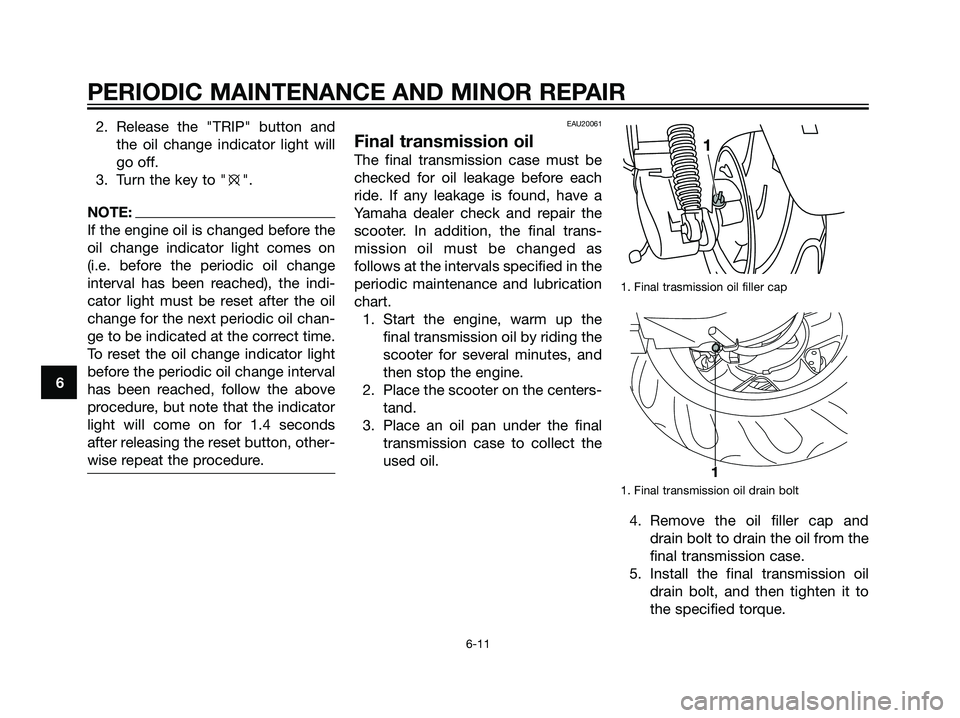

2. Release the "TRIP" button and
the oil change indicator light will
go off.
3. Turn the key to "e".
NOTE:
If the engine oil is changed before the
oil change indicator light comes on
(i.e. before the periodic oil change
interval has been reached), the indi-
cator light must be reset after the oil
change for the next periodic oil chan-
ge to be indicated at the correct time.
To reset the oil change indicator light
before the periodic oil change interval
has been reached, follow the above
procedure, but note that the indicator
light will come on for 1.4 seconds
after releasing the reset button, other-
wise repeat the procedure.
EAU20061
Final transmission oil
The final transmission case must be
checked for oil leakage before each
ride. If any leakage is found, have a
Yamaha dealer check and repair the
scooter. In addition, the final trans-
mission oil must be changed as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.
1. Start the engine, warm up the
final transmission oil by riding the
scooter for several minutes, and
then stop the engine.
2. Place the scooter on the centers-
tand.
3. Place an oil pan under the final
transmission case to collect the
used oil.
1. Final trasmission oil filler cap
1. Final transmission oil drain bolt
4. Remove the oil filler cap and
drain bolt to drain the oil from the
final transmission case.
5. Install the final transmission oil
drain bolt, and then tighten it to
the specified torque.
1
1
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
5D8-F8199-E0.qxd 1/6/07 16:20 Página 46

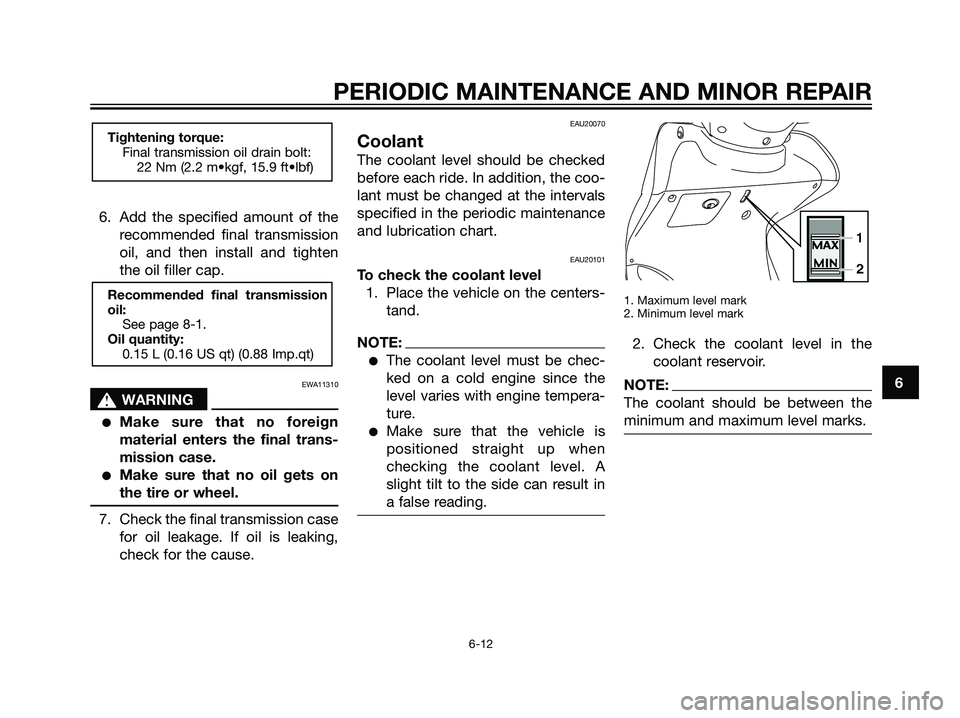

6. Add the specified amount of the
recommended final transmission
oil, and then install and tighten
the oil filler cap.
EWA11310
s s
WARNING
Make sure that no foreign
material enters the final trans-
mission case.
Make sure that no oil gets on
the tire or wheel.
7. Check the final transmission case
for oil leakage. If oil is leaking,
check for the cause.
EAU20070
Coolant
The coolant level should be checked
before each ride. In addition, the coo-
lant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU20101
To check the coolant level
1. Place the vehicle on the centers-
tand.
NOTE:
The coolant level must be chec-
ked on a cold engine since the
level varies with engine tempera-
ture.
Make sure that the vehicle is
positioned straight up when
checking the coolant level. A
slight tilt to the side can result in
a false reading.
1. Maximum level mark
2. Minimum level mark
2. Check the coolant level in the
coolant reservoir.
NOTE:
The coolant should be between the
minimum and maximum level marks.
Recommended final transmission
oil:
See page 8-1.
Oil quantity:
0.15 L (0.16 US qt) (0.88 Imp.qt)
Tightening torque:
Final transmission oil drain bolt:
22 Nm (2.2 m•kgf, 15.9 ft•lbf)
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
5D8-F8199-E0.qxd 1/6/07 16:20 Página 47

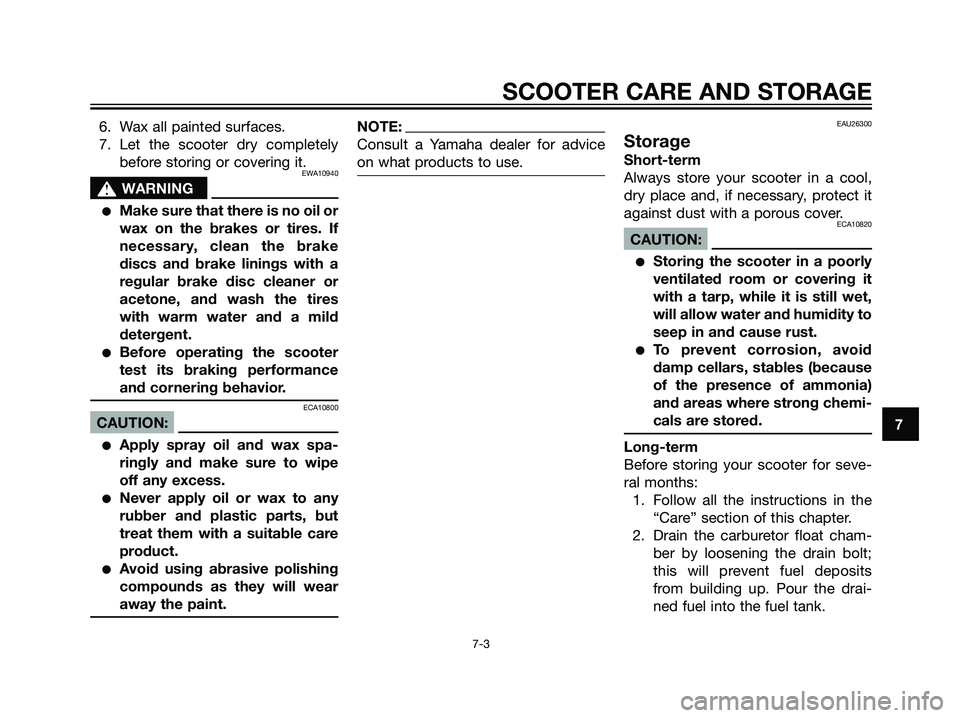

6. Wax all painted surfaces.
7. Let the scooter dry completely
before storing or covering it.
EWA10940
s s
WARNING
Make sure that there is no oil or
wax on the brakes or tires. If
necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or
acetone, and wash the tires
with warm water and a mild
detergent.
Before operating the scooter
test its braking performance
and cornering behavior.
ECA10800
CAUTION:
Apply spray oil and wax spa-
ringly and make sure to wipe
off any excess.
Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.
Avoid using abrasive polishing
compounds as they will wear
away the paint.
NOTE:
Consult a Yamaha dealer for advice
on what products to use.EAU26300
Storage
Short-term
Always store your scooter in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.
ECA10820
CAUTION:
Storing the scooter in a poorly
ventilated room or covering it
with a tarp, while it is still wet,
will allow water and humidity to
seep in and cause rust.
To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
Long-term
Before storing your scooter for seve-
ral months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Drain the carburetor float cham-
ber by loosening the drain bolt;
this will prevent fuel deposits
from building up. Pour the drai-
ned fuel into the fuel tank.
7
SCOOTER CARE AND STORAGE
7-3
5D8-F8199-E0.qxd 1/6/07 16:20 Página 71
