INTRODUCTION
IMPORTANT MANUAL INFORMATION
TABLE OF CONTENTS
SAFETY INFORMATION.....................1-1
Further safe-riding points .................1-4
DESCRIPTION.....................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments .................2-3
INSTRUMENT AND CONTROL
FUNCTIONS........................................3-1
Main switch/steering lock .................3-1
Indicator lights ..................................3-2
Speedometer unit .............................3-2
Battery voltage/fuel gauge ...............3-3
Clock .................................................3-4
Anti-theft alarm (optional) .................3-5
Handlebar switches ..........................3-5
Front brake lever...............................3-6
Rear brake lever................................3-6
Fuel tank cap ....................................3-7
Fuel ...................................................3-8
Fuel tank breather/overflow hose .....3-9
Catalytic converter............................3-9
Seat...................................................3-9
Front storage compartment............3-10Storage compartment.....................3-11
Adjusting the shock absorber
assemblies...................................3-12
Sidestand ........................................3-12
Ignition circuit cut-off system .........3-13
PRE-OPERATION CHECKS...............4-1
Pre-operation check list....................4-2
OPERATION AND IMPORTANT RIDING
POINTS................................................5-1
Starting a cold engine ......................5-1
Starting off ........................................5-2
Acceleration and deceleration ..........5-2
Braking..............................................5-2
Tips for reducing fuel consumption..5-3
Engine break-in.................................5-3
Parking ..............................................5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR...................................6-1
Owner’s tool kit .................................6-1
Periodic maintenance and
lubrication chart ............................6-3
Removing and installing panels........6-6
Checking the spark plug ..................6-7
Engine oil ..........................................6-9
Final transmission oil ......................6-11
Coolant ...........................................6-12
Air filter and V-belt case air filter
elements ......................................6-14Adjusting the carburetor .................6-15
Adjusting the throttle cable free
play ..............................................6-15
Valve clearance ...............................6-16
Tires ................................................6-16
Cast wheels ....................................6-18
Front and rear brake lever free
play ..............................................6-19
Checking the front and rear brake
pads.............................................6-19
Checking the brake fluid level ........6-20
Changing the brake fluid ................6-21
Checking and lubricating
the cables ....................................6-21
Lubricating the front and rear brake
levers ...........................................6-22
Checking and lubricating the
centerstand and sidestand .........6-22
Checking the front fork ...................6-23
Checking the steering.....................6-23
Checking the wheel bearings .........6-24
Battery ............................................6-24
Replacing the fuses ........................6-26
Replacing a headlight bulb .............6-27
Replacing a front turn signal
light bulb......................................6-29
Replacing the tail/brake light bulb
or a rear turn signal light bulb .....6-30
Replacing the license plate light
bulb .............................................6-31
Replacing the auxiliary light bulb ...6-31
TABLE OF CONTENTS
5D8-F8199-E0.qxd 1/6/07 16:20 Página 6

EAU10420
Right view
2
DESCRIPTION
2-2
Å
@Å@Å
@Å@
12345
6
7 8

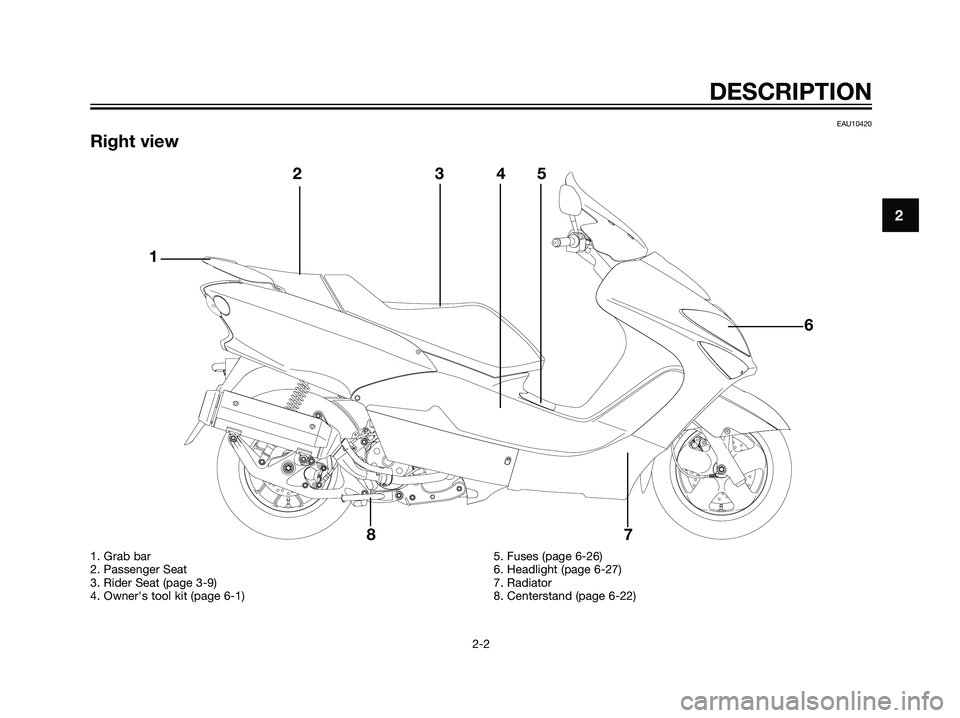

1. Grab bar
2. Passenger Seat
3. Rider Seat (page 3-9)
4. Owner's tool kit (page 6-1)5. Fuses (page 6-26)
6. Headlight (page 6-27)
7. Radiator
8. Centerstand (page 6-22)
5D8-F8199-E0.qxd 1/6/07 16:20 Página 13

2. If the battery will be stored for
more than two months, check the
specific gravity of the electrolyte
at least once a month and fully
charge the battery whenever
necessary.
3. Fully charge the battery before
installation.
4. After installation, make sure that
the battery leads are properly
connected to the battery termi-
nals and that the breather hose is
properly routed, in good condi-
tion, and not obstructed.
ECA10600
CAUTION:
If the breather hose is positioned in
such a way that the frame is expo-
sed to electrolyte or gas expelled
from the battery, the frame could
suffer structural and external
damages.
EAU23630
Replacing the fuses
The main fuse box and the fuse box,
which contains the fuses for the indi-
vidual circuits, are located under
panel B. (See page 6-6.)
If a fuse is blown, replace it as
follows.
1. Turn the key to “
e” and turn off
the electrical circuit in question.
1. Main fuse
2. Radiator fan fuse
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
ECA10640
CAUTION:
Do not use a fuse of a higher ampe-
rage rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire.
Specified fuses:
Main fuse:
20 A
Radiator fan fuse:
4 A
1 2
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-26
5D8-F8199-E0.qxd 1/6/07 16:20 Página 61

12 V, 21.0 W / 5.0 W x 2
Front turn signal light
12 V, 21.0 W x 2
Rear turn signal light
12 V, 10.0 W x 2
License plate light
12 V, 5.0 W x 1
Meter lighting
12 V, 1.2 W x 2
High beam Indicator light
12 V, 1.2 W x 1
Turn signal indicator light
12 V, 1.2 W x 2
Coolant temperature warning light
12 V, 1.2 W x 1
FusesMain fuse
20 A
Radiator fan fuse
4 A
Reserve fuse
20 A
Reserve fuse
4 A
8
SPECIFICATIONS
8-3
5D8-F8199-E0.qxd 1/6/07 16:20 Página 75

AAcceleration and deceleration ...................5-2
Air filter and V-belt case air filter
elements ................................................6-14
Anti-theft alarm (optional) ..........................3-5
Auxiliary light bulb, replacing ...................6-31
BBattery......................................................6-24
Brake fluid level, checking .......................6-20
Brake fluid, changing ...............................6-21
Brake lever, front ........................................3-6
Brake lever, rear .........................................3-6
Brake levers, lubricating ..........................6-22
Braking .......................................................5-2
CCables, checking and lubricating ............6-21
Carburetor,adjusting.................................6-15
Care............................................................7-1
Catalytic converter .....................................3-9
Caution, matte color ..................................7-1
Centerstand and sidestand, checking
and lubricating .......................................6-22
Clock ..........................................................3-4
Coolant.....................................................6-12
Coolant temperature warning light ............3-2
DDimmer switch ...........................................3-5
EEngine break-in ..........................................5-3
Engine oil ...................................................6-9
FFinal transmission oil ...............................6-11
Front and rear brake lever free play.........6-19
Front and rear brake pads, checking ......6-19Front fork, checking .................................6-23
Front Storage compartment ....................3-10
Fuel ............................................................3-8
Fuel consumption, tips for reducing ..........5-3
Fuel tank breather/overflow hose ..............3-9
Fuel tank cap .............................................3-7
Fuses, replacing .......................................6-26
HHandlebar switches ...................................3-5
Hazard switch ............................................3-6
Headlight bulb, replacing .........................6-27
High beam indicator light...........................3-2
Horn switch ................................................3-5
IIdentification numbers ...............................9-1
Ignition circuit cut-off system ..................3-13
Indicator lights ...........................................3-2
KKey identification number ..........................9-1
LLicense plate light bulb, replacing ...........6-31
MMain switch/steering lock ..........................3-1
Model label ................................................9-2
OOil change indicator ...................................3-2
PPanels, removing and installing .................6-6
Parking .......................................................5-4
Part locations .............................................2-1
Periodic maintenance and lubrication
chart .........................................................6-3
Pre-operation check list .............................4-2
SSafe-riding points.......................................1-4
Safety information ......................................1-1
Seat ............................................................3-9
Shock absorber assemblies, adjusting....3-12
Sidestand .................................................3-12
Spark plug, checking .................................6-7
Specifications.............................................8-1
Speedometer unit ......................................3-2
Start switch ................................................3-5
Starting a cold engine ................................5-1
Starting off .................................................5-2
Steering, checking ...................................6-23
Storage.......................................................7-3
Storage compartment ..............................3-11
TTail/brake light bulb or rear turn signal
light bulb, replacing ...............................6-30
Throttle cable free play, adjusting ............6-15
Tires .........................................................6-16
Tool kit ........................................................6-1
Troubleshooting .......................................6-31
Troubleshooting charts ............................6-32
Turn signal indicator lights .........................3-2
Turn signal light bulb (front), replacing ....6-29
Turn signal switch ......................................3-5
VValve clearance ........................................6-16
Vehicle identification number .....................9-1
WWheel bearings, checking........................6-24
Wheels .....................................................6-18
