Indicator lights
1. Alarm indicator light
2. Left turn signal indicator light “c”
3. High beam indicator light “j”
4. Coolant temperature warning light “y”
5. Right turn signal indicator light “d”
EAU11030
Turn signal indicator lights “c” and
“
d”
The corresponding indicator light flas-
hes when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “j”
This indicator light comes on when
the high beam of the headlight is swit-
ched on.
EAUM1070
Oil change indicator
At the initial 500 km (300 mi) and
every 3000 km (1800 mi) thereafter,
the message “CHnGE OIL” appears
in the odometer/clock display to indi-
cate that the engine oil should be
changed. (See page 6-9.)
EAUM1080
Coolant temperature warning light
“
y”
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and
allow the engine to cool.
The electrical circuit of the warning
light can be checked according to the
following procedure.
1. Turn the key to “h”.
2. If the warning light does not
come on, have a Yamaha dealer
check the electrical circuit.
ECA10020
CAUTION:
Do not operate the engine if it is
overheated.
EAUS1361
Speedometer unit
1. "TRIP" button
2. Multi-function display
3. Speedometer
4. Red zone
The speedometer unit is equipped
with the following:
a speedometer (which shows the
riding speed)
ECAS0010
CAUTION:
Do not operate the scooter in the
speedometer red zone.Red zone:
120 km/h (75 mph) and above
an odometer (which shows the
total distance traveled)
a tripmeter (which shows the dis-
tance traveled since it was last
set to zero)
12 3
y
4
y
12345
3
INSTRUMENT AND CONTROL FUNCTIONS
3-2
5D8-F8199-E0.qxd 1/6/07 16:20 Página 16

EAU12331
Anti-theft alarm (optional)
This motorcycle can be equipped
with an optional anti-theft alarm by a
Yamaha dealer. Contact a Yamaha
dealer for more information.
EAU12347

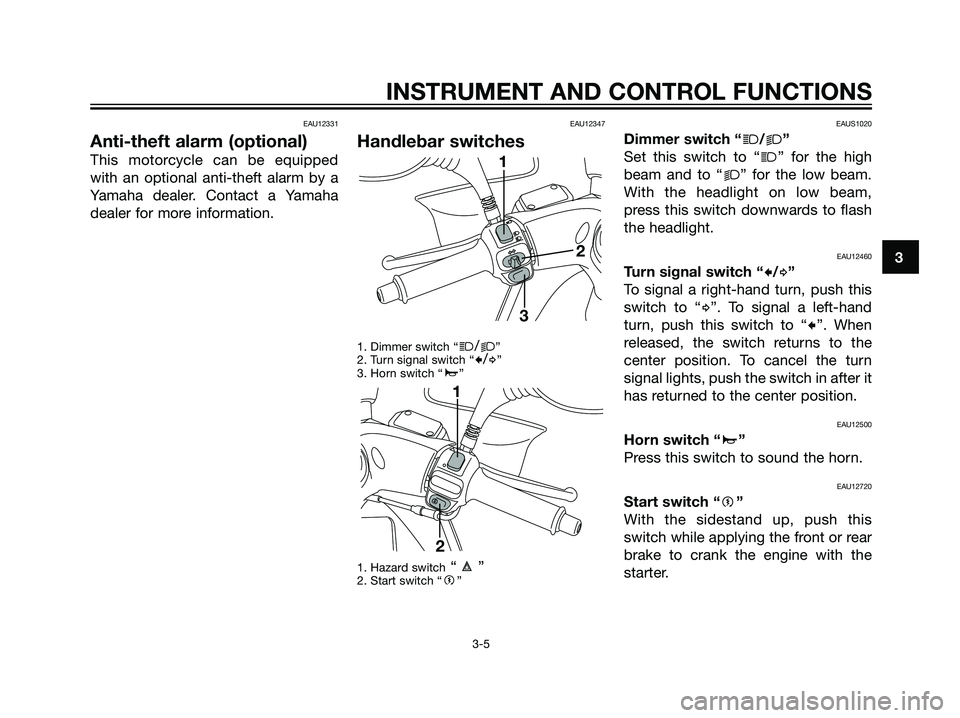

Handlebar switches
1. Dimmer switch “j/k”
2. Turn signal switch “c/d”
3. Horn switch “a”
1. Hazard switch
“”2. Start switch “g”
EAUS1020
Dimmer switch “j/k”
Set this switch to “
j” for the high
beam and to “
k” for the low beam.
With the headlight on low beam,
press this switch downwards to flash
the headlight.
EAU12460
Turn signal switch “c/d”
To signal a right-hand turn, push this
switch to “
d”. To signal a left-hand
turn, push this switch to “
c”. When
released, the switch returns to the
center position. To cancel the turn
signal lights, push the switch in after it
has returned to the center position.
EAU12500
Horn switch “a”
Press this switch to sound the horn.
EAU12720
Start switch “g”
With the sidestand up, push this
switch while applying the front or rear
brake to crank the engine with the
starter.
1
2
1
2
3
3
INSTRUMENT AND CONTROL FUNCTIONS
3-5
5D8-F8199-E0.qxd 1/6/07 16:20 Página 19

3. Turn the key to “f” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.EAUS1370

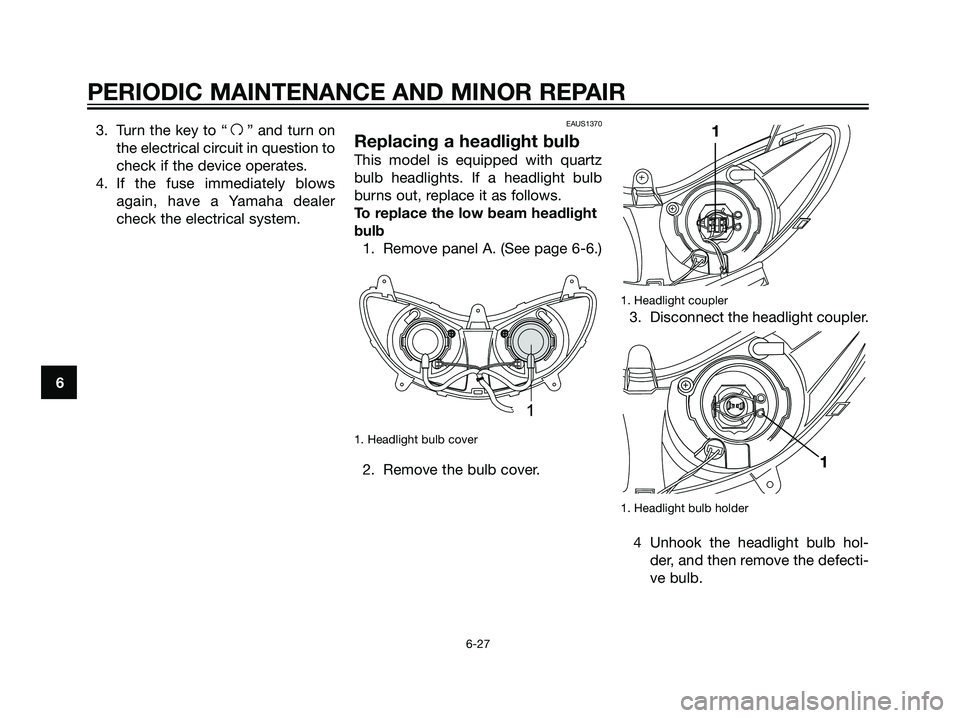

Replacing a headlight bulb
This model is equipped with quartz
bulb headlights. If a headlight bulb
burns out, replace it as follows.
To replace the low beam headlight
bulb
1. Remove panel A. (See page 6-6.)
1. Headlight bulb cover
2. Remove the bulb cover.
1. Headlight coupler
3. Disconnect the headlight coupler.
1. Headlight bulb holder
4 Unhook the headlight bulb hol-
der, and then remove the defecti-
ve bulb.
1
1
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
5D8-F8199-E0.qxd 1/6/07 16:20 Página 62
