once a month and fully charge it if
necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
NOTICE

ECA16530
Always keep the battery charged.
Storing a discharged battery can
cause permanent battery damage.
EAU48670

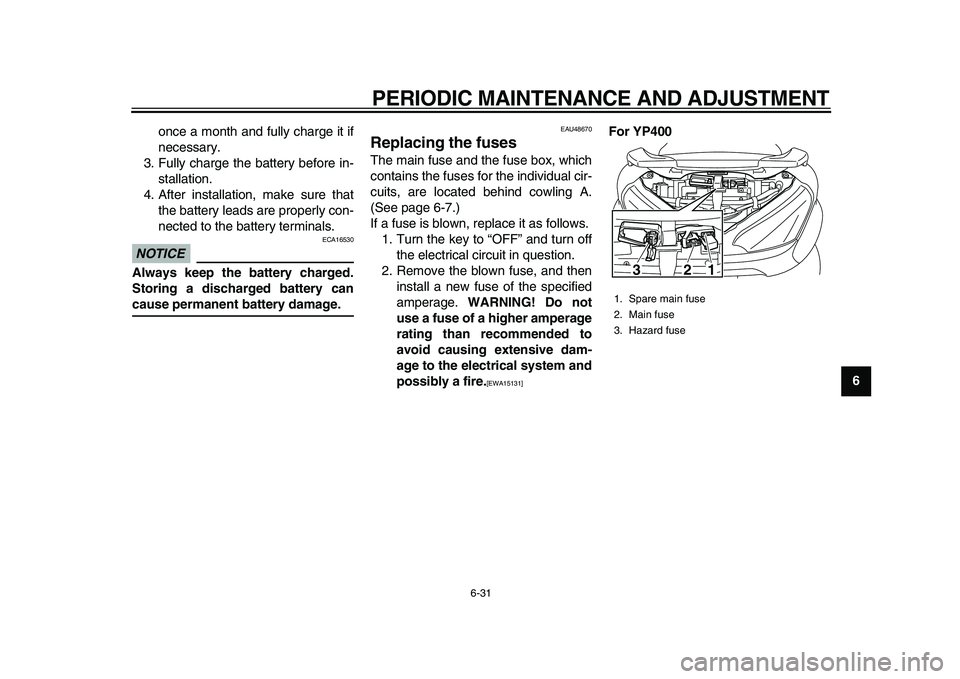

Replacing the fuses
The main fuse and the fuse box, which
contains the fuses for the individual cir-
cuits, are located behind cowling A.
(See page 6-7.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15131]

For YP400
1. Spare main fuse
2. Main fuse
3. Hazard fuse
1
3
2

PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
1
2
3
4
5
6
7
8
9For YP400A For YP400
For YP400AFor YP400

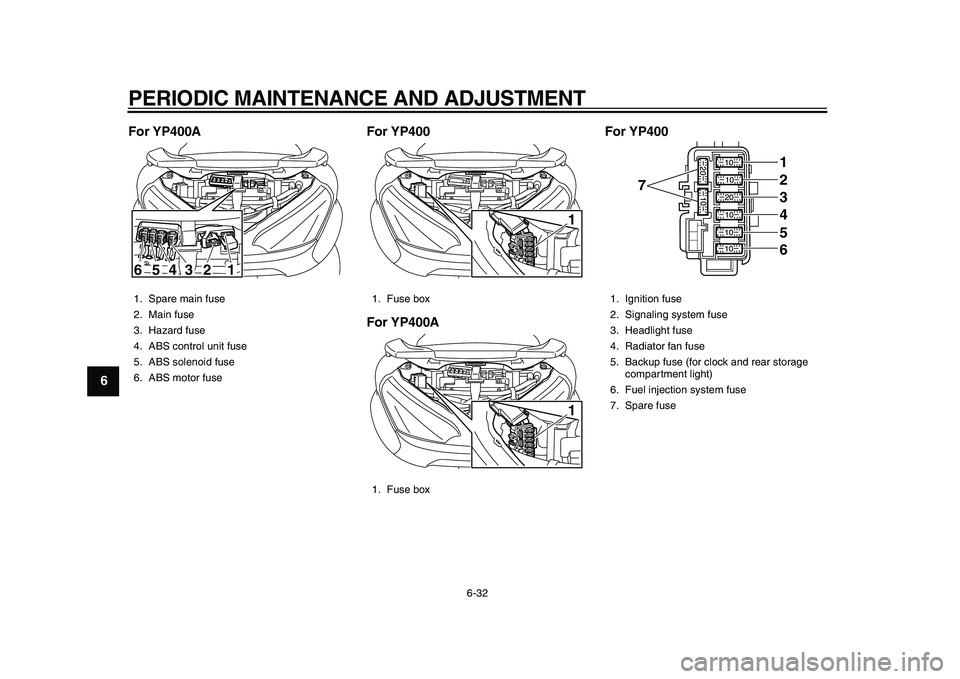

1. Spare main fuse
2. Main fuse
3. Hazard fuse
4. ABS control unit fuse
5. ABS solenoid fuse
6. ABS motor fuse
1
3
2
4
5
6

1. Fuse box
1. Fuse box
11

1. Ignition fuse
2. Signaling system fuse
3. Headlight fuse
4. Radiator fan fuse
5. Backup fuse (for clock and rear storage
compartment light)
6. Fuel injection system fuse
7. Spare fuse
7
123456
