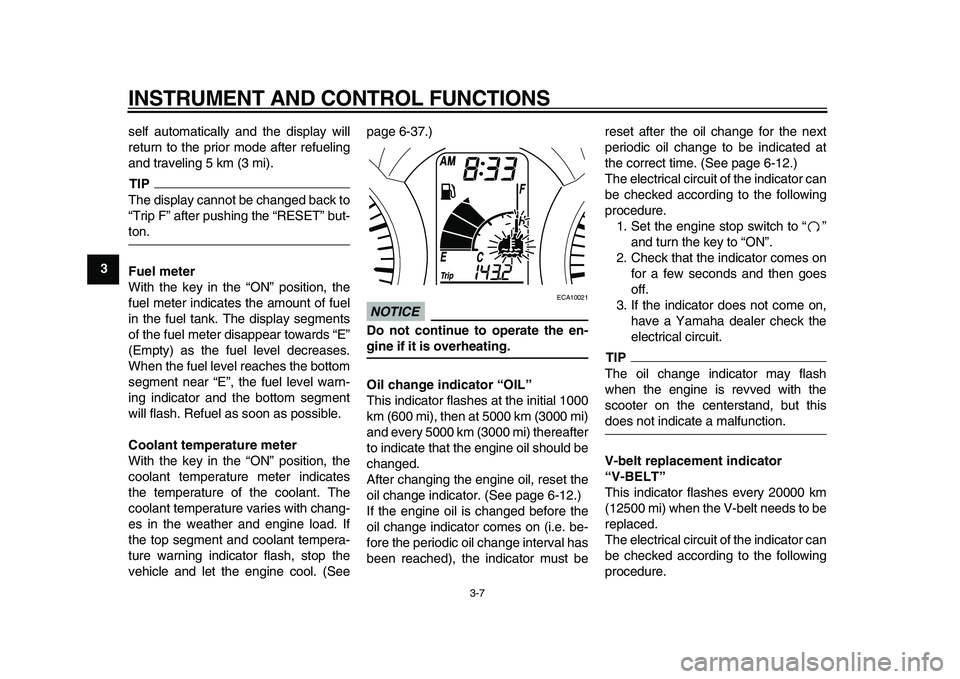

INSTRUMENT AND CONTROL FUNCTIONS
3-7
1
2
3
4
5
6
7
8
9
self automatically and the display will
return to the prior mode after refueling
and traveling 5 km (3 mi).
TIP

The display cannot be changed back to
“Trip F” after pushing the “RESET” but-
ton.
Fuel meter
With the key in the “ON” position, the
fuel meter indicates the amount of fuel
in the fuel tank. The display segments
of the fuel meter disappear towards “E”
(Empty) as the fuel level decreases.
When the fuel level reaches the bottom
segment near “E”, the fuel level warn-
ing indicator and the bottom segment
will flash. Refuel as soon as possible.
Coolant temperature meter
With the key in the “ON” position, the
coolant temperature meter indicates
the temperature of the coolant. The
coolant temperature varies with chang-
es in the weather and engine load. If
the top segment and coolant tempera-
ture warning indicator flash, stop the
vehicle and let the engine cool. (Seepage 6-37.)
NOTICE

ECA10021
Do not continue to operate the en-
gine if it is overheating.
Oil change indicator “OIL”
This indicator flashes at the initial 1000
km (600 mi), then at 5000 km (3000 mi)
and every 5000 km (3000 mi) thereafter
to indicate that the engine oil should be
changed.
After changing the engine oil, reset the
oil change indicator. (See page 6-12.)
If the engine oil is changed before the
oil change indicator comes on (i.e. be-
fore the periodic oil change interval has
been reached), the indicator must bereset after the oil change for the next
periodic oil change to be indicated at
the correct time. (See page 6-12.)
The electrical circuit of the indicator can
be checked according to the following
procedure.
1. Set the engine stop switch to “”
and turn the key to “ON”.
2. Check that the indicator comes on
for a few seconds and then goes
off.
3. If the indicator does not come on,
have a Yamaha dealer check the
electrical circuit.
TIP

The oil change indicator may flash
when the engine is revved with the
scooter on the centerstand, but this
does not indicate a malfunction.
V-belt replacement indicator
“V-BELT”
This indicator flashes every 20000 km
(12500 mi) when the V-belt needs to be
replaced.
The electrical circuit of the indicator can
be checked according to the following
procedure.

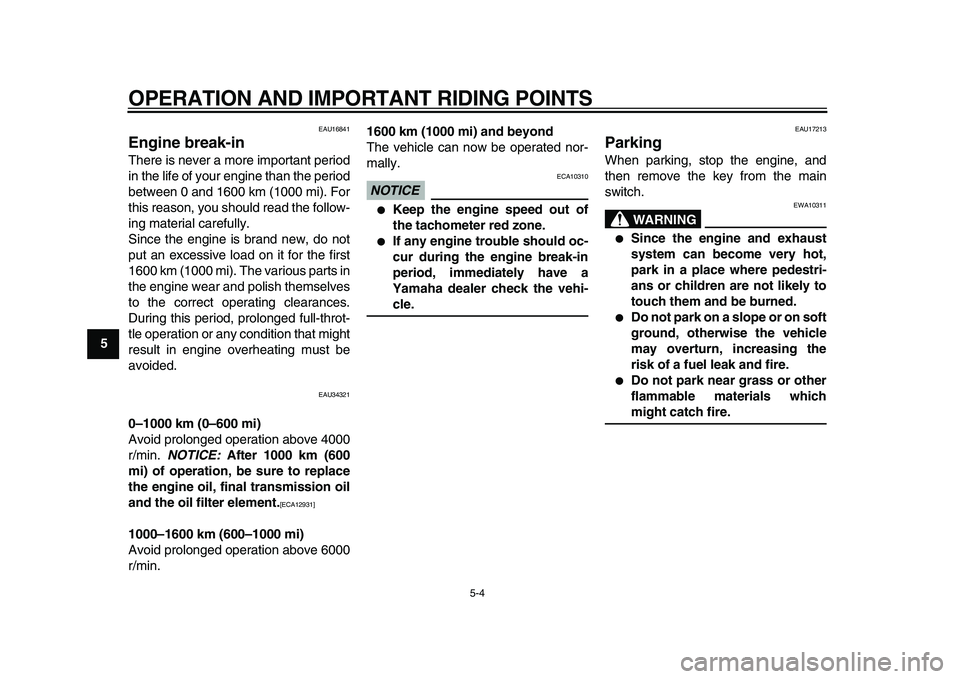

OPERATION AND IMPORTANT RIDING POINTS
5-4
1
2
3
4
5
6
7
8
9

EAU16841
Engine break-in
There is never a more important period
in the life of your engine than the period
between 0 and 1600 km (1000 mi). For
this reason, you should read the follow-
ing material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that might
result in engine overheating must be
avoided.
EAU34321
0–1000 km (0–600 mi)
Avoid prolonged operation above 4000
r/min.
NOTICE:
After 1000 km (600
mi) of operation, be sure to replace
the engine oil, final transmission oil
and the oil filter element.

[ECA12931]

1000–1600 km (600–1000 mi)
Avoid prolonged operation above 6000
r/min.
1600 km (1000 mi) and beyond
The vehicle can now be operated nor-
mally.
NOTICE

ECA10310

Keep the engine speed out of
the tachometer red zone.

If any engine trouble should oc-
cur during the engine break-in
period, immediately have a
Yamaha dealer check the vehi-
cle.
EAU17213
Parking
When parking, stop the engine, and
then remove the key from the main
switch.
WARNING

EWA10311

Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them and be burned.

Do not park on a slope or on soft
ground, otherwise the vehicle
may overturn, increasing the
risk of a fuel leak and fire.

Do not park near grass or other
flammable materials which
might catch fire.

PERIODIC MAINTENANCE AND ADJUSTMENT
6-38
1
2
3
4
5
6
7
8

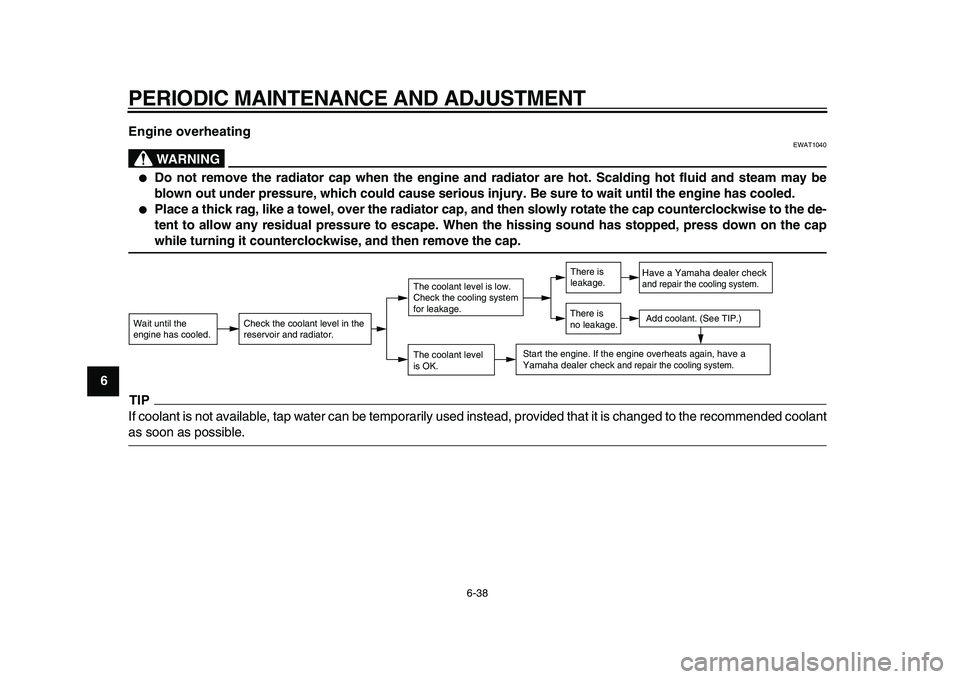

9Engine overheating
WARNING

EWAT1040

Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.

Place a thick rag, like a towel, over the radiator cap, and then slowly rotate the cap counterclockwise to the de-
tent to allow any residual pressure to escape. When the hissing sound has stopped, press down on the cap
while turning it counterclockwise, and then remove the cap.
TIP

If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolant
as soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
