ESP YAMAHA MT-01 2005 Owners Manual

SAFETY INFORMATION
1-3
1Loading
The total weight of the operator, pas-
senger, accessories and cargo must
not exceed the maximum load limit.
When loading within this weight limit,
keep the following in mind:

Cargo and accessory weight
should be kept as low and close to
the motorcycle as possible. Make
sure to distribute the weight as
evenly as possible on both sides of
the motorcycle to minimize imbal-
ance or instability.


Shifting weights can create a sud-
den imbalance. Make sure that ac-
cessories and cargo are securely
attached to the motorcycle before
riding. Check accessory mounts
and cargo restraints frequently.


Never attach any large or heavy
items to the handlebar, front fork,
or front fender. These items, in-
cluding such cargo as sleepingbags, duffel bags, or tents, can
create unstable handling or a slow
steering response.
Accessories
Genuine Yamaha accessories have
been specifically designed for use on
this motorcycle. Since Yamaha cannot
test all other accessories that may be
available, you must personally be re-
sponsible for the proper selection, in-
stallation and use of non-Yamaha
accessories. Use extreme caution
when selecting and installing any ac-
cessories.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.

Never install accessories or carry
cargo that would impair the perfor-
mance of your motorcycle. Care-
fully inspect the accessory before
using it to make sure that it does
not in any way reduce ground
clearance or cornering clearance,limit suspension travel, steering
travel or control operation, or ob-
scure lights or reflectors.
Accessories fitted to the handle-
bar or the front fork area can
create instability due to improper
weight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.
Bulky or large accessories may
seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may at-
tempt to lift the motorcycle, or
the motorcycle may become un-
stable in cross winds. These ac-
cessories may also cause
instability when passing or being
passed by large vehicles.
Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the free-
dom of movement of the opera-
Maximum load:
202 kg (445 lb)
U5YUE0E0.book Page 3 Monday, November 15, 2004 8:48 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3 To unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.
WARNING
EWA10060
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped be-
fore turning the key to “OFF” or“LOCK”.
EAU10940
(Parking)
The steering is locked, and the taillight,
license plate light and auxiliary lights
are on. The hazard light and turn signal
lights can be turned on, but all other
electrical systems are off. The key can
be removed.
The steering must be locked before the
key can be turned to “”.
CAUTION:
ECA11020
Do not use the parking position for
an extended length of time, other-wise the battery may discharge.
EAU11002
Indicator and warning lights
EAU11030
Turn signal indicator lights “” and
“”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU11060
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
1. Push.
2. Turn.
1. Engine trouble warning light “”
2. Left turn signal indicator light “”
3. Neutral indicator light “”
4. Immobilizer system indicator light
5. Fuel level warning light “”
6. Right turn signal indicator light “”
7. High beam indicator light “”
U5YUE0E0.book Page 3 Monday, November 15, 2004 8:48 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-16
3Rebound damping force
To increase the rebound damping force
and thereby harden the rebound damp-
ing, turn the adjusting screw on each
fork leg in direction (a). To decrease the
rebound damping force and thereby
soften the rebound damping, turn the
adjusting screw on each fork leg in di-
rection (b).Compression damping force
To increase the compression damping
force and thereby harden the compres-
sion damping, turn the adjusting screw
on each fork leg in direction (a). To de-
crease the compression damping force
and thereby soften the compression
damping, turn the adjusting screw on
each fork leg in direction (b).
CAUTION:
ECA10100
Never attempt to turn an adjusting
mechanism beyond the maximum orminimum settings.NOTE:Although the total number of clicks of a
damping force adjusting mechanism
may not exactly match the above spec-
ifications due to small differences in
production, the actual number of clicks
always represents the entire adjusting
range. To obtain a precise adjustment,
it would be advisable to check the num-
ber of clicks of each damping force ad-
justing mechanism and to modify thespecifications as necessary.
1. Rebound damping force adjusting screwRebound damping setting:
Minimum (soft):
17 click(s) in direction (b)*
Standard:
15 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting screw fully turned
in direction (a)
1. Compression damping force adjusting screwCompression damping setting:
Minimum (soft):
16 click(s) in direction (b)*
Standard:
7 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting screw fully turned
in direction (a)
U5YUE0E0.book Page 16 Monday, November 15, 2004 8:48 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-17
3
EAU36751
Adjusting the shock absorber
assembly This shock absorber assembly is
equipped with a spring preload adjust-
ing nut, a rebound damping force ad-
justing knob and a compression
damping force adjusting screw.CAUTION:
ECA10100
Never attempt to turn an adjusting
mechanism beyond the maximum orminimum settings.
Spring preload
Adjust the spring preload as follows.
1. Loosen the locknut.2. To increase the spring preload and
thereby harden the suspension,
turn the adjusting nut in direction
(a). To decrease the spring pre-
load and thereby soften the sus-
pension, turn the adjusting nut in
direction (b).
NOTE:The spring preload setting is deter-
mined by measuring distance A, shown
in the illustration. The longer distance A
is, the lower the spring preload; the
shorter distance A is, the higher thespring preload.3. Tighten the locknut to the specified
torque.
1. Locknut
2. Spring preload adjusting nut
1. Special wrench
1. Distance A
Spring preload:
Minimum (soft):
Distance A = 155.0 mm (6.10 in)
Standard:
Distance A = 150.0 mm (5.91 in)
Maximum (hard):
Distance A = 145.0 mm (5.71 in)
Tightening torque:
Locknut:
42 Nm (4.2 m·kgf, 30 ft·lbf)
U5YUE0E0.book Page 17 Monday, November 15, 2004 8:48 AM

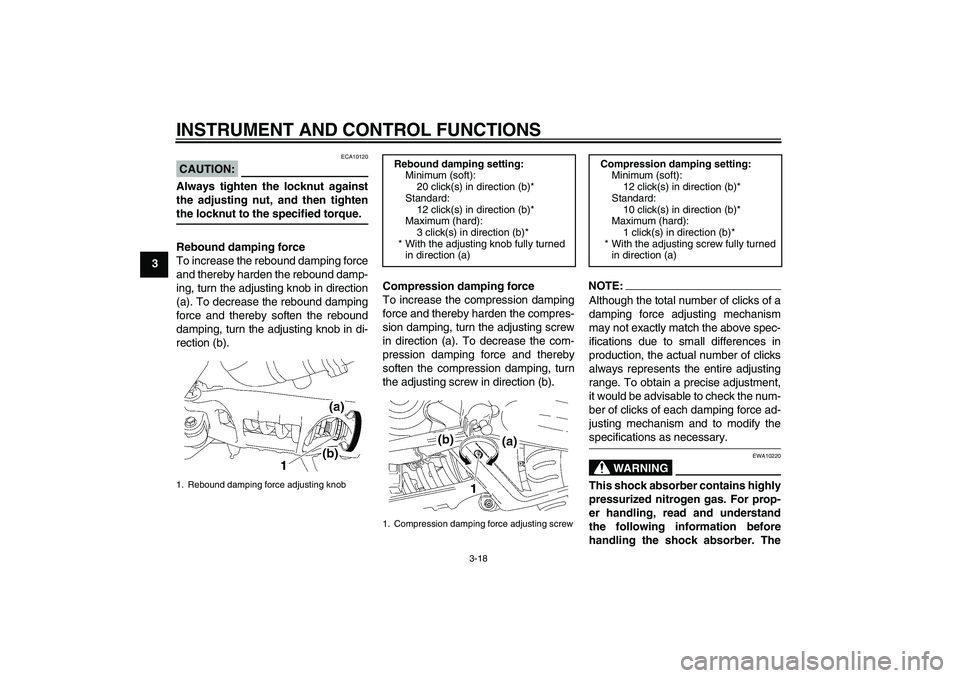

INSTRUMENT AND CONTROL FUNCTIONS
3-18
3
CAUTION:
ECA10120
Always tighten the locknut against
the adjusting nut, and then tightenthe locknut to the specified torque.
Rebound damping force
To increase the rebound damping force
and thereby harden the rebound damp-
ing, turn the adjusting knob in direction
(a). To decrease the rebound damping
force and thereby soften the rebound
damping, turn the adjusting knob in di-
rection (b).Compression damping force
To increase the compression damping
force and thereby harden the compres-
sion damping, turn the adjusting screw
in direction (a). To decrease the com-
pression damping force and thereby
soften the compression damping, turn
the adjusting screw in direction (b).
NOTE:
Although the total number of clicks of a
damping force adjusting mechanism
may not exactly match the above spec-
ifications due to small differences in
production, the actual number of clicks
always represents the entire adjusting
range. To obtain a precise adjustment,
it would be advisable to check the num-
ber of clicks of each damping force ad-
justing mechanism and to modify thespecifications as necessary.
WARNING
EWA10220
This shock absorber contains highly
pressurized nitrogen gas. For prop-
er handling, read and understand
the following information before
handling the shock absorber. The
1. Rebound damping force adjusting knob
Rebound damping setting:
Minimum (soft):
20 click(s) in direction (b)*
Standard:
12 click(s) in direction (b)*
Maximum (hard):
3 click(s) in direction (b)*
* With the adjusting knob fully turned
in direction (a)1. Compression damping force adjusting screw
Compression damping setting:
Minimum (soft):
12 click(s) in direction (b)*
Standard:
10 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting screw fully turned
in direction (a)
U5YUE0E0.book Page 18 Monday, November 15, 2004 8:48 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-20
3
EAU15301
Sidestand The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.NOTE:The built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See further down for an explanation ofthe ignition circuit cut-off system.)
WARNING
EWA10240
The vehicle must not be ridden with
the sidestand down, or if the side-
stand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the respon-
sibility of raising the sidestand be-
fore starting off. Therefore, check
this system regularly as describedbelow and have a Yamaha dealer re-
pair it if it does not function proper-
ly.
EAU15311
Ignition circuit cut-off system The ignition circuit cut-off system (com-
prising the sidestand switch, clutch
switch and neutral switch) has the fol-
lowing functions.

It prevents starting when the trans-
mission is in gear and the side-
stand is up, but the clutch lever is
not pulled.


It prevents starting when the trans-
mission is in gear and the clutch le-
ver is pulled, but the sidestand is
still down.


It cuts the running engine when the
transmission is in gear and the sid-
estand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.WARNING
EWA10250
If a malfunction is noted, have a
Yamaha dealer check the system be-fore riding.
U5YUE0E0.book Page 20 Monday, November 15, 2004 8:48 AM

PRE-OPERATION CHECKS
4-1
4
EAU15591
The condition of a vehicle is the owner’s responsibility. Vital components can start to deteriorate quickly and unexpectedly,
even if the vehicle remains unused (for example, as a result of exposure to the elements). Any damage, fluid leakage or loss
of tire air pressure could have serious consequences. Therefore, it is very important, in addition to a thorough visual inspec-
tion, to check the following points before each ride.NOTE:Pre-operation checks should be made each time the vehicle is used. Such an inspection can be accomplished in a very shorttime; and the added safety it assures is more than worth the time involved.
WARNING
EWA11150
If any item in the Pre-operation check list is not working properly, have it inspected and repaired before operatingthe vehicle.U5YUE0E0.book Page 1 Monday, November 15, 2004 8:48 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-18
64. If the drive chain slack is incorrect,
adjust it as follows.
EAU34311
To adjust the drive chain slack
1. Loosen the axle nut and the lock-
nut on each side of the swingarm.2. To tighten the drive chain, turn the
adjusting bolt on each side of the
swingarm in direction (a). To loos-
en the drive chain, turn the adjust-
ing bolt on each side of the
swingarm in direction (b), and then
push the rear wheel forward.
NOTE:Using the alignment marks on each
side of the swingarm, make sure that
both chain pullers are in the same posi-tion for proper wheel alignment.
CAUTION:
ECA10570
Improper drive chain slack will over-
load the engine as well as other vital
parts of the motorcycle and can lead
to chain slippage or breakage. To
prevent this from occurring, keep
the drive chain slack within thespecified limits.
3. Tighten the locknuts, then the axle
nut to their specified torques.
1. Drive chain slack
1. Axle nut
2. Drive chain slack adjusting bolt
3. Locknut
4. Alignment marks
Tightening torques:
Locknut:
16 Nm (1.6 m·kgf, 12 ft·lbf)
Axle nut:
150 Nm (15.0 m·kgf, 108 ft·lbf)
U5YUE0E0.book Page 18 Monday, November 15, 2004 8:48 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-19
6
EAU23022
Cleaning and lubricating the
drive chain The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly wear
out, especially when riding in dusty or
wet areas. Service the drive chain as
follows.CAUTION:
ECA10581
The drive chain must be lubricated
after washing the motorcycle andriding in the rain.
1. Clean the drive chain with kero-
sene and a small soft brush.CAUTION:
ECA11120
To prevent damaging the O-rings, do
not clean the drive chain with steam
cleaners, high-pressure washers orinappropriate solvents.
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive
chain with a special O-ring chain
lubricant.
CAUTION:
ECA11110
Do not use engine oil or any other lu-
bricants for the drive chain, as they
may contain substances that coulddamage the O-rings.
EAU23100
Checking and lubricating the
cables The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
WARNING
EWA10720
Damage to the outer sheath may in-
terfere with proper cable operation
and will cause the inner cable to
rust. Replace a damaged cable as
soon as possible to prevent unsafeconditions.
Recommended lubricant:
Engine oil
U5YUE0E0.book Page 19 Monday, November 15, 2004 8:48 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
6
NOTE:
Skip steps 2 and 7 if the auxiliary lightbulb A is being replaced.
2. To replace auxiliary light bulb B or
C, remove the corresponding
headlight unit side cover bracket
and the headlight unit side cover
by removing the screws.3. Remove the socket (together with
the bulb) by turning it counter-
clockwise.
4. Remove the defective bulb by pull-
ing it out.5. Insert a new bulb into the socket.
6. Install the socket (together with the
bulb) by turning it clockwise.
7. Install the headlight unit side cover
and the headlight unit side cover
bracket by installing the screws.
8. Install the headlight unit by install-
ing the bolts.1. Bolt
1. Screw
2. Headlight unit side cover bracket
3. Headlight unit side cover
1. Auxiliary light bulb socket
1. Auxiliary light bulb
U5YUE0E0.book Page 31 Monday, November 15, 2004 8:48 AM
