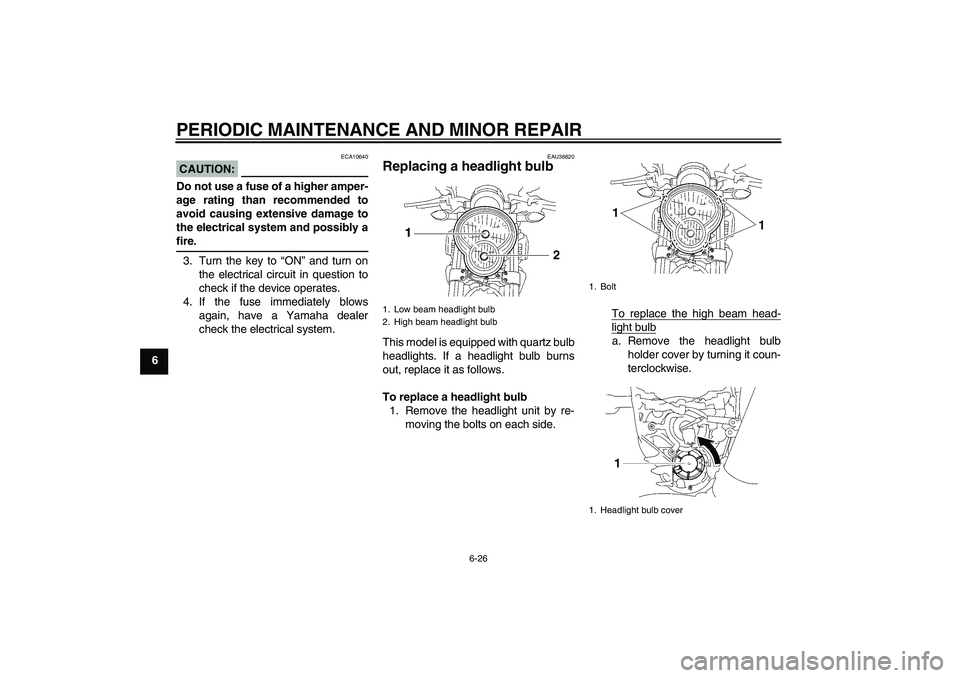

PERIODIC MAINTENANCE AND MINOR REPAIR
6-26
6
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU36820
Replacing a headlight bulb This model is equipped with quartz bulb
headlights. If a headlight bulb burns
out, replace it as follows.
To replace a headlight bulb
1. Remove the headlight unit by re-
moving the bolts on each side.To replace the high beam head-
light bulba. Remove the headlight bulb
holder cover by turning it coun-
terclockwise.
1. Low beam headlight bulb
2. High beam headlight bulb
1. Bolt
1. Headlight bulb cover
U5YUE0E0.book Page 26 Monday, November 15, 2004 8:48 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
6 b. Disconnect the headlight cou-
pler, and then unhook the
headlight bulb holder.
c. Remove the defective bulb.
WARNING
EWA10790
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooleddown.
d. Place a new headlight bulb into
position, and then secure it with
the bulb holder.
CAUTION:
ECA10650
Take care not to damage the follow-
ing parts:

Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.


Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of awattage higher than specified.e. Connect the coupler, and then
install the headlight bulb holder
cover by turning it clockwise.
To replace the low beam headlight
bulba. Disconnect the headlight cou-
pler, and then remove the de-
fective bulb by turning it
counterclockwise.
1. Headlight coupler
2. Headlight bulb holder
1. Do not touch the glass part of the bulb.
U5YUE0E0.book Page 27 Monday, November 15, 2004 8:48 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
6
WARNING
EWA10790
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooleddown.
b. Install the bulb by turning it
clockwise.CAUTION:
ECA10650
Take care not to damage the follow-
ing parts:


Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.


Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of awattage higher than specified.c. Connect the headlight coupler.
2. Install the headlight unit by install-
ing the bolts.
3. Have a Yamaha dealer adjust the
headlight beam if necessary.
1. Headlight coupler
2. Headlight bulb
1. Do not touch the glass part of the bulb.
U5YUE0E0.book Page 28 Monday, November 15, 2004 8:48 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
63. Remove the defective bulb by pull-
ing it out from the socket.
4. Insert a new bulb into the socket.
5. Install the license plate light lens
by installing the screws.6. Install the license plate light cover
by installing the screws.
EAU36840
Replacing an auxiliary light
bulb This model is equipped with three aux-
iliary lights. If an auxiliary light bulb
burns out, replace it as follows.
1. Remove the headlight unit by re-
moving the bolts on each side.
1. Screw
2. License plate light lens
1. License plate light bulb
1. Auxiliary light bulb A
2. Auxiliary light bulb B
3. Auxiliary light bulb C
U5YUE0E0.book Page 30 Monday, November 15, 2004 8:48 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
6
NOTE:
Skip steps 2 and 7 if the auxiliary lightbulb A is being replaced.
2. To replace auxiliary light bulb B or
C, remove the corresponding
headlight unit side cover bracket
and the headlight unit side cover
by removing the screws.3. Remove the socket (together with
the bulb) by turning it counter-
clockwise.
4. Remove the defective bulb by pull-
ing it out.5. Insert a new bulb into the socket.
6. Install the socket (together with the
bulb) by turning it clockwise.
7. Install the headlight unit side cover
and the headlight unit side cover
bracket by installing the screws.
8. Install the headlight unit by install-
ing the bolts.1. Bolt
1. Screw
2. Headlight unit side cover bracket
3. Headlight unit side cover
1. Auxiliary light bulb socket
1. Auxiliary light bulb
U5YUE0E0.book Page 31 Monday, November 15, 2004 8:48 AM

SPECIFICATIONS
8-2
8
Front tire:Type:
Tubeless
Size:
120/70 ZR17 M/C (58W)
Manufacturer/model:
METZELER/MEZ4JRear tire:Type:
Tubeless
Size:
190/50 ZR17 M/C (73W)
Manufacturer/model:
METZELER/MEZ4Loading:Maximum load:
202 kg (445 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
Loading condition:
90–202 kg (198–445 lb)
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)High-speed riding:
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
Front wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT3.50Rear wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT6.00Front brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damperWheel travel:
120.0 mm (4.72 in)
Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
117.0 mm (4.61 in)Electrical system:Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magnetoBattery:Model:
GT14B-4
Voltage, capacity:
12 V, 12.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Low beam headlight:
12 V, 51.0 W × 1
High beam headlight:
12 V, 55.0 W × 1
Tail/brake light:
LED
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
U5YUE0E0.book Page 2 Monday, November 15, 2004 8:48 AM

INDEX
AAnti-theft alarm (optional) ....................... 3-8
Auxiliary light bulb, replacing ................ 6-30BBattery .................................................. 6-23
Brake and clutch fluid levels,
checking ............................................. 6-16
Brake and clutch fluids, changing ......... 6-17
Brake and clutch levers, checking and
lubricating ........................................... 6-21
Brake and shift pedals, checking and
lubricating ........................................... 6-20
Brake lever ........................................... 3-11
Brake pedal .......................................... 3-12CCables, checking and lubricating .......... 6-19
Care ........................................................ 7-1
Catalytic converter ................................ 3-14
Clutch lever.................................. 3-10, 6-14
Cowling, removing and installing ............ 6-5DDimmer switch ........................................ 3-9
Drive chain, cleaning and lubricating .... 6-19
Drive chain slack .................................. 6-17EEngine break-in ...................................... 5-3
Engine oil and oil filter cartridge ............. 6-7
Engine stop switch.................................. 3-9
Engine trouble warning light ................... 3-4
EXUP system ....................................... 3-19FFront and rear brake pads, checking .... 6-15
Front fork, adjusting .............................. 3-15
Front fork, checking .............................. 6-22Fuel ....................................................... 3-13
Fuel consumption, tips for reducing ........ 5-3
Fuel level warning light............................ 3-4
Fuel tank breather/overflow hose .......... 3-14
Fuel tank cap......................................... 3-12
Fuses, replacing .................................... 6-25
HHandlebar switches ................................. 3-9
Hazard switch........................................ 3-10
Headlight bulb, replacing....................... 6-26
High beam indicator light......................... 3-4
Horn switch ............................................. 3-9IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-20
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-4
Indicator and warning lights .................... 3-3KKey identification number ........................ 9-1LLicense plate light bulb, replacing ......... 6-29
Luggage strap holders .......................... 3-19MMain switch/steering lock ........................ 3-2
Model label .............................................. 9-2
Multi-function display...............................3-5NNeutral indicator light .............................. 3-3PParking ....................................................5-4
Part locations .......................................... 2-1
Pass switch ............................................. 3-9Periodic maintenance and lubrication
chart...................................................... 6-2
Pre-operation check list .......................... 4-2
RRear brake light switch, adjusting ......... 6-15SSafety information ................................... 1-1
Seat ...................................................... 3-14
Shifting .................................................... 5-2
Shift pedal ............................................. 3-11
Shock absorber assembly, adjusting .... 3-17
Sidestand .............................................. 3-20
Sidestand, checking and lubricating ..... 6-21
Spark plugs, checking............................. 6-6
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Start switch ............................................. 3-9
Steering, checking ................................ 6-22
Storage ................................................... 7-3
Supporting the motorcycle .................... 6-32TTail/brake light ...................................... 6-29
Throttle cable free play, checking ......... 6-11
Throttle grip and cable, checking and
lubricating ........................................... 6-20
Tires ...................................................... 6-11
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-32
Troubleshooting chart ........................... 6-33
Turn signal indicator lights ...................... 3-3
Turn signal light bulb, replacing ............ 6-29
Turn signal switch ................................... 3-9VValve clearance .................................... 6-11
U5YUE0E0.book Page 1 Monday, November 15, 2004 8:48 AM
