SPECIFICATIONS
8-2
8
Front tire:Type:
Tubeless
Size:
120/70 ZR17 M/C (58W)
Manufacturer/model:
METZELER/MEZ4JRear tire:Type:
Tubeless
Size:
190/50 ZR17 M/C (73W)
Manufacturer/model:
METZELER/MEZ4Loading:Maximum load:
202 kg (445 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
Loading condition:
90–202 kg (198–445 lb)
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)High-speed riding:
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
Front wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT3.50Rear wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT6.00Front brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damperWheel travel:
120.0 mm (4.72 in)
Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
117.0 mm (4.61 in)Electrical system:Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magnetoBattery:Model:
GT14B-4
Voltage, capacity:
12 V, 12.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Low beam headlight:
12 V, 51.0 W × 1
High beam headlight:
12 V, 55.0 W × 1
Tail/brake light:
LED
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
U5YUE1E0.book Page 2 Tuesday, September 13, 2005 4:13 PM

SPECIFICATIONS
8-3
8
Auxiliary light:
12 V, 5.0 W × 3
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Turn signal indicator light:
LED
Fuel level warning light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LEDFuses:Main fuse:
50.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
25.0 A
Parking lighting fuse:
10.0 A
Muffler cover fan fuse:
15.0 A
ECU fuse:
10.0 AFuel injection system fuse:
15.0 A
Backup fuse:
10.0 A
Auto-decompression fuse:
15.0 A
U5YUE1E0.book Page 3 Tuesday, September 13, 2005 4:13 PM

CONSUMER INFORMATION
9-1
9
EAU26351
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in yourarea.
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
1. Vehicle identification number
U5YUE1E0.book Page 1 Tuesday, September 13, 2005 4:13 PM

CONSUMER INFORMATION
9-2
9
EAU26480
Model label
The model label is affixed to the frame
under the seat. (See page 3-14.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.1. Model labelU5YUE1E0.book Page 2 Tuesday, September 13, 2005 4:13 PM

INDEX
AAnti-theft alarm (optional) ....................... 3-8
Auxiliary light bulb, replacing ................ 6-30BBattery .................................................. 6-23
Brake and clutch fluid levels,
checking ............................................. 6-16
Brake and clutch fluids, changing ......... 6-17
Brake and clutch levers,
checking and lubricating ..................... 6-21
Brake and shift pedals,
checking and lubricating ..................... 6-20
Brake lever ........................................... 3-11
Brake pedal .......................................... 3-12CCables, checking and lubricating .......... 6-19
Care ........................................................ 7-1
Catalytic converter ................................ 3-14
Clutch lever.................................. 3-10, 6-14
Cowling, removing and installing ............ 6-5DDimmer switch ........................................ 3-9
Drive chain, cleaning and
lubricating ........................................... 6-19
Drive chain slack .................................. 6-17EEngine break-in ...................................... 5-3
Engine oil and oil filter cartridge ............. 6-7
Engine stop switch.................................. 3-9
Engine trouble warning light ................... 3-4
EXUP system ....................................... 3-19FFront and rear brake pads,
checking ............................................. 6-15Front fork, adjusting .............................. 3-15
Front fork, checking...............................6-22
Fuel ....................................................... 3-13
Fuel consumption, tips for reducing ........ 5-3
Fuel level warning light............................ 3-4
Fuel tank breather/overflow hose .......... 3-14
Fuel tank cap......................................... 3-12
Fuses, replacing .................................... 6-25
HHandlebar switches ................................. 3-9
Hazard switch........................................ 3-10
Headlight bulb, replacing....................... 6-26
High beam indicator light......................... 3-4
Horn switch ............................................. 3-9IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-20
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-4
Indicator and warning lights .................... 3-3KKey identification number ........................ 9-1LLicense plate light bulb, replacing ......... 6-29
Luggage strap holders .......................... 3-19MMain switch/steering lock ........................ 3-2
Model label .............................................. 9-2
Multi-function display...............................3-5NNeutral indicator light .............................. 3-3PParking ....................................................5-4
Part locations .......................................... 2-1Pass switch ............................................. 3-9
Periodic maintenance and
lubrication chart .................................... 6-2
Pre-operation check list .......................... 4-2
RRear brake light switch, adjusting ......... 6-15SSafety information ................................... 1-1
Seat ...................................................... 3-14
Shifting .................................................... 5-2
Shift pedal ............................................. 3-11
Shock absorber assembly, adjusting .... 3-17
Sidestand .............................................. 3-20
Sidestand, checking and lubricating ..... 6-21
Spark plugs, checking............................. 6-6
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Start switch ............................................. 3-9
Steering, checking ................................ 6-22
Storage ................................................... 7-3
Supporting the motorcycle .................... 6-32TTail/brake light ...................................... 6-29
Throttle cable free play, checking ......... 6-11
Throttle grip and cable,
checking and lubricating ..................... 6-20
Tires ...................................................... 6-11
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-32
Troubleshooting chart ........................... 6-33
Turn signal indicator lights ...................... 3-3
Turn signal light bulb, replacing ............ 6-29
Turn signal switch ................................... 3-9
U5YUE1E0.book Page 1 Tuesday, September 13, 2005 4:13 PM

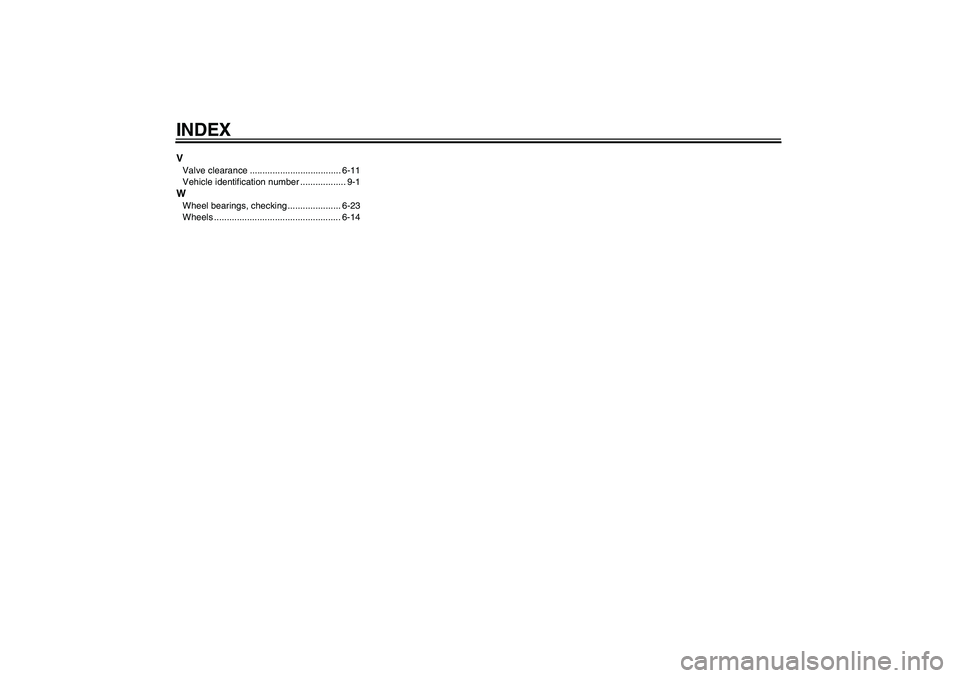

INDEXVValve clearance .................................... 6-11
Vehicle identification number .................. 9-1WWheel bearings, checking ..................... 6-23
Wheels .................................................. 6-14
U5YUE1E0.book Page 2 Tuesday, September 13, 2005 4:13 PM

U5YUE1E0.book Page 3 Tuesday, September 13, 2005 4:13 PM
