PERIODIC MAINTENANCE AND MINOR REPAIR
6-19
6
CAUTION:
ECA11110
Do not use engine oil or any other lu-
bricants for the drive chain, as they
may contain substances that coulddamage the O-rings.
EAU23100
Checking and lubricating the
cables The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
WARNING
EWA10720
Damage to the outer sheath may in-
terfere with proper cable operation
and will cause the inner cable to
rust. Replace a damaged cable as
soon as possible to prevent unsafeconditions.
EAU23111
Checking and lubricating the
throttle grip and cable The operation of the throttle grip should
be checked before each ride. In addi-
tion, the cable should be lubricated at
the intervals specified in the periodic
maintenance chart.
Recommended lubricant:
Engine oil
U5YUE2E0.book Page 19 Tuesday, September 12, 2006 5:02 PM
Page 62 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-20
6
EAU23131
Checking and lubricating the
brake and shift pedals The operation of the brake and shift
pedals should be checked before each
ride, and the pedal pivots should be lu-
bricated if necessary.
EAU23140
Checking and lubricating the
brake and clutch levers Brake lever
Clutch lever
The operation of the brake and clutch
levers should be checked before each
ride, and the lever pivots should be lu-
bricated if necessary.
Recommended lubricant:
Lithium-soap-based grease (all-pur-
pose grease)
U5YUE2E0.book Page 20 Tuesday, September 12, 2006 5:02 PM
Page 63 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
6
EAU23200
Checking and lubricating the

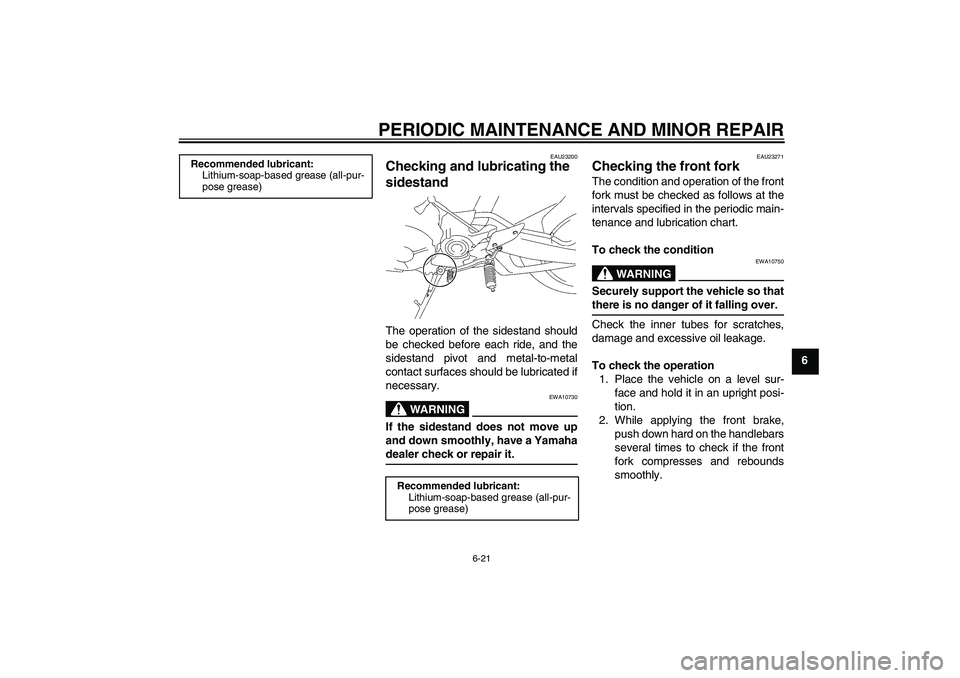

sidestand The operation of the sidestand should
be checked before each ride, and the
sidestand pivot and metal-to-metal
contact surfaces should be lubricated if
necessary.
WARNING
EWA10730
If the sidestand does not move up
and down smoothly, have a Yamahadealer check or repair it.
EAU23271
Checking the front fork The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
WARNING
EWA10750
Securely support the vehicle so thatthere is no danger of it falling over.
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.
2. While applying the front brake,
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
Recommended lubricant:
Lithium-soap-based grease (all-pur-
pose grease)
Recommended lubricant:
Lithium-soap-based grease (all-pur-
pose grease)
U5YUE2E0.book Page 21 Tuesday, September 12, 2006 5:02 PM
Page 64 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-22
6
CAUTION:
ECA10590
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-pair it.
EAU23280
Checking the steering Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
WARNING
EWA10750
Securely support the vehicle so thatthere is no danger of it falling over.
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
U5YUE2E0.book Page 22 Tuesday, September 12, 2006 5:02 PM
Page 65 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
6
EAU23290

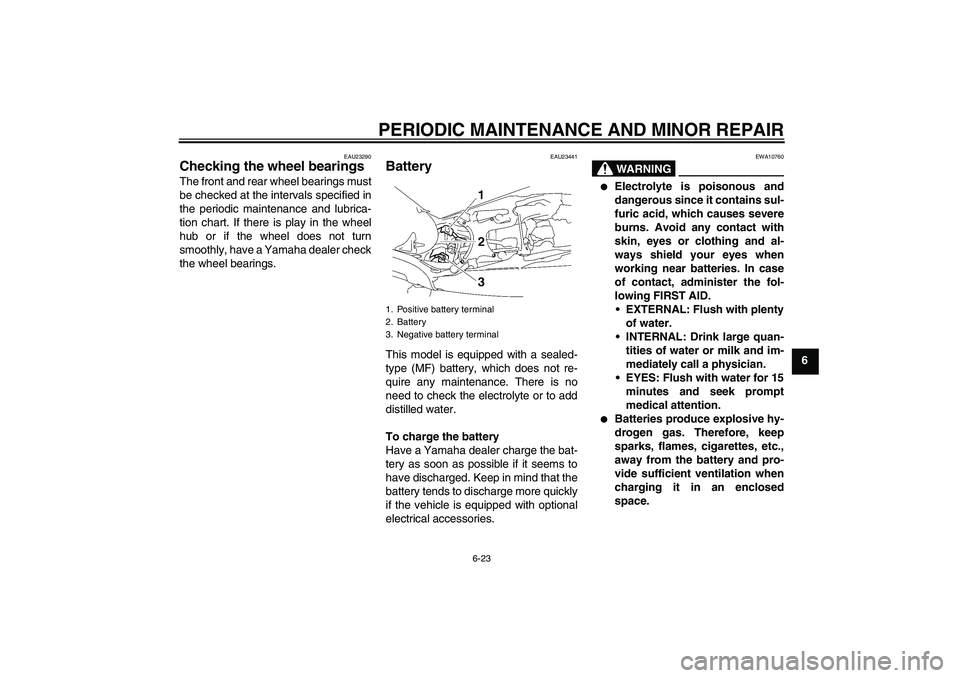

Checking the wheel bearings The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer check
the wheel bearings.
EAU23441
Battery This model is equipped with a sealed-
type (MF) battery, which does not re-
quire any maintenance. There is no
need to check the electrolyte or to add
distilled water.
To charge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that the
battery tends to discharge more quickly
if the vehicle is equipped with optional
electrical accessories.
WARNING
EWA10760
Electrolyte is poisonous and
dangerous since it contains sul-
furic acid, which causes severe
burns. Avoid any contact with
skin, eyes or clothing and al-
ways shield your eyes when
working near batteries. In case
of contact, administer the fol-
lowing FIRST AID.
EXTERNAL: Flush with plenty
of water.
INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.
EYES: Flush with water for 15
minutes and seek prompt
medical attention.
Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed
space.
1. Positive battery terminal
2. Battery
3. Negative battery terminal
U5YUE2E0.book Page 23 Tuesday, September 12, 2006 5:02 PM
Page 66 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-24
6
KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OFCHILDREN.
To store the battery
1. If the vehicle will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
2. If the battery will be stored for more
than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
CAUTION:
ECA10630
Always keep the battery
charged. Storing a discharged
battery can cause permanent
battery damage.
To charge a sealed-type (MF)
battery, a special (constant-volt-
age) battery charger is required.
Using a conventional batterycharger will damage the battery.
If you do not have access to a
sealed-type (MF) battery charg-
er, have a Yamaha dealer
charge your battery.
EAU23624
Replacing the fuses 1. Main fuse
2. Fuel injection system fuse
3. Fuel injection system spare fuse
4. Fuse box
U5YUE2E0.book Page 24 Tuesday, September 12, 2006 5:02 PM
Page 67 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
6
The main fuse and the fuse box, which
contains the fuses for the individual cir-
cuits, are located under the seat. (See
page 3-14.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
1. Fuse box
2. Headlight fuse
3. Signaling system fuse
4. Ignition fuse
5. Muffler cover fan fuse
6. Backup fuse (for odometer, clock and immo-
bilizer system)
7. Auto-decompression fuse
8. ECU fuse
9. Parking lighting fuse
10.Spare fuse
Specified fuses:
Main fuse:
50.0 A
Headlight fuse:
15.0 A
Ignition fuse:
25.0 A
Signaling system fuse:
10.0 A
Parking lighting fuse:
10.0 A
Muffler cover fan fuse:
15.0 A
ECU fuse:
10.0 A
Backup fuse:
10.0 A
Auto-decompression fuse:
15.0 A
Fuel injection system fuse:
15.0 A
U5YUE2E0.book Page 25 Tuesday, September 12, 2006 5:02 PM
Page 68 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-26
6
EAU36820
Replacing a headlight bulb This model is equipped with quartz bulb
headlights. If a headlight bulb burns
out, replace it as follows.
To replace a headlight bulb
1. Remove the headlight unit by re-
moving the bolts on each side.To replace the high beam head-
light bulba. Remove the headlight bulb
holder cover by turning it coun-
terclockwise.b. Disconnect the headlight cou-
pler, and then unhook the
headlight bulb holder.
c. Remove the defective bulb.
WARNING
EWA10790
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooleddown.
d. Place a new headlight bulb into
position, and then secure it with
the bulb holder.
1. Low beam headlight bulb
2. High beam headlight bulb
1. Bolt
1. Headlight bulb holder cover
1. Headlight coupler
2. Headlight bulb holder
U5YUE2E0.book Page 26 Tuesday, September 12, 2006 5:02 PM
Page 69 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
6
CAUTION:
ECA10650
Take care not to damage the follow-
ing parts:
Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.
Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of awattage higher than specified.e. Connect the coupler, and then
install the headlight bulb holder
cover by turning it clockwise.
To replace the low beam headlight
bulba. Disconnect the headlight cou-
pler, and then remove the de-
fective bulb by turning it
counterclockwise.
WARNING
EWA10790
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooleddown.
b. Install the bulb by turning it
clockwise.CAUTION:
ECA10650
Take care not to damage the follow-
ing parts:
1. Do not touch the glass part of the bulb.
1. Headlight coupler
2. Headlight bulb
U5YUE2E0.book Page 27 Tuesday, September 12, 2006 5:02 PM
Page 70 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
6
Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.
Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of awattage higher than specified.c. Connect the headlight coupler.
2. Install the headlight unit by install-
ing the bolts.
3. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24180
Tail/brake light This model is equipped with an LED
type of tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.
1. Do not touch the glass part of the bulb.U5YUE2E0.book Page 28 Tuesday, September 12, 2006 5:02 PM
