MOTORCYCLE CARE AND STORAGE
7-4
7
EAU26201
Storage Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.CAUTION:
ECA10810


Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.


To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-cals are stored.
Long-term
Before storing your motorcycle for sev-
eral months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.3. Perform the following steps to pro-
tect the cylinders, piston rings, etc.
from corrosion.
a. Remove the spark plug caps
and spark plugs.
b. Pour a teaspoonful of engine oil
into each spark plug bore.
c. Install the spark plug caps onto
the spark plugs, and then place
the spark plugs on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder walls with oil.)
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
WARNING
EWA10950
To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turningthe engine over.4. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlets with plas-
tic bags to prevent moisture from
entering them.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-24.
NOTE:Make any necessary repairs beforestoring the motorcycle.
U5YUE3E0.book Page 4 Thursday, September 20, 2007 3:03 PM

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
2185 mm (86.0 in)
Overall width:
800 mm (31.5 in)
Overall height:
1105 mm (43.5 in)
Seat height:
825 mm (32.5 in)
Wheelbase:
1525 mm (60.0 in)
Ground clearance:
145 mm (5.71 in)
Minimum turning radius:
3200 mm (126.0 in)Weight:With oil and fuel:
262.0 kg (578 lb)Engine:Engine type:
Air cooled 4-stroke, OHV
Cylinder arrangement:
V-type 2-cylinder
Displacement:
1670.0 cm³
Bore × stroke:
97.0 × 113.0 mm (3.82 × 4.45 in)
Compression ratio:
8.40 :1
Starting system:
Electric starter
Lubrication system:
Dry sump
Engine oil:Type:
SAE 20W-40
Recommended engine oil grade:
API service SG type or higher, JASO
standard MA
Engine oil quantity:
Without oil filter cartridge replacement:
3.70 L (3.91 US qt) (3.26 Imp.qt)
With oil filter cartridge replacement:
4.10 L (4.33 US qt) (3.61 Imp.qt)Air filter:Air filter element:
Oil-coated paper elementFuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
15.0 L (3.96 US gal) (3.30 Imp.gal)
Fuel reserve amount:
3.0 L (0.79 US gal) (0.66 Imp.gal)Fuel injection:Throttle body:
Manufacturer:
MIKUNI
Type/quantity:
AC40/2Spark plug (s):Manufacturer/model:
NGK/DPR7EA-9
Manufacturer/model:
DENSO/X22EPR-U9
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction system:
Spur gear
Primary reduction ratio:
71/48 (1.479)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
39/17 (2.294)
Transmission type:
Constant mesh 5-speed
Operation:
Left foot operation
Gear ratio:
1st:
38/16 (2.375)
2nd:
30/19 (1.579)
3rd:
29/25 (1.160)
4th:
24/25 (0.960)
5th:
24/30 (0.800)Chassis:Frame type:
Double cradle
Caster angle:
25.00 °
Trail:
103.0 mm (4.06 in)
U5YUE3E0.book Page 1 Thursday, September 20, 2007 3:03 PM

SPECIFICATIONS
8-2
8
Front tire:Type:
Tubeless
Size:
120/70 ZR17 M/C (58W)
Manufacturer/model:
METZELER/ROADTEC Z6 E FRONT
Manufacturer/model:
MICHELIN/PILOT ROAD SRear tire:Type:
Tubeless
Size:
190/50 ZR17 M/C (73W)
Manufacturer/model:
METZELER/ROADTEC Z6 E
Manufacturer/model:
MICHELIN/PILOT ROADLoading:Maximum load:
199 kg (439 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
Loading condition:
90–199 kg (198–439 lb)Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
High-speed riding:
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
Front wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT3.50Rear wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT6.00Front brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4
Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
120.0 mm (4.72 in)Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
117.0 mm (4.61 in)Electrical system:Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magnetoBattery:Model:
GT14B-4
Voltage, capacity:
12 V, 12.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Low beam headlight:
12 V, 51.0 W × 1
High beam headlight:
12 V, 55.0 W × 1
Tail/brake light:
LED
U5YUE3E0.book Page 2 Thursday, September 20, 2007 3:03 PM

SPECIFICATIONS
8-3
8
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 3
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Turn signal indicator light:
LED
Fuel level warning light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LEDFuses:Main fuse:
50.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
25.0 A
Parking lighting fuse:
10.0 AMuffler cover fan fuse:
15.0 A
ECU (Electronic Control Unit) fuse:
10.0 A
Fuel injection system fuse:
15.0 A
Backup fuse:
10.0 A
Auto-decompression fuse:
15.0 A
U5YUE3E0.book Page 3 Thursday, September 20, 2007 3:03 PM

CONSUMER INFORMATION
9-1
9
EAU26351
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in yourarea.
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
1. Vehicle identification number
U5YUE3E0.book Page 1 Thursday, September 20, 2007 3:03 PM

CONSUMER INFORMATION
9-2
9
EAU26480

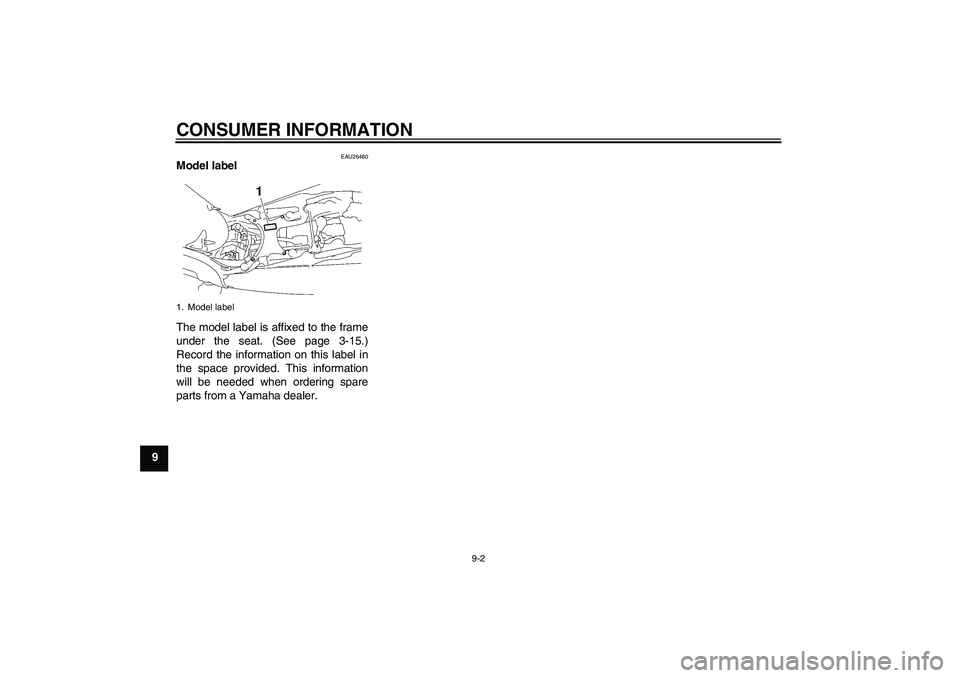

Model label
The model label is affixed to the frame
under the seat. (See page 3-15.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.1. Model labelU5YUE3E0.book Page 2 Thursday, September 20, 2007 3:03 PM

INDEX
AAir filter element.................................... 6-12
Anti-theft alarm (optional) ....................... 3-9
Auxiliary light bulb, replacing ................ 6-31BBattery .................................................. 6-24
Brake and clutch fluids, changing ......... 6-18
Brake and clutch levers, checking and
lubricating ........................................... 6-22
Brake and shift pedals, checking and
lubricating ........................................... 6-21
Brake fluid level, checking .................... 6-17
Brake lever ........................................... 3-11
Brake pedal .......................................... 3-12CCables, checking and lubricating .......... 6-20
Care ........................................................ 7-1
Catalytic converters .............................. 3-14
Clutch lever.................................. 3-10, 6-16
Cowling, removing and installing ............ 6-6DDimmer switch ........................................ 3-9
Drive chain, cleaning and lubricating .... 6-20
Drive chain slack .................................. 6-18EEngine break-in ...................................... 5-3
Engine oil and oil filter cartridge ............. 6-8
Engine stop switch................................ 3-10
Engine trouble warning light ................... 3-4
EXUP system ....................................... 3-20FFront and rear brake pads, checking .... 6-16
Front fork, adjusting .............................. 3-15
Front fork, checking .............................. 6-23Fuel ....................................................... 3-13
Fuel consumption, tips for reducing ........ 5-3
Fuel level warning light............................ 3-4
Fuel tank breather/overflow hose .......... 3-14
Fuel tank cap......................................... 3-12
Fuses, replacing .................................... 6-26
HHandlebar switches ................................. 3-9
Hazard switch........................................ 3-10
Headlight bulb, replacing....................... 6-27
High beam indicator light......................... 3-4
Horn switch ........................................... 3-10IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-21
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-4
Indicator and warning lights .................... 3-4KKey identification number ........................ 9-1LLicense plate light bulb, replacing ......... 6-30
Luggage strap holders .......................... 3-19MMain switch/steering lock ........................ 3-2
Matte color, caution .................................7-1
Model label .............................................. 9-2
Multi-function display...............................3-5NNeutral indicator light .............................. 3-4PParking ....................................................5-4
Part locations .......................................... 2-1
Pass switch ............................................. 3-9Periodic maintenance and lubrication
chart...................................................... 6-2
Pre-operation check list .......................... 4-2
RRear brake light switch, adjusting ......... 6-16SSafety information ................................... 1-1
Seat ...................................................... 3-15
Shifting .................................................... 5-2
Shift pedal ............................................. 3-11
Shock absorber assembly, adjusting .... 3-17
Sidestand .............................................. 3-20
Sidestand, checking and lubricating ..... 6-22
Spark plugs, checking............................. 6-7
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Start switch ........................................... 3-10
Steering, checking ................................ 6-23
Storage ................................................... 7-4
Supporting the motorcycle .................... 6-33TTail/brake light ...................................... 6-30
Throttle cable free play, checking ......... 6-12
Throttle grip and cable, checking and
lubricating ........................................... 6-21
Tires ...................................................... 6-13
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-33
Troubleshooting chart ........................... 6-34
Turn signal indicator lights ...................... 3-4
Turn signal light bulb, replacing ............ 6-30
Turn signal switch ................................... 3-9VValve clearance .................................... 6-12
U5YUE3E0.book Page 1 Thursday, September 20, 2007 3:03 PM

INDEXVehicle identification number .................. 9-1WWheel bearings, checking ..................... 6-24
Wheels .................................................. 6-15
U5YUE3E0.book Page 2 Thursday, September 20, 2007 3:03 PM

U5YUE3E0.book Page 3 Thursday, September 20, 2007 3:03 PM

PRINTED ON RECYCLED PAPER
YAMAHA MOTOR CO., LTD.
PRINTED IN JAPAN
2007.10-0.3×1 CR
(E)
