INSTRUMENT AND CONTROL FUNCTIONS
3-5
3 When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
This model is also equipped with a self-
diagnosis device for the immobilizer
system. (See page 3-7 for an explana-
tion of the self-diagnosis device.)
EAU36854
Multi-function display
WARNING
EWA12421
Be sure to stop the vehicle before
making any setting changes to themulti-function meter unit.
The multi-function display is equipped
with the following:

a speedometer (which shows the
riding speed)


a tachometer (which shows engine
speed)


an odometer (which shows the to-
tal distance traveled)


two tripmeters (which show the
distance traveled since they were
last set to zero)


a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning light came
on)


a clock


a self-diagnosis device


a brightness control mode
NOTE:

Be sure to turn the key to “ON” be-
fore using the “SELECT” and “RE-
SET” buttons except for setting the
brightness control mode.


For the U.K. only: To switch the
speedometer and odometer/trip-
meter displays between kilometers
and miles, press the “SELECT”button for at least two seconds.
1. Clock
2.“RESET” button
3. Tachometer
4.“SELECT” button
5. Speedometer
6. Odometer/tripmeter/fuel reserve tripmeter
U5YUE3E0.book Page 5 Thursday, September 20, 2007 3:03 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3Tachometer
The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the electri-
cal circuit.
CAUTION:
ECA10031
Do not operate the engine in the ta-
chometer red zone.Red zone: 5500 r/min and above
The tachometer needle flashes when it
reaches and exceeds the red zone.Clock mode
To set the clock
1. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
2. When the hour digits start flashing,
push the “RESET” button to set the
hours.
3. Push the “SELECT” button, and
the minute digits will start flashing.
4. Push the “RESET” button to set
the minutes.
5. Push the “SELECT” button and
then release it to start the clock.Odometer and tripmeter modes
Pushing the “SELECT” button switches
the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP 1” and “TRIP 2” in the following
order:
ODO → TRIP 1 → TRIP 2 → ODO
If the fuel level warning light comes on
(see page 3-4), the odometer display
will automatically change to the fuel re-
serve tripmeter mode “F-TRIP” and
start counting the distance traveled
from that point. In that case, pushing
the “SELECT” button switches the dis-
play between the various tripmeter and
odometer modes in the following order:
F-TRIP → TRIP 1 → TRIP 2 → ODO →
F-TRIP
1. Tachometer
2. Tachometer red zone
1. Clock
1. Odometer/tripmeter/fuel reserve tripmeter
U5YUE3E0.book Page 6 Thursday, September 20, 2007 3:03 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3 To reset a tripmeter, select it by push-
ing the “SELECT” button, and then
push the “RESET” button for at least
one second. If you do not reset the fuel
reserve tripmeter manually, it will reset
itself automatically and the display will
return to the prior mode after refueling
and traveling 5 km (3 mi).
Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If any of those circuits are defective, the
engine trouble warning light will come
on or flash, and then the odometer/trip-
meter display will indicate a two-digit
error code.
This model is also equipped with a self-
diagnosis device for the immobilizer
system.
If any of the immobilizer system circuits
are defective, the immobilizer system
indicator light will flash, and then the
display will indicate a two-digit error
code.
NOTE:If the display indicates error code 52,
this could be caused by transponder in-
terference. If this error code appears,try the following.
1. Use the code re-registering key to
start the engine.NOTE:Make sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the enginefrom starting.
2. If the engine starts, turn it off and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
If the display indicates any error codes,
note the code number, and then have a
Yamaha dealer check the vehicle.
CAUTION:
ECA11590
If the display indicates an error
code, the vehicle should be checked
as soon as possible in order to avoidengine damage.
Brightness control mode
The brightness can be adjusted for the
following:

the tachometer panel (item num-
ber “1”)


the LCD (item number “2”)


the tachometer needle (item num-
ber “3”)
1. Tachometer panel
2. LCD
3. Tachometer needle
U5YUE3E0.book Page 7 Thursday, September 20, 2007 3:03 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3Select the brightness control mode as
follows.
1. Turn the key to “OFF”.
2. Push and hold the “SELECT” but-
ton.
3. Turn the key to “ON”, and then re-
lease the “SELECT” button after
five seconds.
Item number “1” is displayed.
4. Adjust the tachometer panel
brightness level by pushing the
“RESET” button.
5. Push the “SELECT” button to se-
lect the LCD.
Item number “2” is displayed.Adjust the LCD brightness level by
pushing the “RESET” button.
6. Push the “SELECT” button to se-
lect the tachometer needle.
Item number “3” is displayed.
Adjust the tachometer needle
brightness level by pushing the
“RESET” button.7. Push the “SELECT” button and the
multi-function display will return to
the odometer or tripmeter mode.
1. Tachometer panel
2. Item number
3. Brightness level
1. LCD
2. Item number
3. Brightness level
1. Tachometer needle
2. Item number
3. Brightness level
U5YUE3E0.book Page 8 Thursday, September 20, 2007 3:03 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6
EAU1770A
Periodic maintenance and lubrication chart NOTE:

The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a
mileage-based maintenance, is performed instead.


From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technicalskills.
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
1*Fuel lineCheck fuel hoses for cracks or
damage.√√√√√
2*Spark plugsCheck condition.
Clean and regap.√√
Replace.√√
3*ValvesCheck valve clearance.
Adjust.√√
4*Air filter elementReplace.√
5*ClutchCheck operation, fluid level and
vehicle for fluid leakage.√√√√√
6*Front brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
7*Rear brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
U5YUE3E0.book Page 2 Thursday, September 20, 2007 3:03 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
8*Brake hosesCheck for cracks or damage.√√√√√
Replace. Every 4 years
9*WheelsCheck runout and for damage.√√√√
10*TiresCheck tread depth and for dam-
age.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√√
11*Wheel bearingsCheck bearing for looseness or
damage.√√√√
12*SwingarmCheck operation and for exces-
sive play.√√√√
13 Drive chainCheck chain slack, alignment and
condition.
Adjust and lubricate chain with a
special O-ring chain lubricant
thoroughly.Every 1000 km (600 mi) and after washing the motorcycle or riding in the rain
14*Steering bearingsCheck bearing play and steering
for roughness.√√√√√
Lubricate with lithium-soap-based
grease.Every 20000 km (12000 mi)
15*Chassis fastenersMake sure that all nuts, bolts and
screws are properly tightened.√√√√√
16Brake lever pivot
shaftLubricate with silicone grease.√√√√√
17Brake pedal pivot
shaftLubricate with lithium-soap-based
grease.√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
U5YUE3E0.book Page 3 Thursday, September 20, 2007 3:03 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
18Clutch lever pivot
shaftLubricate with silicone grease.√√√√√
19Shift pedal pivot
shaftLubricate with lithium-soap-based
grease.√√√√√
20 SidestandCheck operation.
Lubricate.√√√√√
21*Sidestand switchCheck operation.√√√√√√
22*Front forkCheck operation and for oil leak-
age.√√√√
23*Shock absorber as-
semblyCheck operation and shock ab-
sorber for oil leakage.√√√√
24*Rear suspension re-
lay arm and con-
necting arm
pivoting pointsCheck operation.√√√√
25*Fuel injection sys-
temAdjust synchronization.√√√√√
26 Engine oilChange.
Check oil level and vehicle for oil
leakage.√√√√√√
27Engine oil filter car-
tridgeReplace.√√√
28*Front and rear brake
switchesCheck operation.√√√√√√
29Moving parts and
cablesLubricate.√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
U5YUE3E0.book Page 4 Thursday, September 20, 2007 3:03 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
6

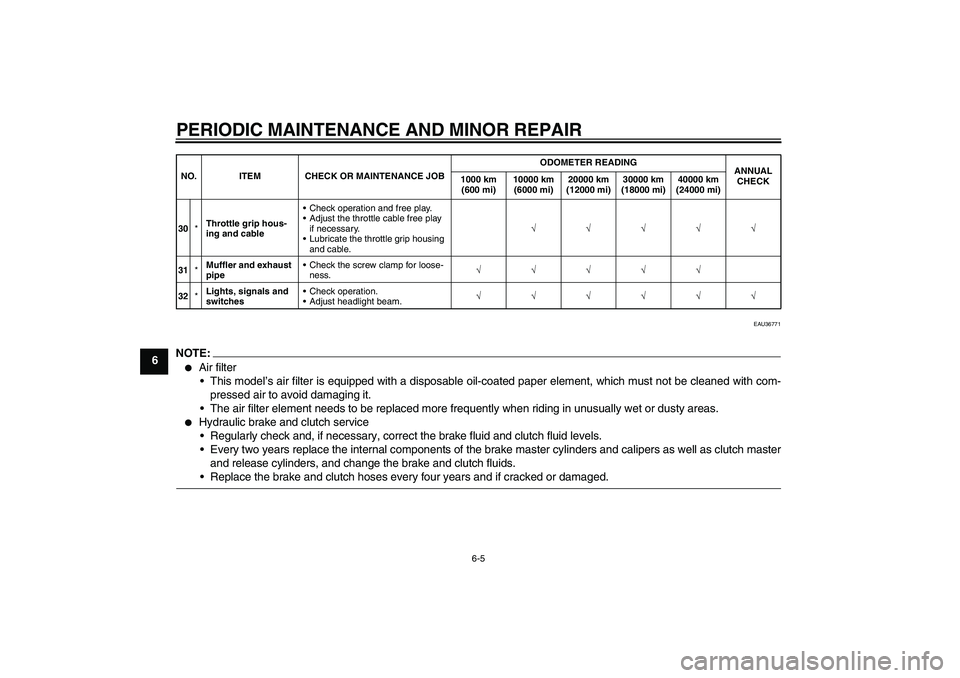

EAU36771
NOTE:

Air filter
This model’s air filter is equipped with a disposable oil-coated paper element, which must not be cleaned with com-
pressed air to avoid damaging it.
The air filter element needs to be replaced more frequently when riding in unusually wet or dusty areas.


Hydraulic brake and clutch service
Regularly check and, if necessary, correct the brake fluid and clutch fluid levels.
Every two years replace the internal components of the brake master cylinders and calipers as well as clutch master
and release cylinders, and change the brake and clutch fluids.Replace the brake and clutch hoses every four years and if cracked or damaged.
30*Throttle grip hous-
ing and cableCheck operation and free play.
Adjust the throttle cable free play
if necessary.
Lubricate the throttle grip housing
and cable.√√√√√
31*Muffler and exhaust
pipeCheck the screw clamp for loose-
ness.√√√√√
32*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)U5YUE3E0.book Page 5 Thursday, September 20, 2007 3:03 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-26
6
EAU23624
Replacing the fuses
The main fuse and the fuse box, which
contains the fuses for the individual cir-
cuits, are located under the seat. (See
page 3-15.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
1. Main fuse
2. Fuel injection system fuse
3. Fuel injection system spare fuse
4. Fuse box
1. Fuse box
2. Headlight fuse
3. Signaling system fuse
4. Ignition fuse
5. Muffler cover fan fuse
6. Backup fuse (for odometer, clock and immo-
bilizer system)
7. Auto-decompression fuse
8. ECU (Electronic Control Unit) fuse
9. Parking lighting fuse
10.Spare fuse
Specified fuses:
Main fuse:
50.0 A
Headlight fuse:
15.0 A
Ignition fuse:
25.0 A
Signaling system fuse:
10.0 A
Parking lighting fuse:
10.0 A
Muffler cover fan fuse:
15.0 A
ECU (Electronic Control Unit) fuse:
10.0 A
Backup fuse:
10.0 A
Auto-decompression fuse:
15.0 A
Fuel injection system fuse:
15.0 A
U5YUE3E0.book Page 26 Thursday, September 20, 2007 3:03 PM
