PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
6
EAU36809
Engine oil and oil filter car-
tridge The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up until
the engine oil has reached a nor-
mal temperature of 60 °C (140 °F),
let it continue to idle for ten sec-
onds, and then turn the engine off.TIPTo achieve the proper engine oil tem-
perature for an accurate oil level read-
ing, the engine must have first
completely cooled down, and then
warmed up again for several minutes to
normal operating temperature.
3. Wait a few minutes until the oil set-
tles, remove the engine oil filler
cap, wipe the engine oil dipstick
clean, insert it back into the oil filler
hole (without screwing it in), and
then remove it again to check the
oil level.TIPThe engine oil should be between the
minimum and maximum level marks.
4. If the engine oil is at or below the
minimum level mark, add sufficient
oil of the recommended type to
raise it to the correct level.TIPWhen adding oil, be careful not to over-
fill the engine oil tank; the oil level rises
faster starting from the half level portion
on the dipstick.5. Insert the dipstick into the oil filler
hole, and then tighten the oil filler
cap.
1. Engine oil filler cap
1. Maximum level mark
2. Minimum level mark
3. Engine oil dipstick
U5YUE5E0.book Page 9 Tuesday, March 17, 2009 9:02 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-17
6
EAU22272
Adjusting the rear brake light
switch The rear brake light, which is activated
by the brake pedal, should come on just
before braking takes effect. If neces-
sary, adjust the rear brake light switch
as follows.
Turn the rear brake light switch adjust-
ing nut while holding the rear brake light
switch in place. To make the brake light
come on earlier, turn the adjusting nut
in direction (a). To make the brake light
come on later, turn the adjusting nut in
direction (b).
EAU22390
Checking the front and rear
brake pads The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU43062
Front brake pads
The front brake calipers are equipped
with two sets of brake pads.
Each front brake pad is provided with
one or two wear indicator grooves,
which allow you to check the brake pad
wear without having to disassemble the
brake. To check the brake pad wear,
check the wear indicator grooves. If a
brake pad has worn to the point that awear indicator groove almost appears,
have a Yamaha dealer replace the
brake pads as a set.
EAU46291
Rear brake pads
Each rear brake pad is provided with
wear indicator grooves, which allow
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that a wear
indicator groove almost appears, have
a Yamaha dealer replace the brake
pads as a set.
1. Rear brake light switch
2. Rear brake light switch adjusting nut
1. Brake pad wear indicator groove
1. Brake pad wear indicator groove
1
1
U5YUE5E0.book Page 17 Tuesday, March 17, 2009 9:02 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-26
64. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
NOTICE
ECA16530
Always keep the battery charged.
Storing a discharged battery can
cause permanent battery damage.
EAU47180
Replacing the fuses The main fuse, the fuel injection system
fuse, and the fuse box, which contains
the fuses for the individual circuits, are
located under the seat. (See page
3-16.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to1. Main fuse
2. Fuel injection system fuse
3. Fuel injection system spare fuse
4. Fuse box
1. Fuse box
2. Headlight fuse
3. Signaling system fuse
4. Ignition fuse
5. Muffler cover fan fuse
6. Backup fuse (for odometer, clock and immo-
bilizer system)
7. Auto-decompression fuse
8. ECU fuse
9. Parking lighting fuse
10.Spare fuse
U5YUE5E0.book Page 26 Tuesday, March 17, 2009 9:02 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-27
6 avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15131]
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU36822
Replacing a headlight bulb This model is equipped with quartz bulb
headlights. If a headlight bulb burns
out, replace it as follows.NOTICE
ECA10650
Take care not to damage the follow-
ing parts:

Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.


Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of a
wattage higher than specified.
Specified fuses:
Main fuse:
50.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
25.0 A
Parking lighting fuse:
10.0 A
ECU fuse:
10.0 A
Fuel injection system fuse:
15.0 A
Auto-decompression fuse:
15.0 A
Backup fuse:
10.0 A
Muffler cover fan fuse:
15.0 A
1. Low beam headlight bulb
2. High beam headlight bulb
1. Do not touch the glass part of the bulb.
U5YUE5E0.book Page 27 Tuesday, March 17, 2009 9:02 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-28
6To replace a headlight bulb
1. Remove the headlight unit by re-
moving the bolts on each side.To replace the high beam head-
light bulba. Remove the headlight bulb
holder cover by turning it coun-
terclockwise.
b. Disconnect the headlight cou-
pler, and then unhook the
headlight bulb holder.c. Remove the burnt-out bulb.
d. Place a new headlight bulb into
position, and then secure it with
the bulb holder.
e. Connect the coupler, and then
install the headlight bulb holder
cover by turning it clockwise.
To replace the low beam headlight
bulba. Disconnect the headlight cou-
pler, and then remove the
burnt-out bulb by turning it
counterclockwise.
1. Do not touch the glass part of the bulb.
1. Bolt
1. Headlight bulb holder cover
1. Headlight coupler
2. Headlight bulb holder
U5YUE5E0.book Page 28 Tuesday, March 17, 2009 9:02 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-29
6 b. Install the bulb by turning it
clockwise.
c. Connect the headlight coupler.
2. Install the headlight unit by install-
ing the bolts.
3. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24181
Tail/brake light This model is equipped with an LED-
type tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.
EAU24204
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw. NOTICE: Do not over-
tighten the screw, otherwise the
lens may break.
[ECA11191]
1. Headlight coupler
2. Headlight bulb
1. Screw
U5YUE5E0.book Page 29 Tuesday, March 17, 2009 9:02 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-30
6
EAU36812

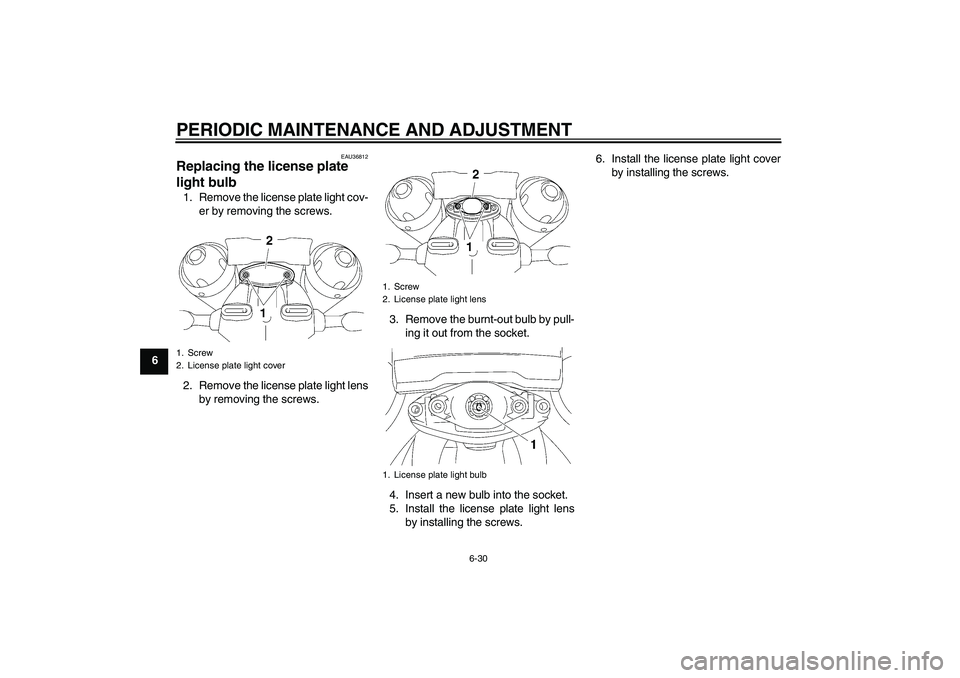

Replacing the license plate
light bulb 1. Remove the license plate light cov-
er by removing the screws.
2. Remove the license plate light lens
by removing the screws.3. Remove the burnt-out bulb by pull-
ing it out from the socket.
4. Insert a new bulb into the socket.
5. Install the license plate light lens
by installing the screws.6. Install the license plate light cover
by installing the screws.1. Screw
2. License plate light cover
1. Screw
2. License plate light lens
1. License plate light bulb
U5YUE5E0.book Page 30 Tuesday, March 17, 2009 9:02 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
6
EAU36842
Replacing an auxiliary light
bulb This model is equipped with three aux-
iliary lights. If an auxiliary light bulb
burns out, replace it as follows.
1. Remove the headlight unit by re-
moving the bolts on each side.
TIPSkip steps 2 and 7 if the auxiliary light
bulb A is being replaced.2. To replace auxiliary light bulb B or
C, remove the corresponding
headlight unit side cover bracket
and the headlight unit side cover
by removing the screws.3. Remove the socket (together with
the bulb) by turning it counter-
clockwise.
4. Remove the burnt-out bulb by pull-
ing it out.
1. Auxiliary light bulb A
2. Auxiliary light bulb B
3. Auxiliary light bulb C
1. Bolt
1. Screw
2. Headlight unit side cover bracket
3. Headlight unit side cover
1. Auxiliary light bulb socket
U5YUE5E0.book Page 31 Tuesday, March 17, 2009 9:02 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
65. Insert a new bulb into the socket.
6. Install the socket (together with the
bulb) by turning it clockwise.
7. Install the headlight unit side cover
and the headlight unit side cover
bracket by installing the screws.
8. Install the headlight unit by install-
ing the bolts.
EAU24350
Supporting the motorcycle Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other maintenance
requiring the motorcycle to stand up-
right. Check that the motorcycle is in a
stable and level position before starting
any maintenance. A strong wooden
box can be placed under the engine for
added stability.
To service the front wheel
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placinga jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
1. Auxiliary light bulbU5YUE5E0.book Page 32 Tuesday, March 17, 2009 9:02 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
6
EAU25851
Troubleshooting Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting chart
represents a quick and easy procedure
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi-
or, have a shorter service life and can
lead to expensive repair bills.
WARNING
EWA15141
When checking the fuel system, do
not smoke, and make sure there are
no open flames or sparks in the ar-
ea, including pilot lights from waterheaters or furnaces. Gasoline or
gasoline vapors can ignite or ex-
plode, causing severe injury or
property damage.
U5YUE5E0.book Page 33 Tuesday, March 17, 2009 9:02 AM
